O9YFLF2PLGPS tracker

1 Revision1.0 Index NALAUSERMANUAL................................................................................................................................1 1INTRODUCTION.......................................................................................................................................2 2PHYSICALANDELECTRICALSPECIFICATIONS...........................................................................2 3LEDINDICATORS.....................................................................................................................................2 4TRACKINGBEHAVIORSUMMARY....................................................................................................2 5.RFEXPOSUREINFORMATIONANDSTATEMENT.........................................................................2 Flex2PL User Manual 2 2PhysicalandElectricalSpecifications InputVoltage:10-30VDC Powerconsumption: -Activemode:120mA@12VDC -Lowpowermode:15mA@12VDC Operatingtemperature:-30°Cto70°C Storagetemperature:-40°Cto85°C 3LEDIndicators Thereare3indicatorLEDsonthedevice,whichareusedtoindicatethestatusofcellularcommunications andGPS,andtoindicatewhenmessagesarecreatedandtransmitted. TheorangeLEDindicatescommunicationsstatus: ● Offindicatesmodemisoff ●Thedeviceentersasleeplow-powerstate TheREDLEDindicatesGPSstatus: ● OffindicatesGPSisoff ●Indicatesnetworkstatus ● Thedevicestartsnormally ThegreenLEDindicatesGPSstatus: ●InstructtoturnontheGPS,andtheGPSworksnormally. ●ImpliesthatGPShasbeensuccessfullylocated 4TrackingBehaviorSummary Nalaapplicationsaddresstheneedsoftypicalvehicleandassettracking.Variationsin functionalbehaviorforspecificapplicationsiscontrolledviaparametersinthesettingsfile. 1)PowerStateReporting TheNalacanbeconfiguredtoreportpowerupandrebootingbehaviorinavarietyof waysdependingonwhatisdesired.ColdBoot,WarmBoot,andfirstGPSAcquisitionare reportedifsoconfiguredfollowingPowerUpevents,powercycling,commandedreboots, 1 Introduction it is a remote start and security tracking device that uses a GPS satellite receiver to determine location information and an LTE transceiver to communicate information to and from a land based server. This document outlines the operation and configuration of the Nalaproduct line using the supplied tracking application. This document is user manual for Nala. 3 andconfiguredperiodicreboots.Inaddition,thereisanoptiontoreportaStopevent followingarebootofanon-movingdevicetoaddresssomecustomerneedstoensurethat thecornercaseofarebootoccurringattheendofatripdoesn’tresultinanerrorintripor idlereportingbytheserver. Ifthedeviceisequippedwithabackupbattery,thenitwillalsoreportPower DisconnectedandPowerConnectedeventswhenprimarypowerisremovedandrestored. 2)MovingState AdeviceentersMovingstateeitherduetodetectionofahardwiredIgnitionsignal,an increaseinthesupplyvoltage,detectionofmovementbytheGPS,oran“AbsoluteG” detection.WhileinMovingstate,thedevicereportsperiodicallyasconfigured.Both primaryMovingintervalreportswithfulldata,and“minorintervals”(withonlylatitude, longitude,speed,andtime)fordatacompressioncanbereportedwhileinMovingstate. 3)SleepingState AdeviceentersSleepingstatefromStoppedstatewhenallofvibration,GPSmovement,and primaryvoltagearequiescentforasufficientduration.Thequalifyingdurationof quiescence,andthedegreeofsleepencountered,arecontrolledbyparametersinthe Settingsfile. 4)HeartbeatReporting 5.RFExposureInformationandStatement ThedevicereportsaHeartbeatmessageatanintervalspecifiedregardlessofstate.Ifthe deviceissleepingwhentheHeartbeattimerexpires,itwillwakeupandgeneratethe Heartbeatmessage.WhetherthedeviceattemptsaGPSfixforeachHeartbeatmessagecan bespecified. ThisequipmentcomplieswithFCCandICradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimum distanceof20cmbetweentheradiatorandyourbody.Thistransmittermustnotbeco- locatedoroperatinginconjunctionwithanyotherantennaortransmitter. Thisdevicecomplieswithpart15oftheFCCrulesandRSS-247ofIndustryCanada. Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. 4 LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexempts delicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpas produiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement. ThisClassBdigitalapparatuscomplieswithCanadianICES-003. CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada. NOTE:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized modificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthoritytooperatethe equipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesand canradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp -Thisdeviceanditsantenna(s)mustnotbeco-locatedoroperatinginconjunctionwithanyother antennaortransmitter.

Spireon Inc Agent Authorization Company: Spireon Inc Address: 9724 Kingston Pike, Suite 800 Knoxville, TN37922 Product Name: GPS tracker Model Number(s): Flex2PL Product Description: GPS tracker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-20 Name: Jason Penkethman Title: Chief Product & Strategy Officer Company: Spireon Inc

Spireon Inc Date: 15 Jan, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Spireon Inc, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Spireon Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: O9YFLF2PL including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of Spireon Inc. Spireon Inc also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Jason Penkethman Title: Chief Product & Strategy Officer Spireon Inc

Spireon Inc Date: 15 Jan, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Spireon Inc FCC ID: O9YFLF2PL FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Spireon Inc requests that the following documents regarding this submission for FCC ID: O9YFLF2PL be kept Long-Term confidential: Exhibit Type Block Diagram Schematics Operational Description Part list Tune-Up-Procedure File Name Block Diagram.pdf Schematics.pdf Operational Description.pdf BOM.pdf Tune up procedure.pdf Those documents ~ontain detailed system and equipment description and related information about the product which Spireon Inc. considers to be confidential proprietary, a custom design aod, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Spireon Inc considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. ·vours Sincerely, Print name: Jason Penkethman Title: Chief Product & Strategy Officer Spireon Inc

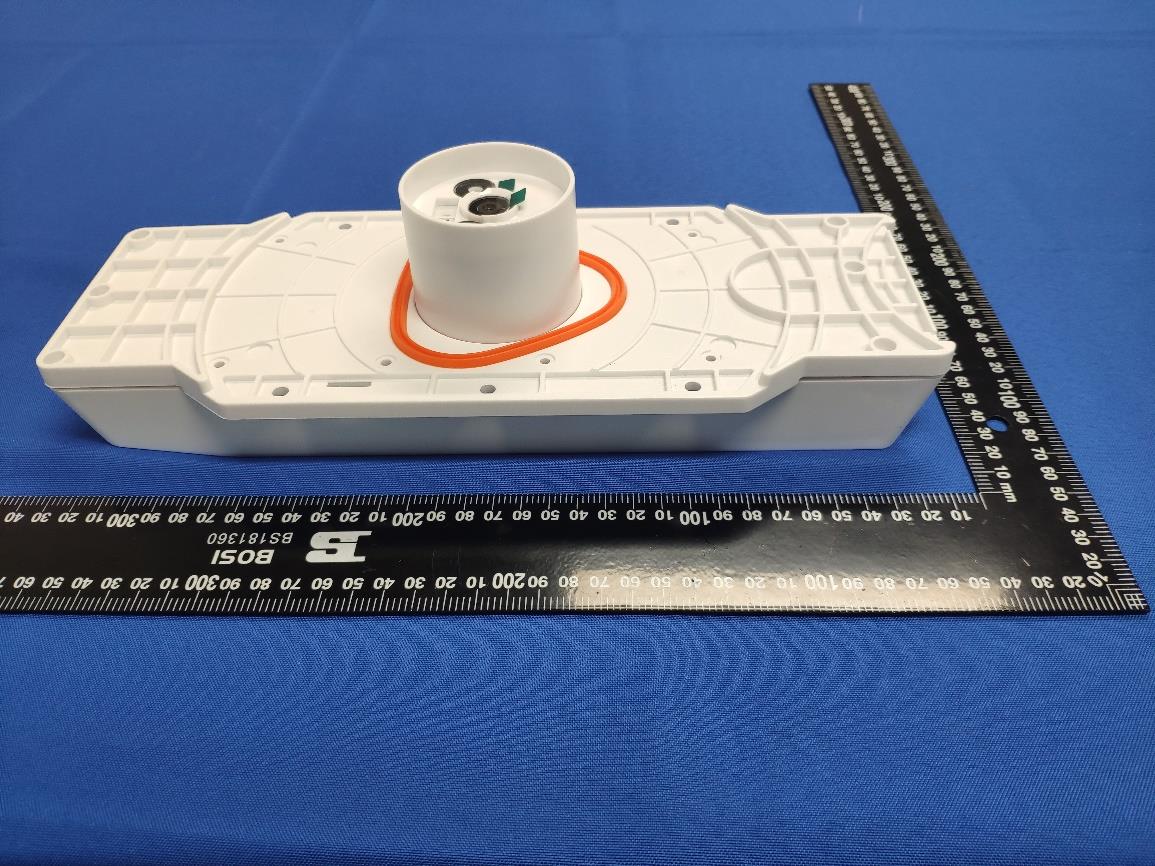

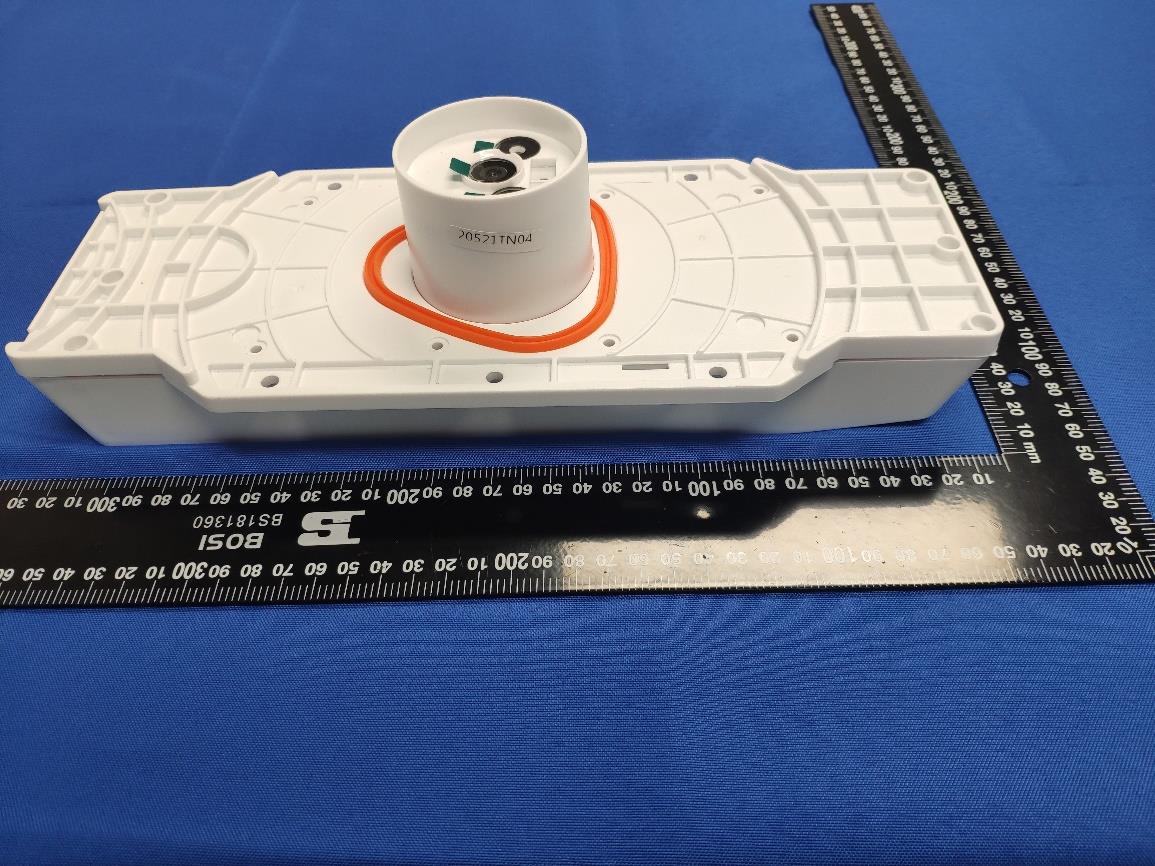

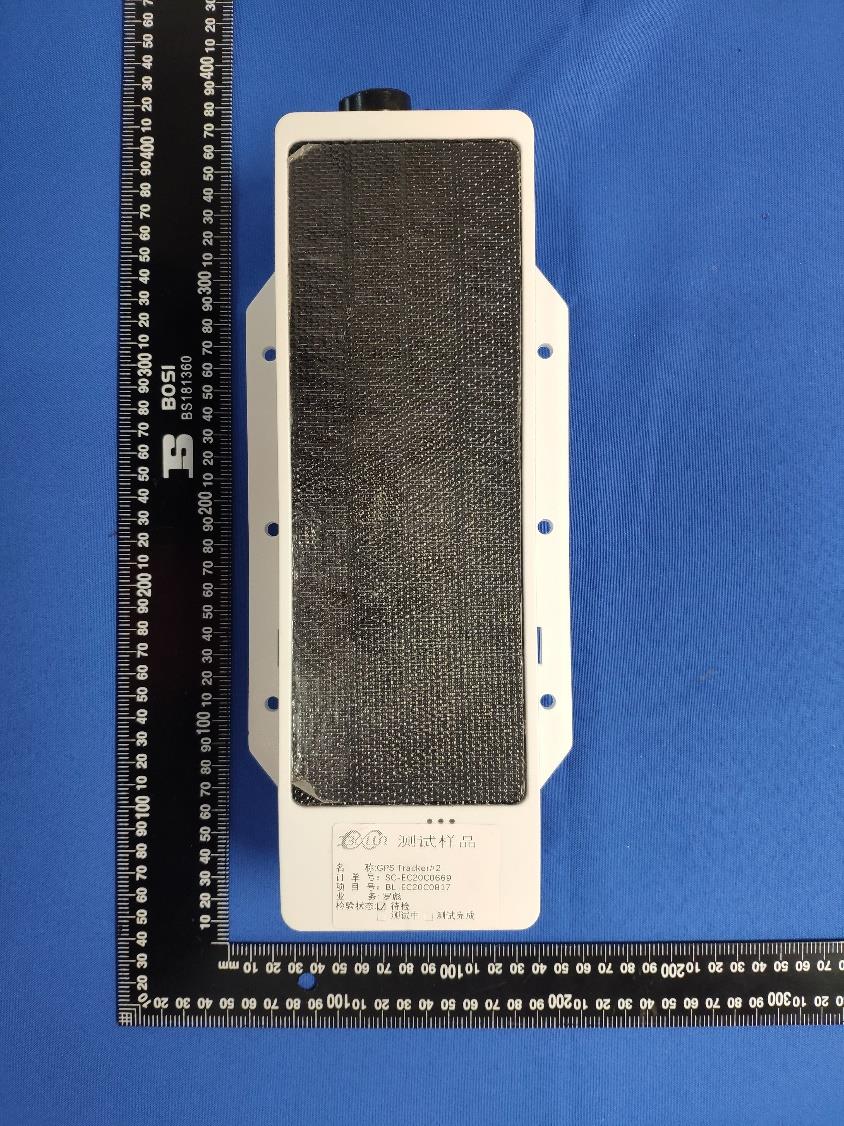

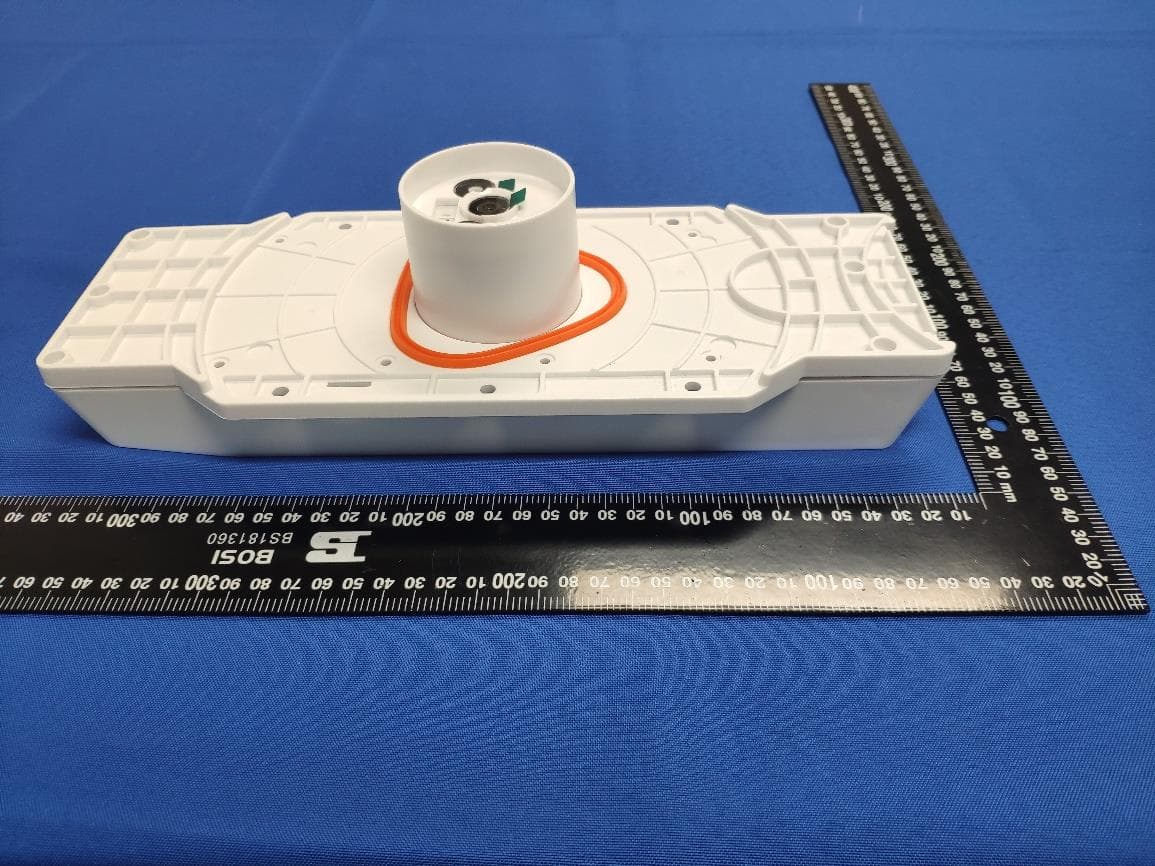

Annex No.: BL-EC20C0817-AW 1 / 4 ANNEX C EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-EC20C0817-AW 2 / 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Annex No.: BL-EC20C0817-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-EC20C0817-AW 4 / 4 ADAPTER OF EUT

THIS SIDE UP M/N: Flex2PL-SL-L-A FCC ID: O9YFLF2PL IC: 22952-FLF2PL 352165050019160 SN: AS220360000007 352165050019160 IMEI: 866298030000007 P18150 Designed in California Made in China H/W : 2.0.0 THIS SIDE UP M/N: Flex2PL-SL-L-A FCC ID: O9YFLF2PL IC: 22952-FLF2PL 352165050019160 SN: AS220360000007 352165050019160 IMEI: 866298030000007 P18150 Designed in California Made in China H/W : 2.0.0 Model # Assigned by ATEL FCC / IC ID H/W = Hardware Version IMEI# Assigned by Vendor All Barcode is Code 128 Format Date Code [P=Product + Year 18 + Week 15 + RMA Code 0] Version # Update when there is any upgrade on H/W Factory Code : S = Starnet Q = Qiao X Date code: YYWW Last 7 digits of IMEI ing Carrier Code :“2” for AT&T “7” for Verizon THIS SIDE UP M/N: Flex2PL-SL-L-A FCC ID: O9YFLF2PL IC: 22952-FLF2PL 352165050019160 SN: AS220360000007 352165050019160 IMEI: 866298030000007 P18150 Designed in California Made in China H/W : 2.0.0 Flex2PL-SL-L-A THIS SIDE UP M/N: Flex2PL-SP-L-A FCC ID: O9YFLF2PL IC: 22952-FLF2PL 352165050019160 SN: AS220360000007 352165050019160 IMEI: 866298030000007 P18150 Designed in California Made in China H/W : 2.0.0 Flex2PL-SP-L-A THIS SIDE UP M/N: Flex2PL-CN-L-A FCC ID: O9YFLF2PL IC: 22952-FLF2PL 352165050019160 SN: AS220360000007 352165050019160 IMEI: 866298030000007 P18150 Designed in California Made in China H/W : 2.0.0 Flex2PL-CN-L-A

Annex No.: BL-EC20C0817-AI 1 / 6 ANNEX D EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW WCDMA&LTE ANTANNA Annex No.: BL-EC20C0817-AI 2 / 6 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Annex No.: BL-EC20C0817-AI 3 / 6 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Annex No.: BL-EC20C0817-AI 4 / 6 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Annex No.: BL-EC20C0817-AI 5 / 6 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Annex No.: BL-EC20C0817-AI 6 / 6 BATTERY TOP VIEW BATTERY REAR VIEW

RF Exposure Evaluation For FCC ID: O9YFLF2PL Refer user manual this device is a GPS tracker, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test Data WCDMA Band2 Mode Low Channel Middle Channel High Channel EIRP (dBm) 23.02 22.89 22.73 WCDMA Band5 Mode Low Channel Middle Channel High Channel ERP (dBm) 20.92 20.65 20.74 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC20C0817-501. LTE Band2 Bandwidth (MHz) 1.4 UL Channel Low Channel UL Modulation QPSK EIRP (dBm) 23.59 LTE Band4 Bandwidth (MHz) 5 UL Channel Low Channel UL Modulation QPSK EIRP (dBm) 23.39 LTE Band12 Bandwidth (MHz) 1.4 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 21.58 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2040071-501. Turn-up power Mode ERP/EIRP Tune up Limit (dBm) WWAN WCDMA Band2 24.00 WCDMA Band5 22.00 LTE Band2 25.00 LTE Band4 25.00 LTE Band12 23.00 Assessment result Evolution mode Maximum ERP/EIRP power (dBm) Total Power (mw) Distance (cm) Limit of Power Density (mW/cm²) Power Density (mW/cm²) Power Density/Limit Verdict WCDMA Band2 24.00 251.19 20 1 0.050 0.050 Pass WCDMA Band5 22.00 158.49 20 0.551 0.032 0.058 Pass LTE Band2 25.00 316.23 20 1 0.063 0.063 Pass LTE Band4 25.00 316.23 20 1 0.063 0.063 Pass LTE Band12 23.00 199.53 20 0.466 0.040 0.086 Pass Note: 1. The worst-case situation is 0.107, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Conclusion: RF exposure Evaluation Results: Compliance

Annex A.7. Field Strength of Spurious Radiation WCDMA 1 WCDMA Band 2 1.1 WCDMA Band 2 Middle Channel RSE-V&H WCDMA Band 2 CH9400 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 111.965 -69.32 -18.87 -13.0 -56.32 109.00 Vertical Horizontal Pass 240.005 -59.36 -14.08 -13.0 -46.36 103.00 Vertical Horizontal Pass 887.965 -56.49 0.05 -13.0 -43.49 209.00 Vertical Horizontal Pass 1880.500 -54.66 -1.49 -13.0 -41.66 136.00 Vertical Horizontal N/A 1961.000 -35.50 -1.78 -13.0 -22.50 23.00 Vertical Horizontal N/A 9314.000 -39.11 19.27 -13.0 -26.11 21.00 Vertical Horizontal Pass RSE-H&H WCDMA Band 2 CH9400 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 120.210 -66.50 -20.66 -13.0 -53.50 265.00 Horizontal Horizontal Pass 276.380 -61.29 -12.82 -13.0 -48.29 75.00 Horizontal Horizontal Pass 887.965 -53.43 0.05 -13.0 -40.43 255.00 Horizontal Horizontal Pass 1961.000 -33.95 -1.78 -13.0 -20.95 328.00 Horizontal Horizontal N/A 5642.000 -44.71 8.53 -13.0 -31.71 188.00 Horizontal Horizontal Pass 18115.000 -34.18 33.86 -13.0 -21.18 333.00 Horizontal Horizontal Pass 2 WCDMA Band 5 2.1 WCDMA Band 5 Middle Channel RSE-V&H WCDMA Band 5 CH4175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 111.723 -70.88 -18.85 -13.0 -57.88 122.00 Vertical Horizontal Pass 240.005 -60.25 -14.10 -13.0 -47.25 111.00 Vertical Horizontal Pass 835.130 -39.96 1.69 -13.0 -26.96 32.00 Vertical Horizontal N/A 880.993 -30.66 0.54 -13.0 -17.66 293.00 Vertical Horizontal N/A 1672.500 -38.14 -4.35 -13.0 -25.14 137.00 Vertical Horizontal Pass 6992.000 -42.46 16.69 -13.0 -29.46 277.00 Vertical Horizontal Pass RSE-H&H WCDMA Band 5 CH4175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 120.695 -68.92 -20.82 -13.0 -55.92 262.00 Horizontal Horizontal Pass 276.138 -60.94 -12.78 -13.0 -47.94 91.00 Horizontal Horizontal Pass 835.130 -38.65 1.69 -13.0 -25.65 199.00 Horizontal Horizontal N/A 880.843 -45.08 0.64 -13.0 -32.08 253.00 Horizontal Horizontal N/A 1668.500 -42.48 -4.24 -13.0 -29.48 228.00 Horizontal Horizontal Pass 6756.000 -43.96 14.48 -13.0 -30.96 37.00 Horizontal Horizontal Pass LTE 3 LTE Band 2 3.1 LTE Band 2 BW1.4, QPSK Middle Channel RSE-V&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 120.938 -72.02 -20.95 -13.0 -59.02 329.00 Vertical Horizontal Pass 240.005 -59.25 -14.08 -13.0 -46.25 83.00 Vertical Horizontal Pass 623.882 -59.23 -4.43 -13.0 -46.23 95.00 Vertical Horizontal Pass 1960.000 -40.82 -1.70 -13.0 -27.82 59.00 Vertical Horizontal N/A 5638.000 -40.45 8.67 -13.0 -27.45 198.00 Vertical Horizontal Pass 18160.501 -33.59 34.19 -13.0 -20.59 39.00 Vertical Horizontal Pass RSE-H&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 116.815 -68.73 -19.90 -13.0 -55.73 249.00 Horizontal Horizontal Pass 275.653 -58.88 -12.77 -13.0 -45.88 91.00 Horizontal Horizontal Pass 839.950 -53.65 -0.44 -13.0 -40.65 238.00 Horizontal Horizontal Pass 1960.000 -43.53 -1.70 -13.0 -30.53 4.00 Horizontal Horizontal N/A 6998.000 -42.79 16.87 -13.0 -29.79 178.00 Horizontal Horizontal Pass 18183.250 -30.89 34.28 -13.0 -17.89 333.00 Horizontal Horizontal Pass 3.2 LTE Band 2 BW1.4, 16-QAM Middle Channel RSE-V&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 107.115 -71.98 -18.09 -13.0 -58.98 96.00 Vertical Horizontal Pass 240.005 -59.76 -14.08 -13.0 -46.76 101.00 Vertical Horizontal Pass 623.882 -59.02 -4.43 -13.0 -46.02 105.00 Vertical Horizontal Pass 1959.500 -42.78 -1.71 -13.0 -29.78 293.00 Vertical Horizontal N/A 6997.000 -42.83 16.84 -13.0 -29.83 310.00 Vertical Horizontal Pass 18076.000 -33.40 33.49 -13.0 -20.40 32.00 Vertical Horizontal Pass RSE-H&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 116.088 -67.44 -19.77 -13.0 -54.44 265.00 Horizontal Horizontal Pass 274.440 -58.17 -12.80 -13.0 -45.17 93.00 Horizontal Horizontal Pass 887.965 -54.50 0.05 -13.0 -41.50 254.00 Horizontal Horizontal Pass 1961.000 -41.66 -1.78 -13.0 -28.66 6.00 Horizontal Horizontal N/A 6993.000 -44.07 16.72 -13.0 -31.07 118.00 Horizontal Horizontal Pass 17195.250 -33.23 30.17 -13.0 -20.23 297.00 Horizontal Horizontal Pass 4 LTE Band 4 4.1 LTE Band4 BW1.4, QPSK Middle Channel RSE-V&H LTE Band 4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 68.800 -70.36 -17.08 -13.0 -57.36 81.00 Vertical Horizontal Pass 240.005 -60.91 -14.13 -13.0 -47.91 304.00 Vertical Horizontal Pass 623.882 -61.76 -4.44 -13.0 -48.76 40.00 Vertical Horizontal Pass 1732.500 -50.81 -2.16 -13.0 -37.81 116.00 Vertical Horizontal N/A 2132.500 -41.37 -1.09 -13.0 -28.37 54.00 Vertical Horizontal N/A 18163.751 -31.48 34.19 -13.0 -18.48 258.00 Vertical Horizontal Pass RSE-H&H LTE Band4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 116.330 -68.63 -19.93 -13.0 -55.63 255.00 Horizontal Horizontal Pass 275.895 -59.36 -12.78 -13.0 -46.36 90.00 Horizontal Horizontal Pass 839.950 -53.74 -0.17 -13.0 -40.74 244.00 Horizontal Horizontal Pass 1732.500 -42.63 -2.16 -13.0 -29.63 117.00 Horizontal Horizontal N/A 2133.000 -44.31 -1.00 -13.0 -31.31 161.00 Horizontal Horizontal N/A 18166.999 -31.63 34.18 -13.0 -18.63 361.00 Horizontal Horizontal Pass 4.2 LTE Band4 BW1.4, 16-QAM Middle Channel RSE-V&H LTE Band 4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 240.005 -60.62 -14.13 -13.0 -47.62 305.00 Vertical Horizontal Pass 504.087 -63.16 -7.55 -13.0 -50.16 143.00 Vertical Horizontal Pass 839.950 -58.61 -0.17 -13.0 -45.61 183.00 Vertical Horizontal Pass 1732.…

Text truncated - open the document above for the full version.

Report No.: BL-EC20C0817-501 2/ 38 Revision History Version Issue Date Revisions Content Rev. 01 Jan. 18, 2021 Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) ........................................................................ 4 1.1 Identification of the Testing Laboratory ............................................................................................ 4 1.2 Identification of the Responsible Testing Location ........................................................................... 4 1.3 Laboratory Condition ....................................................................................................................... 4 1.4 Announce ........................................................................................................................................ 4 2 PRODUCT INFORMATION ................................................................................................................... 5 2.1 Applicant Information ....................................................................................................................... 5 2.2 Manufacturer Information ................................................................................................................ 5 2.3 Factory Information ......................................................................................................................... 5 2.4 General Description for Equipment under Test (EUT) ..................................................................... 5 2.5 Technical Information ...................................................................................................................... 6 3 SUMMARY OF TEST RESULTS ........................................................................................................... 7 3.1 Test Standards ................................................................................................................................ 7 3.2 Test Verdict ..................................................................................................................................... 8 4 GENERAL TEST CONFIGURATIONS .................................................................................................. 9 4.1 Test Environments .......................................................................................................................... 9 4.2 Test Equipment List ......................................................................................................................... 9 4.3 Test Configurations ....................................................................................................................... 11 4.4 Test Setup ..................................................................................................................................... 12 5 TEST ITEMS ....................................................................................................................................... 14 5.1 Transmitter Radiated Power (EIRP/ERP) ...................................................................................... 14 5.2 Peak to Average Ratio .................................................................................................................. 17 5.3 Occupied Bandwidth ..................................................................................................................... 19 5.4 Frequency Stability ........................................................................................................................ 21 5.5 Spurious Emission at Antenna Terminals ...................................................................................... 23 5.6 Band Edge .................................................................................................................................... 26 Report No.: BL-EC20C0817-501 3/ 38 5.7 Field Strength of Spurious Radiation ............................................................................................. 29 ANNEX A TEST RESULTS ..................................................................................................................... 33 A.1 Transmitter Radiated Power (EIRP/ERP) ...................................................................................... 33 A.2 Peak to Average Ratio .................................................................................................................. 36 A.3 Occupied Bandwidth ..................................................................................................................... 36 A.4 Frequency Stability ........................................................................................................................ 36 A.5 Spurious Emission at Antenna Terminals ...................................................................................... 36 A.6 Band Edge .................................................................................................................................... 36 A.7 Field Strength of Spurious Radiation ............................................................................................. 37 ANNEX B TEST SETUP PHOTOS ......................................................................................................... 38 ANNEX C EUT EXTERNAL PHOTOS .................................................................................................... 38 ANNEX D EUT INTERNAL PHOTOS ...................................................................................................... 38 Report No.: BL-EC20C0817-501 4/ 38 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China. Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co.,…

Text truncated - open the document above for the full version.

Annex No.: BL-EC20C0817-AR ANNEX B TEST SETUP PHOTOS 1 Radiated Test Photo 30 MHz-1 GHz Above 1GHz Annex No.: BL-EC20C0817-AR Close-Up
