OAYSRR2BSRR2-B AUTOMOTIVE SENSOR, BLIND SPOT DETECTION

Automotive Distance Control Systems GmbH

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Oct 03, 2012
Application Purpose: Original Equipment
Date of Application: Oct 02, 2012
Equipment Note: SRR2-B AUTOMOTIVE SENSOR, BLIND SPOT DETECTION
Frequency Range: 24059.00000000 - 24230.00000000
Company: Automotive Distance Control Systems GmbH
Country: Germany

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

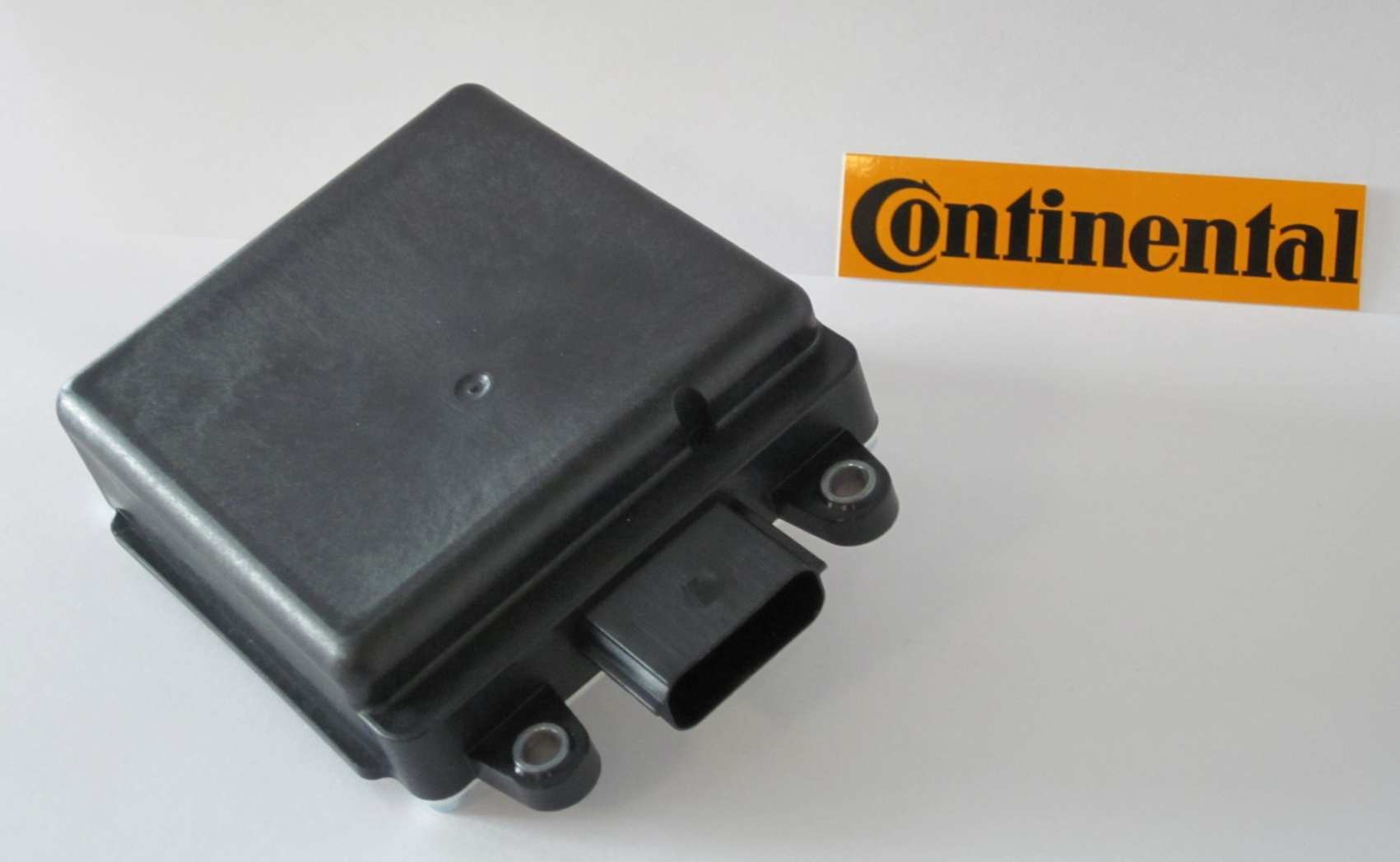

External Photos

SRR2-B Sample Photos SRR2-B Sensor Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 2 / Dr. Frank Gruson / 2011-01-14 © Continental AG Boundary description top 107 Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 3 / Dr. Frank Gruson / 2011-01-14 © Continental AG 86 80 85 Boundary description side 26,5 Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 4 / Dr. Frank Gruson / 2011-01-14 © Continental AG 26,5 Front view Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 5 / Claudia Heidenreich/ 2012-08-02 © Continental AG Back view Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 6 / Dr. Frank Gruson / 2011-01-14 © Continental AG

ID Label/Location Info

SRR2-B Exhibit 7 – Label sample Label front side Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 2 / Autor / Druckdatum © Continental AG Label back side Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 3 / Autor / Druckdatum © Continental AG Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 4 / Autor / Druckdatum © Continental AG

ID Label/Location Info

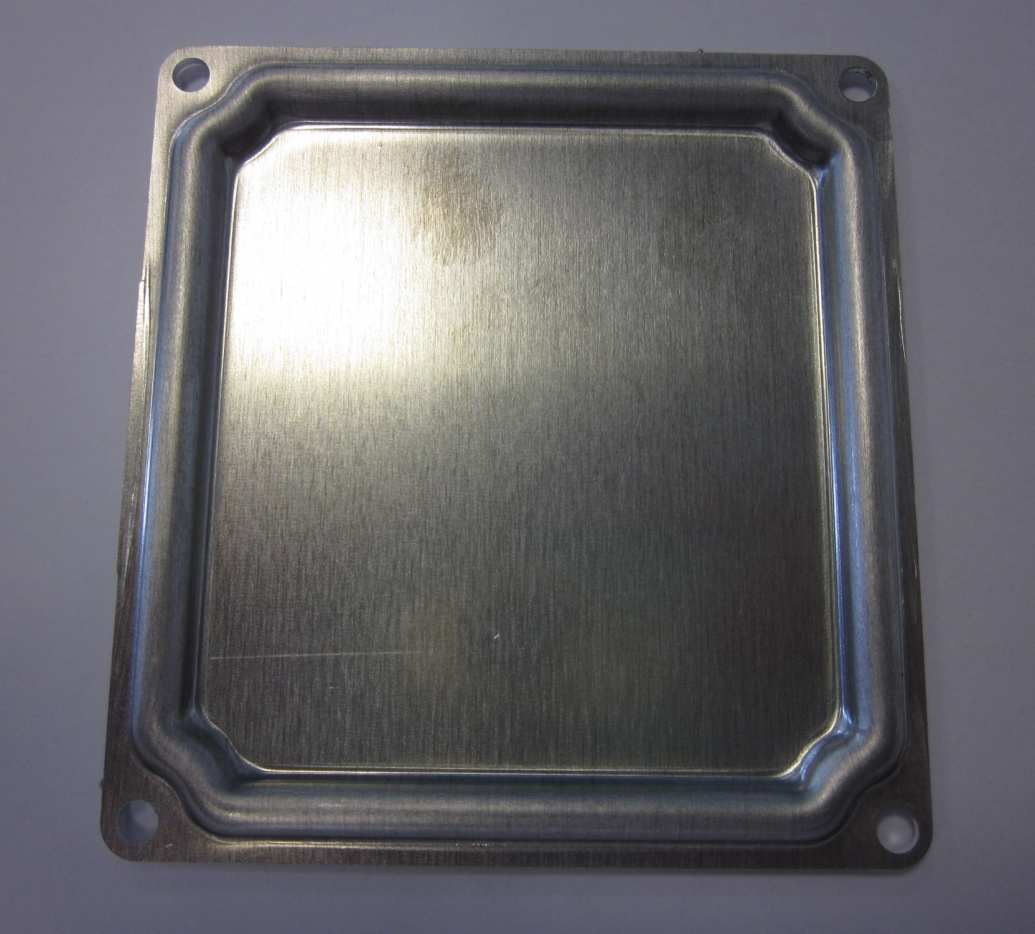

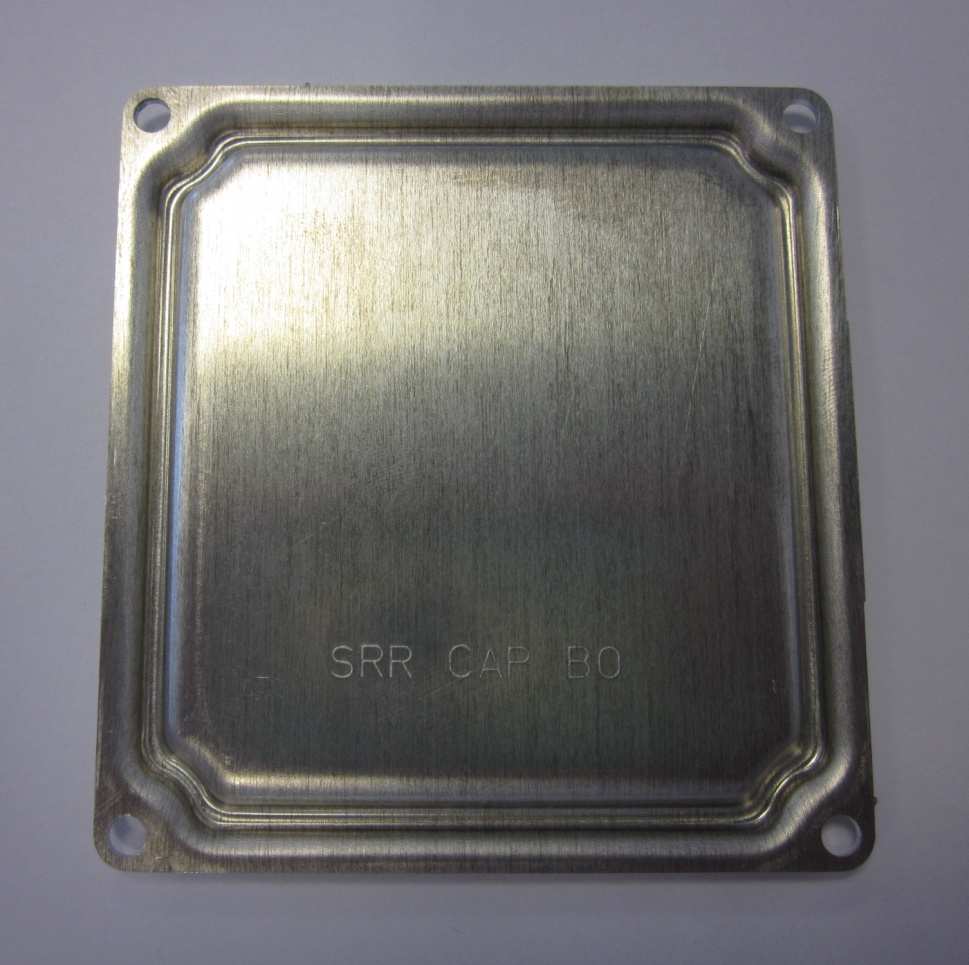

Internal Photos

HF PCB front Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 7 / Dr. Frank Gruson / 2011-01-14 © Continental AG HF PCB back Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 8 / Dr. Frank Gruson / 2011-01-14 © Continental AG LF PCB front Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 9 / Dr. Frank Gruson / 2011-01-14 © Continental AG LF PCB back Passive Safety & ADAS / Chassis & SafetyAdvanced Driver Assistance Systems 10 / Dr. Frank Gruson / 2011-01-14 © Continental AG

RF Exposure Info

Test Number: 301-12 Issue Date: 7/20/2012 Page 22 of 23 6. Measurement Data (continued) 6.9. Public Exposure to Radio Frequency Energy Levels (15.247(i) (1.1307 (b)(1)) RSS-GEN 5.5, RSS 102 Note: The following equation is used to determine the output power from the measured worst case field strength: (E x d) 2 P = (30 x G) P = the power in Watts. E = the measured maximum field in V/m G = the numeric gain of the transmitting antenna over an isotropic radiator. d = the distance in meters of the field strength measurement. Frequency Peak Field Strength Distance Antenna Gain 1 Measured Output Power Channel (GHz) (dBμV/m) (m) (dBi) (mW) ISM 24.15 113.45 3.0 12.200 4.00 Power Density Channel MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) (mW/cm 2 ) (W/m 2 ) Limit (mW/cm²) Result (1) (2) (3) (4) (5) ISM 20 6.02 0.50 0.0008930 0.0089300 1 Compliant OP + AG (4 x π x d²) PD = PD = Power Density (mW/cm2) OP = DUT Output Power (dBm) AG = DUT Antenna Gain (dBi) d = MPE Distance (cm) 1. Reference CFR 2.1093(b): For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. 2. Sections 6.2 of this test report. 3. Antenna gain data provided by the client. 4. Power density is calculated from field strength measurement and antenna gain. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population/Uncontrolled Exposure. Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com

Test Report

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 301-12 In Accordance with the Requirements of Federal Communications Commission CFR Title 47 Part 15.249, Subpart C Industry Canada RSS 310, Issue 3 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Continental Automotive ADC Automotive Distance Control Systems GmbH Peter-Dornier-Str. 10 D-88131 Lindau/Bodensee Germany for the SRR2-B Automotive Sensor FCC ID: OAYSRR2B Report Issued on July 20, 2012 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 301-12 Issue Date: 7/20/2012 Page 2 of 23 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2. Product Details.................................................................................................................... 3 2.1. Manufacturer ..............................................................................................................3 2.2. Model Number............................................................................................................ 3 2.3. Serial Number ............................................................................................................ 3 2.4. Description ................................................................................................................. 3 2.5. Power Source............................................................................................................. 3 2.6. EMC Modifications ..................................................................................................... 3 3. Product Configuration ......................................................................................................... 4 3.1. Support Equipment .................................................................................................... 4 3.2. Cables ........................................................................................................................ 4 3.3. Operational Characteristics & Software ..................................................................... 4 3.4. Block Diagram ............................................................................................................ 4 4. Measurements Parameters................................................................................................. 5 4.1. Measurement Equipment Used to Perform Test ........................................................ 5 4.2. Measurement & Equipment Setup ............................................................................. 6 4.3. Measurement Procedure............................................................................................ 6 4.4. Choice of Operating Frequencies .............................................................................. 6 5. Measurement Summary...................................................................................................... 7 6. Measurement Data.............................................................................................................. 8 6.1. Antenna Requirement ................................................................................................ 8 6.2. Radiated Field Strength of Fundamental ................................................................... 9 6.3. Radiated Field Strength of Harmonics ..................................................................... 10 6.4. Band Edge Measurements....................................................................................... 11 6.5. Spurious Radiated Emissions .................................................................................. 13 6.6. Occupied Bandwidth (-26 dB) .................................................................................. 20 6.7. 99% Power Bandwidth ............................................................................................. 21 6.9. Public Exposure to Radio Frequency Energy Levels ............................................... 22 7. Test Site Description ......................................................................................................... 23 Test Number: 301-12 Issue Date: 7/20/2012 Page 3 of 23 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1. Scope This test report certifies that the Continental Automotive SRR2-B Automotive Sensor, as tested, meets the FCC Part 15, Subpart C and Industry Canada RSS 310, Issue 3 requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2. Product Details 2.1. Manufacturer: Continental Automotive 2.2. Model Number: SRR2-B 2.3. Serial Number: 0A2C73480200 2.4. Description: Automotive Blind Spot Detection Sensor 2.5. Power Source: 12 Volts DC (Automotive Application) 2.6. Hardware Revs.: B 2.7. Software Rev.: N/A 2.8. EMC Modifications: None Test Number: 301-12 Issue Date: 7/20/2012 Page 4 of 23 3. Product Configuration 3.1. Support Equipment Device Manufacturer Model Serial No. Comment Mode Switch Box Continental Automotive N/A 2011-01-27 (Creation Date) Provides all setup functions for the SRR2-B Radar Sensor. 3.2. Cables Cable Type (See Note) Length Shield From To Custom Interface Cable 1 Meter No Mode Switch Box SRR2-B Radar Sensor 3.3. Operational Characteristics & Software Continental Automotive provided a Mode Switch Box to control the SRR2-B Radar Sensor. The box pr…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: OAYSRR2B TEST SET UP RADIATED FRONT RADIATED REAR
