OBDT18AHF-43392Car Alarm Transmitter

1 REMOTE CONTROL FUNCTION ButtonFunctionsConditions 1 a. Arm and lock doors b. Car finder with sound c. Stop alarm temporarily d. Remote lock doors Disarmed and ACC OFF Armed Sounding While driving 1 for 2 sec. Close windows and armNot armed 2 a. Disarm and unlock doors b. Remote unlock doors c. Stop alarm temporarily Armed and ACC OFF While driving Sounding 2 for 2 sec. Open windows and disarmAnytime 3 b. Silent arming c. Car finder without sound d. Enter Anti car-hijacking Disarmed and ACC OFF Armed While driving 3 for 2 sec.Exit Anti Car-hijackingIn anti car-hijacking mode 1+2Remote PanicAnytime but valet mode 1+3TURN ON/OFF background lightAnytime 1+3 for 2 secEnter/Exit VALET MODEDisarmed and ACC ON 1+4 for 2 secEnter/Exit TURBO modeAnytime 2+3Remote trunk releaseAnytime 2+4 Timer Start bookingTimer Start booking requirement fulfilled 4 for 2 sec Remote Engine StartRemote Engine Start booking requirement fulfilled 1+4 Turn ON/OFF vibration display (only T20H) *reserved option Anytime Remark: a. Please refer the above table and the following operating instructions for all functions. b. Use Hopping code for transmission. C. When pressing buttons of T18A, please press more than 0.5 seconds. CODE LEARNING a. When in disarmed mode, turn ACC ON, press Valet Switch 10 times within 8 seconds, siren will chirp 3 times, system will enter code-learning mode. b. Press any key on the transmitter, the siren will chirp accordingly for confirmation as soon as the transmitter is learned. For example, if the first transmitter is learned, the siren will chirp once. If the second transmitter is learned, the siren will chirp twice, etc...Up to 2 transmitters can be programmed. c. If one of the transmitters is programmed, the other transmitters must be reprogrammed within 8 seconds. Turn ignition OFF or 8 sec later, system will exit code- learning mode. A RMING a. Press button 1. b. Siren will chirp once. c. The doors will be locked after 0.5 sec or 3.5 sec. (see function selection 1) d. Parking lights will flash once. e. LED will flash slowly (If the doors aren’t closed properly and the system can’t enter arming mode completely, siren will chirp 5 times. If the trunk isn’t closed properly, siren will chirp 6 times and parking lights will flash 6 times. If the bonnet isn’t closed properly, siren will chirp 4 times and parking lights will flash 4 times, then the sensor can’t be triggered and LED flashes quickly.) f. After 3 seconds, all the sensors are armed. If the alarm is triggered within 3 sec, the siren will chirp twice and the circuit will be by-passed. Alarm will rearm by itself only when the sensor is stable for 2 sec. A UTO WINDOWS CLOSING / OPENING If not in armed mode, press button 1 for 2 sec, the windows will be closed automatically. At any time, press button 2 for 2 sec, the windows will be opened automatically. D ISARMING a. Press button 2. b. Siren will chirp 3 times, parking lights will flash 3 times. If siren chirps 4 times and parking lights flash 4 times, which means the alarm has been triggered during arming state. (In silent arming mode, siren will not chirp, only parking lights will flash) c. Doors will be unlocked after 0.5 sec or 3.5 sec (see function selection 1), LED will flash quickly. d. Dome light will be ON for 30 sec, and will be OFF when ACC ON. e. If the door is opened, LED will be OFF, the dome light is turned ON. S ILENT ARMING a. Press button 3. b. Parking light will flash once. c. Doors will be locked after 0.5 sec or 3.5 sec. (see function selection 1) d. LED will flash slowly. (If doors are not closed properly and the system can’t enter arming mode completely, parking lights will flash 5 times, if the trunk isn’t closed properly, parking lights will flash 6 times, if the bonnet isn’t closed properly, the parking lights will flash 4 times, which indicate that sensor will be by-passed, LED will flash quickly.) e. Disable Engine starter. g. After 3 seconds, all the sensors are armed. If the alarm is triggered within 3 sec, the siren will chirp twice and the circuit will be by-passed. Alarm will rearm by itself only when the sensor is stable for 2 sec. L AST DOOR ARMING WITH / WITHOUT DOOR LOCK ( FUNCTION SELECTION 8,9) a. If ACC is OFF, the last door is opened and closed, alarm will enter arming mode automatically after 30 seconds with door lock/unlock. b. When not choosing LAST DOOR ARMING function, the siren will chirp twice for warning 10 sec after the door is closed. If choose LAST DOOR ARMING function, the siren won’t chirp. E NVIRONMENTAL PROTECTION ALARM MODE In armed mode, if the shock sensor is triggered, siren will sound and parking lights will flash for 30 sec; if the ACC is triggered, siren will continue sounding and parking lights will continue flashing. If other parts are triggered, siren will sound and the parking lights will flash for 3 circles. (One circle is 30 sec), then the siren will not sound and parking lights stop flashing, but the engine will remain disable. If the sensor is stable for 3 sec, the system will return to arming mode. R EARMING ( FUNCTION SELECTION 10,11) After disarming, if door is not opened or ignition remains OFF position, 30 sec later. the system will be rearmed with door locked or unlocked. E MERGENCY DISARMING CODE SETTING ( ORIGINAL PRESET CODE : PRESS VALET SWITCH 5 TIMES WITHIN 8 SEC ) When ACC OFF and disarmed, press button 2 once and turn ACC ON within 10 sec. Then press the valet switch at set-up value or factory preset value within 8 sec, at the 8th sec, siren will chirp 4 times, which indicates the system enters emergency disarming code setting mode: a. Press valet switch with the numbers (1-9) you prefer to within 10 sec, the siren will chirp once when the switch is pressed once. Turn ACC OFF, siren will chirp to indicate the value you entered. b. If over 9 times or replaced value is “0”, this setting is failed. If there are no chirps after entering the value, which shows the setting is failed too. E MERGENCY DISARM…

Text truncated - open the document above for the full version.

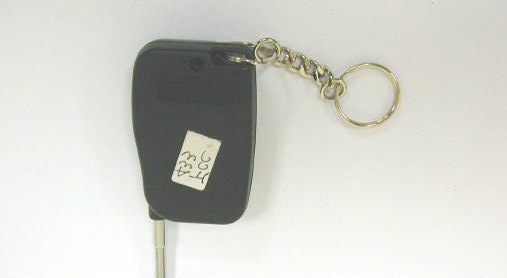

ETC Report No.: ET91S-12-105-04Page A1 of A1 FCC ID: OBDT18AHF-43392 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of EUT 2. Rear view of EUT

ETC Report No.: ET91S-12-105-04Page B1 of B2 FCC ID: OBDT18AHF-43392 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Front view of PCB ETC Report No.: ET91S-12-105-04Page B2 of B2 FCC ID: OBDT18AHF-43392 3. Rear view of PCB

T18AHF-43392 Operation Description Button 1,2,3,4 (SW 1,2,3,4) are supplied DC Power to circuit and decided U1 (Encode IC) was sending the out signal, and the signal was through X1 to Oscillator step Q1 and Amplifier step Q2 to transmit RF signal.

FCC ID: OBDT18AHF-43392 Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : Car Alarm Transmitter FCC ID. : OBDT18AHF-43392 MODEL : T18AHF-43392 Working Frequency: 433.92MHz for APPLICANT: Portman Security System International Co., Ltd. ADDRESS: 9F-2, No. 8, Lane 609, Chung Hsin Rd, Sec. 5, San Chung City, Taipei County, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET91S-12-105-04 ETC Report No.: ET91S-12-105-04FCC ID: OBDT18AHF-43392 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Portman Security System Internatinal Co., Ltd. 9F-2, No. 8, Lane 609, Chung-Hsin Rd, Sec. 5, San Chung City, Taipei County, Taiwan Manufacturer: Portman Electronics [Shenzhen] Ltd. The Ninth Building, Tong-Fuyu Industrial District, Long Hua Town, Bao’an Shenzhen, China Description of EUT: a) Type of EUT: Car Alarm Transmitter b) Trade Name: ---- c) Model No.: T18AHF-43392 d) FCC ID: OBDT18AHF-43392 e) Working Frequency: 433.92MHz f) Power Supply: DC 3V Battery*2(TYPE:CR2016) Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date: Dec. 25, 2002 Test Engineer: Approve & Authorized Signer: Win-Po Tsai, Supervisor, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET91S-12-105-04FCC ID: OBDT18AHF-43392 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION..................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................2 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD................................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..........................................................................................................................................................5 3.3 DEVIATIONS STATEMEN OF TEST................................................................................................................................................5 3.4 TEST DATA........................................................................................................................................................................................7 3.5 FIELD STRENGTH CALCULATION..................................................................................................................................................9 3.6 RADIATED TEST EQUIPMENT......................................................................................................................................................10 3.7 MEASURING INSTRUMENT SETUP...............................................................................................................................................11 3.8 RADIATED MEASUREMENT PHOTOS..........................................................................................................................................12 4. BANDWIDTH OF EMISSION......................................................................................................................................................13 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH....................................................................................................13 4.2 BANDWIDTH TEST EQUIPMENT...........................................…

Text truncated - open the document above for the full version.
