OBDT23-315Remote Control Transmitter

MOTORCYCLE ALARM REMOTE CONTROL: ButtonStepFunctionCondition 1 Press once Press once Arm/Disarm Stop alarm sounding ACC OFF Alarm sounding 2 1Press 2 then 1 within 2 sec.Silent Arm/DisarmWhen disarmed & ACC OFF 2Press once 1. Enter Anti motorcycle-jacking 2. Set Arm w/o Shock Trigger While driving Armed 2 for 2 sec.Press and hold for 2 sec. 1. Exit Anti motorcycle-jacking 2. Shock Sensor Trigger Intensity Learning In Anti motorcycle-jacking mode. Disarmed 1 + 2Press 1&2 at the same timePanicAnytime T23 FEATURES: CODE LEARNING In case the remote control is lost, or you want to add more remote controls (up to 3 most). Please refer to following procedures: 1. In disarming mode, turn ACC ON, press Valet switch 10 times within 8 sec. Siren will chirp 3 times. 2. Press any button on the transmitter, siren will chirp the times of transmitter’s sequence. E.g. One chirp for the first transmitter, twice for the second, three times for the third. 3. After 8 sec or turn ACC OFF., the system will automatically exit code learning and store the code. SHOCK SENSOR TRIGGER INTENSITY LEARNING 1. In disarmed mode, turn the key to OFF position, press button 2 for 2 sec., siren will chirp 3 times to indicate entering Shock Sensor Trigger Intensity learning mode. 2. To knock the motorcycle to create the vibration intensity threshold you want to set, siren will chirp twice to indicate shock sensor intensity has been learned. At the same time system will exit the learning mode, or chirp 5 times in 8 sec. to indicate shock sensor intensity has not been learned, and exit this mode automatically. ARMING 1. In disarmed mode, turn ACC OFF, press button 1 once, siren will chirp once. After 5 sec., system will be armed automatically, LED flashes slowly for 15 sec. and disable engine. 2. In arming mode, to turn on the key will trigger the siren. The siren will keep 30 sec-cycle sounding till key turned to OFF. After the key is turned to OFF, siren will keep sounding till cycle end. ARMING W/O SHOCK SENSOR When system enters arming mode, within 5 sec. , press button 2 once, system will long chirp once and lamp will flash once to indicate that the shock sensor is bypassed. SILENT ARMING In disarmed mode, turn the key to OFF, press button 2 and then button 1 within 2 sec., lamp will flash once, 5 sec. later system will be armed automatically, LED will flash slowly for 15 sec. and disable engine. DISARMING 1. In arming mode, press button 1 once, siren will chirp twice, lamp will flash twice. Then system will be disarmed and enable the engine starter. 2. If the alarm is triggered during arming mode, siren will chirp and lamp will flash 4 times when disarming. 3. If auto re-arming selected, 30sec. later system will be armed automatically when key keeps OFF. AUTO RE-ARMING After disarming, 30 sec. later if driver hasn’t start engine, system will be rearmed automatically. LED will flash slowly for 15sec. CAR FINDER In arming mode, press button 2 once, siren will chirp 5 times and lamp will flash 5 times for motorcycle finding. REV: B PANIC 1. Press button 1+2 at the same time, lamp will flash and siren will sound for 10 sec. 2. Press any button to stop sounding. ANTI MOTORCYCLE-JACKING 1. When key has been turned ON, press button 2, then motorcycle-jacking mode is activated. Siren will chirp once every 3sec., after chirping 5 times, siren will chirp once every 1.5sec. After chirping 8 times, lamp will flash and siren will sound for 10 sec. Then lamp will continue flashing and siren will continue sounding and disable the engine. During anti motorcycle-jacking mode, when the key turns to OFF, siren will stop and engine will be disabled. If key has been turned to ON again, siren will sound and engine will not be able to start. LED will flash quickly. 2. To exit anti motorcycle-jacking : Turn key to ON, and press button 2 for 2 sec. SHOCK SENSOR In arming mode, if motorcycle is knocked lightly, siren will chirp twice and lamp will flash twice for warning (chirp 1 sec. and stop 1 sec.), if motorcycle is shocked heavily, siren will chirp 10 sec., EMERGENCY OVERRIDE In arming mode, if remote control is failed or lost, please refer to following step for Emergency Override: Turn key to ON, press valet switch 5 times within 10 sec., siren will chirp 4 times, the system is then disarmed. FUNCTION SELECTION 1. In disarming mode, turn ACC to ON, press valet switch 7 times within 8 sec. After 8 sec siren will chirp 1 time. 2. Then turn ACC OFF, LED will flash, press valet switch (siren will chirp once per press) until you get the numbers you want to change the functions (within 10 sec.). 3. Turn ACC to ON, siren will chirp once or twice to indicate the functions you select. In case it chirps 3 times to indicate input failed. NO.FUNCTION SELECTIONPRESET (CHIRP ONCE)VARABLE (CHIRP TWICE) 1AUTO REARMINGYESNO 2ANTI MOTORCYCLE-JACKINGYESNO Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

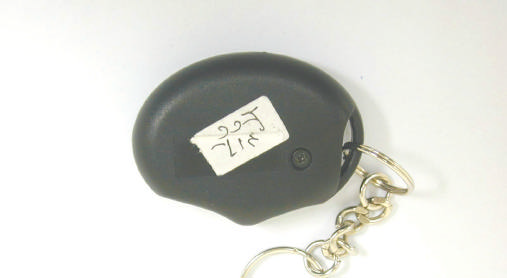

ETC Report No.: ET91S-12-105-03Page A1 of A1 FCC ID: OBDT23-315 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of EUT 2. Rear view of EUT

T23

ETC Report No.: ET91S-12-105-03Page B1 of B2 FCC ID: OBDT23-315 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Front view of PCB ETC Report No.: ET91S-12-105-03Page B2 of B2 FCC ID: OBDT23-315 3. Rear view of PCB

T23 Operate Description Button 1,2 (S1,2) are supplied DC power to Encode Circuit and decided U1 was sending the signal type, and the signal was through R2 to Oscillator step Q1 to Transmit RF signal .

FCC ID: OBDT23-315 Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : Car Alarm Transmitter FCC ID. : OBDT23-315 MODEL : T23-315 Working Frequency: 315MHz for APPLICANT: Portman Security System International Co., Ltd. ADDRESS: 9F-2, No. 8, Lane 609, Chung Hsin Rd, Sec. 5, San Chung City, Taipei County, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET91S-12-105-03 ETC Report No.: ET91S-12-105-03FCC ID: OBDT23-315 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Portman Security System Internatinal Co., Ltd. 9F-2, No. 8, Lane 609, Chung-Hsin Rd, Sec. 5, San Chung City, Taipei County, Taiwan Manufacturer: Portman Electronics [Shenzhen] Ltd. The Ninth Building, Tong-Fuyu Industrial District, Long Hua Town, Bao’an Shenzhen, China Description of EUT: a) Type of EUT: Car Alarm Transmitter b) Trade Name: ---- c) Model No.: T23-315 d) FCC ID: OBDT23-315 e) Working Frequency: 315MHz f) Power Supply: DC 12V Battery(TYPE:23A) Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date: Dec. 30, 2002 Test Engineer: Approve & Authorized Signer: Win-Po Tsai, Supervisor, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET91S-12-105-03FCC ID: OBDT23-315 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................2 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD.................................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..........................................................................................................................................................5 3.3 DEVIATIONS STATEMENT OF TEST..............................................................................................................................................5 3.4 TEST DATA.........................................................................................................................................................................................7 3.5 FIELD STRENGTH CALCULATION..................................................................................................................................................9 3.6 RADIATED TEST EQUIPMENT.......................................................................................................................................................10 3.7 MEASURING INSTRUMENT SETUP...............................................................................................................................................11 3.8 RADIATED MEASUREMENT PHOTOS...........................................................................................................................................12 4. BANDWIDTH OF EMISSION......................................................................................................................................................13 4.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH....................................................................................................13 4.2 BANDWIDTH TEST EQUIPMENT.....................................................................................…
