OBDT54A-43392Remote Control Transmitter

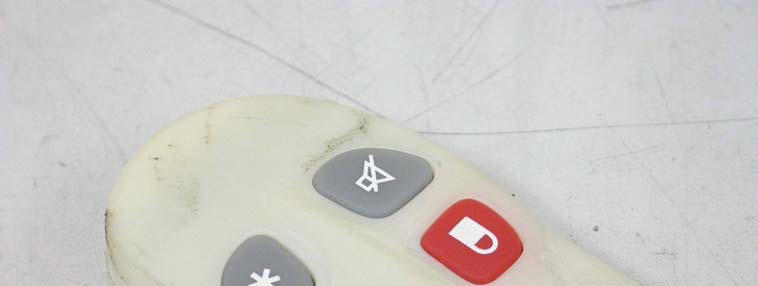

ETC Report No.: ET93S-05-001 Page A1 of A1 FCC ID: OBDT54A-43392 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

T54A FCC position.jpg (1220x847x16M jpeg)

ETC Report No.: ET93S-05-001 Page B1 of B2 FCC ID: OBDT54A-43392 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET93S-05-001 Page B2 of B2 FCC ID: OBDT54A-43392 3. Front view of PCB 4. Rear view of PCB

T54A Design Mythology 1. Power source Use 6V 2016*2 battery,, supply CPU, transmit and code circuit. 2. Transmitter Use 13.56MHz Crystal Oscillator, going through 32 multiple frequency, produce 433.92MHz radio carrier frequency, Then use radio frequency to carry the data, after amplifying power, transmit out from the antenna.(use IC TH72011.) 3. Key Function: Bottom 1 : Arm, Door Lock Button 2: Disarm, Door unlock Button I: Silent arming, Button II: remote start

ETC Report No. : ET93S-05-001Sheet 1 of 24 Sheets FCC ID.: OBDT54A-43392 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET93S-05-001 Client:Portman Security System International Co., Ltd. Product:T54A TRANSMITTER Model:T54A FCC ID:OBDT54A-43392 Manufacturer/supplier:Portman Electronics (Shenzhen) Co., Ltd Date test item received:2004/05/03 Date test campaign completed:2004/08/10 Date of issue:2004/08/16 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 24 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Test EngineerChecked ByApproved By MarkJoe HsiehTsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET93S-05-001Sheet 2 of 24 Sheets FCC ID.: OBDT54A-43392 Rev. No 1.0 TEST REPORT CERTIFICATION Client: Portman Security System International Co., Ltd. Address: 9F-2 NO 8 LANE 609 CHUNG HSIN RD SAN CHUNG CITY TAIPEI COUNTY TAIWAN Manufacturer: Portman Electronics (Shenzhen) Co., Ltd Address: No. 9 Building, Tongfuyu Industrial District, Shenzhen 518109, China EUT: T54A TRANSMITTER Trade name: PORTMAN Model No.: T54A Power Source: 6VDC Regulations applied: FCC 47 CFR, Part 15 Subpart C (2003) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET93S-05-001Sheet 3 of 24 Sheets FCC ID.: OBDT54A-43392 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 P RODUCT D ESCRIPTION ................................................................................................................................................ 4 1.2 C HARACTERISTICS OF D EVICE : ...................................................................................................................................... 4 1.3 T EST M ETHODOLOGY .................................................................................................................................................... 4 1.4 T EST F ACILITY ............................................................................................................................................................... 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 D EFINITION .................................................................................................................................................................... 5 2.2 R ESTRICTED B ANDS OF O PERATION .............................................................................................................................. 5 2.3 L IMITATION ................................................................................................................................................................... 6 2.4 L ABELING R EQUIREMENT .............................................................................................................................................. 7 2.5 U SER I NFORMATION ...................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 8 3.1 A PPLICABLE S TANDARD ................................................................................................................................................ 8 3.2 M EASUREMENT P ROCEDURE .......................................................................................................................................... 8 3.3 T EST D ATA .................................................................................................................................................................. 10 3.4 F IELD S TRENGTH C ALCULATION ................................................................................................................................. 15 3.5 R ADIATED T EST E QUIPMENT ....................................................................................................................................... 15 3.6 M EASURING I NSTRUMENT S ETUP ................................................................................................................................18 4. BANDWIDTH OF EMISSION...........................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET93S-05-001 Sheet 1 of 2 Sheets FCC ID.: OBDT54A-43392 1. Radiated Measurement Photos ETC Report No.:ET93S-05-001 Sheet 2 of 2 Sheets FCC ID.: OBDT54A-43392
