ODMAC1200R1200Mbps 802.11AC AP Router

AC-1200R 1200Mbps 802.11AC AP Router User’s Manual Copyright and Disclaimer AirLive AC-1200R User’s Manual Copyright & Disclaimer No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp. OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. This product requires professional installation. Please do not attempt to install the device without the necessary knowledge in regards to your country's wireless regulations. Copyright and Disclaimer AirLive AC-1200R User’s Manual ii Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Article 12 Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristics and functions of the original design of the certified lower power frequency electric machinery. Article 14 The application of low power frequency electric machineries shall not affect the navigation safety nor interfere a legal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists. Copyright and Disclaimer AirLive AC-1200R User’s Manual IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden. © 2011, OvisLink Corporation. All rights reserved. Table of Contents i AirLive AC-1200R User’s Manual Table of Contents 1. Introduction .............................................................................................. 1 1.1 Overview............................................................................................ 1 1.2 Firmware Upgrade and Tech Support ................................................ 2 1.3 Wireless Operation Modes ................................................................. 2 1.3.1 Dual Band Router Mode........................................................... 3 1.3.2 Dual AP Mode .......................................................................... 4 1.3.3 WISP + AP Mode ..................................................................... 5 1.3.4 Bridge + AP Mode .................................................................... 6 1.3.5 Client + AP Mode ..................................................................... 7 2. Installing the AC-1200R ........................................................................... 8 2.1 Before You Start ................................................................................. 8 2.2 Installing AC-1200R ........................................................................... 8 2.3 Knowing Your AC-1200R ................................................................... 9 2.3.1 Front Side Introduction ............................................................. 9 2.3.2 Back Side Introduction ............................................................10 2.4 Installation Steps ............................................................................... 11 2.4.1 Installation Steps by using LAN port ........................................ 11 2.4.2 Wireless Installation Steps ......................................................12 2.4.3 Internet Installation Steps .............................…

Text truncated - open the document above for the full version.

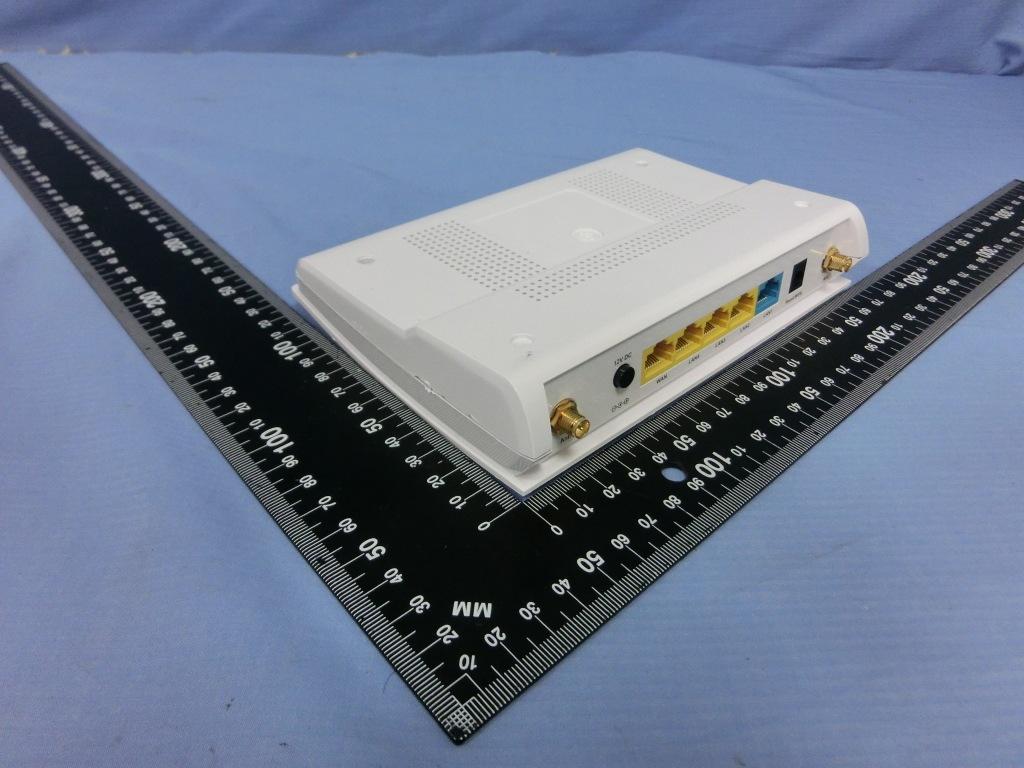

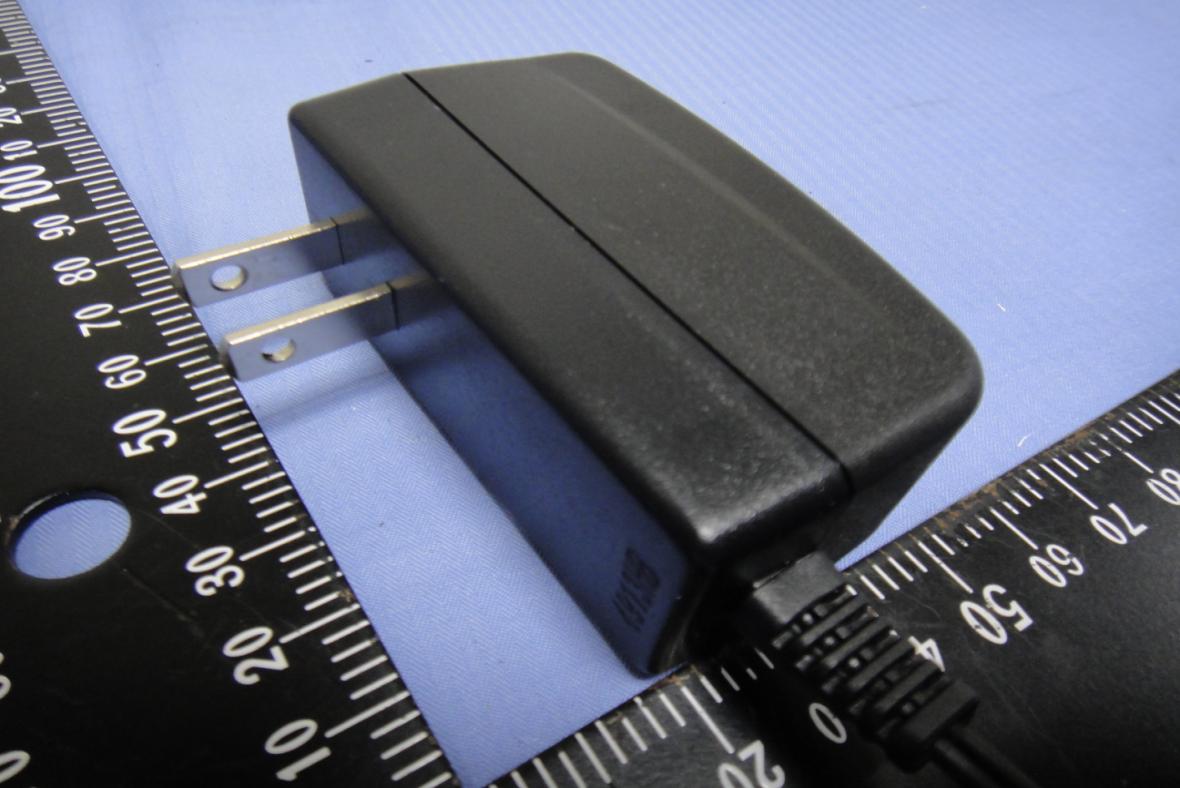

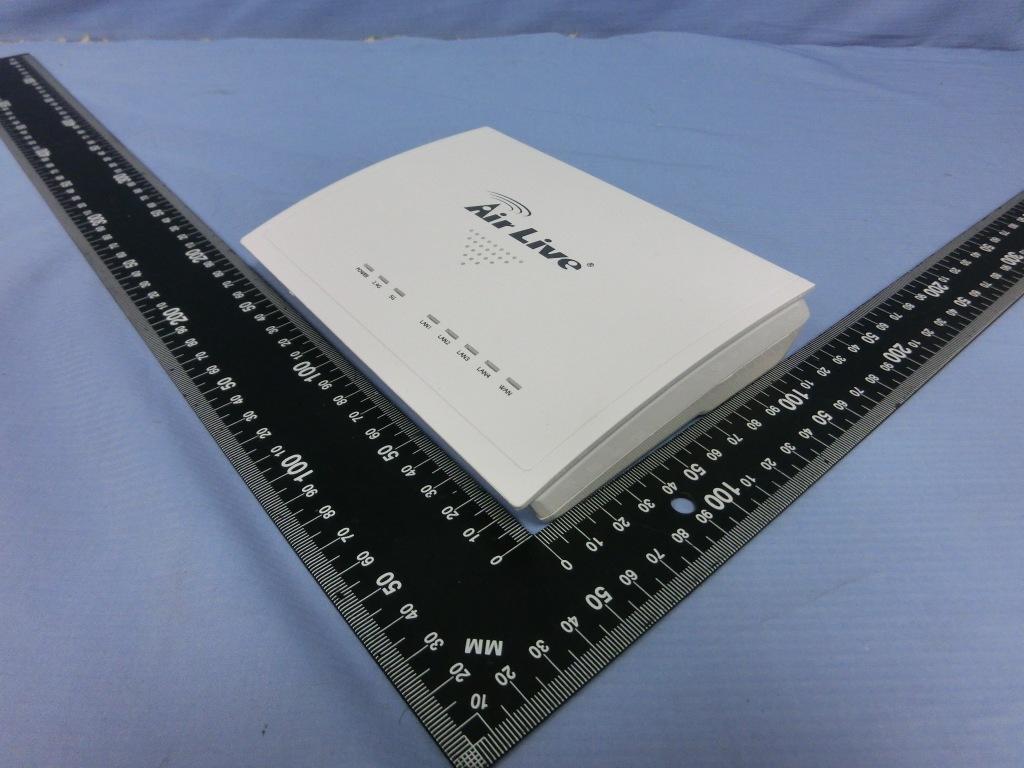

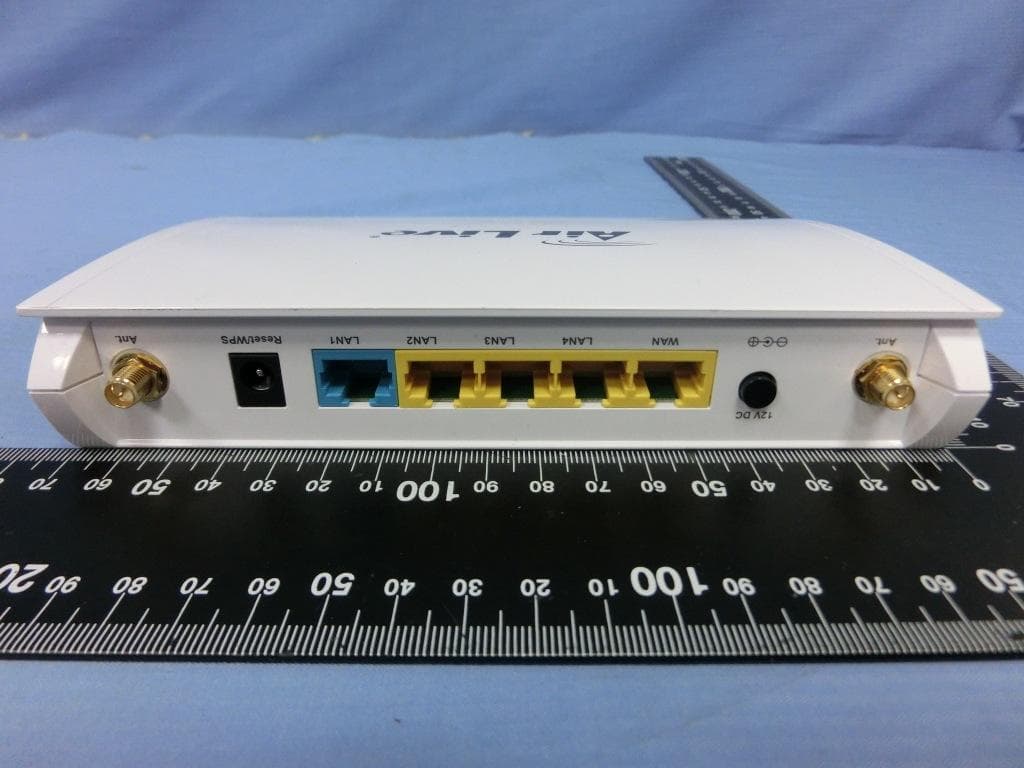

Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 1 / 8 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 4 Rev. 00 Adapter： Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 6 Rev. 00 Antenna

Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150304W03 Date of Issue: March 20, 2015 A1 - 8 Rev. 00 Module

Compliance Certification Services Inc. Report No.: T150304W03-MF Date of Issue: May 15, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 1200Mbps 802.11AC AP Router Model AC-1200R Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a/n HT20: 5.180GHz ~ 5.320GHz / 5.745 ~ 5.825GHz 802.11n HT40: 5.190GHz ~ 5.310GHz / 5.755 ~ 5.795GHz 802.11ac VHT80: 5.210GHz ~ 5.290GHz / 5.775GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :3.88 dBi (Numeric gain:2.44) 2.4GHz: Antenna Gain :1.81 dBi (Numeric gain:1.52) Maximum Average output power IEEE 802.11b Mode: 18.66 dBm(73.451 mW) IEEE 802.11g Mode: 20.90 dBm(123.027 mW) IEEE 802.11n HT 20 Mode: 21.61 dBm(144.877 mW) IEEE 802.11n HT 40 Mode: 16.37 dBm(43.351 mW) IEEE 802.11a Mode: 20.42 dBm(110.154 mW) IEEE 802.11n HT20 Mode: 23.12 dBm(205.116 mW) IEEE 802.11n HT40 Mode: 22.66 dBm(184.502 mW) IEEE 802.11ac VHT80 Mode: 23.45 dBm(221.309 mW) Compliance Certification Services Inc. Report No.: T150304W03-MF Date of Issue: May 15, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Tune up Power IEEE 802.11b Mode: 19.00 dBm(79.433 mW) IEEE 802.11g Mode: 21.00 dBm(125.893 mW) IEEE 802.11n HT 20 Mode: 21.80 dBm(151.356 mW) IEEE 802.11n HT 40 Mode: 17.00 dBm(50.119 mW) IEEE 802.11a Mode: 20.60 dBm(114.815 mW) IEEE 802.11n HT20 Mode: 23.50 dBm(223.872 mW) IEEE 802.11n HT40 Mode: 23.00 dBm(199.526 mW) IEEE 802.11ac VHT80 Mode: 23.60 dBm(229.087 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150304W03-MF Date of Issue: May 15, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/5/15 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. Report No.: T150304W03-MF Date of Issue: May 15, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150304W03-MF Date of Issue: May 15, 2015 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241279.4331.52200.02401 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 62437125.8931.52200.03811 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 62437151.3561.52200.04581 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243750.1191.52200.01521 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1655825114.8152.44200.05571 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1575785223.8722.44200.10871 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1595795199.5262.44200.09691 IEEE 802.11acVHT80:mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1555775229.0872.44200.11121

Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 1200Mbps 802.11AC AP Router Model: AC-1200R Trade Name: Air Live Issued to OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: March 23, 2015 Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 23, 2015 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................ 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 34 7.3 AVERAGE POWER ............................................................................................................................ 36 7.4 BAND EDGES MEASUREMENT ................................................................................................ 38 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 68 7.6 SPURIOUS EMISSIONS ................................................................................................................. 88 7.7 RADIATED EMISSIONS ............................................................................................................ 107 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 124 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 127 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Equipment Under Test: 1200Mbps 802.11AC AP Router Trade Name: Air Live Model Number: AC-1200R Date of Test: March 10 ~ 12, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 127 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 128 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: ODMAC1200R Report No.: T150304W03-RP1 Page 129 Rev. 00 Powerline Conducted Emissions Setup Photos
