ODMNPOWERHi-Power Wireless-N PoE AP Router

N.Power Hi-Power Wireless-N PoE AP Router User’s Manual US Version Copyright and Disclaimer AirLive N.Power User’s Manual Copyright & Disclaimer No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp. OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. Copyright and Disclaimer AirLive N.Power User’s Manual ii FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. © 2011, OvisLink Corporation. All rights reserved. Table of Contents i AirLive N.Power User’s Manual Table of Contents 1. Introduction ................................................................................................1 1.1 Overview ..............................................................................................1 1.2 Firmware Upgrade and Tech Support ..................................................1 1.3 Features...............................................................................................2 1.4 Operation Modes .................................................................................3 1.4.1 Router Mode................................................................................................3 1.4.2 AP mode......................................................................................................3 1.4.3 Client Mode .................................................................................................4 1.4.4 WDS Bridge Mode .......................................................................................4 1.4.5 WDS Repeater Mode...................................................................................5 2. Installing the N.Power ...............................................................................7 2.1 Before You Start ...................................................................................7 2.2 Package Content .................................................................................7 2.3 Knowing your N.Power ........................................................................7 2.4 Hardware Installation ...........................................................................8 2.4.1 Passive PoE Installation ............................................................................10 2.4.2 Wall Mount Installation............................................................................... 11 2.5 LED Table ..........................................................................................12 2.6 Restore Settings to Default ................................................................12 3. Configuring the N.Power .........................................................................13 3.1 Important Information ......................................................................13 3.2 Prepare your PC .............................................................................13 3.3 Introduction to Web Management ...................................................14 3.3.1 Getting into Web Management ..................................................................14 3.3.2 Web Menu Structure ..................................................................................15 3.4 Configuration Wizard.......................................................................16 3.5 Change Operation Mode.................................................................17 3.6 WPS (WiFi Protected Setup)...........................................................17 3.6.1 AP and Router Modes...........................................................................18 3.6.2 Client Mode ........................................................…

Text truncated - open the document above for the full version.

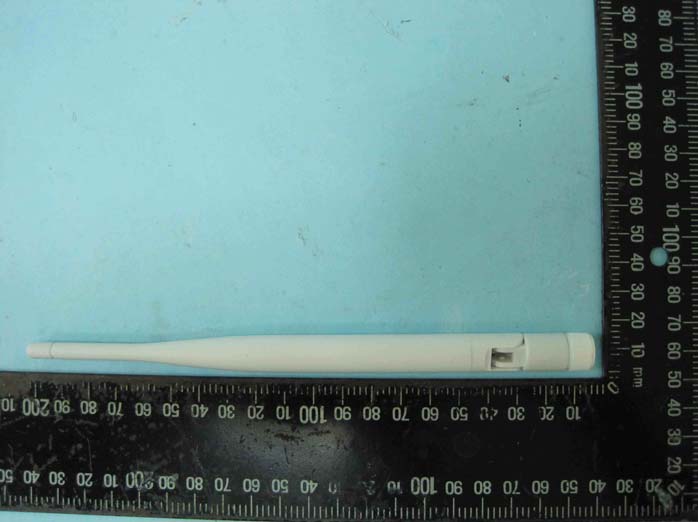

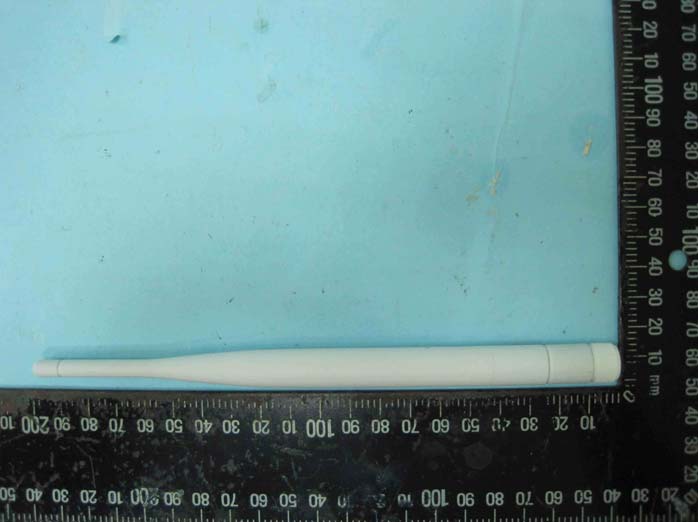

Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255

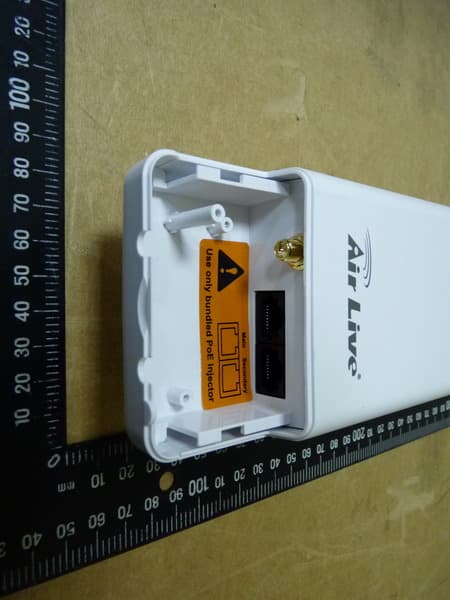

Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255 Report No.:9D2216-04 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 07, 2013 FAX : 886-2-2696-2255

Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C1 of C6 Appendix C. Maximum Permissible Exposure Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C2 of C6 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C3 of C6 1.3. Calculated Result and Limit <For WLAN Function>: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b: 11.15 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 11.1500 13.0317 0.008203 1 Complies Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C4 of C6 <For GSM 850 Function>: 3G USB Dongle 1 (Mode 1), FCC ID: QISE1612 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 30.7300 32.8700 1936.4220 0.385434 0.549 Complies 836.4 30.7800 32.9200 1958.8447 0.389897 0.549 Complies 848.8 30.9400 33.0800 2032.3570 0.404530 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.008203 / 1 + 0.404530 / 0.549 = 0.745052, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C5 of C6 <For GSM 850 Function> 3G USB Dongle 2 (Mode 2), FCC ID: QISE169 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 31.7800 33.9200 2466.0393 0.490852 0.549 Complies 836.4 31.7500 33.8900 2449.0632 0.487473 0.549 Complies 848.8 31.7300 33.8700 2437.8108 0.485233 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.008203 / 1 + 0.490852 / 0.549 = 0.902287, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : C6 of C6 <For GSM 1900 Function>: 3G USB Dongle 3 (Mode 3), FCC ID: QISE220X Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1850.2 28.9000 31.0400 1270.5741 0.252901 1 Complies 1880 28.8700 31.0100 1261.8275 0.251160 1 Complies 1909.8 28.4600 30.6000 1148.1536 0.228534 1 Complies CONCULSION: Both of the WLAN and GSM 1900 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.008203 / 1 + 0.252901 / 1 = 0.261105, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D1 of D7 Appendix D. Co-location Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D2 of D7 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 1 Horizontal Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D3 of D7 Vertial Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D4 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 2 Horizontal Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D5 of D7 Vertial Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D6 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM1900 CH661 / Mode 3 Horizontal Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : D7 of D7 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 03 FCC RADIO TEST REPORT Applicant’s company OvisLink Corp. Applicant Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City, 231, Taiwan FCC ID ODMNPOWER Manufacturer’s company OvisLink Corp. Manufacturer Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City, 231, Taiwan Product Name Hi-Power Wireless-N PoE AP Router Brand Name Air Live Model Name N.Power Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 18, 2009 Final Test Date Dec. 29, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2003, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR9D2216-04 Report Format Version: 01 Page No. : i of ii FCC ID: ODMNPOWER Issued Date : Jan. 07, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 4 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 5 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 7 3.7. Table for Supporting Units ......................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 8 3.9. Test Configurations ..................................................................................................................................................................................... 9 4. TEST RESULT ......................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 11 4.2. Maximum Conducted Output Power Measurement ......................................................................................................................... 15 4.3. Power Spectral Density Measurement .................................................................................................................................................. 18 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 28 4.5. Radiated Emissions Measurement ......................................................................................................................................................... 37 4.6. Band Edge Emissions Measurement ...................................................................................................................................................... 67 4.7. Antenna Requirements ........................................................................................................................................................................... 80 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 81 6. TEST LOCATION .................................................................................................................................................. 83 7. TAF CERTIFICATE OF ACCREDITATION .............................................................................................................. 84 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................ A1 ~ A12 APPENDIX B. TEST PHOTOS ........................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B1 of B6 Appendix B. Test Photos Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B2 of B6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B3 of B6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B4 of B6 30MHz ~1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B5 of B6 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR9D2216-04 FCC ID: ODMNPOWER Page No. : B6 of B6 Co-location FRONT VIEW REAR VIEW
