OG4-BC85Pushbutton Crane TX

Request for Confidentiality 22 May 2003 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: OG4-BC85 Please be advised that the following information is to be held confidential on behalf of Akerströms Björbo AB: • Schematics • Parts Lists • Block Diagram The application contains technical information which Akerströms Björbo AB deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 6, 2003 RE: Akerstroms Bjorbo AB FCC ID: OG4-BC85 I have a few comments on the above referenced Application. 1) The FCC Label shows "FCC-ID: OG4-BC85". Note that a dash should not be placed between the words FCC and ID. Please correct to "FCC ID: OG4-BC85". 2) The internal photographs show a 433 MHz Transmitter module, while the test report shows 434.648 MHz. Please explain. Additionally it is not certain the actual transmit frequencies that this device will be capable of transmitting on. Please provide further information regarding actual transmit frequencies. 3) If this device transmits on multiple frequencies, it is not certain if there are any changes to components of the device or to the RF module. If different RF modules are used, what are the differences between these modules? Note that if there are several modules used to cover the 421-512 Frequency range, an investigation should be performed to determine how the test results vary depending on the module used. 4) Please provide data sheets on the RF module(s) to be used in this device. 5) The confidentiality letter requests confidentiality on the Technical Description. However the operational description provided appears only to be a sales brochure and therefore not considered as confidential. Please remove the technical description from the confidentiality letter. 6) Please provide: a) DC voltages & /currents applied into the several elements of the final radio frequency amplifying device for normal operation over the power range b) Tune up procedure over power range c) Description of all circuitry and devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation, and for limiting power. 7) FYI, even though this device meets the requirements of 90.217, it is still required for the end user to obtain a license to use it. It is recommended that the users manual contain information such as " The equipment user is required by the radio service rules to obtain a license before operating the equipment". 8) FYI, the test report should reference the most recent published version of Part 2/90, for example October, 2002. 9) FYI, the receiver portion of this system is subject to Part 15 Certification or DoC requirements. The users manual did not appear to contain any of the appropriate information necessary for the Receiver approval. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

30090-4 FCC ID: OG4-BC85 Answers to ATCB comments (Email from Timothy Johnson - June 6, 2003): 1 New file uploaded 2 The frequency range of CDP-TX-02N module are 433.875 MHz up to 434.650 MHz (see uploaded data sheets). The printing on the label (433 MHz) is only for operating band information. The change of channel is only available by manufacturer not for the customer (because dip switches are on the bottom side of the module.) The selected channel is a manufacturer default setting (434.650 MHz). 3 There are no different RF modules used (explained at pt. 2) 4 New file uploaded Note: Parts lists are only available in Japanese language! - New file uploaded 5 New file uploaded 6 6a: Voltage : 2V / Current : approx. 15mA 6b: see attached description from module manufacturer (pt.2) 6c: see attached description from module manufacturer (pt.2) 7 New file uploaded 8 New file uploaded 9 New file uploaded

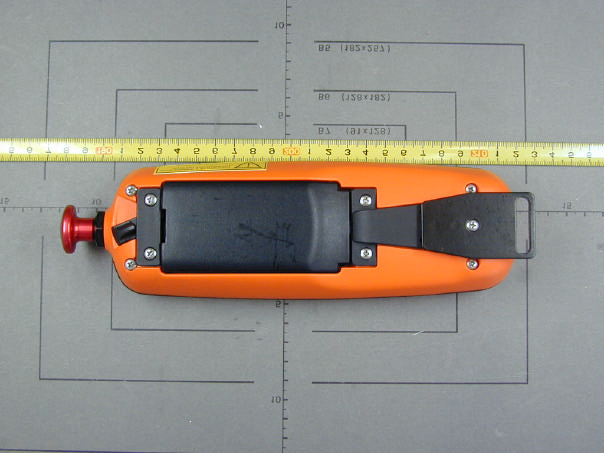

FCC ID: OG4-BC85 External Photos Page 1 of 5 Top view of EUT FCC ID: OG4-BC85 External Photos Page 2 of 5 Bottom view of EUT FCC ID: OG4-BC85 External Photos Page 3 of 5 Right view of EUT FCC ID: OG4-BC85 External Photos Page 4 of 5 Left view of EUT FCC ID: OG4-BC85 External Photos Page 5 of 5 Rear view of EUT

FCC ID: OG4-BC85

FCC ID: OG4-BC85 Internal Photos Page 1 of 4 EUT disassembled FCC ID: OG4-BC85 Internal Photos Page 2 of 4 PCB top view FCC ID: OG4-BC85 Internal Photos Page 3 of 4 PCB bottom view FCC ID: OG4-BC85 Internal Photos Page 4 of 4 Antenna

7557-1 Hotaka,Hotaka-machi,Minamiazumi,Nagano 399-8303,Japan Tel:+81-263-82-1024 Fax:+81+263-82-1016 http://www.circuitdesign.co.jp/ CDP-TX/RX-02NDS ver1.0 CIRCUIT DESIGN, INC. International Business Division Feature Application Remote control systems Security systems Alarms Telemetry systems European EN300-220 compliance 32 frequency synthesized RF channels 5mW/10mW selectable Low voltage operation High sensitivity 300m range FM narrow band modulation and high frequency stability Common Item Communication form Oscillation system Frequency range Number of RF channels Channel step Frequency stability Baud rate Operating temp. range Transmitter type RF output power Transmitter start up time Modulation Data input level Input signal Deviation Spurious emission Adjacent channel power Supply voltage Supply current Dimensions Weight Receiver type Sensitivity Selectivity Demodulation Distortion S/N ratio Data output Supply Voltage Supply current Dimensions Weight Specification One way PLL controlled VCO 433.875MHz to 434.650MHz 32 ch 25kHz +/-2.5kHz (-10 to +55 degree C) 300 to 4800bps -10 - +60 degree C PLL synthesizer 10mW/5mW 80msec FM Narrow 2.2 - 12V Digital 2.0kHz <-60dBm (< 862MHz) , <-46dBm ( >= 862MHz) <200nW 2.4 - 12V DC 30mA (typ) 36 X 26 X 10 mm 12.5g Double Superheterodyne PLL synthesizer -120dBm (12dB/SINAD at CCITT filter) +/-7.5kHz at -6dB point FM Narrow <3% at 1kHz 35dB overall (AF out) Digital 3.6 to 12V DC 26mA (typ) 50 X 30 X 9mm 19g UHF Narrow Band Multi Channel Transmitter/Receiver CDP-TX-02N/ CDP-RX-02N The unique and compact CDP-02N is a frequency selectable radio data module for 434MHz UHF band. Both CDP-TX-02N (transmitter) and CDP-RX-02N (receiver) are equipped by frequency synthesizer system with microprocessor. Frequency range of CDP-02N is from 433.875MHz to 434.650MHz in 32 channels which are selectable by the use of an onboard 4 bits switch. Small size, low voltage operation and frequency selectability of CDP-02N make it ideal for various applications in sites where many radio transmitters are operated. CDP-TX-02N (Transmitter) CDP-RX-02N (Receiver) Specifications are subject to change without prior notice CIRCUIT DESIGN, INC. CDP-02N UHF Synthesized Radio Data Module Operation Guide 1 C C D D P P - - 0 0 2 2 N N CDP-TX-02N& CDP-RX-02N (433MHz) CDP-TX-02AN& CDP-RX-02AN (458MHz) UHF FM-NARROW BAND SYNTHESIZED RADIO DATA MODULE Operation Guide Version 1.4 (July, 2002) CIRCUIT DESIGN, INC., International Business Division 7557-1 Hotaka, Hotaka-machi, Minamiazumi, Nagano 399-8303. JAPAN Tel: + +(0263)-82-1024 Fax: + +(0263)-82-1016 CIRCUIT DESIGN, INC. CDP-02N UHF Synthesized Radio Data Module Operation Guide 2 CONTENTS GENERAL DESCRIPTION & FEATURES ................................ 3 CDP-TX-02N transmitter module ....................................... 4 CDP-RX-02N receiver module ........................................... 4 OPERATION INSTRUCTIONS ................................................... 6 Supply voltage ..................................................................... 6 Data input ............................................................................ 6 Data format .......................................................................... 7 Channel and frequency setting ............................................ 7 Outputs ................................................................................. 8 Test Set ECB-03 and DCB-03 .............................................. 8 Antennas .............................................................................. 8 Start up.................................................................................. 9 SPECIFICATIONS ...................................................................... 10 CHANNEL AND FREQUENCY SETTING .............................. 11 BLOCK DIAGRAM ................................................................... 13 DIMENSIONS ............................................................................ 14 DATA .......................................................................................... 15 IMPORTANT NOTICE .............................................................. 16 CAUTION & WARNING DIMENSIONS ................................. 16 CIRCUIT DESIGN, INC. CDP-02N UHF Synthesized Radio Data Module Operation Guide 3 GENERAL DESCRIPTION & FEATURES Features • Compatible with European EN 300 220 standard • Very small compact integrated device with PLL synthesizer and micro controller • Frequency selection free in 32 channels for 433MHz, 11 channels for 458MHz • New integrated UHF filter technology • 5mW/10mW selectable Applications • Radio remote control cranes and machines • Radio remote control for garage door controls • Security systems • Room surveillance • Theft protection • Telemetry systems General description The CDP-02N consists of CDP-TX-02N (CDP-TX-02AN) transmitter and CDP-RX-02N (CDP-RX-02AN) receiver. It is suitable for various application fields such as wireless data communication, remote control, telemetry or wireless security systems. It is easy to use and integrate into application systems. The CDP-02N is equipped with a frequency synthesizer system with micro controller. The frequency range of the CDP-02N (EU type) is from 433.875MHz to 434.650MHz in 32 channels which are selectable by use of a 4 bits switch, and a jumper on the PCB for 2 groups of 16 channels. The frequency range of the CDP-02AN (UK type) is from 458.525MHz to 458.775MHz in 11 channels, which are selectable with a 4 bits switch. The compact size, low operation voltage and frequency selectability of the CDP-02N make it ideal for various applications where its interference rejection and practical distance range is far better than similar RF modules based on wide band SAW-resonator frequency generators. Standard RS232 serial data and other digital data (TTL level), such as pulse width modulation signals and signals from standard encoder-decoder circuits of the given AF bandw…

Text truncated - open the document above for the full version.

780 45 Björbo • Tel +46 241-250 00 • Fax +46 241-232 90 • www.akerstroms.com • Email [email protected] Remotus 8000 LineRemotus 8000 Line Remotus 8000 LineRemotus 8000 Line Remotus 8000 Line The Remotus 8000 Line is part of the Remotus series and is our standard system with pre-programmed selections. The system uses the gene- ral frequency range. As the 8000 Line has a standard version, it is always available as a stock line. The 8000 Line is service-friendly and comes in 2 versions. There is a basic version which can manage 3 movements/2 steps, and a version which has 3 movements/2 steps and 3 extra functions. Both versions are available as manipulator transmitters and hand- held transmitters. The Remotus 8000 Line can be used with most cranes and overhead cranes on the market which have standard functions. Hand-held transmitter - BC 8000Hand-held transmitter - BC 8000 Hand-held transmitter - BC 8000Hand-held transmitter - BC 8000 Hand-held transmitter - BC 8000 Hand-held transmitter in rugged plastic case with six but- tons with two positions for two-movement operation. There are LEDs to indicate accumulator status, operating mode and selectable functions. Built-in self-testing of all functions. Weight approx. 400 g. Housing Class IP 65. Clips included. Manipulator transmitter - Euro 8000Manipulator transmitter - Euro 8000 Manipulator transmitter - Euro 8000Manipulator transmitter - Euro 8000 Manipulator transmitter - Euro 8000 The Euro is extremely user-friendly and based on a new approach. Specially designed carrying device reduces the stress on the operator’s back during long work sessions, and is available as an optional extra. Weight approx.1200 g. Housing Class IP 65. Built-in self-testing of all functions. Accumulators and chargersAccumulators and chargers Accumulators and chargersAccumulators and chargers Accumulators and chargers Two LiIon accumulators in each BC delivery, two NiMH accumulators in each Euro delivery and one charger included in every system delivery, offering the following operation times: Euro 800010 hours BC 800012 hours Receiver - Remotus 8000/14Receiver - Remotus 8000/14 Receiver - Remotus 8000/14Receiver - Remotus 8000/14 Receiver - Remotus 8000/14 The receiver has 13 outputs with alternating relays, built-in siren (116 dB). Pre-programmed with 9 functions that are selected with a switch. Synthesis radio 433 MHz frequency range, with frequency selection. Double processors provide a high degree of security. Aerial included for installation directly on the receiver. Housing Class IP 65. Option: output for external siren. Max. load4 A/250 VAC resistive load. Power consumptionMax. 12 VA Supply voltage115/230 VAC or 12-35 VDC, alternatively 42/48 VAC or 12-35 VDC Dimensions (h x b x w)250 x 150 x 80 mm OtherOther OtherOther Other The following plates are included in the system delivery: “Radio-controlled crane” and “Radio-controlled crane - When working on the crane, take or lock up the radio trans- mitter”. Also included are installation instructions and opera- ting instructions.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 34 Pages Straubing, May 8, 2003 T E S T - R E P O R T No. 56502-30090-4 for Remotus BC 8518 Portable Remote Control Transmitter Applicant: Akerstrˆms Bjˆrbo AB Purpose of testing: To show compliance with FCC Code of Federal Regulations, CFR 47, Part 90, Section 90.217 FCC Code of Federal Regulations, CFR 47, Part 2, Subpart J Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 2 of 34 Pages Table of Contents 1. Administrative Data ............................................................................................. 3 2. Identification of Test Laboratory .......................................................................... 4 3. Summary of Test Results .................................................................................... 5 4. Operation Mode of EUT....................................................................................... 6 5. Configuration of EUT and Peripheral Devices ..................................................... 7 6. Measuring Methods ............................................................................................. 8 6.1. Maximum Transmitter Power (CFR47 ß90.217, ß2.1046 ) ............................ 8 6.2. Frequency tolerance (CFR47 ß90.217, ß2.1055 )....................................... 10 6.3. Occupied Bandwidth (CFR47 ß90.217, ß2.1049)........................................ 12 6.4. Unwanted Emission (CFR47 ß90.217, ß2.1051) ......................................... 13 7. Photographs of Test Setups .............................................................................. 15 8. Equipment List................................................................................................... 18 9. Referenced Regulations .................................................................................... 20 10. List of Measurements ........................................................................................ 21 11. Test Results ...................................................................................................... 22 12. Additional Information supplementary to the Test Report .................................. 33 12.1. Calculation of the necessary bandwidth (Section 2.202b)........................... 33 12.2. Additional Information ................................................................................. 34 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 3 of 34 Pages 1. Administrative Data Equipment Under Test (EUT): Remotus BC 8518 Serial number(s): 92 8677-000-0301 Type of equipment: Portable Remote Control Transmitter Type of emission: 8K80F1D Parts/accessories: --- FCC-ID: OG4-BC85 Applicant: (full address) Akerstrˆms Bjˆrbo AB 78045 Bjˆrbo, SWEDEN Contract identification: --- Contact person: Mr. Bernt Eriksson Manufacturer: Akerstrˆms Bjˆrbo AB Receipt of EUT: 17 February 2003 Dates of test: February to April 2003 Note: --- Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 4 of 34 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 5 of 34 Pages 3. Summary of Test Results The tested sample complies with the requirements set forth in the The Code of Federal Regulations 47, Part 90, Section 90.217 and The Code of Federal Regulations 47 Part 2, Subpart J. of the Federal Communication Commission (FCC) Johann Roidt Thomas Eberl Laboratory Manager Test Engineer EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 6 of 34 Pages 4. Operation Mode of EUT • transmitting continuously 1 • with battery supply nominal 7.5 V DC 2 • operating with f = 434.652 MHz 1 Modulation as indicated on appropriate test record 2 For conducted measurements replaced by external DC supply EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 7 of 34 Pages 5. Configuration of EUT and Peripheral Devices EUT is configured as stand-alone device Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 8 of 34 Pages 6. Measuring Methods 6.1. Maximum Transmitter Power (CFR47 ß90.217, ß2.1046 ) The maximum transmitter power was measured radiated and, if applcable, conducted at antenna connector. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 9 of 34 Pages 6.1.1. Radiated Maximum Transmitter Power Radiated Maximum Transmitter Power was measured with detector-function of the spectrum analyzer set to positive peak and trace mode max hold: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 15 s For measurement setup and procedure see section "Unwanted Emission " on Page 13. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 10 of 34 Pages 6.2. Frequency tolerance (CFR47 ß90.217, ß2.1055 ) 6.2.1. Frequency stability vs. temperature The frequency stability vs. temperature was measured with a spectrum analyzer connected to the antenna connector (conducted measurement) while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to write with frequency count mode activated: RBW = 100 Hz,…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 16 of 34 Pages Test setup for radiated unwanted radiation 30 MHz - 4.5 GHz EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: OG4-BC85 Test Report No. 56502-30090-4 Page 17 of 34 Pages Test setup for radiated unwanted radiation 30 MHz - 4.5 GHz (continued)
