OG4-RXDINSesam 800 Remote Radio Control

946415-000-A0 OPERATING MANUAL SESAM 800 K3, RX DIN USA Table of Contents 1 Introduction ______________________________________3 2 Scope ___________________________________________3 2.1 Safety Considerations _____________________________________4 2.2 Warnings _______________________________________________6 3 Technical specifications ____________________________7 4 Description of the system __________________________8 4.1 Receiver ________________________________________________8 4.2 Transmitter ______________________________________________8 5 Description of Sesam 800 RX DIN receiver _____________9 6 Installation of the receiver __________________________10 6.1 Placement of the receiver __________________________________10 6.2 Connections on the receiver _______________________________11 7 Indicators on the receiver _________________________12 8 Configuration of the receiver _______________________12 8.1 Basic configuration _______________________________________12 8.2 Advanced configuration ___________________________________13 8.3 Erasing all transmitters in the receiver ________________________13 9 Description of Sesam 800 K3 transmitter _____________14 9.1 Indications on the transmitter _______________________________14 10 Using the system _________________________________15 11 Configuration of the transmitter _____________________15 11.1 Group ID _______________________________________________15 12 Replacing batteries in the transmitters _______________17 12.1 Replacing batteries in Sesam K3 ____________________________17 13 Error codes, Sesam 800 RX DIN _____________________18 14 Measure for Sesam 800 RX DIN _____________________19 Introduction 3 (16) Sesam 800 K3 RXDIN USA ManualDocument-ID: 946415-000 Version: A0Author: SH 1 Introduction This manual only covers the installation of the Sesam radio remote door opening system. The Sesam System is not a complete door opening system: it provides only the set of outputs that are driven according to the actions performed by the operator of the transmitter. The way the set of outputs is used for controlling the doors depends on the specific installation and is outside the scope of the Sesam. The approvals that the Sesam radio remote control system is only valid for the system itself. The complete remote control system, where the controlled object is one part, has to be tested and approved according to the standards/norms that are ap- plicable and specific to the controlled object. It is not the responsibility of Åkerströms Björbo. 2 Scope The following guide must be used when installing Åkerströms Sesam door opening system to ensure secure, safe operation. The installation must be car- ried out by a certified electrician. FCC Part 15 and Industry Canada RSS Notice This device complies with Part 15 of the FCC Rules and Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device RSS FCC Partie 15 et du Canada Avis à Industrie Cet appareil est conforme à la Partie 15 des règlements de la FCC et Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence pouvant causer un mauvais fonctionnement du dispositif WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY ÅKERSTRÖMS BJÖRBO CORPORATION COULD VOID THE USER`S AUTHORITY TO OPERATE THE EQUIPMENT. Scope 4 (16) Sesam 800 K3 RXDIN USA ManualDocument-ID: 946415-000 Version: A0Author: SH 2.1 Safety Considerations 1. The safety guidelines in this manual are not intended to replace any rules or regulations or any applicable local, state, or federal governing laws. The following information is intended to be used in conjunction with other rules or regulations already in existence. It is important to read all safety information before operating any wireless radio remote control system. 2. Only properly trained persons designated by management should be permitted to operate wireless radio controlled equipment. Wireless radio controlled equipment should not be operated by any person who cannot read or understand signs, notices and operating instructions that pertain to the equipment. 3. Wireless radio controlled equipment should not be operated by any person with insufficient eyesight or hearing or by any person who may be suffer- ing from a disorder or illness or is taking any medication that may impair judgment or the ability to operate equipment. 4. Ensure transmitter batteries are in good condition and power for receiver is correct. Installation and maintenance should be done only while the con- trolled equipment main power and receiver’s power are off and locked out to prevent electrical shock. 5. Any person operating wireless radio controlled equipment should possess the following knowledge and/or skills: • Knowledge of hazards particular to the equipment being operated • Knowledge of safety rules for radio controlled equipment • Knowledge of the radio transmitter • Proper clearance of all moving parts on the radio controlled equipment • Proper storage space for radio control transmitter when not in use • Transferring radio control transmitter to another person • Reporting unsafe or unusual operating conditions • Remote controlled equipment capacity and limitations • Procedures for testing controlled equipment 6. The Sesam remote control system is recommended for the remote opera- tion of door opening equipment only. This unit is not intended for use on material handling, people moving or any other critical application. Scope 5 (16) Sesam 800 K3 RXDIN USA ManualDocument-ID: 946415-000 Version: A0Author: SH 7. Radio controlled operators should always position themselves for the best view of the equipment they are controlling. The equipment should n…

Text truncated - open the document above for the full version.

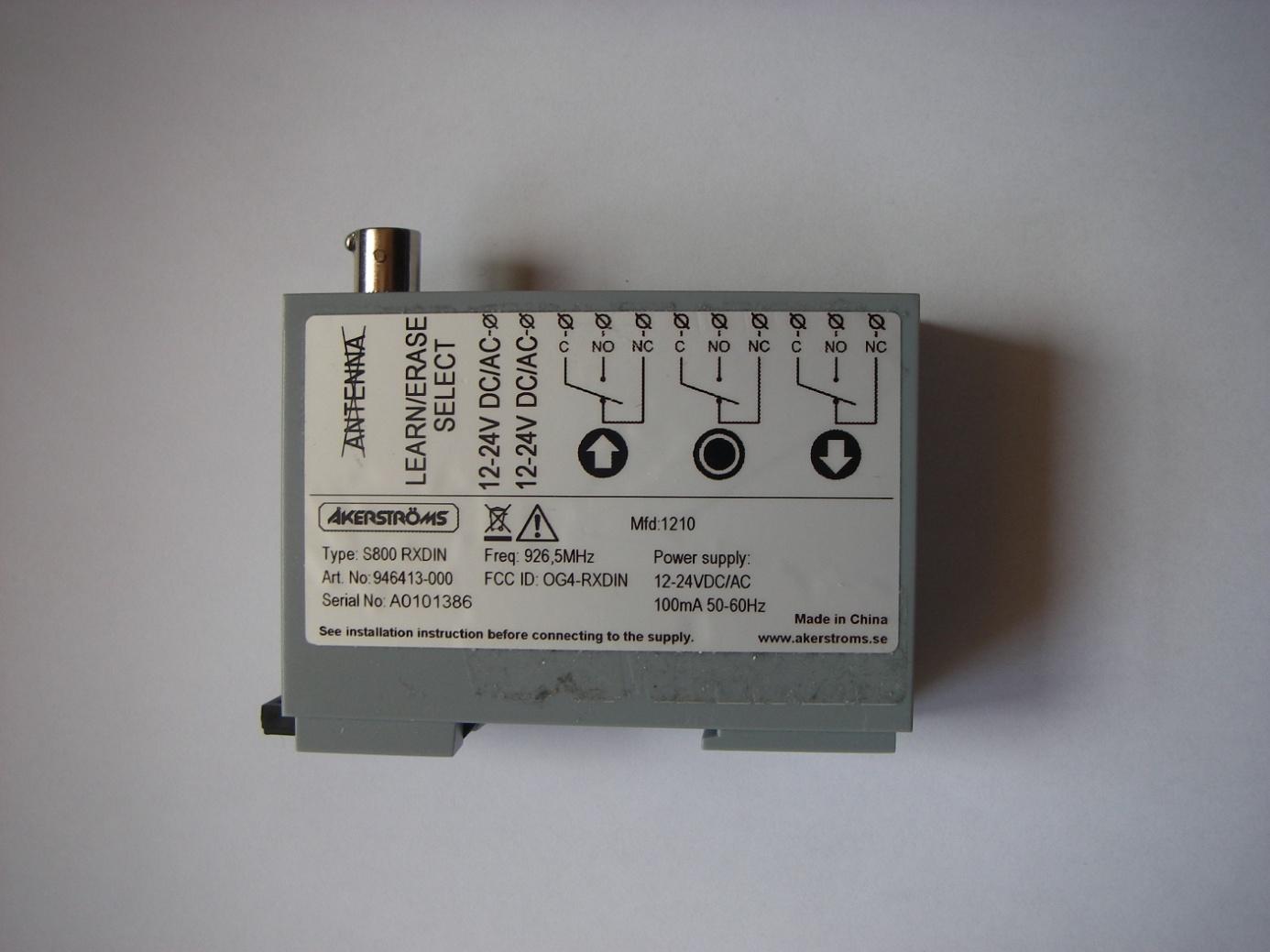

Class Product/Project Sesam 800 Subject Document Id. Revision Label for 946413-000 S800RXDIN FCC 12-24V 946430-000 B0 Approved by Category Date Page 2012-04-30 1 (2) ÅKERSTRÖMS BJÖRBO AB, SE-780 45 BJÖRBO, Sweden Phone +46 241 25 000, Fax +46 241 232 90 Vat No SE556153982501 Registrated office BJÖRBO www.akerstroms.se Specification of label: Durability according to SS-EN 60950. The label shall remain clear and easy-to-read during normal operation and usage. The label shall withstand normal cleaning with specified cleaning agent It shall be impossible to remove the label from the unit without permanently damaging the label. The adhesive on the label shall not affect plastic materials in a negative way. The label shall be white. The text on the label shall be black. Content: Company logotype: Black: 100% black Grey scale: 30% black Text: Fonts: Arial Narrow Power supply: 12-24V DC/AC 100 mA 50-60 Hz Type: S800 RXDIN Freq: 926,5 MHz Åkerströms art.no: 946413-000 Manufactured year week: 1210 1 Serial number XXXXXXXX 2 FCC ID FCC ID: OG4-RXDIN Country of origin: Made in China Web address www.akerstroms.se Information: See installation instruction before connecting to the supply Symbols: Min. height 5mm 1 This is a variable. The value shall be the value of the year and week that the unit was produced. 2 This is a variable. The value shall be the same as the serial- number of the unit being produced. Class Product/Project Sesam 800 Subject Document Id. Revision Label for 946413-000 S800RXDIN FCC 12-24V 946430-000 B0 Approved by Category Date Page 2012-04-30 2 (2) ÅKERSTRÖMS BJÖRBO AB, SE-780 45 BJÖRBO, Sweden Phone +46 241 25 000, Fax +46 241 232 90 Vat No SE556153982501 Registrated office BJÖRBO www.akerstroms.se Example Size: Height: 45 + 0,1-0mm Width: 80 + 0,1-0mm Example in scale 1:1 (approx) Position Frequency: 926.5 MHz Power supply: 12-24 VAC/DC 50-60 Hz 100mA Type: S800 RXDIN Art. No: 946413-000 Serial: 12345678 Made in China See installation instruction before connecting to the supply Mfd: 1210 FCC ID: OG4-RXDIN www.akerstroms.se

Date Reference Page REPORT 2012-04-19 FX205878-F15C2 1 (3) FCC ID: OG4-RXDIN Appendix 1 SP Technical Research Institute of Sweden Performance test and requirements The tests were performed to verify that Din base unit meets the electromagnetic compatibility requirements of FCC 47 CFR part 15 C. Test facility The used anechoic chamber is compliant with the requirements of section 2.948 of the FCC rules and listed, registration number 96866, as a facility accepted for certification under parts 15 and 18. The site complies with RSS Gen and is accepted by Industry Canada for the performance of radiated measurements, IC-file number 3482A-2. Test object Transceiver: Din base unit Antenna connector Modified BNC, the connector is soldered, not possible to connect an antenna Antenna: N/A Nominal power setting: 419792 Frequency range: 926.5 MHz Frequencies used during test: 926.5 MHz Modulation: GFSK Data rate: 9.6 kbps Supply voltage: 12-24 V DC, 12.0 V DC nominal Extreme voltage (±15%): 10.2-27.6 V DC During the radiated tests the EUT was powered by a external DC power supply, Topward 6303DS, SP 502 754, 12.0 V DC. During the AC conducted emission test the EUT was powered by a typical AC/DC-adapter, Xppower, model: AEP06US12. Measurement equipment Measurement equipment Calibration Due SP number Test site Edison 2013-12 504 114 EMI test receiver R&S ESIB 26 2012-07 503 885 Antenna Schaffner CBL 6143 2013-04 504 079 Horn antenna EMCO 3115 2014-01 502 175 Low Noise Amplifier Miteq 2012-08 504 160 High pass filter Wainwright WHKY 2012-08 504 199 Multimeter Fluke 85 III 625 2012-05 503 418 Temperature and humidity meter Testo 625 2012-05 504 117 Date Reference Page REPORT 2012-04-19 FX205878-F15C2 2 (3) FCC ID: OG4-RXDIN Appendix 1 SP Technical Research Institute of Sweden Operational test mode The test was performed with continuously transmission (100% duty cycle), if not otherwise stated, and with normal modulation. For duty cycle measurements see appendix 2. With the normal duty cycle the duty cycle was measured to 29.5/125.3 ms = 0.235 = 23.5%. The PRF was calculated to PRF = 1/T = 1/125.3 ms = 8 Hz, thus QP-detector was used without any correction for pulse desensitization. Cabling during emission test, see the photo below: EUT port Cable type Termination / use DC power port and I/O signals Multi-wire, unshielded, 2.8m length Power connected to the DC power supply, I/O unterminated Date Reference Page REPORT 2012-04-19 FX205878-F15C2 3 (3) FCC ID: OG4-RXDIN Appendix 1 SP Technical Research Institute of Sweden Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP QD 10885”. The measurement uncertainties can be found in the table below. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). The measurement uncertainties can be found in the table below: Method Uncertainty Radiated emission, 30 – 1000 MHz 4.8/5.6 dB (V/H-pol) Radiated emission, 1 – 40 GHz 2.6 dB Conducted emission 3.5 dB Compliancy evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered: 2012-03-12 and 2012-03-20 Test engineers Fredrik Isaksson and Azhar Abbas, SP Date Reference Page REPORT 2012-04-19 FX205878-F15C2 1 (3) FCC ID: OG4-RXDIN Appendix 2 SP Technical Research Institute of Sweden Field strength of fundamental measurements according to FCC 47 CFR part 15.249 (a) / RSS-210 A2.9(a) Date 2012-03-15 2012-03-20 Temperature 21 °C ± 3 °C 22 °C ± 3 °C Humidity 26 % ± 5 % 27 % ± 5 % Test set-up and procedure The measurements were performed according to ANSI C63.10-2009. The test was performed with the power setting: 419792 (nominal) and with continuous transmission (100% duty cycle) and with normal modulation. The radiated maximum peak output power measurements were performed in the semi-anechoic chamber. The fundamental was scanned with peak detector with the antenna height 1-4 m and the turntable was varied between 0-360 degrees for maximum response. The antenna distance during the measurements was 3.0 m. Final measurement was performed with detector according to the FCC rules. Test set-up photos during the tests can be found in Appendix 9. Measurement equipment SP number Semi anechoic chamber, Edison 504 114 Spectrum analyzer R&S ESI 26 503 885 EMI measurement computer - Software: R&S EMC32, ver. 6.30.20 503 745 Antenna Schaffner Bilog CBL6143 504 079 Multimeter Fluke 85 III 503 418 Temperature and humidity meter Testo 625 504 117 Date Reference Page REPORT 2012-04-19 FX205878-F15C2 2 (3) FCC ID: OG4-RXDIN Appendix 2 SP Technical Research Institute of Sweden Results Duty cycle measurements can be found in the diagrams below: Diagram 1: Normal duty cycle, Tx on Diagram 2: Normal duty cycle, Period time Field strength of fundamental measurements: RBW=120 kHz Max peak radiated output power Quasi-peak detector 926.5 MHz Antenna height 1.00 m Azimuth 66 deg Polarization Horizontal T nom 22°C V nom 12.0 V DC 91.4 dBμV/m T nom 22°C V min 10.2 V DC Note 1 91.4 dBμV/m T nom 22°C V max 27.6 V DC Note 1 91.4 dBμV/m Note 1: According 47CFR 15.31(e), for intentional radiators, measurements of the variation of the input power or the radiated signal level of the fundamental frequency component of the emission, as appropriate, shall be performed with the supply voltage varied between 85% and 115% of the nominal rated supply voltage. For battery operated equipment, the equipment tests shall be performed using a new battery. Limits According to 47CFR 15.249(a), the field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: According to RSS-210 A2.9(a), the field strength measured at 3 meter shall not exceed the following: Fundamental Frequency Field strength of fundamental 902-928 MHz 50 …

Text truncated - open the document above for the full version.

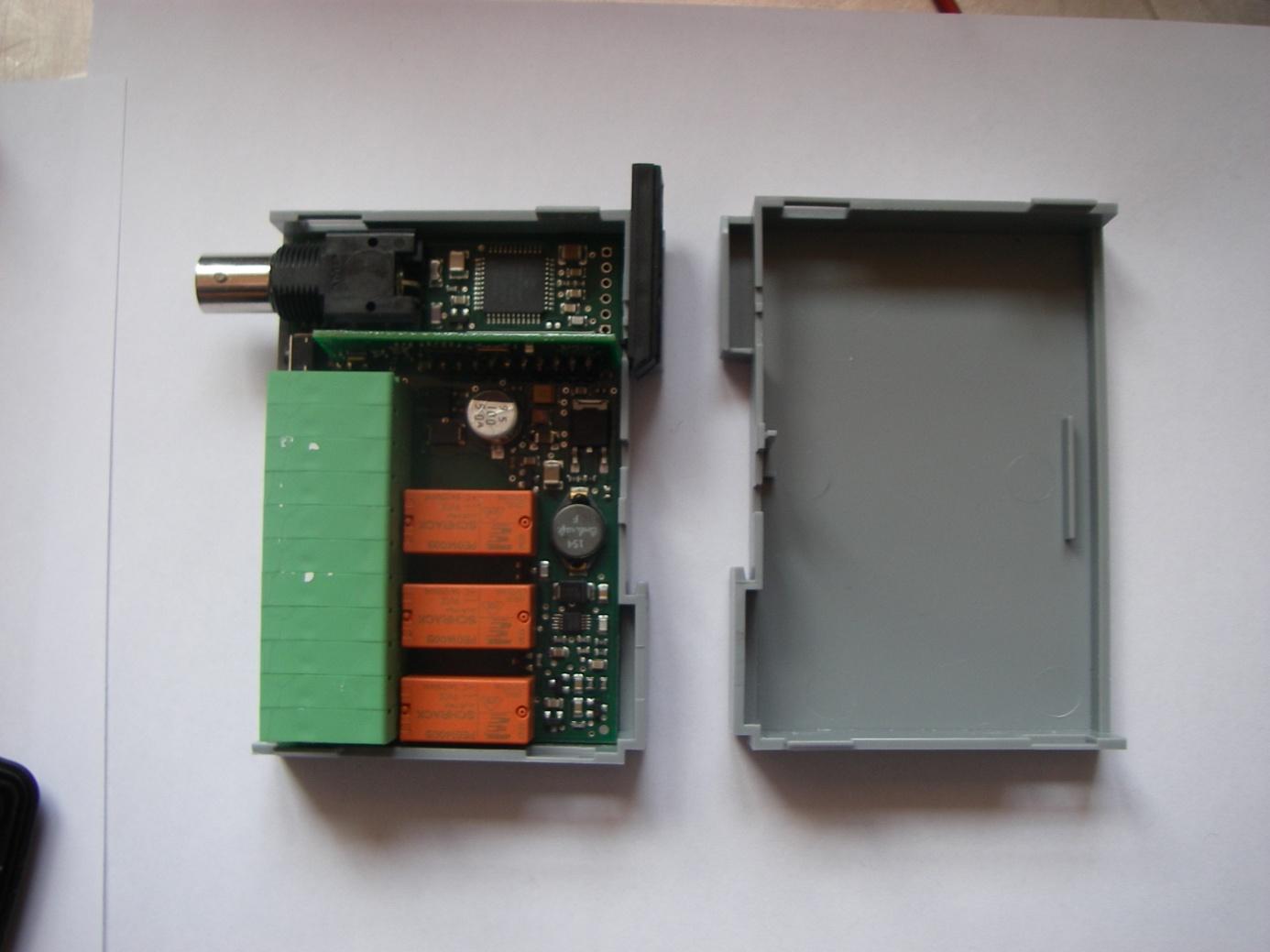

Date Reference Page REPORT 2012-04-19 FX205878-F15C2 1 (8) FCC ID: OG4-RXDIN Appendix 9 SP Technical Research Institute of Sweden Photos The test set-up during all the tests can be seen in the pictures below. Radiated emission, 30-1000 MHz: Date Reference Page REPORT 2012-04-19 FX205878-F15C2 2 (8) FCC ID: OG4-RXDIN Appendix 9 SP Technical Research Institute of Sweden Radiated emission, 1-10 GHz: Date Reference Page REPORT 2012-04-19 FX205878-F15C2 3 (8) FCC ID: OG4-RXDIN Appendix 9 SP Technical Research Institute of Sweden Conducted emission:
