DRIVING INSTRUCTION REMOTUS BC8518 928754-000 USA MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 1 (12) Variant 1. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 2 (12) Variant 2. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 3 (12) TRANSMITTER ON Pull out the stop button and the transmitter is switched on. The operation indicator lamp (ACC.) starts blinking and the transmitter is on. ELECTRONIC LOCK If the operating indication LED is red, the electronic lock is activated. Contact the works manager or see the Installations manual. MAIN CONTACTOR ON Then the transmitter is on, press the signal button and this actuates the Main Contactor in the receiver, and it is ready for operation. NORMAL RUN The transmitter is designed with two pushbuttons for HOIST Up / Down, two for BRIDGE Forward / Backward and two for TROLLEY Left / Right. Each button is divided into 2 steps (a perceptible resistance) which facilitates the running at a certain speed. The first speed is obtained when the pushbutton is half compressed and the second speed is obtained when the pushbutton is totally compressed. All the motions can be run simultaneously and the motions stop when the pushbutton is released, otherwise make an EMERGENCY STOP. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 4 (12) MICRO RUN Push in the button for MICRO and the diode lamp for micro lights. The micro-run movements are only at lowest speed in micro-run mode irrespective of the compression of the pushbuttons. The buttons are looped so that only one movement can be operated at a time. The other functions are working as in ordinary runs. FLOODLIGHT ⊗ The lights can be operated at any time after switching the Main contactor ON, Light OFF must be set before Main Contactor OFF. Otherwise the function remains. A diodlamp indicate that the light is on. One extra function and Choice 1 and 2, works only on variant 2. (See page 3) EXTRA Function is obtained immediately when the switch is actuated in position . CHOICE 1, 2 or 1+2 Push the button for 1 and/or 2, and the diode lamps indicate the selection. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 5 (12) SIGNAL A signal can be emitted at any time during the run and is obtained as long as the push button switch is depressed. EMERGENCY STOP Depress the STOP button for Emergency STOP. TRANSMITTER OFF MAIN CONTACTOR OFF Depress the triangular button for about 2 seconds, until the indication for operation goes out, which switches off the transmitter. At the same time the Main Contactor in the receiver is deactivated. AUTOMATIC SWITCH OFF FUNCTION The indicator lamp for operation goes out and the Main Contactor is de-energized. For renewed activation of the Main contactor restart is required, press the stop button, pull it out again and press the signal button. Accumulator voltage below 5,7V also causes automatic switch-off. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 6 (12) X X TRANSMITTER LED INDICATIONS If the transmitter under start up or under operating detect a fault in any self-tests it will indicate with a continuously red light. After that the transmitter closes down. If it indicates continuously yellow light when you start up the transmitter, at least one of the pushbuttons is activated. INDICATIONS EXPLANATIONS Green flashing Operating Yellow flashing Battery voltage low < 6,3 V Yellow continuously Discharge battery voltage < 5,7 V Red continuously, at start Electronic lock, see the Installation manual Red continuously, at operating Fault, see the Installation manual DISCHARGED BATTERY The transmitter is equipped with an indicator lamp for battery status. The lamp blinks slowly green when the battery voltage is normal (7,4V), but starts to blink rapidly yellow, when it falls (6,3V). When the indicator lamp has started blinking rapidly yellow, the transmitter can be operated for approx 10 min. before the voltage is so low (5,7V) that the transmitter switches off automatically. The indicator lamp showing fixed light indicates this. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 7 (12) CHARGING INSTRUCTIONS • The battery has got power for 12 hours continuous operation. • Charging time is 2 hours. 230V AC CHARGING DEVICE • Manufacture ANSMANN The charging device has a green LED, shows that the charger is connected to the main, and a red LED who indicates: Continuously indication Charging Flashing indication The battery is wrong or not connected No indication Full charged battery • Manufacture MASCOT Do not connect the charger to the mains before it is connected to the battery. The charging device has a LED who indicates: Orange indication Quick charge Yellow indication Maintenance charge Green indication Full charged battery DC CHARGING DEVICE • The charging device has a fixed GREEN indication for quick. charge. When the battery is charged the indication switches off. Still a certain maintenance charge is going on. • NOTE! If the indication not light when the battery is placed in the charger, the remaining capacity in the battery is to high to enable quick charge. • Take the battery out of the charger before the main-connection is disconnected. MANUAL BC8518 No. 928754-000 USA Version: A0 Approved by: HH Page 8 (12) • A WELL MAINTAINED BATTERY IS NECESSARY FOR FAULTLESS OPERATION • CHARGE THE BATTERY AS SOON AS THERE IS POSSIBILITY. • THE BATTERY MUST NOT BE CHARGED IF THE TEMPERATURE IS LOWER THAN +10°C OR HIGHER THAN +35°C. • Only use by supplier approved charger. DISCHARGED BATTERY. A Li-Ion battery is environment conformed, but as usually, all batteries shall be handed back for recycling. When the battery will be changed, the used Li-Ion-battery shall be returned to the distributor, where a new battery is to be bought. Just to make sure that a proper battery will be required. An alternative is to directly dispose of the battery for recycling. Old batteries shall b…

Text truncated - open the document above for the full version.

Request for Confidentiality 07 April 2004 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: OG4BC8518 Please be advised that the following information is to be held confidential on behalf of Akerstroms Bjorbo AB: • Schematics • Parts Lists • Block Diagram The application contains technical information which Akerstroms Bjorbo AB deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

FCC ID: OG4BC8518 FCC ID: OG4BC8518 FCC ID: OG4BC8518 FCC ID: OG4BC8518

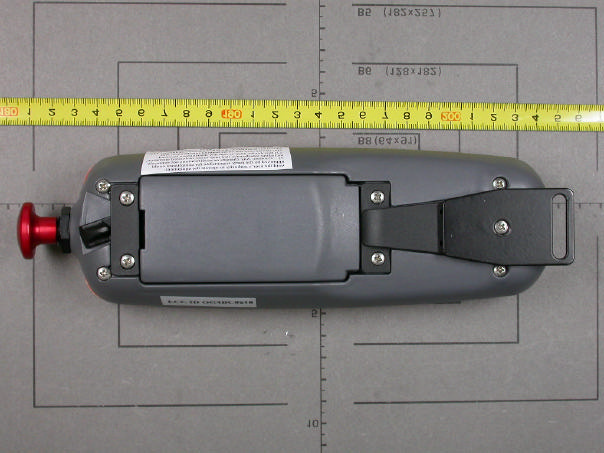

FCC ID: OG4BC8518 EUT showing labels FCC Statement and FCC ID FCC ID: OG4BC8518 Detail view of label FCC Statement FCC ID: OG4BC8518 Detail view of label FCC ID

FCC ID: OG4BC8518 EUT disassembled FCC ID: OG4BC8518 PCB top view FCC ID: OG4BC8518 PCB bottom view FCC ID: OG4BC8518 RF module disassembled FCC ID: OG4BC8518 PCB RF module bottom view FCC ID: OG4BC8518 PCB RF module top view

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 1 of 23 Pages Straubing, 31 March 2004 T E S T - R E P O R T No. 56502-40188 for Remotus BC 8518 UHF Handheld Transmitter Applicant: Akerströms Björbo AB Test Specification: FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.231 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 2 of 23 Pages Table of Contents 1. Administrative Data....................................................................................3 2. Identification of Test Laboratory.................................................................4 3. Operation Mode of EUT.............................................................................6 4. Configuration..............................................................................................7 5. Measuring Methods...................................................................................8 5.1. Conducted powerline emissions..........................................................9 5.2. Field Strength of Emissions, Prescans in a fully-anechoic Room.................................................................................................10 5.3. Radiated Emission Measurement at Open Area Test Site................12 6. Photographs Taken During Testing.........................................................13 7. List of Measurements...............................................................................18 8. Referenced Regulations..........................................................................22 Charts taken during testing...............................................................................23 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 3 of 23 Pages 1. Administrative Data Test item (EUT) Type designation Remotus BC 8518 Serial number(s): 92 8677-000-0650 Type of equipment: UHF Handheld Transmitter Parts/accessories: FCC-ID: OG4BC8518 Technical data Frequency range 433.050 MHz - 434.790 MHz Operational frequency 434.650 MHz Type of modulation 10K0F1D Pulse frequency N/A Pulse width N/A Antenna Integrated Power supply Battery 7.4 V Applicant: (full address) Akerströms Björbo AB S-780 45 Björbo Contract identification: --- Contact person: Mr. Bernt Eriksson Manufacturer: Akerströms Björbo AB Application details Receipt of EUT: 22.March 2004 Date of test: 22 - 26 March 2004 Note: Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 4 of 23 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-01 FCC TEST SITE LISTING 90926 INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT LABORATORY MANAGER: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Thomas Eberl RESPONSIBLE FOR TEST REPORT: Mr. Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 5 of 23 Pages SUMMARY OF TEST RESULTS The tested sample complies with the requirements set forth in the FCC Code of Federal Regulations Part 15, Subpart C, Section 15.231 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 6 of 23 Pages 3. Operation Mode of EUT While one button is pressed, the transmitter continuously sends the corresponding datagram. When the button is released, the transmitter stops working instantly. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 7 of 23 Pages 4. Configuration Configuration of the EUT Not applicable Cables connected to the EUT Not applicable Peripheral devices connected to the EUT Not applicable EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 8 of 23 Pages 5. Measuring Methods EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 9 of 23 Pages 5.1. Conducted powerline emissions Rules and Specifications: Sections 15.107 & 15.207 Guide: CISPR 22 Measurement Procedure: In general conducted emission tests in the frequency range 0.15 - 30 MHz are required to be performed with quasi-peak and average detector. To simplify testing the following procedure is used: First the whole spectrum of emission caused by equipment under test (EUT) is recorded with detector set to peak. After that all emission levels having less margin than 20 dB to or exceeding the appropriate limit (in general average limit is 10 dB lower than quasi-peak limit) are retested with detector set to quasi-peak. If average limit is kept no additional scan with average detector is necessary. In cases of emission levels between quasi-peak and average limit an additional scan with detector set to average has to be recorded. Shielded Room LISN EUT Wooden Table EMI-Receiver Test instruments used: No. Type Model Serial Number Manufacturer 01 EMI Receiver ESHS 10 860043/016 Rohde & Schwarz 02 LISN ESH3-Z5 862770/021 Rohde & Schwarz 03 LISN ESH-3-Z5 830952/025 Rohde & Schwarz 04 Shielded Room No. 4 --- 3FD-100 544 Euroshield EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 10 of 23 Pages 5.2. Field Strength of Emissions, Prescans in a fully-anechoic room (30 MHz – …

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 14 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 15 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 16 of 23 Pages Test setup for radiated emission measurement (open-area test-side) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40188 Page 17 of 23 Pages Test setup for radiated emission measurement (open-area test-side)
