OG4MC8318UHF-Handheld Transmitter

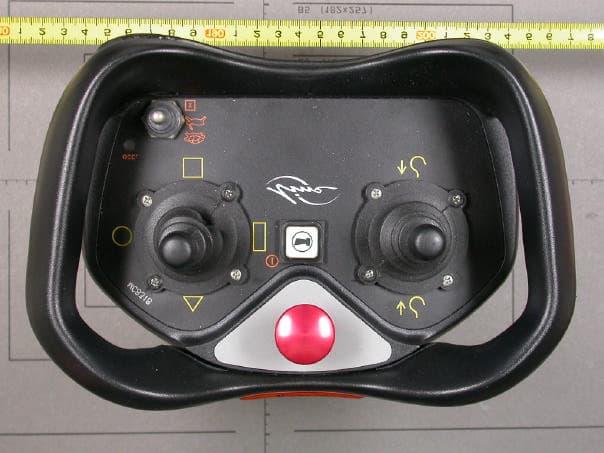

DRIVING INSTRUCTION REMOTUS MC8318 923477-000 USA MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 1 (12) Variant 1 MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 2 (12) Variant 2 MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 3 (12) TRANSMITTER ON Pull out the STOP button and the transmitter will make a self-test during 0,5 seconds. The operation indicator lamp (acc.) starts blinking and the transmitter is on. MAIN CONTACTOR ON Then the transmitter is on press the signal button and this actuates the Main Contactor in the receiver (the Main Contactor of the traverse closes) and the traverse is ready for operation. NORMAL RUN The transmitter is designed with two manipulators: One for Bridge/Trolley travel and the other for Hoist motions, each direction being divided into 2 steps (a perceptible resistance) facilitating run at a certain speed. The size and direction of the manipulators deflections are equal to the speed and direction of the objects motions. Bridge and Trolley can be run simultaneously in the same manipulator. The motions stop when the manipulator is brought to neutral, otherwise pull out the EMERGENCY STOP. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 4 (12) MICRO RUN (NOT SIMULTANEOUS) Set the selector for MICRO / NORMAL / EXTRA in position MICRO. The micro-run movements are only at lowest speed in micro-run mode irrespective of the deflections of the manipulator. The other functions are working just as in ordinary runs. The manipulated movements are looped so that only one movement can be operated at a time. EXTRA The function is obtained immediately when the switch is actuated in position . Floodlight and Choise 1 and 2 only on variant 2 (See page 3). FLOODLIGHT ⊗ The lights can be operated at any time after switching the Main contactor ON, Light OFF must be set before Main Contactor OFF. CHOISE 1, 2 or 1+2 Set the switch in desired position for switch-in of Choise 1, 2 or 1+2. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 5 (12) SIGNAL A signal can be emitted at any time during the run and is obtained as long as the push button switch is depressed. EMERGENCY STOP Depress the STOP button for Emergency STOP. AUTOMATIC SWITCH OFF FUNCTION The indicator lamp for operation goes out and the Main Contactor is de-energized. For renewed activation of the Main contactor restart is required, press the stop button, pull it out again and press the signal button. Accumulator voltage below 6,1V also causes automatic switch- off. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 6 (12) X X X TRANSMITTER OFF MAIN CONTACTOR OFF Depress the STOP button which switches off the transmitter. At the same time the Main Contactor is deactivated (the Main Contactor of the traverse cuts out). The operation indicator lamp goes out. TRANSMITTER LED INDICATIONS If the transmitter under start up or under drift detect a fault in any selftests it will indicates with a continuously red light. After what the transmitter closed down. If it indicates continuously yellow light when you start up the transmitter it will be something fault with some of the manipulators. INDICATIONS EXPLANATIONS Green flashing Drift Yellow flashing Accumulatorvoltage low < 6,9 V Yellow continuously Discharge accumulator voltage < 6.1 V Red continuously Fault, see the productdescription MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 7 (12) RUN DOWN ACCUMULATOR The transmitter is equipped with an indicator lamp (green and yellow) for accumulator status. The lamp blinks green when the accumulator voltage is normal(?7,2V), but starts to blink yellow when it falls (<6,9V). When the indicator lamp has started blinking yellow the transmitter can be operated approx. 10 min., before the voltage is so low (<6,1V) that the transmitter switches off automatically. This is indicated by the indicator lamp showing fixed yellow light. The two last-mentioned statuses are also present at outlets in the receiver. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 8 (12) ! CHARGING INSTRUCTIONS ∗ The accumulator has got power for 10 hours continuous operation. ∗ Charging time 2 hours (quick-charge) there upon automatically changes to maintenance charging which does not need supervising. ∗ The charging device has LED indication for quick charge (fixed red LED) or maintenance charge (flashing red LED). ∗ Take the accumulator out of the charger before the main- connection is disconnect. ∗ A WELL MAINTAINED ACCUMULATOR IS NECESSARY FOR FAULTLESS OPERATION. ∗ WATCH THE ACCUMULATED CHARGE AND CHARGING CAREFULLY. ∗ THE ACCUMULATOR DID NOT BE CHARGED IF ITS TEMPERATURE IS LOWER THAN +10°C OR HIGHER THAN +35°C. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 9 (12) INSTRUCTIONS FOR CRANE OPERATORS These instructions have to be followed. Marked 1. Check that the radiotransmitter operates on the crane which you are going to drive (ex. give a signal). Check the function of the radiotransmitter. 2. Check that no unauthorized person is on or at the crane when you start to drive it. The blocking device at entry of the crane should be closed. 3. Check the position of the symbols for driving direction (crane- trolleytravel). 4. At the beginning of each shift the crane operator is to test brake, limitswitches and emergency stop function. 5. The crane operator is when driving the crane to walk or stand at a suitable distance from the crane hoist in order to have adequate overview of the operation. 6. It is prohibited to move the crane load over oneself or workmates. Signal in order to warn workmates. 7. Avoid driving into end stops since equipment and goods can be damaged. 8. Check your own free passageway in order to avoid tripping over material on the ground when you drive the crane Keep the workplace in good order. MANUAL MC8318 No. 923477-000 USA Version: A0 Approved by: HH Page. 10 (12) ! ! ! …

Text truncated - open the document above for the full version.

Request for Confidentiality 07 April 2004 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: OG4MC8318 Please be advised that the following information is to be held confidential on behalf of Akerstroms Bjorbo AB: • Schematics • Parts Lists • Block Diagram The application contains technical information which Akerstroms Bjorbo AB deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

FCC ID: OG4MC8318 FCC ID: OG4MC8318 FCC ID: OG4MC8318 FCC ID: OG4MC8318 FCC ID: OG4MC8318 FCC ID: OG4MC8318

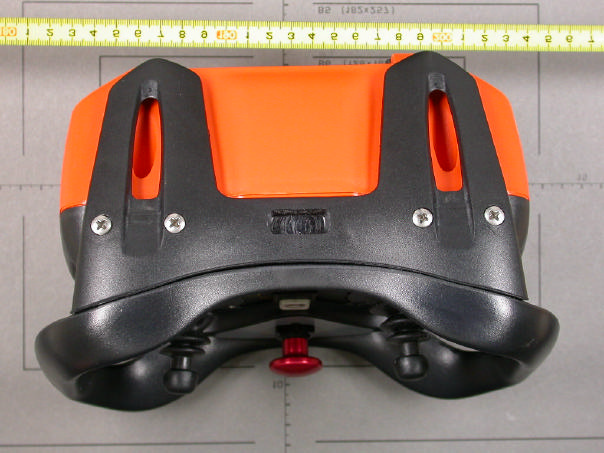

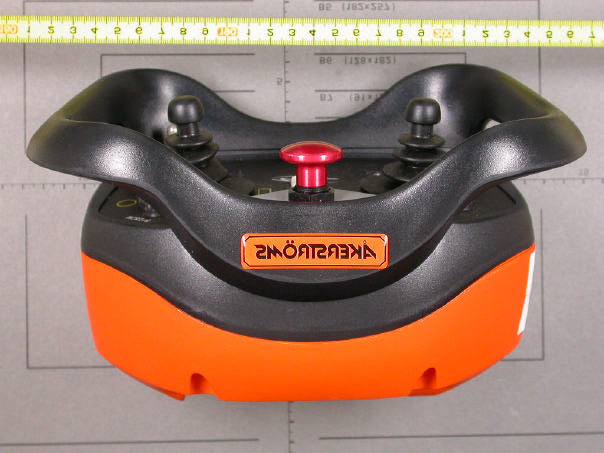

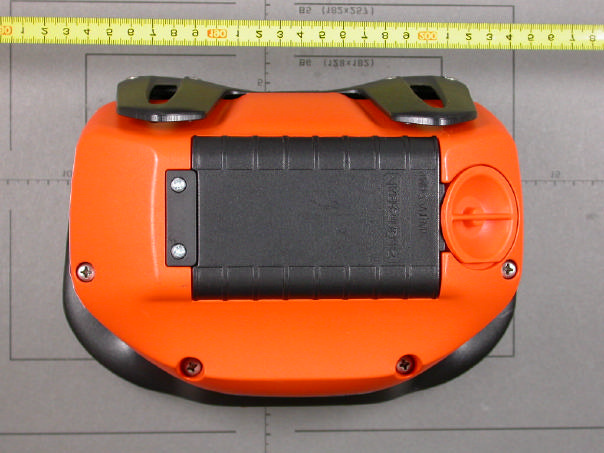

FCC ID: OG4MC8318 EUT with label FCC Statement FCC ID: OG4MC8318 Detail view of Label FCC Statement FCC ID: OG4MC8318 EUT with label FCC ID FCC ID: OG4MC8318 Detail view of FCC ID

FCC ID: OG4MC8318 EUT disassembled FCC ID: OG4MC8318 PCB top view FCC ID: OG4MC8318 PCB bottom view FCC ID: OG4MC8318 RF module disassembled FCC ID: OG4MC8318 PCB RF module bottom view FCC ID: OG4MC8318 PCB RF module top view

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 1 of 23 Pages Straubing, 31 March 2004 T E S T - R E P O R T No. 56502-40187 for Remotus MC 8318 UHF Handheld Transmitter Applicant: Akerströms Björbo AB Test Specification: FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.231 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 2 of 23 Pages Table of Contents 1. Administrative Data....................................................................................3 2. Identification of Test Laboratory.................................................................4 3. Operation Mode of EUT.............................................................................6 4. Configuration..............................................................................................7 5. Measuring Methods...................................................................................8 5.1. Conducted powerline emissions..........................................................9 5.2. Field Strength of Emissions, Prescans in a fully-anechoic Room.................................................................................................10 5.3. Radiated Emission Measurement at Open Area Test Site................12 6. Photographs Taken During Testing.........................................................13 7. List of Measurements...............................................................................18 8. Referenced Regulations..........................................................................22 Charts taken during testing...............................................................................23 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 3 of 23 Pages 1. Administrative Data Test item (EUT) Type designation Remotus MC 8318 Serial number(s): 92 1732-0304 Type of equipment: UHF Handheld Transmitter Parts/accessories: FCC-ID: OG4MC8318 Technical data Frequency range 433.050 MHz - 434.790 MHz Operational frequency 434.650 MHz Type of modulation 10K0F1D Pulse frequency N/A Pulse width N/A Antenna Integrated Power supply Battery 7.2 V Applicant: (full address) Akerströms Björbo AB S-780 45 Björbo Contract identification: --- Contact person: Mr. Bernt Eriksson Manufacturer: Akerströms Björbo AB Application details Receipt of EUT: 22.March 2004 Date of test: 22 - 26 March 2004 Note: Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 4 of 23 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-01 FCC TEST SITE LISTING 90926 INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT LABORATORY MANAGER: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Thomas Eberl RESPONSIBLE FOR TEST REPORT: Mr. Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 5 of 23 Pages SUMMARY OF TEST RESULTS The tested sample complies with the requirements set forth in the FCC Code of Federal Regulations Part 15, Subpart C, Section 15.231 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 6 of 23 Pages 3. Operation Mode of EUT While one button is pressed, the transmitter continuously sends the corresponding datagram. When the button is released, the transmitter stops working instantly. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 7 of 23 Pages 4. Configuration Configuration of the EUT Not applicable Cables connected to the EUT Not applicable Peripheral devices connected to the EUT Not applicable EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 8 of 23 Pages 5. Measuring Methods EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 9 of 23 Pages 5.1. Conducted powerline emissions Rules and Specifications: Sections 15.107 & 15.207 Guide: CISPR 22 Measurement Procedure: In general conducted emission tests in the frequency range 0.15 - 30 MHz are required to be performed with quasi-peak and average detector. To simplify testing the following procedure is used: First the whole spectrum of emission caused by equipment under test (EUT) is recorded with detector set to peak. After that all emission levels having less margin than 20 dB to or exceeding the appropriate limit (in general average limit is 10 dB lower than quasi-peak limit) are retested with detector set to quasi-peak. If average limit is kept no additional scan with average detector is necessary. In cases of emission levels between quasi-peak and average limit an additional scan with detector set to average has to be recorded. Shielded Room LISN EUT Wooden Table EMI-Receiver Test instruments used: No. Type Model Serial Number Manufacturer 01 EMI Receiver ESHS 10 860043/016 Rohde & Schwarz 02 LISN ESH3-Z5 862770/021 Rohde & Schwarz 03 LISN ESH-3-Z5 830952/025 Rohde & Schwarz 04 Shielded Room No. 4 --- 3FD-100 544 Euroshield EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 10 of 23 Pages 5.2. Field Strength of Emissions, Prescans in a fully-anechoic room (30 MHz – 1 GH…

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 14 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 15 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 16 of 23 Pages Test setup for radiated emission measurement (open-area test-side) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40187 Page 17 of 23 Pages Test setup for radiated emission measurement (open-area test-side)
