OG4S506UHF-Handheld Transmitter

INSTALLATION MANUAL SESAM 506 92 7123-000 Ver. A0 Page 1(2) FCC Identifier OG4S506 SESAM 506- Door opening system TRANSMITTER The transmitter operates on a 9V alkaline battery. Pushbutton 1, 4 = OPEN, button 2, 5 = CLOSE, button 3, 6 = STOP RECEIVER The permanent installation of the building must submit fuses, which protects the equipment and wiring from over-current and short-circuit. The power supply of the equipment and all relay-contacts must be fused. All that fuses are used as separation devices. They must be easily accessible, must submit a contact-gap of at least 3.0 mm and has to be placed in the line pole (L). After the installation of the equipment, the installed cables must be bound together (e.g. by using a cable binder) very close to the terminal blocks. If the receiver is mounting unprotected for rain it must be mounted horizontally. CODING The receiver and the transmitter have to be coded by the electrician. The transmitter and receiver are provided with 10-pole switches SW1 with 3 possible positions (+, 0, -). Switch 1-3 The code is divided into two parts, area code and door code. The area code (switch 1-3) has to be identical for all the transmitters and the receivers, which are to be working together. Switch 4-10 Door codes are coded as example below. In areas with more than 2 ports you have to code after the table. Switch 1-6 are coded identically in transmitter and receiver. The upper button line on the transmitter correspond to the lower port- number in the table. The lower button line on the transmitter correspond to the upper portnumber in the table. Figur 1. Receiver 3 functions Transmitter Corresponding port number in the receiver gives Upper line Lower line Incoming voltage 115 VAC INSTALLATION MANUAL SESAM 506 92 7123-000 Ver. A0 Page 2(2) FCC Identifier OG4S506 Coding example receiver Coding port 16. Code as illustration (9+6+1=16) The receivers code for port 16. The upper line in transmitter 506. Coding port 17. Code as illustration. (9+6+2=17). The receivers code for port 17. The lower line in transmitter 506. PLUG IN Coding see above. Plug in receiver Incoming voltage 12-24 VAC or DC is connected to pin 5 and 6 (independent polarized). What concerns the relay outputs see figure 2. For 1-relays receiver With switch SW2 You can choose which push button on the transmitter which have to set function out on the receiver sees below. PLUG IN TRANSMITTER 506 SW2:1 ON other OFF Button 1, 4 SW2:2 ON other OFF Button 2, 5 SW2:3 ON other OFF Button 3, 6 Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Figur 2. Receiver with 1 respective 3 functions

Request for Confidentiality 19 April 2004 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: OG4S506 Please be advised that the following information is to be held confidential on behalf of Akerstroms Bjorbo AB: • Schematics • Parts Lists • Block Diagram The application contains technical information which Akerstroms Bjorbo AB deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

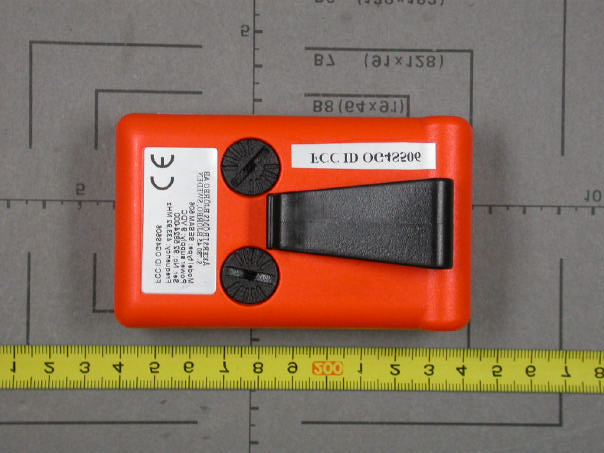

FCC ID OG4S506 FCC ID OG4S506 FCC ID OG4S506 FCC ID OG4S506

FCC ID OG4S506 FCC ID OG4S506 FCC ID OG4S506

Sesam 500 Åkerströms’ Sesam 500 is used for remote control of gates, bars, and doors. This flexible, trouble-free system builds on modern digital technology. Hand transmitters come in seven models. The Sesam 512 and 599 can be coded for a specific area, so only transmitters and receivers, which are coded for an area, can work together. The Sesam 512 and Sesam 599 are prepared for mounting in vehicles. The transmitter is put into a special holder (cassette) and fed with voltage from the vehicle. When cassette-mounted, these models display illumi- nated characters in the buttons. The receivers come as wall models, with one or three relays or as plug-in models for mounting on holders in control panels. MODELLER Åkerströms Björbo AB, SE-780 45 Björbo, Sweden. [email protected], www.akerstroms.com The Sesam 500 product line is developed to provide the safety, reliability, and ease- of-use necessary for equip- ment used in demanding in- dustrial environments. SPECEFICATIONS FOR EACH MODEL Sesam 501 No. functions: 1 No. doors: 1 Transmitter output power: 10mW Power consumption: ca 25 mA Voltage feed: 9 V battery Size: 100 x 60 x 25 mm Weight: 125 g Sesam 503 No. functions: 3 No. doors: 3 Transmitter output power: 10 mW Power consumption: ca 25 mA Voltage feed: 9 V battery Size: 100 x 60 x 25 mm Weight: 125 g Sesam 512 & Sesam 512 B No. functions in 512: 3 No. functions in 512 B: 1 No. doors: 12 No. area codes: 2187 Transmitter output power: 10 mW Power consumption: ca 35 mA from battery, 100 mA via cassette Voltage feed: 9 V battery or 12–24 V DC via cassette Size: 142 x 68 x 26 mm Weight: 175 g Sesam 599 & Sesam 599 B No. functions in 599: 3 No. functions in 599 B: 1 No. doors: max 999 No. area codes: min 27 Transmitter output power: 10 mW Power consumption: ca 35 mA from battery, 120 mA via cassette Voltage feed: 9 V battery or 12–24 V DC via cassette Size: 142 x 68 x 26 mm Weight: 175 g Sesam 506 No. functions: 6 No. doors: 6 Power consumption: ca 25 mA Voltage feed: 9 V battery Size: 100 x 60 x 25 mm Weight: 125 g Sesam receiver No. relays: 3 or 1 Sensitivity: better than –95 dBm Breaking power relays: max 400 V AC, 6A, 1500 W, resistive load Voltage feed: 230 V AC or 24 V AC or 12 –24 V DC Power consumption: 1.5 VA Size wall receiver: 152 x 102 x 42 mm Size plug-in 11 pin: 80 x 72 x 35 mm Ver. 1 Aug. 2003 Åkerströms has more than 40 years of experience in developing radio control for industry and its specific needs. The Sesam 500, Åkerströms’ radio-control door-opening product line, provides the safety, reliability, and ease-of-use necessary for equipment used in demanding industrial environments. Cassette Voltage feed: 12-24 V DC Specifications applicable to all Sesam 500 models Frequency area: 433.92 MHz Type of modulation: ASK Surrounding temperatures:: -25°C – +55°C

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 1 of 23 Pages Straubing, 15 April 2004 T E S T - R E P O R T No. 56502-40192 for Sesam 506 UHF Handheld Transmitter Applicant: Akerströms Björbo AB Test Specification: FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.231 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 2 of 23 Pages Table of Contents 1. Administrative Data....................................................................................3 2. Identification of Test Laboratory.................................................................4 3. Operation Mode of EUT.............................................................................6 4. Configuration..............................................................................................7 5. Measuring Methods...................................................................................8 5.1. Field Strength of Emissions, Prescans in a fully-anechoic room (30 MHz – 1 GHz).......................................................................9 5.2. Fieldstrength of Emissions, Measurement at Open Area Test Site (30 MHz – 1 GHz)...............................................................10 5.3. Fieldstrength of Emissions above 1 GHz...........................................11 6. Photographs Taken During Testing.........................................................12 7. List of Measurements...............................................................................17 8. Referenced Regulations..........................................................................22 Charts taken during testing...............................................................................23 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 3 of 23 Pages 1. Administrative Data Test item (EUT) Type designation Sesam 506 Serial number(s): 92 6116-0864 Type of equipment: UHF Handheld Transmitter Parts/accessories: FCC-ID: OG4S506 Technical data Frequency range 433.050 MHz - 434.790 MHz Operational frequency 433.930 MHz Type of modulation 10K0F1D Pulse frequency N/A Pulse width N/A Antenna Integrated Power supply Battery 9.0 V Applicant: (full address) Akerströms Björbo AB S-780 45 Björbo Contract identification: --- Contact person: Mr. Bernt Eriksson Manufacturer: Akerströms Björbo AB Application details Receipt of EUT: 06 April 2004 Date of test: 22 March to 07 April 2004 Note: --- Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 4 of 23 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-01 FCC TEST SITE LISTING 90926 INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT LABORATORY MANAGER: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Thomas Eberl RESPONSIBLE FOR TEST REPORT: Mr. Thomas Eberl EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 5 of 23 Pages SUMMARY OF TEST RESULTS The tested sample complies with the requirements set forth in the FCC Code of Federal Regulations Part 15, Subpart C, Section 15.231 EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 6 of 23 Pages 3. Operation Mode of EUT While one button is pressed, the transmitter continuously sends the corresponding datagram. When the button is released, the transmitter stops working instantly. EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 7 of 23 Pages 4. Configuration Configuration of the EUT Not applicable Cables connected to the EUT Not applicable Peripheral devices connected to the EUT Not applicable EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 8 of 23 Pages 5. Measuring Methods EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 9 of 23 Pages 5.1. Field Strength of Emissions, Prescans in a fully-anechoic room (30 MHz – 1 GHz) Rules and Specifications: Sections 15.109 & 15.231 Guide: ANSI C63.4 1997 Measurement Procedure: Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. Measurements were made in both the horizontal and vertical planes of polarization in a fully anechoic room using a spectrum analyzer with the detector function set to peak and resolution bandwidth set to 100 kHz. All tests were performed at a test-distance of 3 meters. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. EUT Fully anechoic chamber 3 m test distance Spectrum Analyzer Test instruments used: No. Type Model Serial Number Manufacturer 01 Spectrum Analyzer FSP 30 100063 Rohde & Schwarz 113 Preamplifier CPA9231A 3393 Schaffner 141 Biconical antenna HK 116 829708/006 Rohde & Schwarz 143 Log. periodic antenna 3147 9112-1054 EMCO 003 Fully anechoic room No. 2 1452 Albatross Projects EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 10 of 23 Pages 5.2. Fieldstrength of Emissions, Measurement at Open Are…

Text truncated - open the document above for the full version.

EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 13 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 14 of 23 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 15 of 23 Pages Test setup for radiated emission measurement (open-area test-side) EMV-PrüfzentrumEMI/EMC-Testcenter Report Form for Testing to FCC Part 15 Test Report No.: 56502-40192 Page 16 of 23 Pages Test setup for radiated emission measurement (open-area test-side)
