OGD10410208WLAN Access Point

Ultra-compact design
Easily placed on desk, or mounted to wall or ceiling
Provides easy to install, low-cost wireless infrastructure
Simple and effective security with 3 available levels:
128-bit AirLock™ security software, 128-bit RC4, IEEE standard WEP 40
Compliant with 11Mbps IEEE 802.11b High Rate specification.
Tested interoperability with other leading IEEE 802.11b compliant products
Maximum reliability with ASBF™ dynamic rate switching
Maximum performance with IEEE 802.11-optional Point Coordination Function
Easy-to-use APCenter Utility and Network Management Software included
Unrestricted client roaming across multiple access points
Three LED-indicators for immediate status reporting THE TRANSPARENT KEY TO SECURE WIRELESS NETWORKING 11 MBPS WIRELESS LAN ACCESS POINT Wireless networking 11 MBPS WIRELESS LAN ACCESS POINT www.nowiresneeded.com The 11 Mbps WLAN Access Point is an indispensable building block of your wireless infrastructure. This compact, reliable device is easy to install and can be centrally managed from any place in your network. Each 11 Mbps WLAN Access Point offers a number of channels to create a non-interfering, multiple pico cell structure, enabling you to build a complete wireless premises network. The high-speed data rate of 11 Mbps makes it possible to run virtually any application you prefer wirelessly. The Access Point is capable of supporting several virtual LANs over a single wireless enterprise network. With the included management utility called APCenter, you can drag and drop installed Access Points and update the new Access Point with all the current characteristics. Wireless networking NoWires Needed has developed a range of high-speed, high security wireless LAN products that are embraced by organizations all over the world for the many advan- tages they provide. These advantages include higher efficiency and lower total costs of ownership (TCO). High-speed wireless networks enable hot-desking and other forms of flexible offices. New or temporary workplaces are created in a matter of minutes, rather than days. Exhibition sites, conference centers, airports and hotels can offer instant Internet access to their visitors. Security has been taken care of, using AirLock™ advanced security architecture Eavesdropping and data hacking are major issues in the networking business. The risks are perceived to be even higher when operating a wireless network. NoWires Needed has developed a superior solution to this problem and dubbed it AirLock™. AirLock™ prevents eavesdropping by using an access control list and an advanced public/private key algorithm, whilst data hacking has been taken care of by a dyna- mic 128-bit encryption key. AirLock™ also relieves your network administrator from the burden of additional key management. The strongest link is always used, ASBF™ takes care of it Automatic Scale Back Functionality scales back to lower data rates if necessary when communicating with other IEEE 802.11 compliant equipment. It also ensures that the users get the best connection available in radio-hostile environments. Plug-and-Play It goes without saying that the products of NoWires Needed have plug-and-play capabilities. The 11 Mbps WLAN Access Point can be deployed in any Ethernet- based network. Many network operating systems are supported, including NT, Novell, AS/400 and Linux. Note that APCenter Management Software should be run on a PC under Windows (95, 98, NT4.x, 2000). NoWiresNeeded NoWires Needed is strongly committed to offer its customers high-speed, high secu- rity wireless access solutions by deploying state-of-the-art technology. This commit- ment has resulted in the release of our latest range of wireless networking products, offering breakthrough speeds of up to 11 Mbps. Specifications Standards compliance:
IEEE 802.11b HR (Direct Sequence Spread Spectrum)
ETS 300 328 and ETS 300 826 compliant
FCC Part 15 approved
CE approved
Supports TCP/IP, IPX/SPX and NetBui Security:
AirLock™ 128-bit
128-bit RC4
IEEE standard WEP 40 Radio/modem:
Frequency range: 2.4-2.4835 GHz
Range: Open space 300m, Office typical 50m
Supported bit rates: 11 Mbps / 5.5 Mbps / 2 Mbps / 1 Mbps
ASBF™, Automatic Scale Back Functionality Modulation:
1 Mbps DBPSK
2 Mbps DQPSK
5.5 Mbps CCK
11 Mbps CCK Number of channels:
Europe: 13 (3 non-overlapping)
US: 11 (3 non-overlapping)
France: 4 (1 non-overlapping) Transmit power:
Peak +20 dBm Antenna system:
Dual antenna diversity system 2dB gain Network management:
SNMP, MIB II, 802.11 MIB
Hooks for NM-tools like HPOpenView
DHCP, ICMP Ethernet interface:
10Base-T (RJ-45) Power:
AC 100-240V 50-60 Hz to 5VDC converter (included) Mobility:
Unrestricted client roaming across multiple access points Mechanical:
Dimensions: xxxx xxxx xxxmm LED indicators:
Ethernet connection
RF activity
Power Environmental:
Temperature range: 0 - 50°C operating temperature
Humidity 10-85% (non-condensing) Utility:
APCenter management software for Windows 9x, 2000, NT4.x Terms and Conditions The software contained in and with the product is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The software is licensed, not sold. NWN and any of its suppliers or resellers shall not be liable for any consequential damages. Please see http://www.nwn.com/t&c for NWN General Terms and Conditions. Product data 11 Mbps Wireless LAN Access Point Automatic Scale Back Functionality (ASBF TM ) and AirLock TM are trademarks of NoWiresNeeded BV, The Netherlands xxxx . xx / xx © NoWiresNeeded 02/2000

No Wires Needed 11 Mbps WLAN Access Point User Manual Version 3.0.1 – March 2000 Important Notice This device is a 2.4 GHz low power Access Point transceiver intended for use in all EU memberstates, except for France where restrictive use applies. Please refer to page 9 of this manual for further details. User manual 11Mbps WLAN Access Point No Wires Needed Rembrandtlaan 1a 3723 BG Bilthoven The Netherlands www.nwn.com Version 3.0.1 – March 2000 Trade marks Copyright © No Wires Needed The publisher reserves the right to revise this publication and to make changes to any or all parts of this manual at any time, without obligation to notify any person or entity of such revisions or changes. AirLock, APCenter, ASBF and Connect are trademarks of No Wires Needed. Other product and company names are registered trademarks or trademarks of their respective holders. Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. Printed in Velp, March 2000 Free Repair Period NWN undertakes a Free Repair Period of 12 months from the date of Invoice. Within the Free Repair Period NWN repairs a faulty device free of charge or replaces it in case of irreparable damage. Excluded from the Free Repair Period are malfunctions caused by operation outside the intended usage; by misuse or abuse; by service modifications or repairs performed by unauthorized persons or by other conditions not arising from defects in Product materials or workmanship. The costs associated with physically replacing the defective part and re- installing is to be borne by the Buyer. R&TTE Compliance Statement This equipment complies with all the requirements of the DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this manual and of the computer manufacturer must therefore be allowed at all times to ensure the safe use of the equipment. Restriction of use The channel use of this Access Point differs regulatory domain. Please check if the regulatory domain mentioned on the sticker on the box and mentioned in APcenter fits your country. Please refer to chapter 4.5 for reading regulatory domain out of the Access point and to chapter 4.9 for the list of regulatory domains. Using an Access Point with illegal regulatory setting creates a possibility of transmitting on channels that are not allowed by the government. If for some reason the regulatory domain is not correct, do not install your access point and contact immediate your Reseller. Intended use This product is a low power 2.4 GHz WLAN Access Point transceiver intended for home and office use. EU Countries intended for use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and13 RTTE Declaration of conformity FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with the minimum distance between your body, excluding hands, wrists, feet and ankles, and the antenna as shown in the table below: Access Points which use the internal low gain indoor antennas (1.9dBi) 20cm (7 inches) Declaration of Conformity FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. No Wires Needed 11 Mbps WLAN Access Point Tested To Comply With FCC Standards FOR HOME OR OFFICE USE No Wires Needed Page 10 of 40 11 Mbps WLAN Access Point User manual 1 Contents 1 Contents............................................................................................10 2 Introduction........................................................................................11 3 Installation.........................................................................................12 4 APCenter™ Features.........................................................................15 4.1 Starting APCenter for the first time..............................................16 4.2 APCenter™ Main Window..........................................................23 4.3 Quick Start to Wireless Networking.............................................25 4.4 Managing WLANs.......................................................................26 4.5 Managing Access Points.............................................................27 4.5.1 Network Settings Dialog......................................................29 4.5.2 Searching for Access Points................................................30 4.5.3 Manually programming IP addresses...................................31 4.6 Managing Security......................................................................32 4.6.1 Access Control...................................…

Text truncated - open the document above for the full version.

Bilthoven, April 28, 2000 To: National Radio Type Approval Authority Dear National Radio Type Approval Authority Representative, This letter confirms our agreement that NMi Certin B.V. is authorized as an agent for: NoWiresNeeded B.V. Rembrandtlaan 1a, Bilthoven, 3723 BG, The Netherlands Tel: +31 30 2296060 Fax: +31 30 2296061 Contact person: Remi Blokker Email: [email protected] Web site: www.NWN.com to file and handle applications before National Radio Type Approval Authority on NoWiresNeeded ‘s behalf, and to receive and exchange data between NoWiresNeeded and the National Radio Type Approval Authority in connection with the certification of the following NoWiresNeeded product pursuant to National Radio Type Approval and Certification: Product: Low Power 2.4 GHz RLAN Access Point Transceiver Manufacturer: NoWiresNeeded B.V. Brand/Trade name: NoWiresNeeded Type/Model number: NoWiresNeeded 11 Mbps WLAN Access Point Sincerely, _______________________ Remi Blokker Vice President operations NoWiresNeeded B.V.

G r a n t o f e q u i p m e n t a u t h o r i z a t i o n C e r t i f i c a t i o n Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.nmicertin.com NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Kawasaki (Japan) Sales office USA: East Haddam, CT Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) This grant is issued by NMi Certin B.V. CAB/TCB no.: NLUSAMRARDR001 Designated by: NL Radiocommunications Agency, on behalf of the State Secretary for transport, public works and water management Reproduction of this grant in full is allowed. APPLICANT DETAILS Company name:NoWiresNeeded B.V. For the attention of:Mr. R. Blokker Address:Rembrandtlaan 1a 3723 BG Bilthoven The Netherlands NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER:OGD10410208 NAME OF GRANTEE:NoWiresNeeded B.V. GRANT DETAILS Equipment Class:Part 15, Spread Spectrum Transmitter Notes:WLAN Access Point Transceiver Grant Notes:- FCC Rules Parts:15 Frequency Range (MHz):2412 - 2462 Output Watts:0.063 Frequency Tolerance:- Emission Designator:- Date of application:April 28, 2000 Project number:10117200.R01 Date of grant:May 1, 2000 On behalf of:The Director of NMi Certin B.V. Signature: Name:P. de Beer

Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Email: [email protected] Web: http://www.nmicertin.com NMi B.V. (Chamber of Commerce Nr. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Kawasaki (Japan) Salesoffice USA: East Haddam CT Subsidiary companies: NMi Certin B.V. (Nr. 27233418) NMi Van Swinden Laboratorium B.V. (Nr. 27228703) Date Federal Communications Commission May 01, 2000 Attn: To whom it may concern Your reference Office of Engineering and Technology - 445 12TH ST SW Our reference Washington DC 20554 2K0418 U.S.A. Subject Explanatory note Dear Mr./Ms., This letter is being attached as an explanatory note regarding the application for FCC ID: OGD10410208 and contains an example Grant and a copy of our designation as CAB/TCB. The information as contained in this letter is related to our recently obtained designation as CAB/TCB for 47 CFR Part 15 and 18 of the FCC rules. As required by the transitional period, and as defined in the EU-USA MRA, we herewith submit an example of the Grant for FCC ID: OGD10410208, as we would have issued it after the transitional period, in order to have this document reviewed by the FCC. Also included in this letter is a copy of our designation certificate with reference number NLUSAMRARDR001. By submitting this information to this application we want to make use of the transitional (or "confidence building") period for CAB/TCB's as defined in the MRA and as agreed upon in meetings between the US and EU. Yours sincerely, NMi Certin B.V. Pieter A.J.M. Robben, B.Sc.E.E. Manager Department of EMC, Telecommunications and Electrical Safety

DECLARATION OF CONFORMITY This device complies with 47CFR Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade name:NoWiresNeeded Model name:11Mbps WLAN Access Point FCC IDOGD 10410208 U.S. responsible party:NoWiresNeeded USA Inc Address:PO Box 2368 Westfield, New Jersey 07091-2368 Contact person:Peter Murray Telephone number:908-232-9054 E-mail:[email protected] Equipment classification:FCC Class B personal computer peripheral Type of product:2.4 GHz DSSS wireless LAN Access Point Manufacturer:NoWiresNeeded B.V. Address:Rembrandtlaan 1a 3723 BG, Bilthoven The Netherlands We hereby declare that the equipment bearing the brand and model number as specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission's requirements. Peter Murray General Manager, No Wires Needed USA Inc.

Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Email: [email protected] Web: http://www.nmicertin.com NMi B.V. (Chamber of Commerce Nr. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Kawasaki (Japan) Salesoffice USA: East Haddam CT Subsidiary companies: NMi Certin B.V. (Nr. 27233418) NMi Van Swinden Laboratorium B.V. (Nr. 27228703) Date Federal Communications Commission May 1, 2000 Attn: To whom it may concern Your reference Office of Engineering and Technology - 445 12TH ST SW Our reference Washington DC 20554 2K0434b U.S.A. Subject Request for confidentiality Dear Mr./Ms., Herewith we request that the following exhibits related to this application for FCC ID: OGD10410208 will be kept confidential and that the contents of these exhibits will not be disclosed to other parties than NoWiresNeeded B.V. and NMi Certin B.V.: 1. Block diagram 2. Partslist 3. Schematics 4. Technical description (excl. theoretical processing gain calculations) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Yours sincerely, NMi Certin B.V. Pieter A.J.M. Robben, B.Sc.E.E. Manager Department of EMC, Telecommunications and Electrical Safety

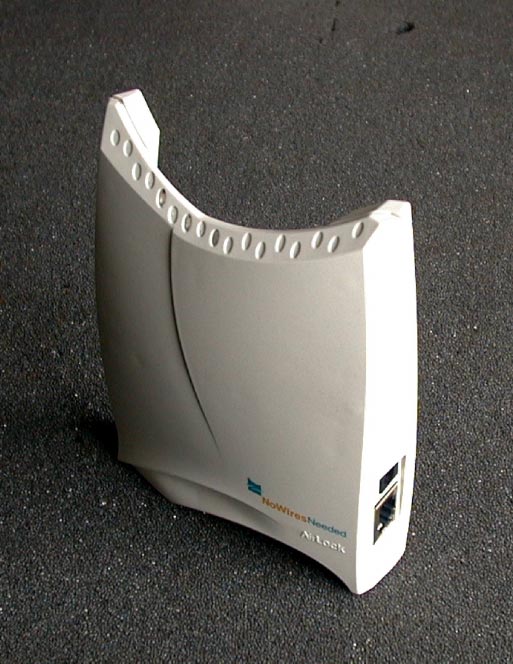

Nederlands Meetinstituut Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10117200.P01b_EXTPage 1 of 5 EXTERNAL PHOTOGRAPHS OF A 2.4 GHz RLAN ACCESS POINT, BRAND NOWIRESNEEDED, TYPE 11 MBPS WLAN ACCESS POINT FCC ID OGD 10410208. Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01b_EXTPage 2 of 5 Table of contents 1External Photographs of the test item..................................................................................................................3 1.1 Exterior overview........................................................................................................................................................3 1.2Exterior front label......................................................................................................................................................4 1.3 Exterior rear with label...............................................................................................................................................5 Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01b_EXTPage 3 of 5 1 External Photographs of the test item 1.1 Exterior overview Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01b_EXTPage 4 of 5 1.2 Exterior front label Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01b_EXTPage 5 of 5 1.3 Exterior rear with label

Nederlands Meetinstituut Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10117200.P01_INTPage 1 of 7 INTERNAL PHOTOGRAPHS OF A 2.4 GHz RLAN ACCESS POINT, BRAND NOWIRESNEEDED, TYPE 11 MBPS WLAN ACCESS POINT, FCC ID OGD 10410208. Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 2 of 7 Table of contents 1Internal Photographs of the test item...................................................................................................................3 1.1Interior overview front...............................................................................................................................................3 1.2Interior overview rear.................................................................................................................................................4 1.3Front PCB.......................................................................................................................................................................5 1.4Rear PCB with shielding.............................................................................................................................................6 1.5Rear PCB without shielding.......................................................................................................................................7 Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 3 of 7 1 Internal Photographs of the test item 1.1 Interior overview front Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 4 of 7 1.2 Interior overview rear Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 5 of 7 1.3 Front PCB Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 6 of 7 1.4 Rear PCB with shielding Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN Access Point Transceiver NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN Access Point OGD 10410208 Registration number: 10117200.P01_INTPage 7 of 7 1.5 Rear PCB without shielding

Page 1 of 3 Processing Gain - Theoretical calculations The processing gain is related to the jamming margin as follows [2]: system output p L S J N S GΗ       Η       Ζ Where BER REFERENCE is the reference bit error ratio with its corresponding, theoretical output signal to noise ratio per symbol, (S/N) output , (J/S) is the jamming margin (jamming signal power relative to desired signal power), and L system are the system implementation losses. The maximum allowed total system implementation loss is 2 dB. The HFA3861A direct sequence spread spectrum baseband processor uses CCK modulation which is a form of M-ary Orthogonal Keying. The BER performance curve is given by [5]: “ The probability of error for generalized M-ary Orthogonal signaling using coherent demodulation is given by: PPQz E z dz ec b M S N ΖθΖθθΗ         θ      θ θ  11 1 2 212 2 1 2 1 2 01 0 ↓ ♣ ()exp This integral cannot be solved in closed form, and numerical integration must be used. There are error rate extensions for differential decoding and descrambling that are also to be accounted for. This is done in a MATHCAD environment and is displayed in graphical format below. Page 2 of 3 1.11000 byte PER vs. Es/No 15.51616.517 10 -2 10 -1 10 0 11 Mbps CCK in Thermal Noise Es/No (dB) 1000 byte Packet Error Rate The reference PER is specified as 8% . The corresponding Es/No (signal to noise ratio per symbol) is 16.4 dB. The Es/No required to achieve the desired BER with maximum system implementation losses is 18.4 dB. The minimum processing gain is again, 10 dB, therefore: dB S J dBdBL S J N E G system output o s p 100.24.16∫       ΗΗΖΗ       Η         Ζ dB S J dBG p 104.18∫       ΗΖ The minimum jammer to signal ratio is as follows: dB S J 4.8θ∫       For the case of the HFA3861A, the bit rates are 1, 2, 5.5, and 11 Mbps. The corresponding symbol rates are 1, 1, 1.375, and 1.375 MSps. The chip rate is always 11 MCps, so the ratio of chip rate to symbol rate is 11:1 for the 1 and 2 Mbps rates and 8:1 for the 5.5 and 11 Mbps rates. Since the symbol rate to bit rate is less than 10 for the higher rates, we supply the theoretical processing gain calculation for these cases where spread spectrum processing gain with embedded coding gain is utilized. This is reasonable in that they cannot be separated in the demodulation process. If a separable FEC coding scheme were used, we would not be comfortable making this assertion. Page 3 of 3 As can be seen from the curve of figure 1, the Es/N0 is 16.4 dB at the PER of 8%. This PER can be related to a BER of 1e-5 on 1000 byte packets. With 8 bits per symbol, the Eb/N0 is then 7.4 dB or 9 dB less than the Es/N0. It is well known that the Eb/N0 of BPSK is 9.6 dB for 1e-5 BER, so therefore the coding gain of CCK over BPSK is 2.2 dB. We add this to the processing gain of 9 dB to get 11.2 dB overall processing gain for the CW jammer test. Taking the calculations above, if the dB S J 4.8θ∫       then the equipment passes the CW jamming test.

FCC ID: OGD10410208Reference: EA97498Date: May 25, 2000 Page 1 of 2 Theoretical processing gain and Jammer to Signal ratios (11 Mbps DSSS radio). Symbol rate (SyR) Spread rate (SpR) Processing gain Data rate (Mbps) Modulation type Symbols/second (Msps) Chips/symbol (Mcps) Gp=10log(Spr/Syr) (S/N)o + Lsys (dB) Calculated J/S (dB) Allowed J/S for 10 dB PG, 10dB - (S/N)o + Lsys (dB) 2 DBPSK 1 11 10.4 21.3 -10.9 -11.3 11 CCK 1.375 8 7.6 19.0 -11.4 -9.0 All data as stated above has been provided by Intersil and the datasheet of the HFA3861A DSSS baseband processor. Figure 1 - Copy of datasheet FCC ID: OGD10410208Reference: EA97498Date: May 25, 2000 Page 2 of 2 Explanation of theoretical processing gain calculations. BER = 1.E-5, Data rate = 2 MbpsGp = 10log(Spr/Syr) = 10log(11/1) = 10.4Eb/N0 = 10.3 dB (from figure 1, copy of datasheet of DSSS baseband processor)(S/N)o = Es/N0 = Eb/N0 + correction factor for 8 bits/symbol = 10.3 dB + 10log(8) dB = 10.3 dB + 9 dB = 19.3 dBLsys = 2 dB max.Gp = (S/N)o + Mj + LsysCalculated Mj = J/S = Gp - (S/N)o - Lsys = 10.4 dB - 19.3 dB - 2 dB = -10.9 dBAllowed J/S for 10 dB PG = Gp - (S/N)o - Lsys = 10 dB - (S/N)o - Lsys = 10 dB - 19.3 dB - 2 dB = -11.3 dBBER = 1.E-5, Data rate = 11 MbpsGp = 10log(Spr/Syr) = 10log(8/1.375) = 7.6Eb/N0 = 8 dB (from figure 1, copy of datasheet of DSSS baseband processor)(S/N)o = …
