OGD10430200WLAN PCMCIA Card

NoWiresNeeded 11 Mbps Wireless LAN PC Card - 11 Mbps Wireless LAN ISA Card User Manual Version 3.0.x - March 2000 Important Notice: This device is a 2.4 GHz low power RF device intended for normal use in all EU member states except in France where restrictive use applies. Please refer to page 9 in this manual for further details User Manual 11 Mbps Wireless LAN PC Card - 11 Mbps Wireless LAN ISA Card www.nwn.com Version 3.0.x - March 2000 NoWiresNeeded User manual11 Mbps Wireless LAN PC CardPage 5 of 42 Table of contents Trade Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Copyright statement . . . . . . . . . . . . . . . . . . . . . . . . .7 FCC Radiation Exposure Statement . . . . . . . . . . . .7 R&TTE Compliance Statement . . . . . . . . . . . . . . . . 8 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Restriction of use . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 EU countries intended for use . . . . . . . . . . . . . . . . . 9 EU Countries not intended for use . . . . . . . . . . . . . .9 Potential restrictive use . . . . . . . . . . . . . . . . . . . . . .9 Declaration Of Conformity . . . . . . . . . . . . . . . . . . . 10 1Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2Wireless LAN basics . . . . . . . . . . . . . . . . . . . . . . .12 3Series 1100 installation . . . . . . . . . . . . . . . . . . . . .14 3.1Hardware installation . . . . . . . . . . . . . . . . . . . . . .14 3.211 Mbps Wireless LAN ISA Card installation . . . .14 3.311 Mbps Wireless LAN PC Card Windows 95 installation . . . . . . . . . . . . . . . . . . 16 3.411 Mbps Wireless LAN PC Card Windows 98 installation . . . . . . . . . . . . . . . . . . 18 3.511 Mbps Wireless LAN PC Card Windows NT4 installation . . . . . . . . . . . . . . . . . 20 NoWiresNeeded Page 6 of 4211 Mbps Wireless LAN PC CardUser manual 4Connect.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=24 4.1Appearances . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 4.2Establishing a connection. . . . . . . . . . . . . . . . . . .27 4.3LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 5Network protocols. . . . . . . . . . . . . . . . . . . . . . . . . .30 6Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .31 6.1Windows 95/98 . . . . . . . . . . . . . . . . . . . . . . . . . . .32 6.2Windows NT4 . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 6.3Connect=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=.=36 7Technical Specifications 11 Mbps Wireless LAN PC Card . . . . . . . . . . . . . . 37 8Software Installation . . . . . . . . . . . . . . . . . . . . . . . .41 NoWiresNeeded User manual11 Mbps Wireless LAN PC CardPage 7 of 41 Trade Marks Copyright © NoWiresNeeded The publisher reserves the right to revise this publication and to make changes to any or all parts of this manual at any time, without obligation to notify any person or entity of such revisions or changes. AirLock, APCenter, ASBF and Connect are trademarks of NoWiresNeeded. Other product and company names are registered trademarks or trademarks of their respective holders. Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of the publisher. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with the minimum distance of 20 centimeters (8 inches) between your body, excluding hands, wrists, feet and ankles (see table below). AntennaMinimum Distance Integrated PCMCIA antenna20 cm (8 inches) NoWiresNeeded Page 8 of 4111 Mbps Wireless LAN PC CardUser manual R&TTE Compliance Statement This equipment complies with all the requirements of the DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 9 March 1999 on Radio Equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in full the Directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000. Safety This equipment is designed with utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electronical equipment. All guidelines of this manual and of the computer manufacturer must therefore be followed at all times to ensure the safe use of the equipment. Restriction of use The NoWiresNeeded 11Mbps WLAN PC Card is a passive scanning device. Passive scanning means that it will never start to transmit before it has detected an active IEEE 802.11 Access Point. In order to avoid illegal use of channels, please check if the Access Point you want to connect to has legal regulatory settings. Please check chapter 7 for an overview of regulatory settings. NoWiresNeeded User manual11 Mbps Wireless LAN PC CardPage 9 of 41 Intended use This product is a low power 2.4 GHz WLAN PC Card transceiver intended for home and office use. EU countries intended for use This device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and the United Kingdom. This device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries not intended for use None. Potential restrictive use France: only channels 10, 11, 12 and 13. NoWiresNeeded Page 10 of 4111 Mbps Wireless LAN PC CardUser manual Declaration Of Conformity NoWiresN…

Text truncated - open the document above for the full version.

Bilthoven, March 9, 2000 To: National Radio Type Approval Authority Dear National Radio Type Approval Authority Representative, This letter confirms our agreement that NMi Certin B.V. is authorized as an agent for: NoWiresNeeded B.V. Rembrandtlaan 1a, Bilthoven, 3723 BG, The Netherlands Tel: +31 30 2296060 Fax: +31 30 2296061 Contact person: Remi Blokker web site: www.NWN.com to file and handle applications before National Radio Type Approval Authority on NoWiresNeeded behalf, and to receive and exchange data between NoWiresNeeded and the National Radio Type Approval Authority in connection with the certification of the following NoWiresNeeded product pursuant to National Radio Type Approvals: Product: Low Power 2.4 GHz RLAN PC Card Transceiver Manufacturer: NoWiresNeeded B.V. Brand/Trade name: NoWiresNeeded Type/Model number: NoWiresNeeded 11 Mbps WLAN PC Card Sincerely, _______________________ Remi Blokker Vice President operations NoWiresNeeded B.V.

Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Email: [email protected] Web: http://www.nmicertin.com NMi B.V. (Chamber of Commerce Nr. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Kawasaki (Japan) Salesoffice USA: East Haddam CT Subsidiary companies: NMi Certin B.V. (Nr. 27233418) NMi Van Swinden Laboratorium B.V. (Nr. 27228703) Date Federal Communications Commission March 30, 2000 Attn: To whom it may concern Your reference Office of Engineering and Technology - 445 12TH ST SW Our reference Washington DC 20554 2K0309 U.S.A. Subject Explanatory note Dear Mr./Ms., This letter is being attached as an explanatory note regarding the application for FCC ID: OGD10430200 and contains an example Grant and a copy of our designation as CAB/TCB. The information as contained in this letter is related to our recently obtained designation as CAB/TCB for 47 CFR Part 15 and 18 of the FCC rules. As required by the transitional period, and as defined in the EU-USA MRA, we herewith submit an example of the Grant for FCC ID: OGD10430200, as we would have issued it after the transitional period, in order to have this document reviewed by the FCC. Also included in this letter is a copy of our designation certificate with reference number NLUSAMRARDR001. By submitting this information to this application we want to make use of the transitional (or "confidence building") period for CAB/TCB's as defined in the MRA and as agreed upon in meetings between the US and EU. Yours sincerely, NMi Certin B.V. Pieter A.J.M. Robben, B.Sc.E.E. Manager Department of EMC, Telecommunications and Electrical Safety

DECLARATION OF CONFORMITY This device complies with 47CFR Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade name:NoWiresNeeded Model name:NoWiresNeeded 11Mbps WLAN Pc card U.S. responsible party:NoWiresNeeded USA Inc Address:PO Box 2368 Westfield, New Jersey 07091-2368 Contact person:Peter Murray Telephone number:908-232-9054 E-mail:[email protected] Equipment classification:FCC Class B personal computer peripheral Type of product:2.4 GHz DSSS wireless LAN PCMCIA card Manufacturer:NoWiresNeeded B.V. Address:Rembrandtlaan 1a 3723 BG, Bilthoven The Netherlands We hereby declare that the equipment bearing the brand and model number as specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission's requirements. Peter Murray General Manager, No Wires Needed USA Inc.

Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Email: [email protected] Web: http://www.nmicertin.com NMi B.V. (Chamber of Commerce Nr. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Kawasaki (Japan) Salesoffice USA: East Haddam CT Subsidiary companies: NMi Certin B.V. (Nr. 27233418) NMi Van Swinden Laboratorium B.V. (Nr. 27228703) Date Federal Communications Commission March 30, 2000 Attn: To whom it may concern Your reference Office of Engineering and Technology - 445 12TH ST SW Our reference Washington DC 20554 2K0312c U.S.A. Subject Request for confidentiality Dear Mr./Ms., Herewith we request that the following exhibits related to this application for FCC ID: OGD10430200 will be kept confidential and that the contents of these exhibits will not be disclosed to other parties than NoWiresNeeded B.V. and NMi Certin B.V.: 1. Block diagram 2. Partslist 3. Schematics 4. Technical description (excluding theoretical processing gain calculations) The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Yours sincerely, NMi Certin B.V. Pieter A.J.M. Robben, B.Sc.E.E. Manager Department of EMC, Telecommunications and Electrical Safety

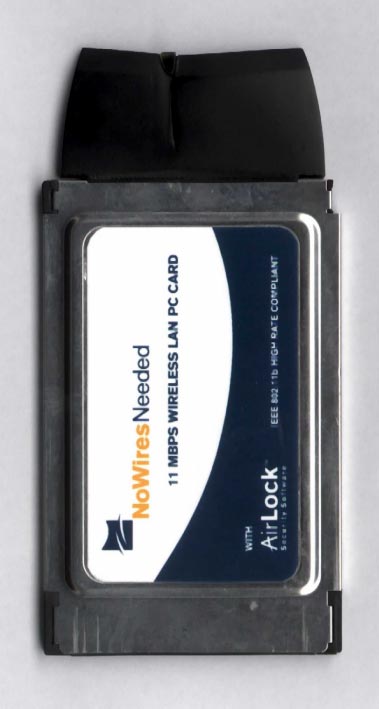

Nederlands Meetinstituut Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10115753P01_EXTPage 1 of 4 EXTERNAL PHOTOGRAPHS OF A 2.4 GHz RLAN PCMCIA CARD, BRAND NOWIRESNEEDED, TYPE 11 Mbps WLAN PC CARD. Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_EXTPage 2 of 4 Table of contents 1External Photographs of the test item............................................................................................. 3 1.1Exterior front of 11Mbps WLAN PC Card ...................................................................................................3 1.2Exterior rear of 11Mbps WLAN PC Card.....................................................................................................4 Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_EXTPage 3 of 4 1 External Photographs of the test item 1.1 Exterior front of 11Mbps WLAN PC Card Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_EXTPage 4 of 4 1.2 Exterior rear of 11Mbps WLAN PC Card

Nederlands Meetinstituut Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10115753P01_INTPage 1 of 5 INTERNAL PHOTOGRAPHS OF A 2.4 GHz RLAN PCMCIA CARD, BRAND NOWIRESNEEDED, TYPE 11 Mbps WLAN PC CARD. Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_INTPage 2 of 5 Table of contents 1Internal Photographs of the test item ............................................................................................. 3 1.1Top view of interior.....................................................................................................................................3 1.2Bottom view of interior with shielding......................................................................................................4 1.3Bottom view of interior without shielding ................................................................................................5 Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_INTPage 3 of 5 1 Internal Photographs of the test item 1.1 Top view of interior Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_INTPage 4 of 5 1.2 Bottom view of interior with shielding Nederlands Meetinstituut Description of EUT: Manufacturer: Brand mark: Type: FCC ID: 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC Card OGD10430200 Registration number: 10115753P01_INTPage 5 of 5 1.3 Bottom view of interior without shielding

Page 1 of 3 Processing Gain - Theoretical calculations The processing gain is related to the jamming margin as follows [2]: system output p L S J N S GΗ       Η       Ζ Where BER REFERENCE is the reference bit error ratio with its corresponding, theoretical output signal to noise ratio per symbol, (S/N) output , (J/S) is the jamming margin (jamming signal power relative to desired signal power), and L system are the system implementation losses. The maximum allowed total system implementation loss is 2 dB. The HFA3861A direct sequence spread spectrum baseband processor uses CCK modulation which is a form of M-ary Orthogonal Keying. The BER performance curve is given by [5]: “ The probability of error for generalized M-ary Orthogonal signaling using coherent demodulation is given by: PPQz E z dz ec b M S N ΖθΖθθΗ         θ      θ θ  11 1 2 212 2 1 2 1 2 01 0 ↓ ♣ ()exp This integral cannot be solved in closed form, and numerical integration must be used. There are error rate extensions for differential decoding and descrambling that are also to be accounted for. This is done in a MATHCAD environment and is displayed in graphical format below. Page 2 of 3 1.11000 byte PER vs. Es/No 15.51616.517 10 -2 10 -1 10 0 11 Mbps CCK in Thermal Noise Es/No (dB) 1000 byte Packet Error Rate The reference PER is specified as 8% . The corresponding Es/No (signal to noise ratio per symbol) is 16.4 dB. The Es/No required to achieve the desired BER with maximum system implementation losses is 18.4 dB. The minimum processing gain is again, 10 dB, therefore: dB S J dBdBL S J N E G system output o s p 100.24.16∫       ΗΗΖΗ       Η         Ζ dB S J dBG p 104.18∫       ΗΖ The minimum jammer to signal ratio is as follows: dB S J 4.8θ∫       For the case of the HFA3861A, the bit rates are 1, 2, 5.5, and 11 Mbps. The corresponding symbol rates are 1, 1, 1.375, and 1.375 MSps. The chip rate is always 11 MCps, so the ratio of chip rate to symbol rate is 11:1 for the 1 and 2 Mbps rates and 8:1 for the 5.5 and 11 Mbps rates. Since the symbol rate to bit rate is less than 10 for the higher rates, we supply the theoretical processing gain calculation for these cases where spread spectrum processing gain with embedded coding gain is utilized. This is reasonable in that they cannot be separated in the demodulation process. If a separable FEC coding scheme were used, we would not be comfortable making this assertion. Page 3 of 3 As can be seen from the curve of figure 1, the Es/N0 is 16.4 dB at the PER of 8%. This PER can be related to a BER of 1e-5 on 1000 byte packets. With 8 bits per symbol, the Eb/N0 is then 7.4 dB or 9 dB less than the Es/N0. It is well known that the Eb/N0 of BPSK is 9.6 dB for 1e-5 BER, so therefore the coding gain of CCK over BPSK is 2.2 dB. We add this to the processing gain of 9 dB to get 11.2 dB overall processing gain for the CW jammer test. Taking the calculations above, if the dB S J 4.8θ∫       then the equipment passes the CW jamming test.

FCC ID: OGD10430200Reference: EA97193Date: May 18, 2000Theoretical processing gain and Jammer to Signal ratios (11 Mbps DSSS radio). Symbol rate (SyR) Spread rate (SpR) Processing gain Data rate (Mbps) Modulation type Symbols/second (Msps) Chips/symbol (Mcps) Gp=10log(Spr/Syr) Es/No+Lsys (dB) Coding gain (dB) Calculated J/S incl. code gain (dB) Allowed J/S for 10 dB, 10dB-(Es/N0+Lsys) (dB) 1 DBPSK 1 11 10.4 22.5 0 -12.1 -12.5 2 DQPSK 1 11 10.4 23.0 0 -12.6 -13.0 5.5 CCK 1.375 8 9.0 22.2 2 -11.2 -12.2 11 CCK 1.375 8 9.0 22.7 2 -11.7 -12.7 All data as stated above has been provided by Harris Semiconductor and the datasheet of the HFA3861 DSSS baseband processor.

FCC ID: OGD10430200Reference: EA97193Date: May 25, 2000 Page 1 of 2 Theoretical processing gain and Jammer to Signal ratios (11 Mbps DSSS radio). Symbol rate (SyR) Spread rate (SpR) Processing gain Data rate (Mbps) Modulation type Symbols/second (Msps) Chips/symbol (Mcps) Gp=10log(Spr/Syr) (S/N)o + Lsys (dB) Calculated J/S (dB) Allowed J/S for 10 dB PG, 10dB - (S/N)o + Lsys (dB) 2 DBPSK 1 11 10.4 21.3 -10.9 -11.3 11 CCK 1.375 8 7.6 19.0 -11.4 -9.0 All data as stated above has been provided by Intersil and the datasheet of the HFA3861A DSSS baseband processor. Figure 1 - Copy of datasheet FCC ID: OGD10430200Reference: EA97193Date: May 25, 2000 Page 2 of 2 Explanation of theoretical processing gain calculations. BER = 1.E-5, Data rate = 2 MbpsGp = 10log(Spr/Syr) = 10log(11/1) = 10.4Eb/N0 = 10.3 dB (from figure 1, copy of datasheet of DSSS baseband processor)(S/N)o = Es/N0 = Eb/N0 + correction factor for 8 bits/symbol = 10.3 dB + 10log(8) dB = 10.3 dB + 9 dB = 19.3 dBLsys = 2 dB max.Gp = (S/N)o + Mj + LsysCalculated Mj = J/S = Gp - (S/N)o - Lsys = 10.4 dB - 19.3 dB - 2 dB = -10.9 dBAllowed J/S for 10 dB PG = Gp - (S/N)o - Lsys = 10 dB - (S/N)o - Lsys = 10 dB - 19.3 dB - 2 dB = -11.3 dBBER = 1.E-5, Data rate = 11 MbpsGp = 10log(Spr/Syr) = 10log(8/1.375) = 7.6Eb/N0 = 8 dB (from figure 1, copy of datasheet of DSSS baseband processor)(S/N)o = Es/N0 = Eb/N0 + correction factor for 8 bits/symbol = 8 dB + 10log(8) dB = 8 dB + 9 dB = 17 dBLsys = 2 dB max.Gp = (S/N)o + Mj + LsysCalculated Mj = J/S = Gp - (S/N)o - Lsys = 7.6 dB - 17 dB - 2 dB = -11.4 dBAllowed J/S for 10 dB PG = Gp - (S/N)o - Lsys = 10 dB - (S/N)o - Lsys = 10 dB - 17 dB - 2 dB = -9 dB

FCC ID: OGD10430200 Reference number: EA97193 Date: June 8, 2000 Conversion from Packet Error Rate (PER) to Bit Error Rate (BER) by modelling CCK bit errors. The 11 Mbps CCK implementation encodes a byte stream using 2 8 different out of 2 16 symbols of 8 chips each. Notations: PER=Packet Error Rate BER=Bit Error Rate SER=Symbol Error Rate N=Packet length in bytes NS=Packet length in symbols Assumptions: 1.An erroneously interpreted symbol will produce any of the other symbols with equal probability. 2.Symbol errors are considered to be independent of each other. 3.The 1 Mbps preamble and header are not CCK encoded and are assumed error-free. They are ignored in the discussion below. 4.One byte corresponds to one symbol exactly: NS=N. From assumption 1 it follows that one erroneous symbol on average contains: (8 * 128)/(256-1) = 4.016 erroneous bits. From this it follows that: (a) BER = SER * (4.016/8 chips) = SER * 0.502 From assumption 2 the rate of errorless packets (1-PER) depends on the rate of errorless symbols (1-SER) in the following way: (b) (1-PER) = (1-SER) NS or, using (a) and assumption 4: (c) PER = 1 - (1 - (1.992 * BER)) N For a BER of 1E-5 (as required for FCC approval), and a packet size of a 1000 bytes, this leads to a PER of 0.02 (which is 2%). A PER of 8% corresponds with a BER of 4.2E-5.

5HPEUDQGWODDQ#4 D 6:56#%*##%LOWKRYHQ 3121#%R[#676 6:53#$+##%LOWKRYHQ 7KH#1HWKHUODQGV ,QWHUQHW=#ZZZ1QZQ1FRP 3KRQH=#.64163155<09393 )D[=#.64163155<09394 *HQHUDOH#%DQN#971581791459 8WUHFKW/#7KH#1HWKHUODQGV .Y.#8WUHFKW#6346<;3: 9$72%7:#1/#;36<199198<1%134 'HFODUDWLRQ#RQ#UDGLDWLRQ#VDIHW\#VWDQGDUG#FRQIRUPDQFH %LOWKRYHQ#0#7KH#1HWKHUODQGV/#0D\#4;/#5333 7R#:KRP#,W#0D\#&RQFHUQ= 1R:LUHV1HHGHG 5HPL#%ORNNHU 93#+DUGZDUH#'HVLJQ 'HFODUHV#WKDW#WKH#IROORZLQJ#SURGXFW GHVFULSWLRQ=#517#*+]#/RZ#3RZHU#5/$1#WUDQVFHLYHU )&&#,'=2*'43763533 PDQXIDFWXUHU=#1R:LUHV1HHGHG#%191 EUDQG=#1R:LUHV1HHGHG W\SH2PRGHOQXPEHU=44#0ESV#:LUHOHVV#/$1#3&#FDUG KDV#DQ#H1L1U1S1#OHVV#WKDQ#46#G%P#+53P:,/#ZKLFK#PHDQV#WKDW#WKH#ZRUVW#FDVH#SUHGLFWLRQ#RI#SRZHU#GHQVLW\#+433( UHIOHFWLRQ,#DW#8#FP#GLVWDQFH#+ZRUVW#FDVH,#FDQ#EH#FDOFXODWHG#DV#IROORZV#= (,53 6# #7- S #-#5 5 +SRZHU#GHQVLW\#ZLWKRXW#UHIOHFWLRQ, 5 5 -(,53 6# #7- S #-#5 5 +SRZHU#GHQVLW\#ZLWK#433(#UHIOHFWLRQ, 5 5 #-(,5353P: 6# #7- S #-#5 5 S -+8FP, 5 3158#P:2FP 5# +OLPLW# #413#P:2FP 5 , 7KLV#PHDQV#WKDW#DFFRUGLQJ#WR#WKH#6XSSOHPHQW#&#+HGLWLRQ#<:034,#WR#2(7#%XOOHWLQ#98#+HGLWLRQ#<:034,#>4@#WKH HTXLSPHQW#IXOILOOV#WKH#UHTXLUHPHQWV#RQ#SRZHU#GHQVLW\#IRU#JHQHUDO#SRSXODWLRQ2XQFRQWUROOHG#H[SRVXUH#DQG#WKHUHIRUH IXOILOOV#WKH#UHTXLUHPHQWV#RI#)&&#3DUW#48157:+E,71 7LP#6WLMQWMHV#L1R1## QDPH#5HPL#%ORNNHU SRVLWLRQ#KHOG#93#+DUGZDUH#'HVLJQ >4@)HGHUDO#&RPPXQLFDWLRQV#&RPPLVVLRQ#2IILFH#RI#(QJLQHHULQJ#)#7HFKQRORJ\/#≥(YDOXDWLQJ#FRPSOLDQFH#ZLWK )&&#JXLGHOLQHV#IRU#KXPDQ#H[SRVXUH#WR#UDGLRIUHTXHQF\#HOHFWURPDJQHWLF#ILHOGV/#DGGLWLRQDO#LQIRUPDWLRQ#IRU HYDOXDWLQJ#FRPSOLDQFH#RI#PRELOH#DQG#SRUWDEOH#GHYLFHV#ZLWK#)&&#OLPLWV#IRU#KXPDQ#H[SRVXUH#WR UDGLRIUHTXHQF\#HPLVVLRQV¥/#6XSSOHPHQW#&#+HGLWLRQ#<:034,#WR#2(7#%XOOHWLQ#98#+HGLWLRQ#<:034,1

Nederlands Meetinstituut Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10115753R01_FCCreportPage 1 of 45 TEST REPORT OF A 2.4 GHz RLAN PCMCIA CARD, BRAND NOWIRESNEEDED, TYPE 11 Mbps WIRELESS LAN PC CARD, IN CONFORMITY WITH FCC PART 15 AND ANSI C63.4-1992 FCC report layout endorsed by the FCC by Public Notice of March 11, 1992. Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Nederlands Meetinstituut FCC ID: Description of EUT: Manufacturer: Brand mark: Type: OGD10430200 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC card Registration number: 10115753R01_FCCreportPage 2 of 45 MEASUREMENT/TECHNICAL REPORT NoWiresNeeded B.V. Modelnumber : 11 Mbps WLAN PC card FCC ID: OGD10430200 March 23, 2000 This report concerns (check one):Original grant Class II change Equipment type: Direct Sequence Spread Spectrum Transceiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yesno If yes defer until: NoWiresNeeded, Rembrandtlaan 1a, 3723 BG Bilthoven, The Netherlands agrees to notify the Commission by of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37yesno If no, assumed Part 15, Subpart B for unintentional radiators – the new 47 CFR (10-1-90 Edition) provision. Report prepared by:Name: D. S. Sariredjo BSc. E.E. Company name: NMi Certin B.V. Address: Smidshornerweg 18 Telephone number: + 31-59450-50 05 Telefax number: + 31-59450-48 04 Mailing address: P.O. Box 15 City/Place/Postal cd.: 9822 ZG NIEKERK Country: The Netherlands The data taken for this test and report herein was done in accordance with FCC Part 15 and measurement Procedures of ANSI C63.4-1992 and were relevant the procedures as specified in the sheets from the FCC attached to this test report. NMi Certin B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission-profile of the Equipment Under Test (EUT) on the date of the test noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: March 23, 2000Signature: P.A.J.M. Robben BSc.EE Department EMC and Telecommunication Nederlands Meetinstituut FCC ID: Description of EUT: Manufacturer: Brand mark: Type: OGD10430200 2.4 GHz RLAN PCMCIA Card NoWiresNeeded B.V. NoWiresNeeded 11 Mbps WLAN PC card Registration number: 10115753R01_FCCreportPage 3 of 45 Table of ContentsPage 1General information. ................................................................................................................ 5 1.1Product description. ......................................................................................................................... 5 1.2Related Submittal(s)/Grant(s). .......................................................................................................... 5 1.3Tested System Details. ...................................................................................................................... 5 1.4Test Methodology. ........................................................................................................................... 6 1.5Test Facility........................................................................................................................................ 6 1.6List of measurement equipment...................................................................................................... 6 1.7Bandwidth and antenna factors. ..................................................................................................... 8 2Product labelling. ...................................................................................................................... 9 2.1FCC ID Label ...................................................................................................................................... 9 2.2Location of the FCC …
