OGJ-DA12-TXRemote Control Keyfob

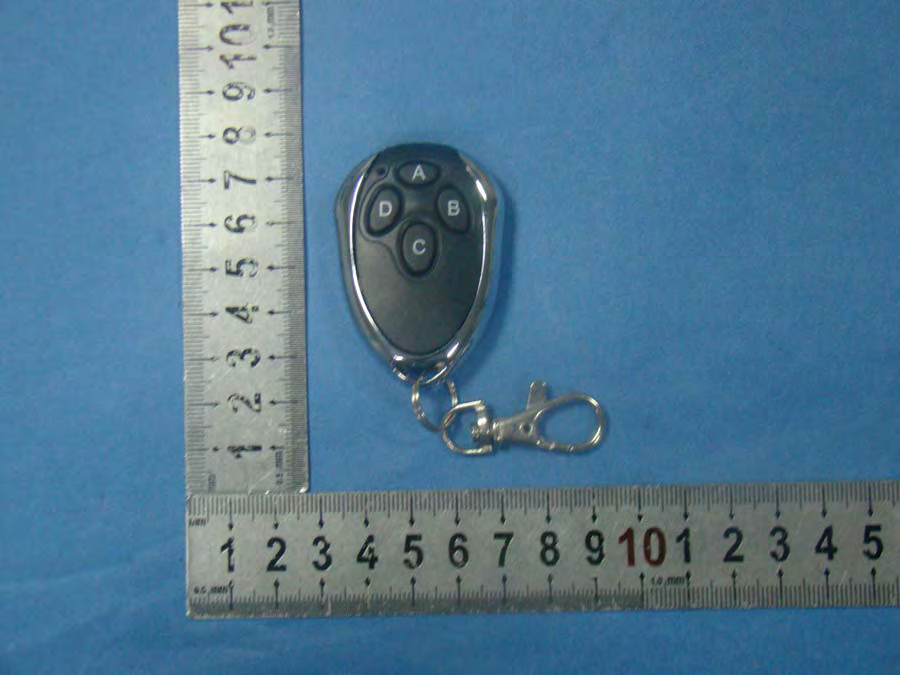

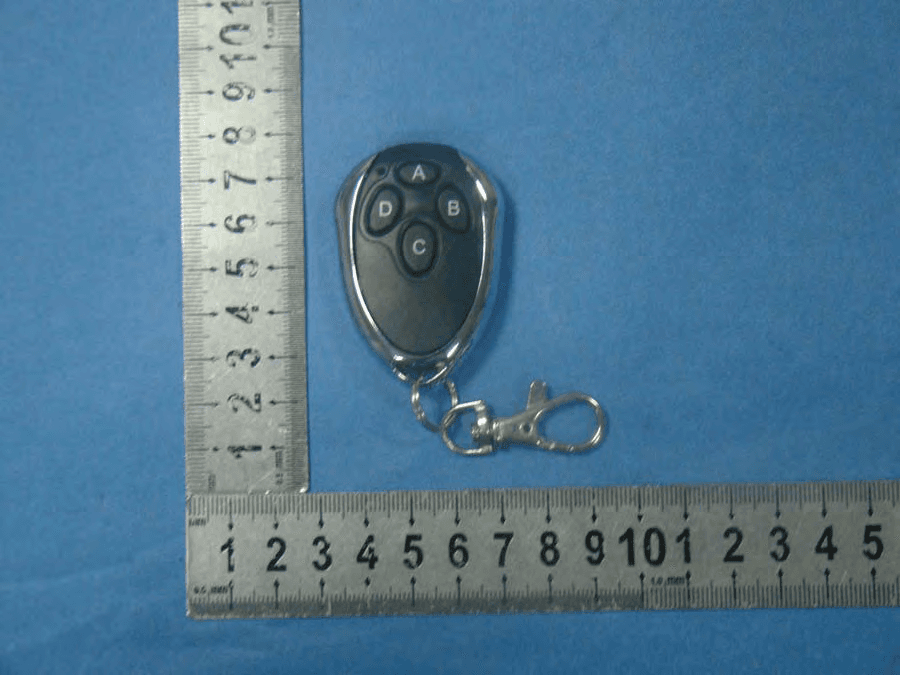

DA-12 RF REMOTE CONTROL KEYFOB INTRODUCTION DA-12 is a 4 channel remote control keyfob working on 433MHZ, which is compatible with the receiver in the DA-2800, DA-2311 and AD-2322 controllers. It has four buttons A, B, C and D for sending out signals to activate the corresponding four output channels 1, 2, 3 and 4 in the receiver unit. SPECIFICATIONS Number of ID Codes : Over 1 Million, Pre-set Number of Control Channels : 4 a) Channel 1 (Button A) - Activates Output 1 in Receiver b) Channel 2 (Button B) - Activates Output 2 in Receiver c) Channel 3 (Button C) - Activates Output 3 in Receiver d) Channel 4 (Button D) - Activates The Door Chime in Receiver Operating Frequency : 433 MHZ Control Distance : 50 Meters Approx. in Open Space Operation Voltage : 12V Alkaline Battery, Type 27A (Not included) Weight : 32g Specifications are subject to change for modifications without notice. THE ASSEMBLY LED INDICATOR FOUR CONTROL BUTTONS THREE FIXING SCREWS FRONTBACK FRONT BOX COVER BACK BOX COVER & CIRCUIT BOARD CIRCUIT BOARD BATTERY 12V 27A FCC ID: OGJ-D A12-TX FCC ID Label & Location RoHS EQUIP THE BATTERY DA-12 is supplied without battery. It is required to equip a 12V, type 27A alkaline battery in it before use. 1) Un-screw the three fixing screws on the back of the unit. 2) Take out the back cover carefully to prevent damage of the circuit board that is stuck on it. 3) Equip a 12V, type 27A alkaline battery in it with correct polarity as indicated. 4) Hold the back cover and circuit board assembly firmly and put them back on the front 5) Fix the whole assembly firmly with the three fixing screws. OPERATION 1) Press the corresponding button to give control to the desired channel. 2) The LED indicator lights up while the unit is transmitting signals. 3) The unit consumes power only on the button is pressed. Please handle the unit carefully box in the right position. while it is kept in pocket or handbag. Accidental touch of the button will shorten battery life. VERSION: 06/2012 Compliance AEI PROTECT-ON SYSTEMS LIMITED www.apo-hk.com FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

DA-12 RF REMOTE CONTROL KEYFOB INTRODUCTION DA-12 is a 4 channel remote control keyfob working on 433MHZ, which is compatible with the receiver in the DA-2800, DA-2311 and AD-2322 controllers. It has four buttons A, B, C and D for sending out signals to activate the corresponding four output channels 1, 2, 3 and 4 in the receiver unit. SPECIFICATIONS Number of ID Codes : Over 1 Million, Pre-set Number of Control Channels : 4 a) Channel 1 (Button A) - Activates Output 1 in Receiver b) Channel 2 (Button B) - Activates Output 2 in Receiver c) Channel 3 (Button C) - Activates Output 3 in Receiver d) Channel 4 (Button D) - Activates The Door Chime in Receiver Operating Frequency : 433 MHZ Control Distance : 50 Meters Approx. in Open Space Operation Voltage : 12V Alkaline Battery, Type 27A (Not included) Weight : 32g Specifications are subject to change for modifications without notice. THE ASSEMBLY LED INDICATOR FOUR CONTROL BUTTONS THREE FIXING SCREWS FRONTBACK FRONT BOX COVER BACK BOX COVER & CIRCUIT BOARD CIRCUIT BOARD BATTERY 12V 27A FCC ID: OGJ-D A12-TX FCC ID Label & Location RoHS EQUIP THE BATTERY DA-12 is supplied without battery. It is required to equip a 12V, type 27A alkaline battery in it before use. 1) Un-screw the three fixing screws on the back of the unit. 2) Take out the back cover carefully to prevent damage of the circuit board that is stuck on it. 3) Equip a 12V, type 27A alkaline battery in it with correct polarity as indicated. 4) Hold the back cover and circuit board assembly firmly and put them back on the front 5) Fix the whole assembly firmly with the three fixing screws. OPERATION 1) Press the corresponding button to give control to the desired channel. 2) The LED indicator lights up while the unit is transmitting signals. 3) The unit consumes power only on the button is pressed. Please handle the unit carefully box in the right position. while it is kept in pocket or handbag. Accidental touch of the button will shorten battery life. VERSION: 06/2012 Compliance AEI PROTECT-ON SYSTEMS LIMITED www.apo-hk.com FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

AEI Protect-On Systems Limited Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: AEI Protect-On Systems Limited FCC ID: OGJ-DA12-TX FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name CHIU KWOK HO Position GENERAL MANAGER Company Name AEI Protect-On Systems Limited Address EFFORT INDUSTRIAL BUILDING, FLAT B, 4/F., 2-8 KUNG YIP STREET, KWAI CHUNG, N.T., HONG KONG Tel / Fax (852) 2428 5273, (852) 2741 4812 / (852) 2743 9423 E-Mail [email protected]

AEI Protect-On Systems Limited Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: AEI Protect-On Systems Limited FCC ID: OGJ-DA12-TX FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name CHIU KWOK HO Position GENERAL MANAGER Company Name AEI Protect-On Systems Limited Address EFFORT INDUSTRIAL BUILDING, FLAT B, 4/F., 2-8 KUNG YIP STREET, KWAI CHUNG, N.T., HONG KONG Tel / Fax (852) 2428 5273, (852) 2741 4812 / (852) 2743 9423 E-Mail [email protected]

FCC ID: OGJ-D A12-TX FCC ID Label & Location

FCC ID: OGJ-D A12-TX FCC ID Label & Location

Antenna

Antenna

Page 1 of 33 FCC ID: OGJ-DA12-TX ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20120827 APPLICATION CERTIFICATION On Behalf of AEI Protect-On Systems Limited REMOTE KEYFOB Model No.: DA-12 FCC ID: OGJ-DA12-TX Prepared for : AEI Protect-On Systems Limited Address : Flat B, 4/F., Effort Industrial Building 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20120827 Date of Test : April 27-May 8, 2012 Date of Report : May 8, 2012 Page 2 of 33 FCC ID: OGJ-DA12-TX ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20120827 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results ..........................................................11 5. 20DB OCCUPIED BANDWIDTH ................................................................................................ 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................13 5.3. EUT Configuration on Measurement .....................................................................................................14 5.4. Operating Condition of EUT ..................................................................................................................14 5.5. Test Procedure ........................................................................................................................................14 5.6. Measurement Result ...............................................................................................................................15 6. RELEASE TIME MEASUREMENT............................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(a) ..........................................16 6.3. EUT Configuration on Measurement .....................................................................................................17 6.4. Operating Condition of EUT ..................................................................................................................17 6.5. Test Procedure ........................................................................................................................................17 6.6. Measurement Result ...............................................................................................................................18 7. AVERAGE FACTOR MEASUREMENT .................................................................................... 19 7.1. Block Diagram of Test Setup..................................................................................................................19 7.2. Average factor Measurement according to ANSI 63.4: 2003.................................................................19 7.3. EUT Configuration on Measurement .....................................................................................................20 7.4. Operating Condition of EUT ..................................................................................................................20 7.5. Test Procedure ........................................................................................................................................20 7.6. Measurement Result ...............................................................................................................................21 8. ANTENNA REQUIREMENT........................................................................................................ 22 8.1. The Requirement ....................................................................................................................................22 8.2. Antenna Construction ...........................................................................................................…
