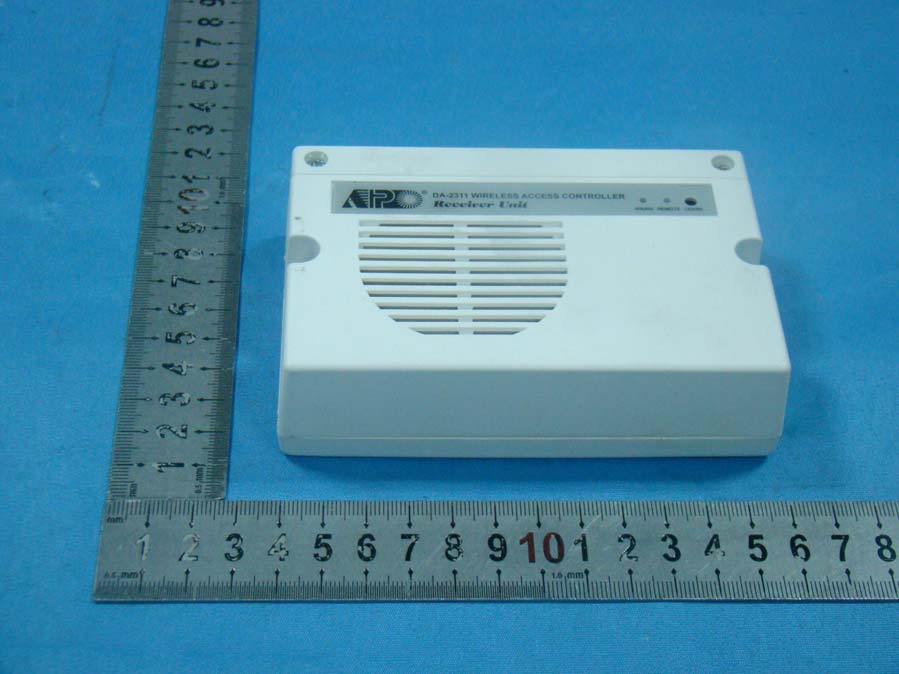

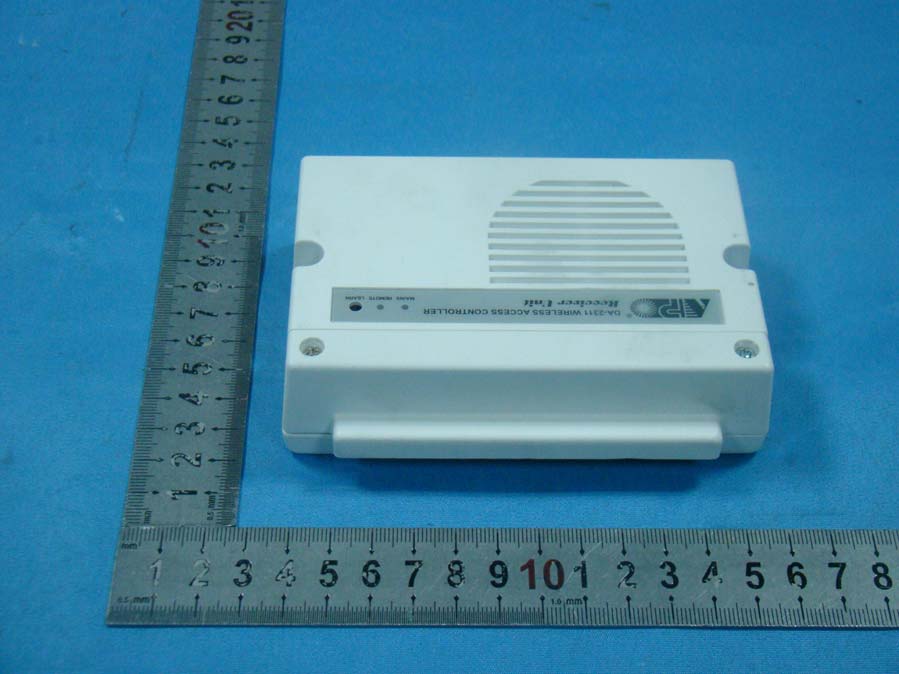

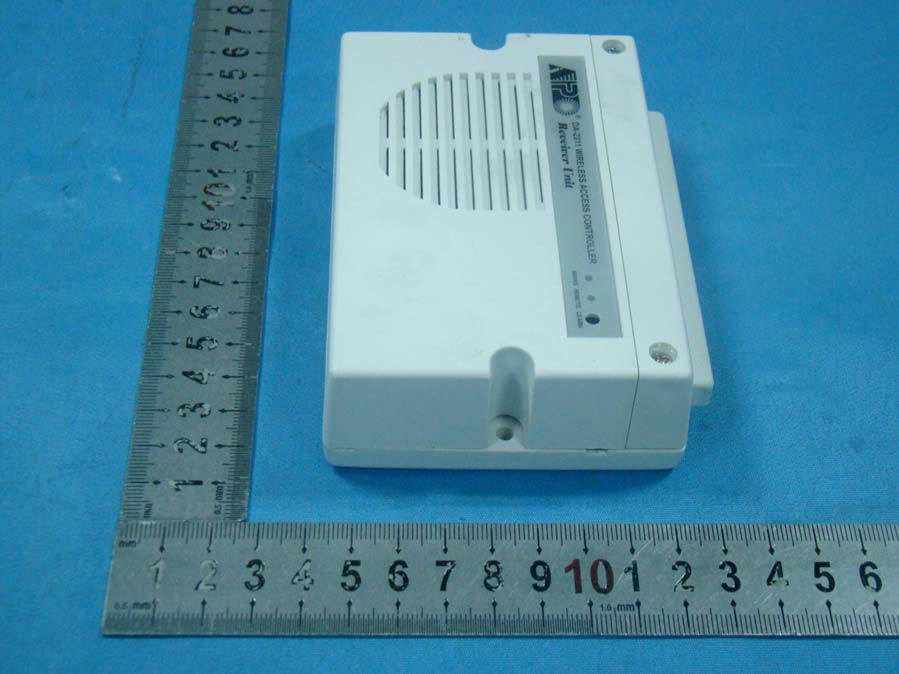

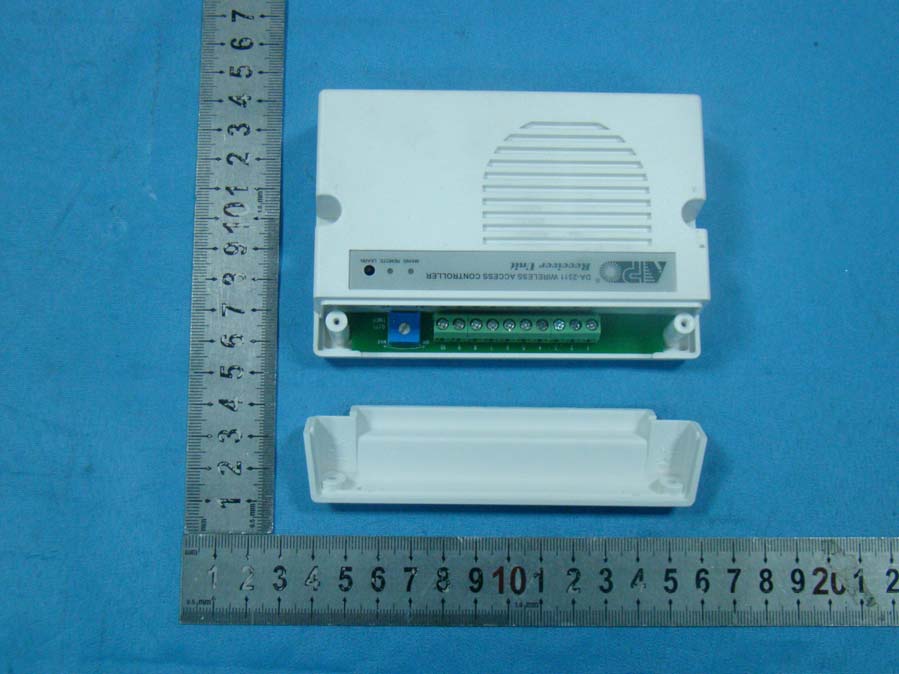

OGJ-DA2311ACCESS CONTROLLER

WIRELESS ACCESS CONTROLLER DA -2311 Operating Instructions FOR ELECTRIC LOCK AND SECURITY SYSTEM VERSION: 12/2011 AEI PROTECT-ON SYSTEMS LIMITED www.apo-hk.com RoHS Compliance FCC STATEMENT 1 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. TABLE OF CONTENTS INTRODUCTION FEATURES & SPECIFICATIONS P ACKAGE CONTENTS THE RECEIVER UNIT --- (Figure 1) THE MAIN CIRCUIT BOARD --- (Figure 2) INSTALLATION Precautions Connection Terminals Remote Controlled Keyfobs & Wireless Keypad APPLICATION EXAMPLES A Wireless Access Control Door Lock System Directly Use An Open Collector Output for Alarm Arm-Disarm Control 2 .. . ................................................................................ 2 ....................................................................3 ............................................................................. 3 ................................................................. 4 .......................................................... 4 ....................................................................................5 ..................................................................................... 5 .......................................................................... 5-6 .................................................... 6 ........................................................................ 7 .......................................................7 .................................7 INTRODUCTION DA-2311 is a 4-channel access control receiver designed to work in conjunction with its remote control keyfobs and/or the optional DK-2310 wireless keypad to build up a wireless access control system. The four controlling channels control the master output relay, the two open collector auxiliary outputs and the built-in door chime. The controller can also work independently with the two supplied remote control keyfobs (DA-12) and the optional egress button and door bell button wired to their connect terminals. FEATURES & SPECIFICATIONS The Controller of The Receiver : Operating Voltage: 12V -24V DC, Auto Adjusting Operating Current: 60mA (quiescent) to 90mA (Output relay active) Operating Temperature: -20 C to +70 C Environmental Humidity: 5-95% Relative Humidity Non-condensing Timing for Output Relay (Output 1): 1-60 Seconds Adjustable Timer (For Door Lock) Timing for Output 2 & 3 : 2 Seconds Momentary Approximately (For Auxiliary Controls) Door Lock Compatibility : Fail-safe or Fail-secure Electric Lock Input Sensing Terminals: a) Egress – For Connection of Normally Open (N.O.) Egress Button(s) b) Door Bell – For Connection of Normally Open (N.O.) Bell Button(s) Output Control Terminals: a) Output 1 – N.C. & N.O. Relay Dry Contacts, 5A/24VDC Maximum Rating b) Output 2 – Transistor Open Collector, 24VDC/100mA Sink Maximum c) Output 3 – Transistor Open Collector, 24VDC/100mA Sink Maximum Compatibility: DK-2310 Wireless Keypad, DA-12 Remote Control Keyfob Dimensions: 32.5(H) X 120(W) X 87(D)mm Plastic Box Weight: 250g net The Remote Keyfob + Receiver : Number of ID Codes for The Keyfobs : Over 1 Million Number of Wireless Keypads & Keyfobs Accommodated by The Receiver : 40 Maximum 4 Control Channels : Output 1, 2, 3 & Door Chime Operation Frequency : 433.92MHz Control Distance : 50 Meters Approx. in Open Space Receiver Type : Super-heterodyne Operation Voltage of The Keyfob (DA-12) : 12V Alkaline Battery, Type 27A (not included) Weight : 32g Specifications are subject to change for modification without notice PACKAGE CONTENTS • One Access Control Receiver (DA-2311) • Two Remote Control Keyfobs (DA-12) • One Pack of Mounting Screws • One Owner’s Manual 3 4 THE RECEIVER UNIT --- (Figure 1) THE MAIN CIRCUIT BOARD --- (Figure 2) NOTE: Factory suggests that the timer adjustment should be done by the Installer only. CODE LEARNING BUTTON REMOTE CONTROL SIGNAL & STATUS INTERNAL DOOR CHIME CONNECTION TERMINALS MAINS ADJUSTABLE TIMER FOR OUTPUT 1 TURN CLOCKWISE FOR MAXIMUM TIME RECEIVER FOR REMOTE CONTROL DA-2311 WIRELESS ACCESS CONTROLLER MAINS REMOTE LEARN INSTALLATION l) PRECAUTIONS 1) Installation Location: The receiver is working at the frequency of 433.92Mhz. To get the best receiving result of the signals from the wireless keypad or the remote control keyfob(s), a correct installation location is important. i) Install it on a location inside the house facing to the open space and there has no strong electro- magnetic wave signals near it. ii) Do not install it in a concrete room or under a concrete stair, which shortens the control distance. 2) Prevent Accidental Short Circuit: In the previous experience, most of the damages caused in the installation are accidental touching of the components on circuit board with the wires carrying power. Please be patient in the installation. Study the manual to become familiar with the system beforehand is also important. i) Do not apply power to the system while it is in installation. ii) Check carefully all the wirings are correct before applying power to the system for testing. ll) CONNECTION TERMINALS 1 - 2 : 12-24V DC -- ( Power Input Terminal ) Co nnect to a 12-24V DC power supply. Terminal 1 is the (+) power input point. The (-) supply Terminal 2 is the common grounding point of the system. The system accepts full input voltage range. 3 - 4 - 5 : OUTPUT 1 -- ( Output Relay ) 5 Amp relay dry contact controlled by Channel 1 of the wireless keypad or the remote keyfob(s). It is for door strike. Terminal 3 is Normally Closed contact (N.C.), terminal 5 is Normally Open contact (N.O.) and terminal 4 is the common point of the two contacts. Use N.C. out…

Text truncated - open the document above for the full version.

AEI PROTECT-ON SYSTEMS LTD. September 2, 2012 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ______ AEI Protect-On Systems Limited ___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: ACCESS CONTROLLER Model name: DA-2311 FCC ID: OGJ-DA2311 We affirm that between SIEMIC and __ AEI Protect-On Systems Limited ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: CHIU KWOK HO / GENERAL MANAGER Contact information / address: Flat B, 4/F., Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 AEI PROTECT-ON SYSTEMS LTD. August 22, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: OGJ-DA2311 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: CHIU KWOK HO / GENERAL MANAGER Contact information / address: Flat B, 4/F., Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong

FCC Certification label Sample FCC ID: OGJ-DA2311 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Certification Label Location Sample Label location

Receiver Antenna

Page 1 of 22 FCC ID: OGJ-DA2311 ACCURATE TECHNOLOGY CO. LTD Report No. ATE20120838 APPLICATION CERTIFICATION FCC Part 15B On Behalf of AEI Protect-On Systems Limited ACCESS CONTROLLER Model No.: DA-2311 FCC ID: OGJ-DA2311 Prepared for : AEI Protect-On Systems Limited Address : Flat B, 4/F., Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20120838 Date of Test : August 15-21, 2012 Date of Report : August 21, 2012 Page 2 of 22 FCC ID: OGJ-DA2311 ACCURATE TECHNOLOGY CO. LTD Report No. ATE20120838 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Accessory and Auxiliary Equipment ........................................................................................................4 1.3. Description of Test Facility ......................................................................................................................5 1.4. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. OPERATION OF EUT DURING TESTING ................................................................................. 7 3.1. Operating Mode ........................................................................................................................................7 3.2. Configuration and peripherals ..................................................................................................................7 4. TEST PROCEDURES AND RESULTS ......................................................................................... 8 5. CONDUCTED EMISSION FOR FCC PART 15 SECTION 15.107(A) ...................................... 9 5.1. Block Diagram of Test Setup....................................................................................................................9 5.2. The Emission Limit ..................................................................................................................................9 5.3. Configuration of EUT on Measurement .................................................................................................10 5.4. Operating Condition of EUT ..................................................................................................................10 5.5. Test Procedure ........................................................................................................................................10 5.6. Power Line Conducted Emission Measurement Results ........................................................................11 6. RADIATED EMISSION FOR FCC PART 15 SECTION 15.109(A)......................................... 14 6.1. Block Diagram of Test Setup..................................................................................................................14 6.2. The Emission Limit For Section 15.109 (a) ...........................................................................................15 6.3. EUT Configuration on Measurement .....................................................................................................15 6.4. Operating Condition of EUT ..................................................................................................................15 6.5. Test Procedure ........................................................................................................................................16 6.6. The Emission Measurement Result ........................................................................................................17 Page 3 of 22 FCC ID: OGJ-DA2311 ACCURATE TECHNOLOGY CO. LTD Report No. ATE20120838 Test Report Certification Applicant : AEI Protect-On Systems Limited Manufacturer : AEI Protect-On Systems Limited EUT Description : ACCESS CONTROLLER (A) MODEL NO.: DA-2311 (B) SERIAL NO.: N/A (C) POWER SUPPLY: DC 12-24V Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart B ANSI C63.4: 2009 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B limits. The measurement results are contained in this test report and ACCURATE TECHNOLOGY CO. LTD is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of ACCURATE TECHNOLOGY CO. LTD. Date of Test : August 15-21, 2012 Prepared by : (Apple Lv, Engineer) Approved & Authorized Signer : (Sean Liu, Manager) Page 4 of 22 FCC ID: OGJ-DA2311 ACCURATE TECHNOLOGY CO. LTD Report No. ATE20120838 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : ACCESS CONTROLLER Model Number : DA-2311 Power Supply : DC 12-24V Receiver Frequency : 433.92MHz Applicant : AEI Protect-On Systems Limited Address : Flat B, 4/F., Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong Manufacturer : AEI Protect-On Systems Limited Address : Flat B, 4/F., Effort Industrial Building, 2-8 Kung Yip Street, Kwai Chung, N.T., Hong Kong Date of sample received : August 15, 2012 Date of Test : August 15-21, 2012 1.2. Accessory and Auxiliary Equipment…
