OGK30011882001RF Tag model T40

PinPoint Corporation One Fortune Drive Billerica, MA 01821 tel 978.901.0028 fax 978.901.0050 www.pinpointco.com FEATURES: • Long Range • Call Button • Tamper Proof • Ruggedized • Long Battery Life • Easy,Flexible Mounting • Compact Size • FCC Complient T40LR Tag User’s Guide A member of the PinPoint Critical family, the T40 long-range tag is ideally suited for applications that require long-range, high-resolution location information. Activating the Tag Two steps must be performed to see the tag in the ViewPoint software. First, the T40 tag must be turned on. Simply remove the power jumper located in the bottom of the tag. As shown in Figure 1. With the jumper plug removed, the tag will exit sleep mode and become active. Second, the Tag must be entered in the ViewPoint Configurator Tag Builder Tool as shown in figure 2. Tag Features Call Button Tamper Proof Switch Tag Mounting Options Flat Bracket Mount Multi-purpose Bracket Mount Figure 2 Call Button Tag ID Label Power Jumper Figure 1 Figure 3 About PinPoint PinPoint Corporation, based in Billerica, MA, is a leading developer of solutions for Mobile Resource Management in industries requiring a high degree of live information on resources and critical assets. Today, PinPoint solutions are used to locate, monitor and manage resources, inventory and personnel in industrial, manufacturing and healthcare environments. PinPoint solutions, based on the PinPoint Resource Manager platform and industry-recognized Local Positioning System (LPS) technology, enable corporations to leverage existing IT infrastructures and precisely and affordably manage valuable resources using wireless technology. © 2001 PinPoint Corp. All rights reserved. Specifications subject to change without notice. 02/0` PinPoint Corp. One Fortune Dr. Billerica, MA 01821 tel 978.901.0028 fax 978.901.0050 www.pinpointco.com T40LR Tag User’s Guide Mechanical Dimensions:2.49” x 3.85” x .49” Weight:?oz (.?kg) Materials: ? Color:? Mounting TypeAluminum Bracket Electrical Operating Frequency:2.44 GHz Input 5.8 GHz Output Power Source:2 x 1.5V Silver Oxide Button Cells Radiated Power:< 0.5 mWatt ERIP Antenna Range: Antenna Type: Radiation Pattern:Half plan -directional, dual patch (?°azimuth, ?° elevation) Antenna Type:Omni-directional, dual patch External I/O Port:6-pin Power, Tamper, and Serial Data Output Environmental Operation Temperature:0 o C - 50 o C (32 o F – 122 o F) Storage Temperature:0 o C - 65 o C (32 o F 149 o F) Humidity:5%-95% non-condensing Water Resistance:? Vibration:? Shock:? Other Compliance:FCC Part 15.249 Compliant Unlicensed Product Specifications This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warnings: • T40 Tags are water and shock resistant. However, immersion, high-pressure washing, or extreme force can damage the Tags. • When installing the Tags, keep in mind some materials reflect or absorb radio signals in the immediate area of the Tag (i.e. metal doors) could hinder its performance. • The Tags may be washed with a soft cloth that is lightly dampened with alcohol, diluted bleach, and diluted ammonia. Harsher solutions may cause damage to the Tag’s exterior or seal. • It is company policy that these Tags are transported by air while in non-active mode. • Changes and modifications not approved by PinPoint Corporation could void the user’s authority to operate the equipment.

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: (978) 486-8880 Fax: (978) 486-8828 Web: http://www.curtis-straus.com e-mail: [email protected] CONFIDENTIAL February 19, 2001 Federal Communications Commission Re: Confidentiality for PinPoint Corporation (FCC ID: OGK30011882001) Due to the proprietary design developed by PinPoint that is unique to the industry, PinPoint is requesting confidentiality for the following exhibits of Curtis-Straus report number EA1462-1 (FCC ID: OGK30011882001): Technical Description and Block Diagram Schematics Bill of Materials Please feel free to contact me with any questions. Best regards, Michael Buchholz EMC Manager

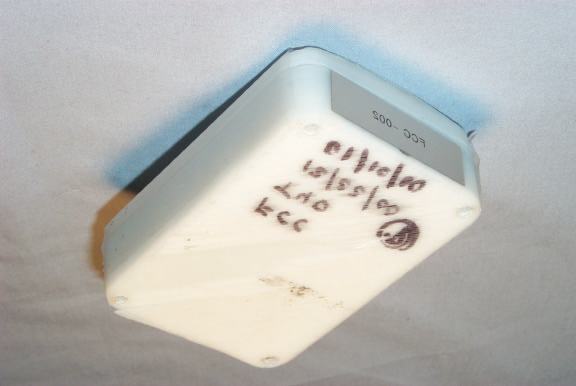

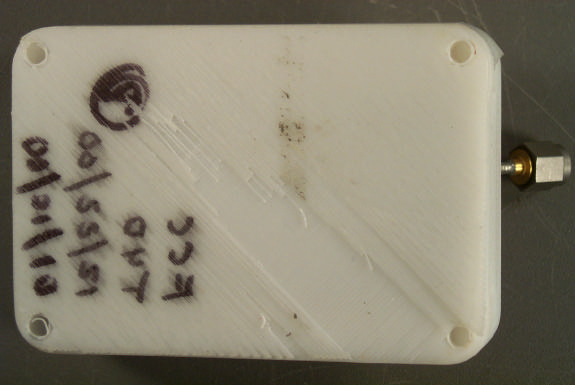

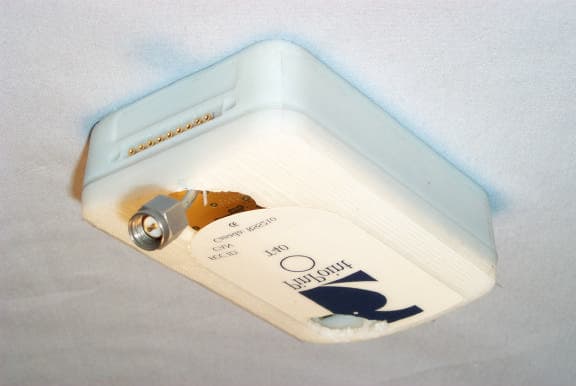

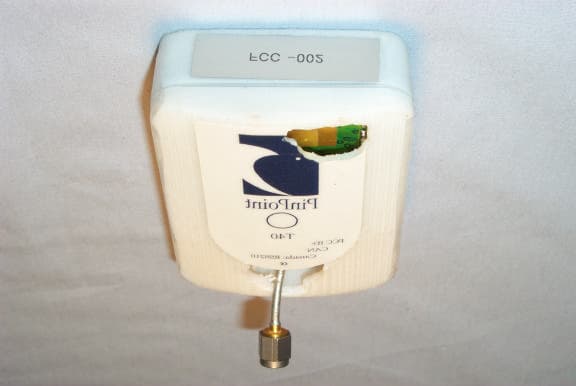

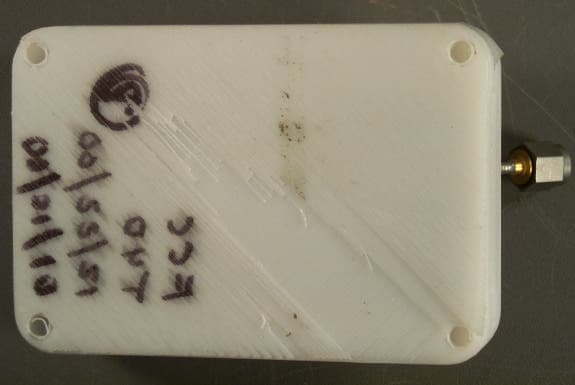

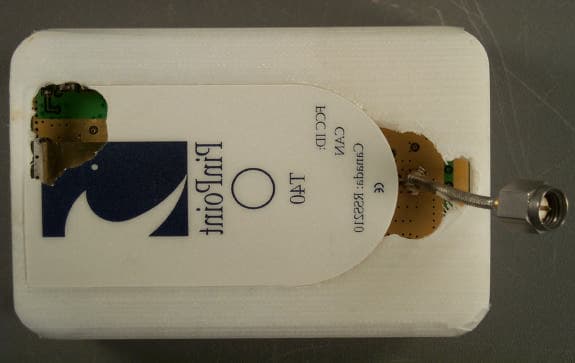

Equipment Photographs External Photos PinPoint Model T40 Tag FCC ID: OGK30011882001 (Note: Antenna connector port is present for testing purposes only) PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001

PinPoint Corporation Functional Requirements Document: Labeling Specification T40 Labeling Specification December 20, 2000 DRAFT VERSION T40 Tag Labels FCC Label Color: Blue with White lettering Material: White Poly w/Blue Reverse Print Pre-printed ID Label Color: White with Black lettering Material: White Poly Barcode: 12 digit, number Numbers: 000.001.000.000
000.001.015.159 Pre-printed PinPoint PN: 0300-11882-001 FCC ID: OGK30011882001 T40 Canada: RSS210 CAN XXXX XXX XXX XXX.XXX.XXX.XXX

Internal Photos PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001 PinPoint Model T40 Tag FCC ID: OGK30011882001

MEASUREMENT/TECHNICAL REPORT Company - Model: PinPoint 0300-11882-001 FCC ID: OGK30011882001 February 14, 2001 Description: This is a report to support a request for an original grant of equipment authorization. Equipment Type: Low Power Communications Device Transmitter (DXX) Report prepared for: PinPoint Corporation One Fortune Drive Billerica, MA 01821 Phone: (978) 901-0028 Fax: (978) 901-0050 Report prepared by: Evan D. Gould Curtis-Straus LLC 527 Great Road Littleton, MA 01460 USA Phone: 978-486-8880 FAX: 978-486-8828 FCC Application for PinPoint Corp. ••FCC ID: OGK30011882001 •• Report No. EA1462-1 14-Feb-01 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 2 of 29 Introduction This report is an application for Certification of a Transmitter operating pursuant to Part 15.249 of the FCC Rules, Code of Federal Regulations 47. The model number covered by this report is 0300-11882-001. This report is designed to demonstrate the compliance of this device with the requirements outlined in Part 15 of CFR 47 using the methods outlined in Part 2 of CFR 47. The current revision date, October 1,1999, of each Part has been used for technical requirements. The confidential information and descriptions included in this application are detailed descriptions of the products, block diagrams, component specifications, and schematic diagrams. We hereby respectfully request under the provision of section 0.457d of the code that the documents listed below be held confidential. Technical Descriptions and Block Diagrams Schematics Bill of Materials PinPoint is requesting that the Technical Descriptions, Block Diagrams, Schematics and Bill of Materials be kept confidential in the FCC application because of the proprietary design developed by PinPoint that is unique to the industry. FCC Application for PinPoint Corp. ••FCC ID: OGK30011882001 •• Report No. EA1462-1 14-Feb-01 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 3 of 29 Statement of Conformity The PinPoint Mobile Resource Management System (MRM) Tag Model T40 0300-11882-001 has been found to conform with the following parts of the 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna is built into the board and there is no external antenna connection. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit is battery powered without the capability of being recharged or operated from the AC mains. 15.249(a) The unit complies with the field strength limits of the 15.249(a) table including the 20dB peak restriction of 15.35(b) and 15.249(d). 15.249(c) The unit complies with the field strength limits of the 15.209(a) table. FCC Application for PinPoint Corp. ••FCC ID: OGK30011882001 •• Report No. EA1462-1 14-Feb-01 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 4 of 29 General Description Product Description The tag is a low cost RF device, which transponds radio signals from the cell controller transmit antenna to the cell controller receive antenna. Additionally, it modulates tag information such as the tag ID onto the signal sent to the cell controller receive antenna. The tag has three important design parameters: cost, battery life and size. Low tag cost is achieved by making the tag RF and digital design as simple as possible while using off the shelf components. In addition, an Application Specific Integrated Circuit (ASIC) further reduces cost. Battery life is achieved with low-current RF and digital designs and by utilizing a small duty cycle. Size is achieved by a combination of surface-mount technology and three-dimensional CAD tools. Units Tested Model Number: 0300-11882-001 Serial Number: FCC 2 Related Submittal(s) Grants There are no other approvals required for this device. FCC Application for PinPoint Corp. ••FCC ID: OGK30011882001 •• Report No. EA1462-1 14-Feb-01 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 5 of 29 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (1992). Radiated testing was performed at an antenna to EUT distance of 3 meters below 1 GHz, and at a distance of 3 or 1 meter(s) above 1 GHz. The actual test distance used is noted in the test data sheets. The device’s performance was investigated to 40GHz. The EUT was powered by a 6 VDC battery for all tests. The device is voltage regulated, however, a fresh battery was used every few hours to ensure that the maximum emissions were recorded. Since the tag can be operated in any orientation, the tag emissions were maximized in each of the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. The tag was set to operate continuous on and a duty cycle calculation was used (see Timing Diagram calculation). All other performance tests were made in accordance with the procedures outlined in P…

Text truncated - open the document above for the full version.

Test Setup Photograph

Timing Diagram and Duty-Cycle Calculation: Below is a capture of the transmission pulse. Tag On Transmission Pulse Tag Off Transmission Pulse Assuming the worst case is 100% on, the device transmits 2.3ms per pulse at the rate shown below. t1=transmit pulse=2.3ms t2=wait time>1s This calculates to the maximum averaging factor allowance (-20dB). AveFact = 20 x log (2.3ms/1000ms) = -52dB Therefore, a 20dB reduction is taken for all peak readings above 1GHz. t1 t2 t1 t2 t1 t2
