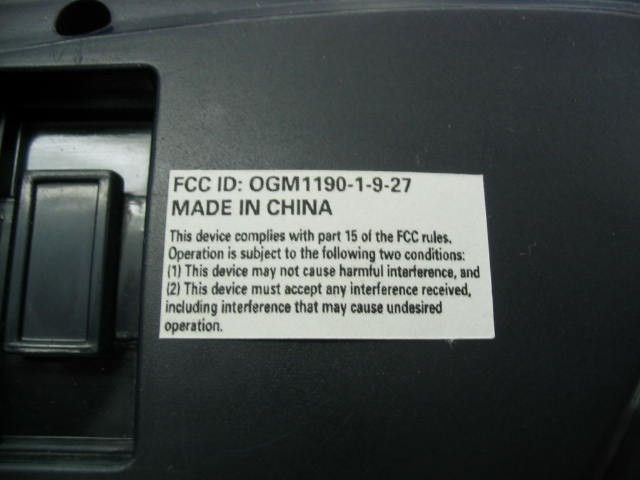

OGM1190-1-9-27RALLY CHAMPION R/C (27MHz)

11909_FCC 27MHz Tx Block Diagram ANT Battery Encode Amplifier




 U1 Q4 27.145MHz Oscillator Q3 & T1 Voltage Regulator Z1

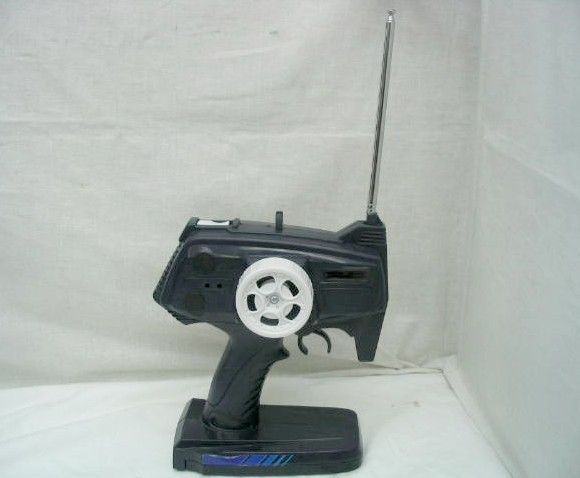

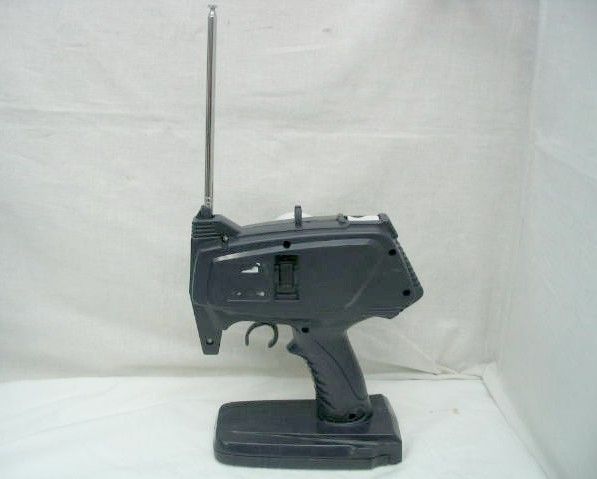

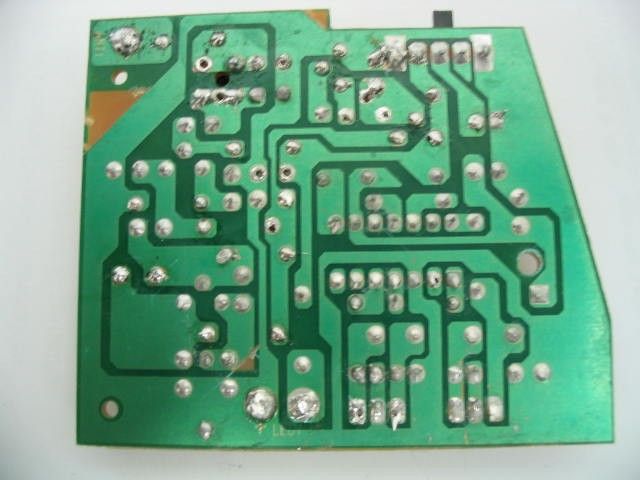

Operation Description Rally Champion R/C Car (27M) The Rally Champion R/C Car operated at 27.145MHz which is controlled by crystal. It is powered by 1.5V x 8pcs of ìAAî size battery. There are two-control key in the front of the transmitter, when the speed control trigger pressed once, it will transmit a radio frequency for receiver going forward or backward. When the steering wheel turned once, it will transmit a radio frequency for receiver turn left or right. Refer to the transmitter circuit design, the circuit description is listed as below:

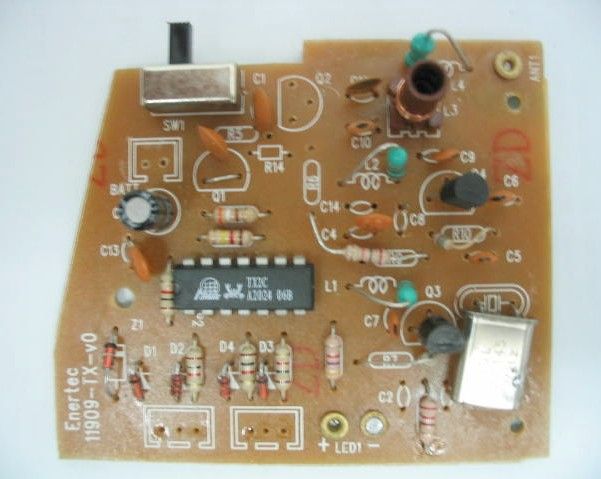

 Q3, T1 and associate circuit act as oscillator.
 U1 and associate circuit act as encoder.
Q4 and associate circuit act as amplifier.
 Z1 and associate circuit act as voltage regulator.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 20-Sep-2003 Sheet of File: C:\Documents and Settings\enertec\ \11909\11909 Tx 27M Sept 17.ddb Drawn By: RIGHTB 1 TESTB 2 GND 3 BACKWARDB 4 FORWARDB 5 TURBOB 6 SC 7 SO 8 VDD 9 PC 10 OSOC 11 OSOI 12 OFF 13 LEFTB 14 Realtek TX2C S1 S2 S3 S4 R12 120K, 1% C13 0.1U Z1 4V3 R13 390 R11 4.7K LED L1 2.2uH Q3 C1815 Q4 C1815 T1 27.145 R7 330K R8220 C747 C5 47 C647 R10 56 C40.1U R9 20K L22.2uH C947 C10 100 C11 56 L4 8.2uH ANT BATT 12V L3 Enertec 11909 Rally Champion F B R L SW RC 1/10 27MHz Tx EMC-V1 8T 0.1U C14 Fo=(146-149KHz) NPO NPO NPO NPO NPO NPO 1K 1K 1K 1K 4148 4148 4148 4148 C12 100U R1 R2 R3 R4 D1 D2 D3 D4 0.1U CAP 0.1U

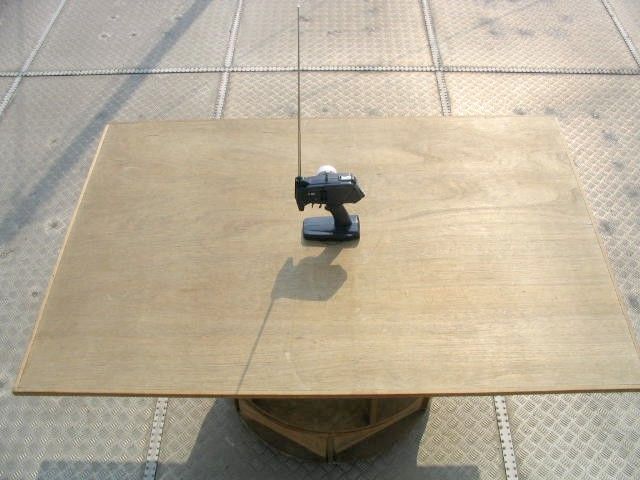

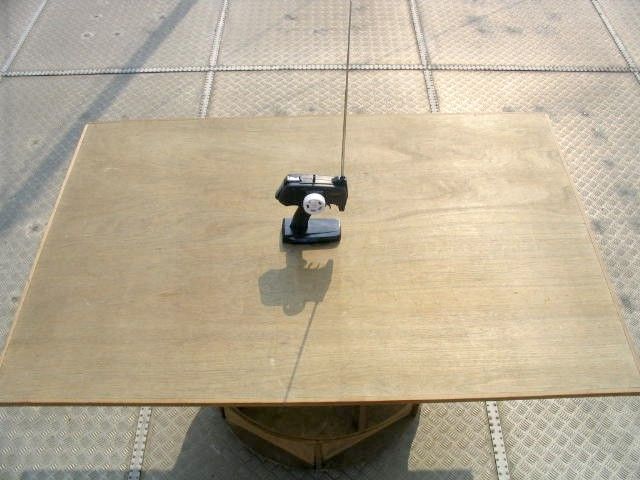

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017731-1 Date : 2003 October 21 Applicant : Enertec Enterprises Ltd. Room 911, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be Rally Champion R/C Car (27M) of Model No. 11909 . Rating : 8 pcs x 1.5 V AA size batteries No. of sample(s) : One(1) piece *** Date Received : 2003 September 27. Test Period : 2003 September 27 – 2003 October 19. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : OGM1190-1-9-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017731-1 Date : 2003 October 21 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : OGM1190-1-9-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017731-1 Date : 2003 October 21 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Rally Champion R/C Car (27M) operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 1.5 V x 8 pcs of “AA” size battery. There are two-control key in the front of the transmitter, when the speed control trigger pressed once, it will transmit a radio frequency for receiver going forward or backward. When the steering wheel turned once, it will transmit a radio frequency for receiver turn left or right. The brief circuit description is listed as follows : - Q3, T1 and associated circuit act as oscillator - U1 and associated circuit act as encoder - Q4 and associated circuit act as amplifier - Z1 and associated circuit act as voltage regulator 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : OGM1190-1-9-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017731-1 Date : 2003 October 21 1.3 L…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD017731-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD017731-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AD017731-1 Duty Cycle 2 Duty Cycle 3
