OGM12219TX-27R/CNitro Racer(1:9 The Fast and the Furious)27 MHz

Enertec Enterprises Ltd.

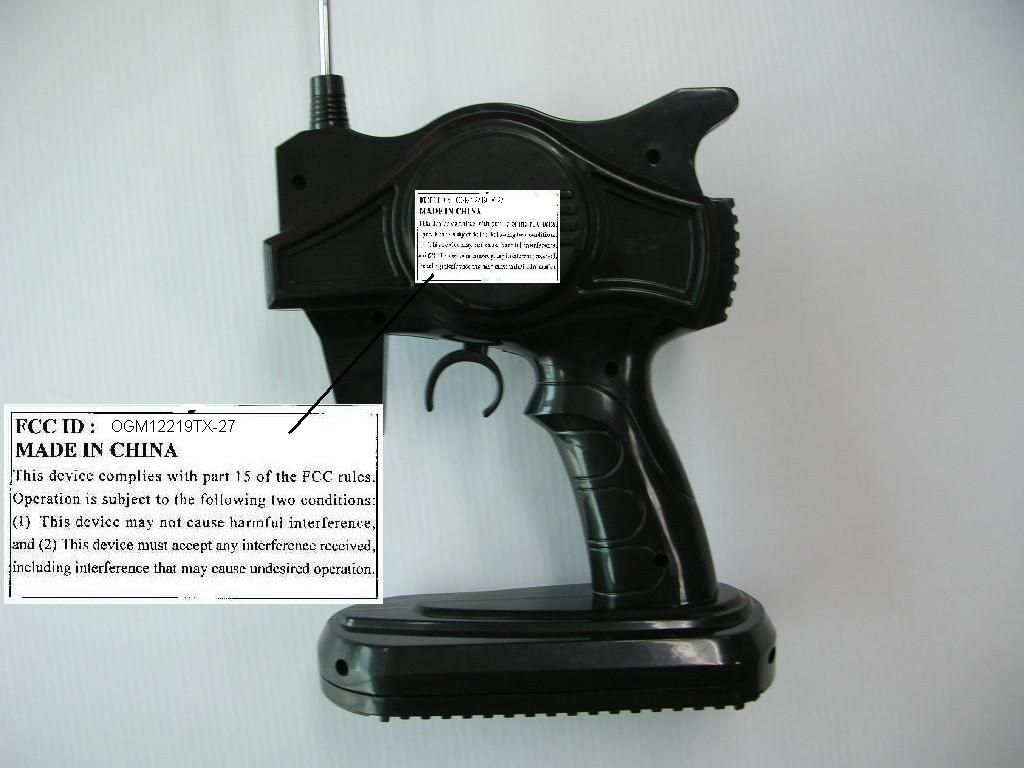

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 06, 2006
Application Purpose: Original Equipment
Date of Application: Apr 06, 2006
Equipment Note: R/CNitro Racer(1:9 The Fast and the Furious)27 MHz
Frequency Range: 27.14500000 - 27.14500000
Company: Enertec Enterprises Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

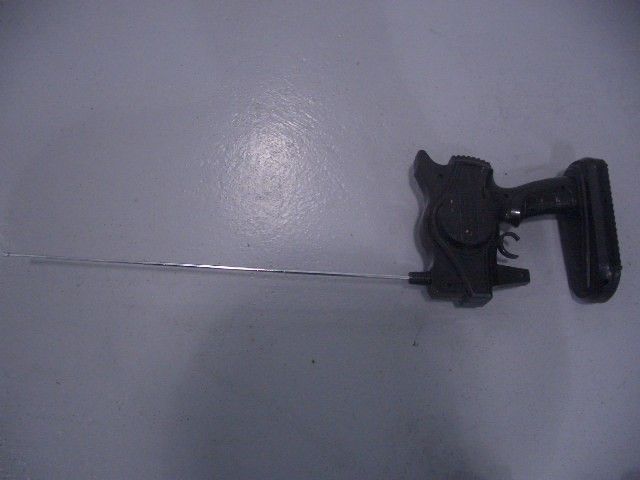

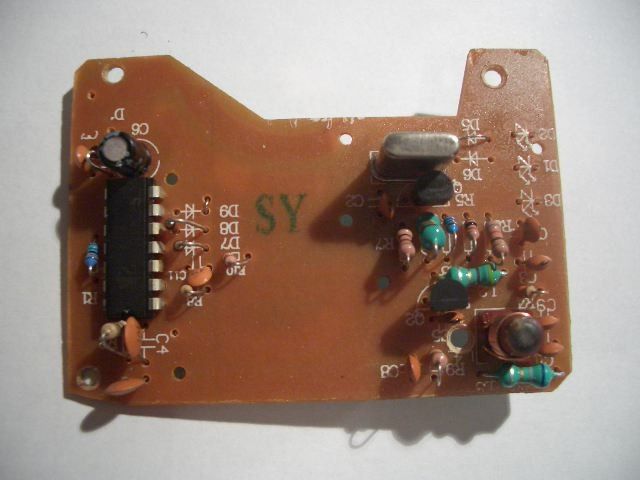

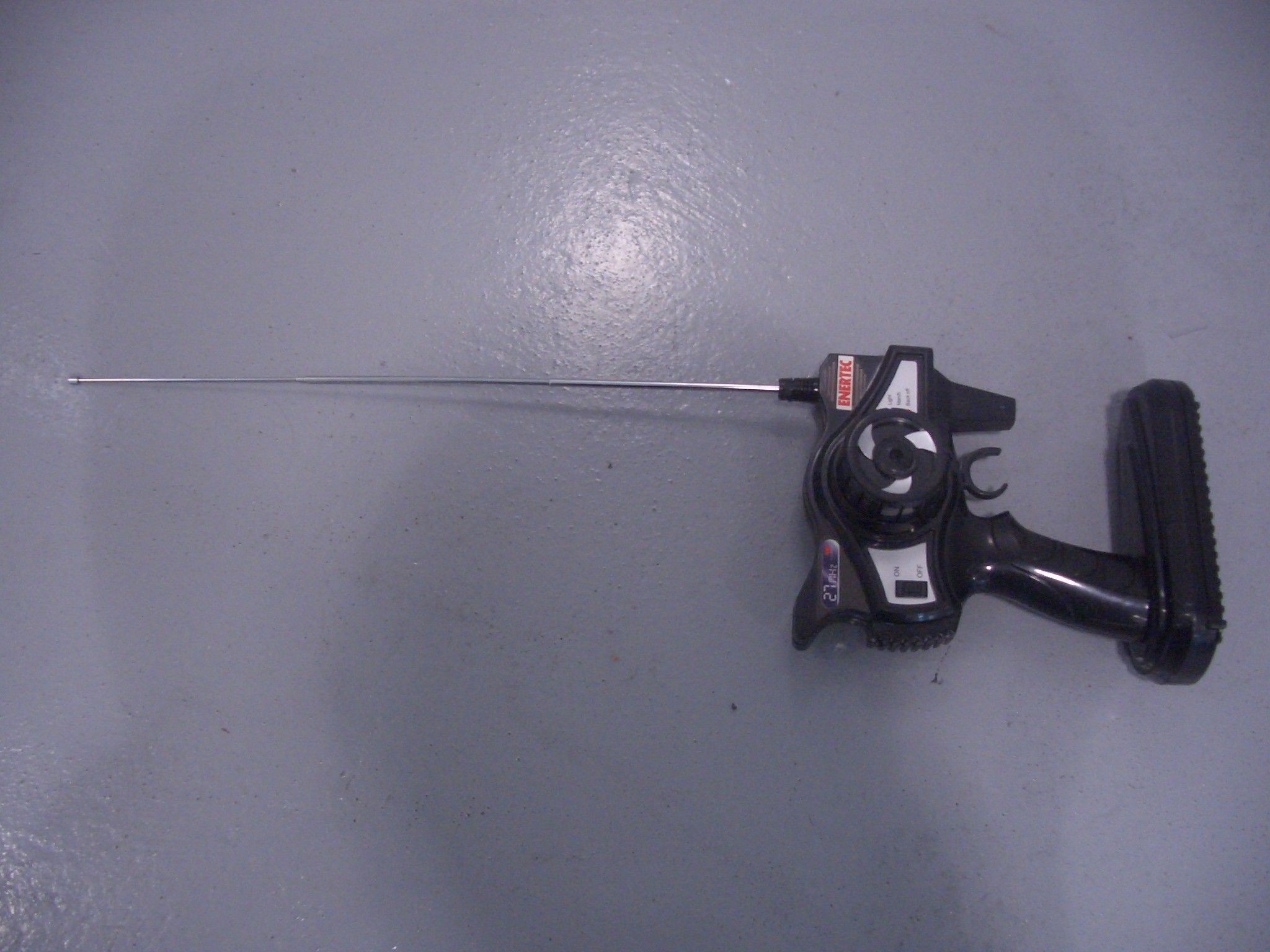

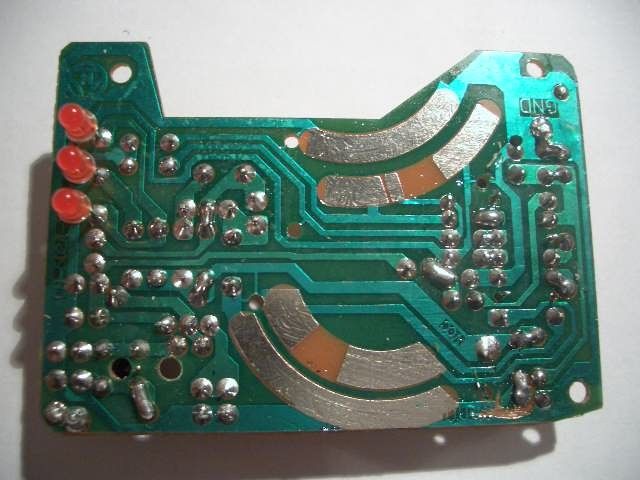

Operation Description 12219 (31019) R/C Nitro Racer (1:9 The Fast and Furious) 27MHz The transmitter operates at 27.145MHz which is controlled by a crystal. It is powered by 9V battery and it has two-control key on the transmitter. When the forward or backward control trigger is pushed / pulled once, a radio frequency will be transmitted for the receiver for going forward/backward. When the steering wheel is turned the left/right once, a radio frequency will be transmitted for the receiver for going left/right. Refer to the transmitter circuit design, the circuit description is listed below: U1 and associate circuit act as encoder Q1 and X1 and associate circuit act as oscillator Q2 and associate circuit act as amplifier

Test Report

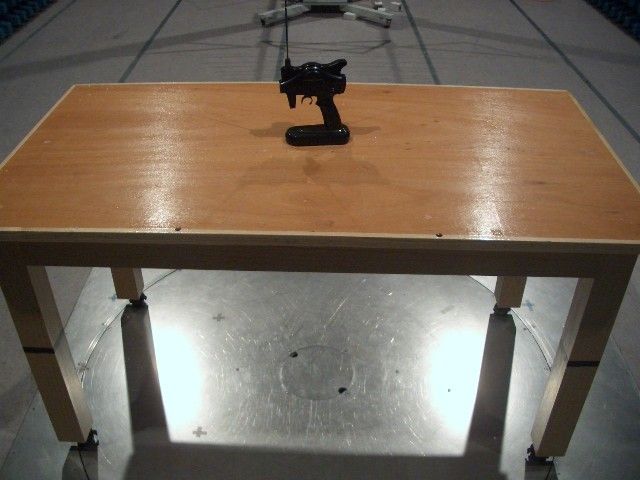

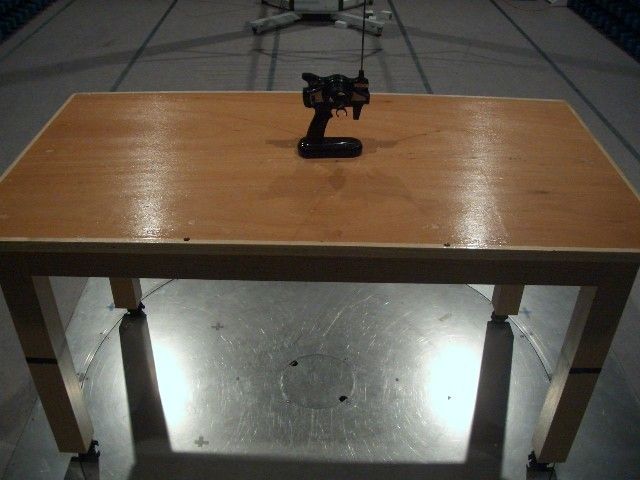

TEST REPORT Report No. : AG005639-001 Date : 2006 April 07 Page 1 of 11 FCC ID: OGM12219TX-27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG203340(1) Applicant : Enertec Enterprises Ltd. Room 1017, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be R/C Nitro Racer (1:9 The Fast and Furious) 27MHz of Model No. 12219 (31019) Rating : 1 x 9V size battery No. of submitted sample : One (1) piece(s) *** Date Received : 2006 March 15 Test Period : 2006 March 18 – 2006 March 30 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui EMC Engineer - EL. Division TEST REPORT Report No. : AG005639-001 Date : 2006 April 07 Page 2 of 11 FCC ID: OGM12219TX-27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG005639-001 Date : 2006 April 07 Page 3 of 11 FCC ID: OGM12219TX-27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Nitro Racer (1:9 The Fast and Furious).Operating at 27.145MHz which is controlled by a crystal. The EUT is powered by 9V battery, and it has two control trigger in the EUT. When the forward, backward, turn left and turn right trigger is pressed one, it will transmit a difference radio signal for receiver going to correspond direction. The brief circuit description is listed as follows: - U1 and associated circuit act as encoder - X1, Q1 and associated circuit act as oscillator - Q2 and associated circuit act as RF amplify TEST REPORT Report No. : AG005639-001 Date : 2006 April 07 Page 4 of 11 FCC ID: OGM12219TX-27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: htt…
