OGM12249TX-49R/C CROSS COUNTRY ATV (49MHz)

Enertec Enterprises Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 03, 2006
Application Purpose: Original Equipment
Date of Application: Apr 03, 2006
Equipment Note: R/C CROSS COUNTRY ATV (49MHz)
Frequency Range: 49.86000000 - 49.86000000
Company: Enertec Enterprises Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

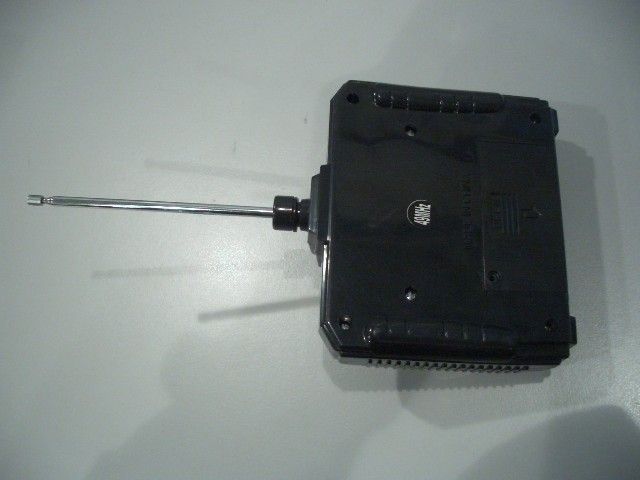

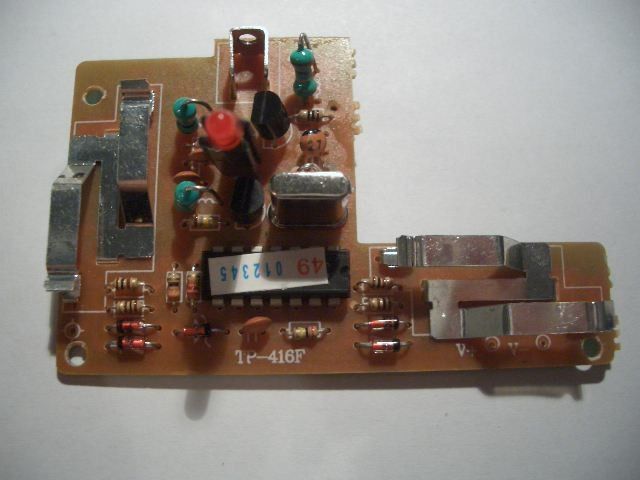

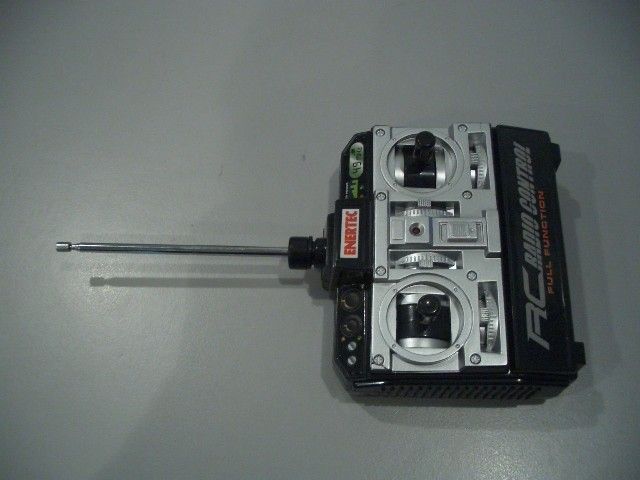

Operation Description 12249 49MHz R/C Cross Country ATV The transmitter operates at 49.860MHz, which is controlled by a crystal. It is powered by 9V battery and it has two-control key on the transmitter. When the forward or backward control trigger is pushed / pulled once, a radio frequency will be transmitted for the receiver for going forward/backward. When the steering wheel is turned the left/right once, a radio frequency will be transmitted for the receiver for going left/right. Refer to the transmitter circuit design, the circuit description is listed below: U1 and associate circuit act as encoder Q2 and X1 and associate circuit act as oscillator Q1 and associate circuit act as amplifier
