OGM1628-49R/C Micro Hauler Charger (49MHz)

1628_FCC 49.860 MHz Tx Block Diagram ANT Battery Encode Amplifier






 U1 Q4 49.860MHz Oscillator Q3 & T1 Voltage Regulator D2 Voltage Control Q1,Q2 LED L / R / B / F

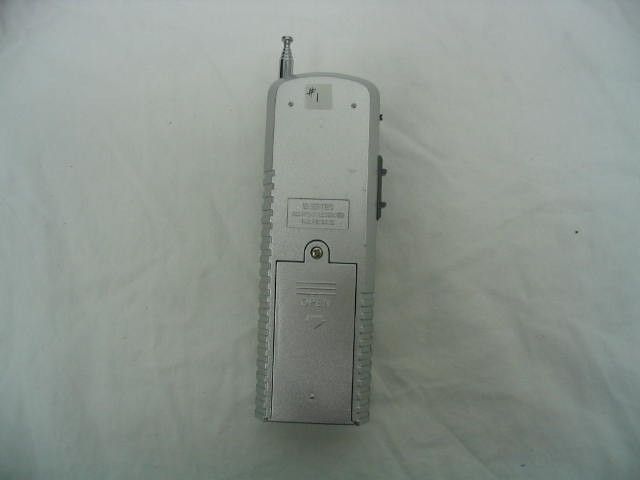

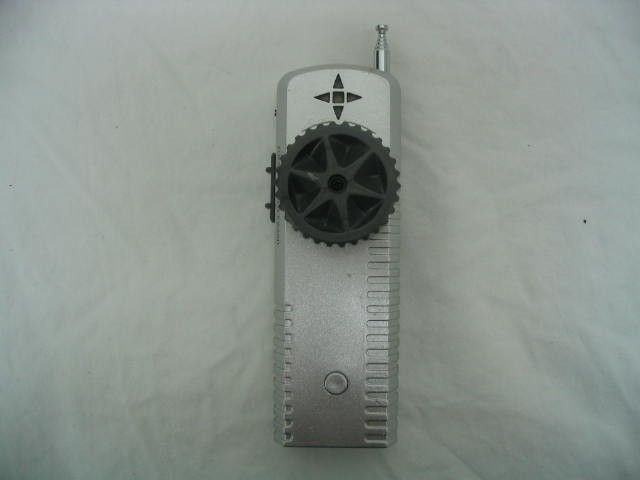

Operation Description R/C Micro Hauler Charger (49MHz) The R/C Micro Hauler Charger (49MHz) is powered by 9V battery and operated at 49.860MHz which controlled by crystal. There are two- control key in the front of the transmitter. When the speed control key pressed once, it will transmit a radio frequency for receiver going forward or backward. When the steering wheel turned once, it will transmit a radio frequency for receiver turn left or right. Refer to the transmitter circuit design, the circuit description is listed as below:

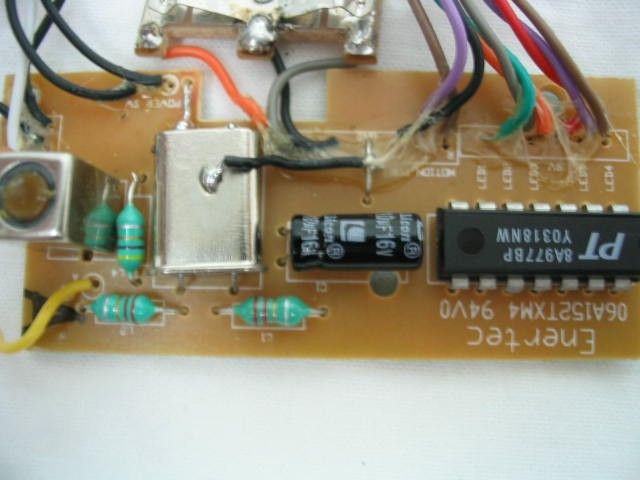

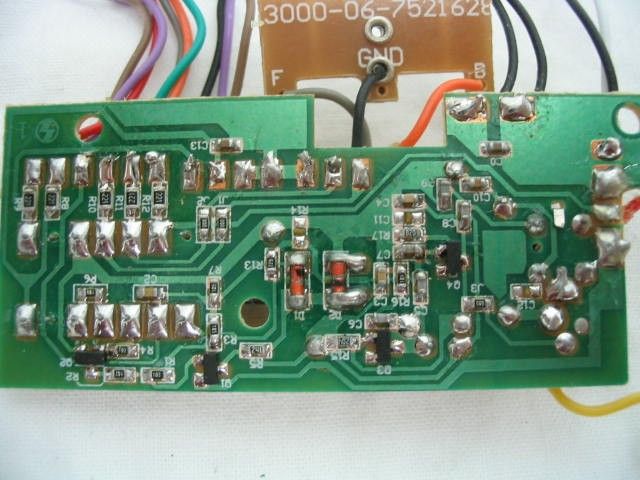

U1 and associate circuit act as encoder.
 D2 and associate circuit act as voltage regulator.
 Q4 and associate circuit act as amplifier.
 Q1, Q2 and associate circuit act as voltage control.
 Q3, X1 and associate circuit act as Oscillator.
 LED2 - LED5 and associate circuit act as LED L/R/B/F.

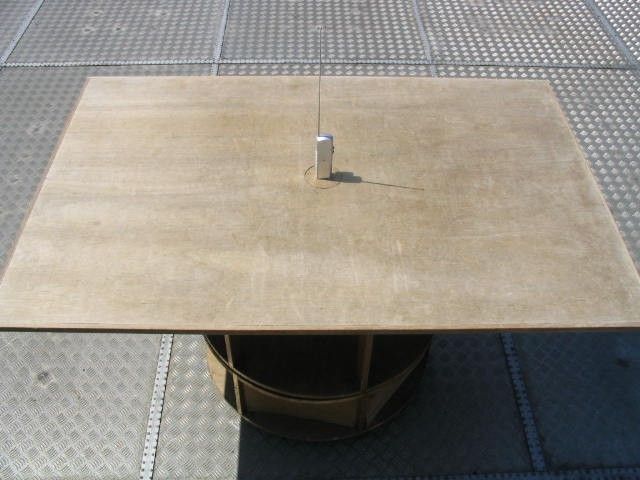

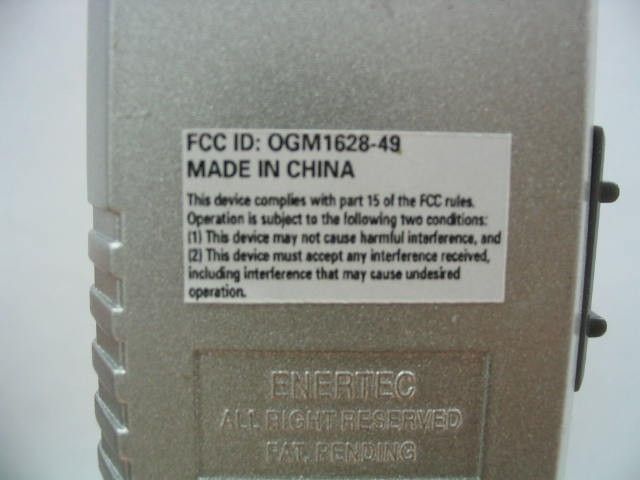

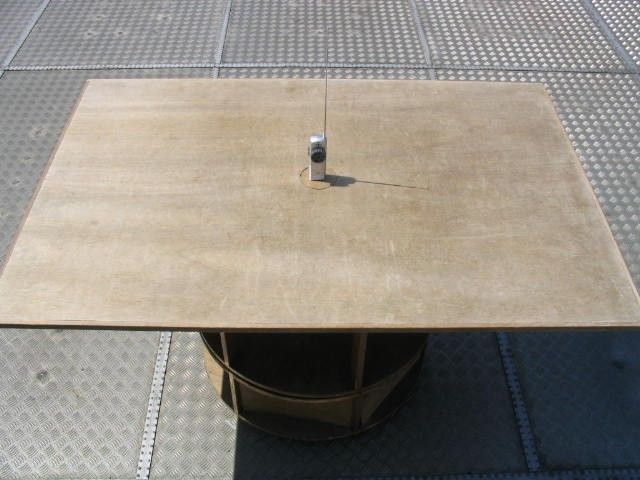

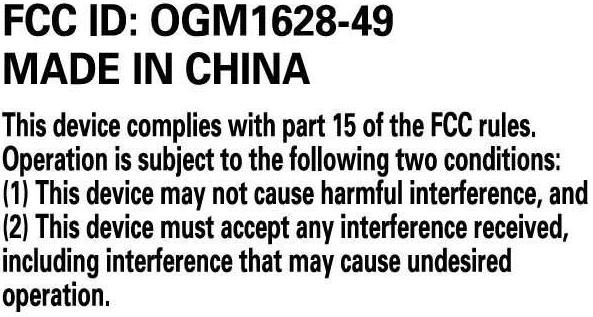

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017273-2 Date : 2003 October 22 Applicant : Enertec Enterprises Ltd. Room 911, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be R/C Micro Hauler Charger (49 MHz) of Model No. 1628 . Rating : 9 V battery No. of sample(s) : Three(3) sets *** Date Received : 2003 September 18. Test Period : 2003 September 18 – 2003 October 21. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : OGM1628-49 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017273-2 Date : 2003 October 22 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : OGM1628-49 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017273-2 Date : 2003 October 22 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Micro Hauler Charger (49 MHz) operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are two control key in the front of the transmitter. When the speed control key pressed once, it will transmit a radio frequency for receiver going forward and backward. When the steering wheel turned once, it will transmit a radio frequency for receiver turn left of right. The brief circuit description is listed as follows : - U1 and associated circuit act as Encoder - Q4 and associated circuit act as Amplifier - D2 and associated circuit act as Voltage Regulator - Q3, X1 and associated circuit act as Oscillator - Q1, Q2 and associated circuit act as Voltage Control - LED2-LED5 and associated circuit act as LED L/R/B/F 1.2 Related Submittal Grants This is a single application for certification of a transmitter. Page 3 of 11 FCC ID : OGM1628-49 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD017273-2 Date : 2003 October 22 1.3 Location of the test site Radiated…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD017273-2 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD017273-2 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AD017273-2 Duty Cycle 2 Duty Cycle 3
