OGM17039TX-2727 MHz R/C Super Roadster

Operation Description 17039 (27M) Super Roadster The transmitter operates at 27.145MHz, which is controlled by a crystal. It is powered by 9V battery. There are two-control key on the transmitter. When the forward control trigger is pushed/pulled once, a radio frequency will be transmitted for the receiver for going forward/backward. When the direction control trigger is pushed the left/right once, a radio frequency will be transmitted for the receiver for going left/right. Refer to the transmitter circuit design, the circuit description is listed below:

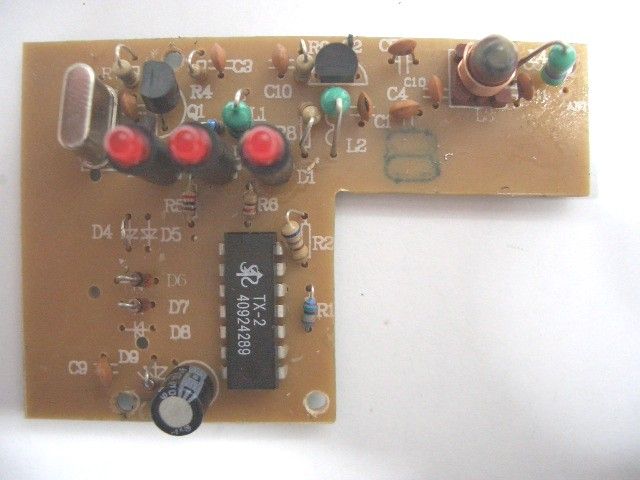

 IC1 and associate circuit act as encoder
 Q1 and TX1 and associate circuit act as oscillator
Q2 and associate circuit act as amplifier
 D9 and associate circuit act as voltage readjustment

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF006546-001 Date : 2005 April 22 Application No. : LF204290(6) Applicant : Enertec Enterprises Ltd. Room 1017, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 27MHz R/C Super Roadster of Model No. 17039 (70039) Rating : 1 x 9V battery No. of sample(s) : One (1) set *** Date Received : 2005 March 15. Test Period : 2005 March 15 – 2005 March 31. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : OGM17039TX-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF006546-001 Date : 2005 April 22 Table of Contents 1 General Information ...................................................................................................................................3 1.1 General Description ............................................................................................................................3 1.2 Related Submittal Grants ....................................................................................................................3 1.3 Location of the test site .......................................................................................................................4 1.4 List of measuring equipment...............................................................................................................5 2 Description of the radiated emission test ...................................................................................................6 2.1 Test Procedure ....................................................................................................................................6 2.2 Test Result ..........................................................................................................................................6 2.3 Radiated Emission Measurement Data ...............................................................................................7 3 Description of the Line-conducted Test .....................................................................................................8 3.1 Test Procedure ....................................................................................................................................8 3.2 Test Result ..........................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................8 4 Photograph .................................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission..............................9 4.2 Photographs of the External and Internal Configurations of the EUT................................................9 5 Supplementary document ..........................................................................................................................10 5.1 Bandwidth .........................................................................................................................................10 5.2 Duty Cycle.........................................................................................................................................10 6 Appendices ...............................................................................................................................................11 Page 2 of 11 FCC ID : OGM17039TX-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AF006546-001 Date : 2005 April 22 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 27 MHz Super Roadster. Operating at 27.145 MHz which is controlled by a crystal. The EUT is powered 9V battery. There are two control trigger in the EUT. When the forward, backward, turn left and turn right trigger is pressed once. It will transmit a difference radio signal for receiver go difference direction. The brief circuit description is listed as follows : - IC1 and associated circuit act as encoder - XT1, Q1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier - D9 and associated circuit act as voltage readjustment 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : OGM17039TX-27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302,…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00021809 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00021809 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories Job No.: J00021809 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 3
