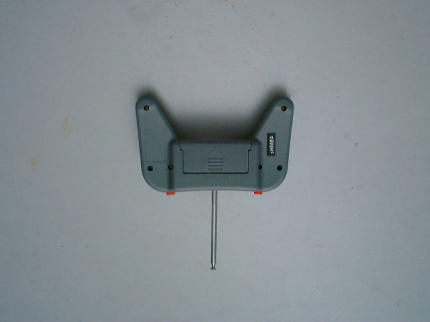

FCC ID: OGM2K-018-49 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: OGM2K-018-49 LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

FCC ID: OGM2K-018-49 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2001-04-04 TEST REPORT Page 1 of 7 No.: HM104107 Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: ENE004) ENERTEC ENTERPRISES LTD. Room 911, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. DATE OF SAMPLES RECEIVED:2001-02-14 SUBMITTED SAMPLE(S): 1 sample DATE OF TESTING: 2000-04-02 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:R/C SCOOTER Manufacturer:DAILY RANK ELECTRONICS CO., LTD. Model Number:1602 (2K-018-49/WH2000-2A) Brand Name:ENERTEC Rating: 9.0Vd.c.(“6F22” size battery × 1) Origin:CHINA Additional Product Name/Model Number:R/C Skateboard/1601, Super Twister/1169 R/C SUV Rally Racer/1621, R/C SUV Rally Racing Set/16380, The Twister/1168 INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.235 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2001-04-04 TEST REPORT Page 2 of 7 No.: HM104107 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1)Measurement of Emission of RF energy on the carrier frequency.........Satisfactory (2)Measurement of the out-of band emissions including harmonics...........Satisfactory (3)Measurement of Emission Within Band Edges......................................Satisfactory (4)Measurement of Line-Conducted Voltage onto AC Power Line............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2001-04-04 TEST REPORT Page 3 of 7 No.: HM104107 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2001-04-02 Emission of RF energy on the carrier frequency -- 49.861 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 49.966.2V+15.081.211481.5100.0100000.0 ================================================================== Emission of RF energy on the carrier frequency -- 49.861 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mμV/m 49.950.9V+15.065.91972.480.010000.0 ================================================================== ... to be continued Date: 2001-04-04 TEST REPORT Page 4 of 7 No.: HM104107 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2001-04-02 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ========================================================================= EmissionPolarizationMeterAntennaField Strength (at 3m)FCC FrequencyreadingfactorLimit (at 3m)@ MHzH-VdBdB( μ V) μ V/m μ V/m ##99.7H24.2+12.236.466.144150 149.6H24.6+9.834.452.544150 199.4H22.4+11.533.949.544150 249.3H24.8+15.940.7108.446200 299.2H16.2+17.033.245.746200 349.0<1.0+17.2<18.2<8.146200 398.9<1.0+18.8<19.8<9.846200 448.7<1.0+19.7<20.7<10.846200 498.6<1.0+20.6<21.6<12.046200 548.5<1.0+22.2<23.2<14.546200 598.3<1.0+23.4<24.4<16.646200 648.2<1.0+23.5<24.5<16.846200 698.1<1.0+25.0<26.0<20.046200 747.9<1.0+26.3<27.3<23.246200 797.8<1.0+27.2<28.2<25.746200 847.6<1.0+26.6<27.6<24.046200 897.5<1.0+27.1<28.1<25.446200 947.4<1.0+28.0<29.0<28.246200 997.2<1.0+28.5<29.5<29.954500 ================================================================== =================SUMMARY================ All data is within limits ======================================= Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ======================================= Date: 2001-04-04 TEST REPORT Page 5 of 7 No.: HM104107 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2001-04-02 RESULTS AND NOTES L: FCC Lower Band Edge..............................................................................-> 49.820MHz H: FCC Higher Band Edge.............................................................................-> 49.900MHz C: Unmodulated carrier at frequency..............................................................-> 49.861MHz D: No. of dB from unmodulated carrier..........................................................-> 65.93dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth : 1.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ======================SUMMARY======================== All data is within limits =========================================================== Date: 2001-04-04 TEST REPORT Page 6 of 7 No.: HM104107 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentations: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz). 6 dB bandwidth set at 120KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antenna are capable of measuring b…

Text truncated - open the document above for the full version.

FCC ID: OGM2K-018-49 Duty Cycle Correction During 100 msec: Each function key send a different series of characters, but each packet period (53.73 msec) will not exceeds a series of 4 long (781 μsec) and short 58 short (293 μsec) pulses, transmit duty cycle would be considered (4 x 0.781ms) + (58 x 0.293ms) per 53.73 msec = 37.5% duty cycle. Duty cycle correction = 20 log (0.375) = -8.5dB Figure A to C show the characteristics of the pulse train for one of these function. FIGURE A: PULSE TRAIN FIGURE B: LONG PULSE FIGURE C: SHORT TRAIN

FCC ID: OGM2K-018-49 TEST SET UP PHOTOGRAPH OF THE PRODUCT Measurement of Radiated Emission Test Set up
