OGU702022BLE Badge

CopyrightsReservedbyMinew|minew.com 1 Date:2021-6-17 Part#Description Datasheet BLE Badge_VER5895 The VER5895 is a fas hiona ble BLE Badge w ith BL E5. 0 and a 100m broadcasting transmissi on ra nge, mostly des igned for p ersonnel m ana geme nt, w ork fl ow optim izati on an d indoor p ositio ning , etc; alsopatients in hospitals or staff in the workplace with VER5895 can push the panic button for help. VER-5895 CopyrightsReservedbyMinew|minew.com 2 -Assettrackingandlocation -Personneltracking -Activitymonitoring -Inventorytracking ACCESSORY -Pressing“powerbutton”andkeepingon3seconds; -TheLEDlightson5secondsthenoff,thedevicebeactivatedon. CONFIGURATIONTOOL FIRMWAREUPGRADE BLE Badge_VER5895 - Double-sided adhesi ve AC TIVATE VER5895 - Beac onSET+ (iO S & Andro id), the VER5895 can be tu rned off o nly by app BeaconSET +. VER5895 BLE Badge -Bluetooth®5.0chipsetnRF52series -Themax.100metersadvertisingdistance -WaterproofIP65housingwithkey-chainhole -Pushbuttonforemergencyusing -3-axisaccelerometer&3RFIDoptions APPLICATION The VER5895 is mostly used for ass et t racking and location, personnel tracking, activity monitoring, inventory tracking, etc. The use r can config ure the VER5895 BLE Badge via Beac onSET+ A pp. The push button on VER5895 is a pani c/emergency/SOS bu tton. LF(125KHz), HF (13.56MHz), UHF(868 ~ 915MHz) RFID are optional. INTRODUCTION FEATURE -Advertising iBeacon & Eddyston e & Sensor data 1. J-LIN K Program mer Kit; 2. Pr ogram min g por ts def initio n; 3. OT A Av ailabl e CopyrightsReservedbyMinew|minew.com 3 ELECTRONICPARAMETER ItemValueRemarks CaseColorWhiteOthercolorscanbecustomized BatteryModel(optional)3.0V,1pc,800mAh(LF/HF)Li-Poly,non-rechargeable&non-replaceable 3.0V,1pc,500mAh(UHF)Li-Poly,non-rechargeable&non-replaceable OperationVoltage1.8-3.9VDC OperationTemperature-20~60°CNull TransmissionCurrent7.4mAH(peakcurrent)Testedat0dBmtransmissionpower TransmissionRange100metersMaximum Antenna50ohmOnboard/PCBAntenna Size 85.5*54*4.5mm Null Type Item DefaultSettings iBeacon UUID(16bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0(Proximity) Major(2bytes) 0 Minor(2bytes) 0 MeasuredPower -59dBm9（0xC5) TxPower 0dBm Interval(ms) 900ms UID (On) InstanceID Random NamespaceID Random MeasuredPower -24dBm(0xE8) TxPower 0dBm Interval(ms) 2000ms URL (On) URL http://www.minew.com MeasuredPower -24dBm(0xE8) TxPower 0dBm Interval(ms) 2000ms TLM (On) ElectricitymVBydefault BoottimeBydefault PDUpacketsBydefault Measuredpower-24dBm(0xE8) BLE Badge_VER5895 Each VER5895 BLE Badge has been pre-config ured in the factory b efore the shipment. Here below is giv en the main parame ters and default sett ings. PARAMETERSETTING 4 COMPATIBILITY PACKINGINFORMATION Txpower0dBm Interval(ms)4000ms INFO (On) Devicename ElectricityBydefault MACaddressFactorysetting Measuredpower-24dBm(0xE8) Txpower-8dBm Interval(ms)4000ms Extra Function Passwordminew123(configurable) ConnectableYes(itisconfigurationmode) Resetfactoryavailable Updatefirmwareavailable Sensor (Off) SensorData SwitchedOffbydefault;Switchedonbymanual;ACC available Supportingdevice&systemModuleofSupportingdevice BLE BLE4.2andabove ios10.0andabove iPhone6/6Plus/6S/6SPlus,iPhone7/7Plus iPhone8/8Plus,iPhonex/xr/xs/xsMax iPhone11/11pro/11proMax iPadmini/mini2/4/Air/pro,etc. Android4.3andabove Samsung Xiaomi,Huawei,OnePlus, Vivo,OPPO,etc. OuterBox(Batteryincluded) 40pcs/box400pcs/carton 750g7.5Kg GrossWeight850g9.0Kg Size30.5x11x7.2cm32x23.5x40cm BLE Badge_VER5895 VER5895 Co pyr igh ts R ese rved by M inew | m in ew. com NetWeight Details Quan tity(VER5895) InnerBox(Batteryincluded) Copyri ghts Reserv ed by Minew | minew.com 5 CER TI FICATI ON BLE Badge_VER5895 iBeacon MFi License (iBC-14-005 82) - Bluetooth® EPL Cert ification - FCC Regulations ava ilable - CE Regulations avail able QingLong Road , Long hua Distri ct, Shenzhen 518 109 China htt ps://w ww.minew.com <EN D> FCC Requirement changes or modificat ions not expressly ap proved by the party responsible for compl iance could void the user’s autho rity to operate the eq uipment. This device complies with Part 1 5 of the FCC Rules. Operation is subject to the following two conditions : (1) this dev ice may not cause ha rmful interference, and (2) this dev ice must accept any i nterference received, including interferen ce that may cause undesired operation. Note: This equipment has been tested and found to comply with the limi ts for a Class B digital devi ce, pursuan t to Part 15 of the F CC Rules. T hese limits are designed to pro vide reasonable protection against h armful inte rference i n a residen tial install ation. This equipment generates , uses, and can radiat e radio fre quency ene rgy, and if not insta lled and used in acc ordance w ith the ins tructions, m ay cause harmful in terference to radio communic ations. How ever, the re is no gua rantee th at interfere nce will n ot occur in a particular i nstallation . If this eq uipment do es cause h armful inte rference to radio or television r eception,w hich can b e determin ed by tur ning the eq uipment off and on, the user i s encourage d to try to correct th e interfere nce by one or more o f the follo wing meas ures: – Reorient or relocate the recei ving anten na. – Increase the separa tion betwe en the equ ipment a nd receive r. – Connect the equipm ent into a n outlet on a circuit d ifferent fro m that to which the receiver is connecte d. – Consult t he dealer o r an experienced rad io/TV tech nician for h elp. CON TACT Applicant Name: Midmark RTLS Solutions, Inc. Applicant Address: 2600 Miller Creek Rd Traverse City MI 49684 Manufactu rer: S henzhen M inew T echno logies Co., Ltd. Phone : +86 (755) 2103 8160 Email : info@ minew.com Add ress: 3 rd Floor, I Building, Gangzhilong Sc ience Park, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

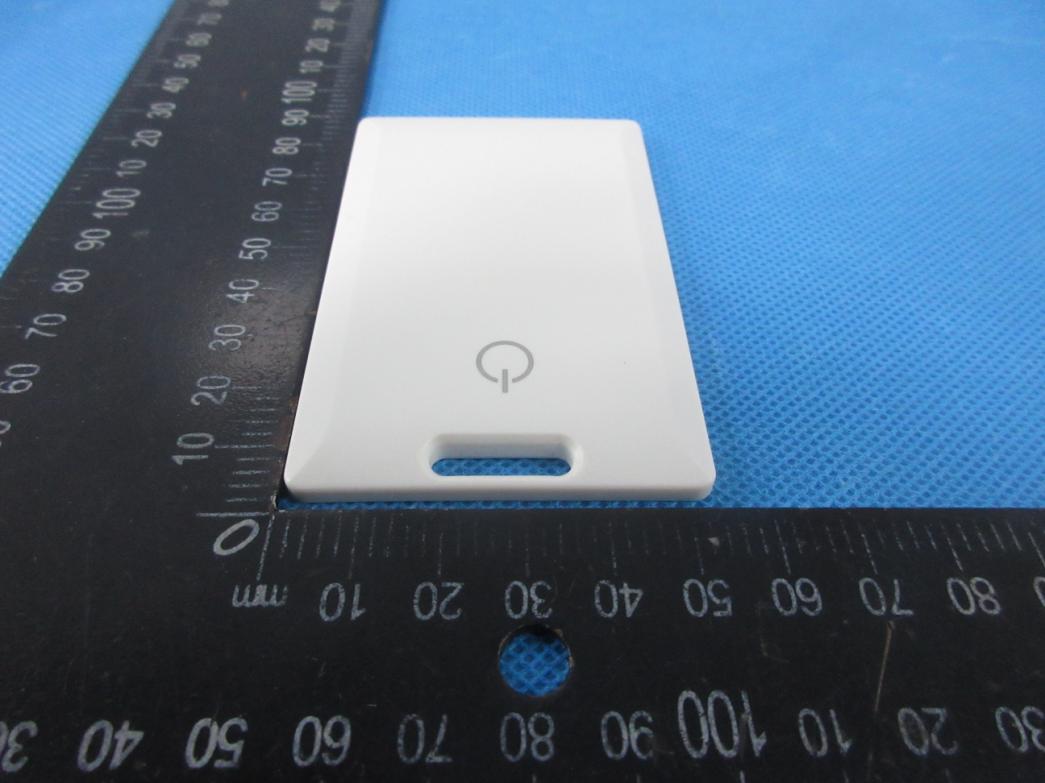

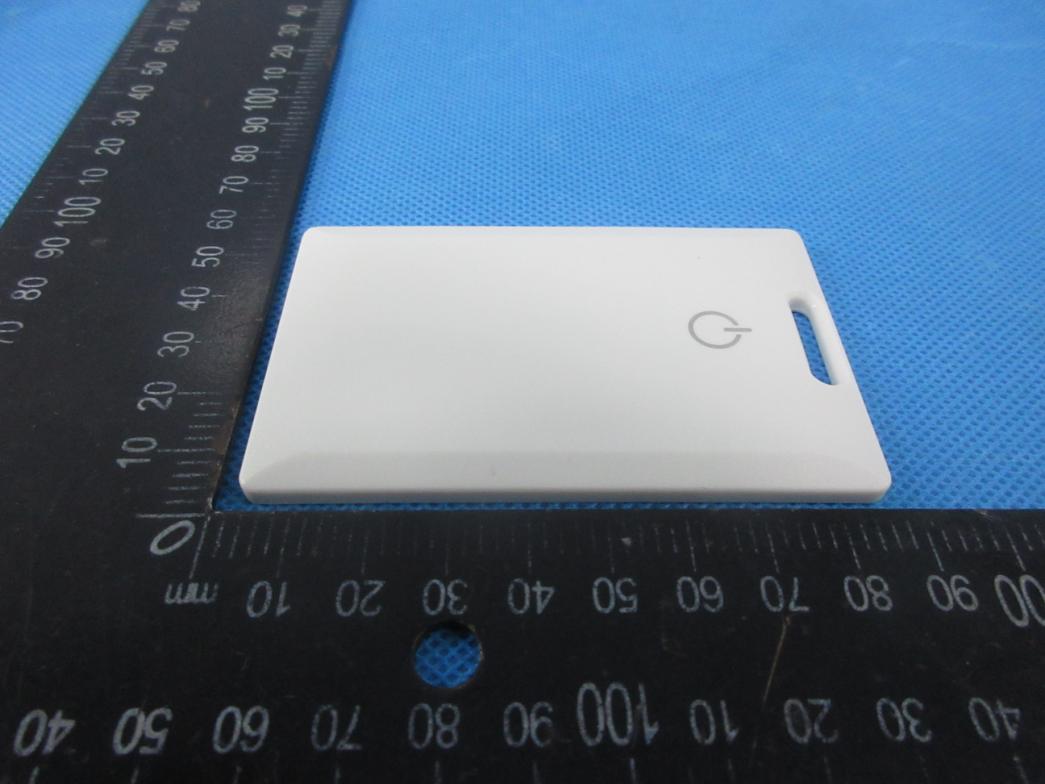

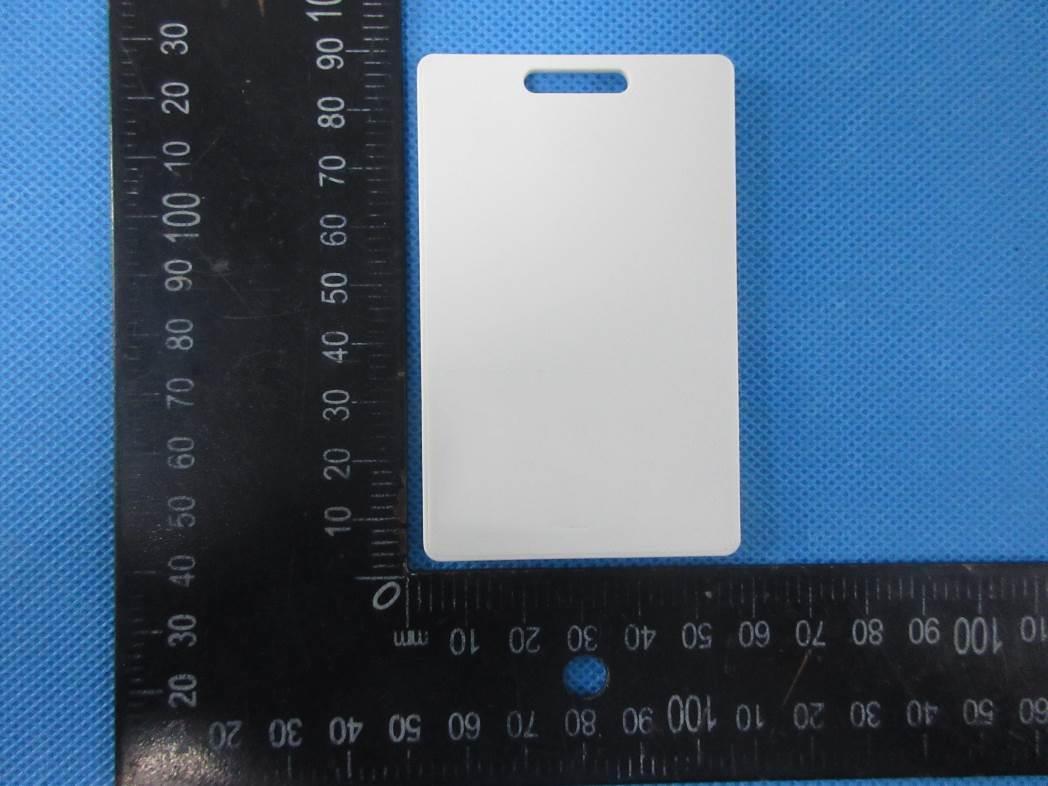

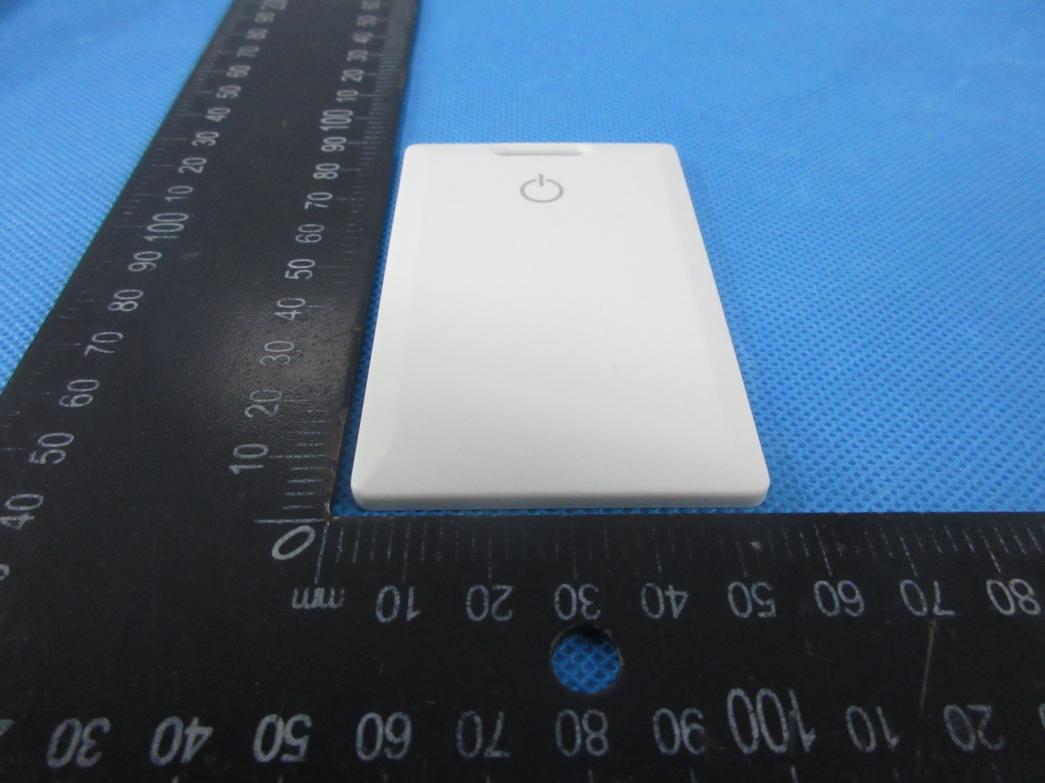

S22040801002 Model: VER5895 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S22040801002 Model: VER5895 Photo 3 Photo 4 S22040801002 Model: VER5895 Photo 5 Photo 6

Symbology: GS1 Data Matrix Font: Century Gothic, Bold, 8pt Font: Century Gothic, Bold, 12pt Font: Century Gothic, Bold, 8pt Font: Century Gothic, Bold, 6pt

S22040801002 Model: VER5895 Photo 7 Photo 8 S22040801002 Model: VER5895 Photo 9 Photo 10 ANT S22040801002 Model: VER5895 Photo 11 Photo 12

FCC ID:OGU702022 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Antenna Type: PCB Antenna Antenna Gain: -0.617dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402-3.990.399 -4±1-3.00.501<50.155353.00YES 2.440-4.510.354 -4±1-3.00.501<50.156583.00YES 2.480-3.010.500 -4±1-3.00.501<50.157853.00YES 2.402-3.960.402 -4±1-3.00.501<50.155353.00YES 2.440-4.500.355 -4±1-3.00.501<50.156583.00YES 2.480-4.870.326 -4±1-3.00.501<50.157853.00YES GFSK(1M ) GFSK(2M ) Conclusion: For the max result : 0.15785≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2022-05-06 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S22040801002001 Version.1.3 Page 1 of 54 RADIO TEST REPORT FCC ID: OGU702022 Product: BLE Badge Trade Mark: N/A Model No.: VER5895 Family Model: N/A Report No.: S22040801002001 Issue Date: Apr 19. 2022 Prepared for Midmark RTLS Solutions, Inc. 2600 Miller Creek Rd Traverse City MI 49684 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22040801002001 Version.1.3 Page 2 of 54 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 6DB BANDWIDTH ....................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................... 25 7.5 PEAK OUTPUT POWER .............................................................................................................................. 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 28 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 31 7.9 ANTENNA APPLICATION .......................................................................................................................... 32 8 TEST RESULTS ................................................................................................................................................... 33 1M: ............................................................................................................................................................................. 33 2M: ............................................................................................................................................................................. 44 Report No.: S22040801002001 Version.1.3 Page 3 of 54 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Midmark RTLS Solutions, Inc. Address ....................................... : 2600 Miller Creek Rd Traverse City MI 49684 Manufacturer's Name .................. : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name .............................. : BLE Badge Model and/or type reference ...... : VER5895 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : Apr 08. 2022 ~ Apr 19. 2022 Testing Engineer : (Mary Hu) Authorized Signatory : (Alex Li) Report No.: S220408010020…
