OGXCVTSTBDONGLEAndroid Dongle

Android Dongle User Manual 2 FEATURES Android Dongle is based on Android OS. You can use it: PRODUCT & ACCESSORIES 345 9876 QUICK INSTALL GUIDEINTERFACEREMOTE OPERATING NumberFeatures Remote signal receiver Power supply(Must be 5V/1.5A) Signal light(Red light during running,no light when shut down) USB2.0 input Micro SD card slot(up to 32GB) Features Power Page up Page down Mouse/keypad Search Home button Directions & Confirm Call out menu Notification Bar Back Next Play/Pause Previous INSTALLING WIZARD •WELCOME PAGE When the Android Dongle first powered on, Wel- come Page will appear. It helps you to configure the device •INSTALLING WIZARD You can set your Dongle as below: Choose your language; Choose your Wi-Fi network access point; Configuration Result; Adjust screen size, using the arrow buttons on remote control: (It needs to reboot the product after adjusting screen size) Remote signal receiver miniUSB for power supply Signal light USB2.0 input Android Dongle Remote Signal Receiver(80cm) USB Power Supply Wire(80cm) Mini Remote Controler User Manual •Normal Condition Insert Dongle into TV's HDMI input interface. Connect Dongle's miniUSB port to TV's USB port via USB supply line for power supply. (* ATTENTION :Make sure the USB power supply can offer 5V/1.5A.If not, please use a 5V/1.5A output AC adapter instead!) •Connected Condition (NO ENOUGH SPACE FOR DONGLE AROUND THE TV'S HDMI INPUT INTERFACE): Connect Dongle to TV's input interface needs to add another HDMI extended wire. HDMI extended wire Micro SD card slot *sketch map *Back Cover SAFETY WARNING PLACEMENT ●Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. ●Do not expose the unit to direct sun- light and other sources of heat. ●Do not handle liquids near or on the unit. ●Never spill liquid of any kind into the unit ●Do not put the unit near appliances that create magnetic fields. ●Do not put heavy objects on top of the unit. POWER SUPPLY ●Make sure the USB power sup- ply can offer 5V/1.5A.If not, please use a 5V/1.5A output AC adapter instead. ●Please unplug power supply and aerial plug when the weather is thunder-storm or lightning. ●Please unplug power supply, when there is nobody at home or didn’t use over a long period of time. ●Please keep power cord from physi- cal or mechanical damage. ●Please use exclusive power cord, don’t modify or lengthen it. ●Please check and ensure AC source is connected with the ground. SECURITY INFORMATION Before using the product, please read this manual throughly. The manual contains important security information and tutorials about the product. TEMPERATURE ●Do not place the unit near or over a radiator or a heater register. ●If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at least two hours until moisture removed. HUMIDITY ●Do not expose machine in rain, damp or place near water. ●Ensure the indoor is dry and cool. VENTILATION ●Keep the ventilation openings clear. ●Ensure that the unit has enough space for ventilation around. BATTERY ●Please dispose used battery cor- rectly. ●Please don’t let kid touch battery, in case of dangerous don’t throw battery into fire. SOFTWARE ●Some softwares for smart phones or unique CPU solutions may not suit for this product. ●Some softwares need unique pe- ripherals to support, like G-sensor, may not suit for this product. SAFETY WARNING • Surf the Internet via Wi-Fi • Communicate with your friends via SNS applications • Enjoy movies, music and photos via media player 10 5V/1.5A HDMI extention (Optional) Adaptor(Optional) The device is also designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.342W/ kg.” FCC ID:OGXCVTSTBDONGLE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The specification and software version involved in this manual is for reference only. Design and specifictions are subject to change without prior notice. 1. Open the ApkInstaller 2. Find the icon of the application, and enter it 3. Press the install button 4. You can find the application in tab “Apps” after installation 12 BROWSER •Menu Key:Call out the menu of browser •Back key:Back to the last page •Search Key:Call out the search bar to search or input web address •Page +/- Key:Help you page up/down with just one click APPLICATIONS 11131415 2019 18 17 16 • Language & input Select language Android keyboard Remote controller input method • About device Status Model number Android version Kernel version Build number • System updates Update system via update.zip from USB flash drive or TF card Menu of Browser • Set a new window (At most 4) • Bookmarks • Refresh the Current Sheet • Forward • More:Add bookmark; Find on page; Select text; Page info; Downloads; Settings; Close Install from USB Flash Drive/TF card 1. Open the“File manager” 2. Choose your USB flash drive or any other mass storage’s folder 3. Find you application, and press it 4. Press the install button 5. You can find the application in tab “Apps” after installation APPLICATIONS Download & install from Browser 1. Open the Browser. 2. Press search key and input your website address 3. Download the APK file which you like if there is a link for download (If you have problems with downloading, please try to put your TF card in the card slot) 4. You will find the file in your SD card folder Install from ApkInstaller Remove Applications 1. Enter SETTINGS 2. Enter "Applications--Manage applications" 3. Find the application you want to remove in tab "All" 4. Enter the ico…

Text truncated - open the document above for the full version.

CVT Android Dongle Wi-Fi settings 1. Enter Settings—>Wi-Fi 2. Turn on Wi-Fi 3. When Wi-Fi function turned on, It will list all the hotspot information that can be scanned. 4. Choose and enter one of the hotspots to connect to the wireless Internet. 5. If the hotspot is in security mode like WPA/WPA2, you have to enter the right password to connect 6. When connected successfully, you can enter “Advanced” to find more information as picture showed below. 7. Long press a hotspot if you want to change information. 8. Check the “Show advanced options” and it will show a window like picture bellow: 9. You can set WPS, Proxy and IP information. *Attention: Users can not change channels in this setting mode.

Declaration We Guangzhou Shiyuan Electronics Co., Ltd. hereby declare that out product Android Dongle, Model: D12, D13, D15, D16 are the same in the electrical circuit design, layout, components used and internal wiring with model D11 which was performed tests in SGS-CSTC Standards Technical Services Co., Ltd. The only difference is appearance (DOS shell and color). Mingfu He Guangzhou Shiyuan Electronics Co., Ltd. Date: 2012/5-18

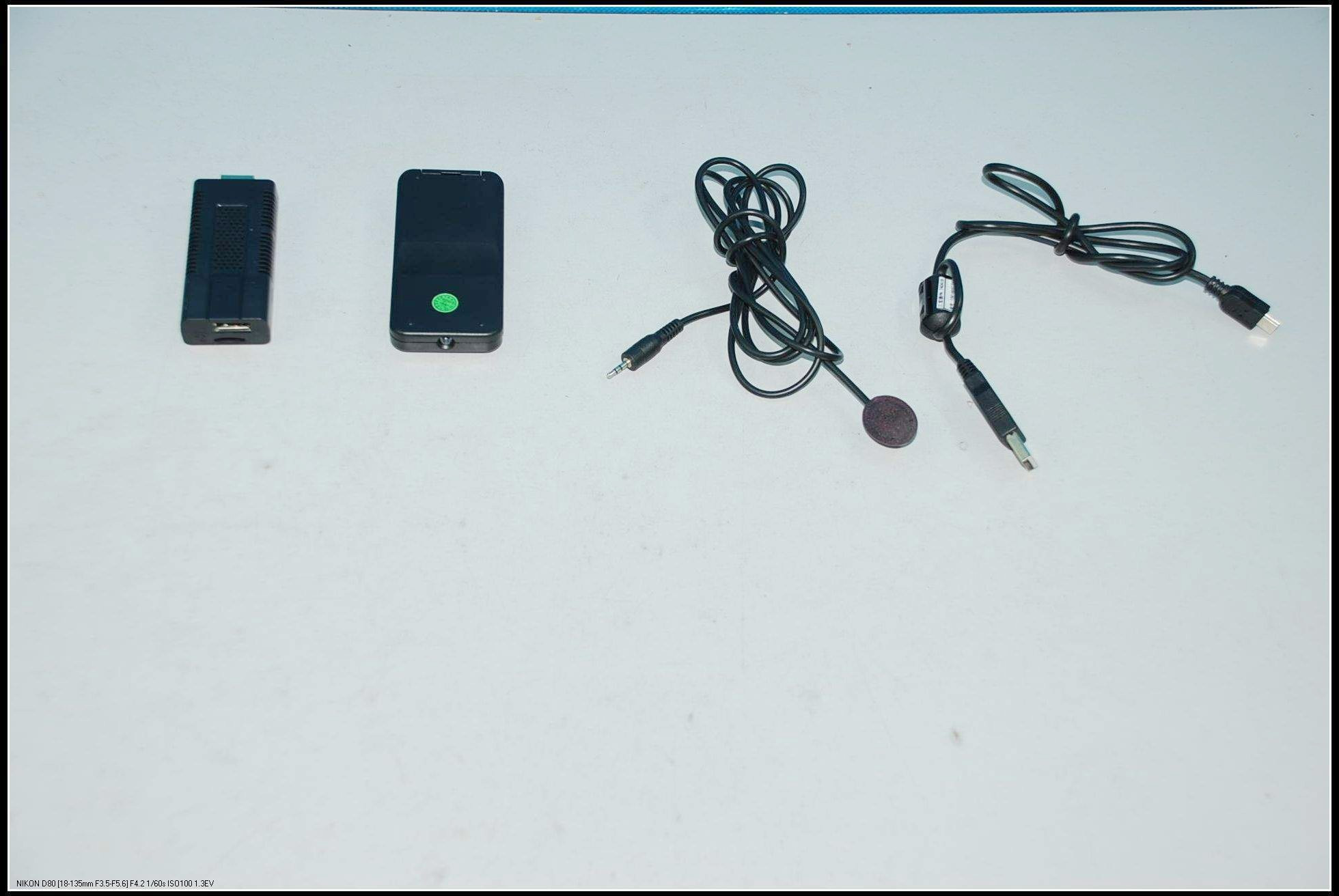

External Photos

FCC ID:OGXCVTSTBDONGLE

Internal Photos Controller
