User Manual Trade name: Toy RC Truck Model number: FT2013A Remote-controller’s battery installation 1) Release the cover of battery box 2) Install 9V battery into battery compartment according to the right poles 3) Close the cover of the battery box Car battery installation 1) Unlock the battery cover of the battery compartment which is back of the car; 2) Install 9V battery into battery compartment according to the right poles; 3) Close the cover of the battery compartment; 4) Lock the battery cover. Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Legal Company Name: Merchsource LLC Address: 19517 Pauling Foothill Ranch CA 92610 USA Phone: 949-900-0924

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.86MHz ANT I IC 1, 128KHZ

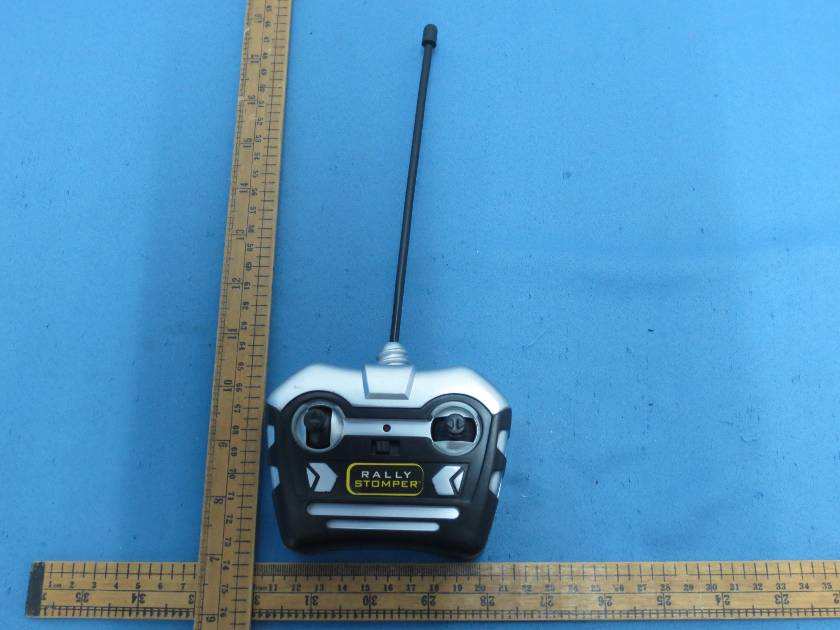

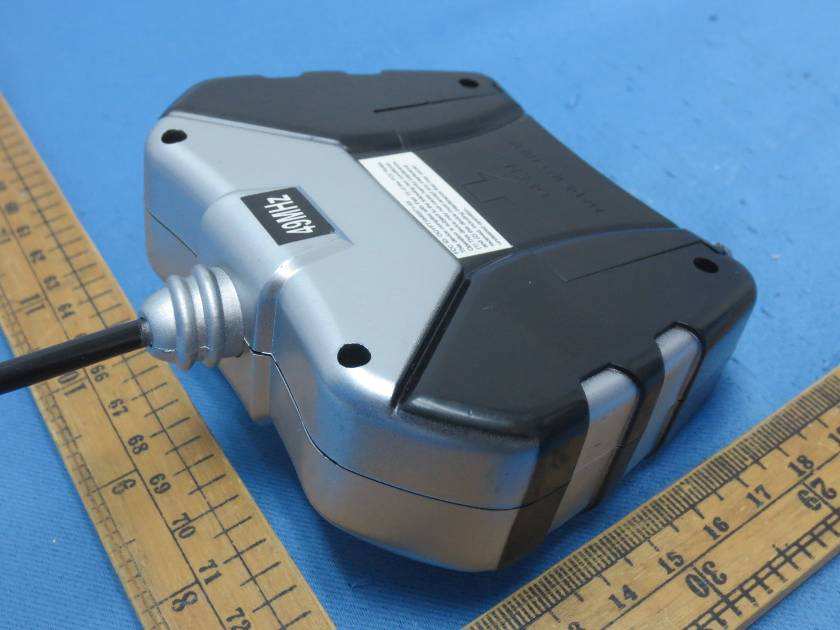

External Photos

Label Artwork and Location FCC ID: OGYFT0088-49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label size: Label size: Label size: Label size: 3 33 32 22 2* ** *12 1212 12 mm mm mm mm

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860MHz carrier Y1, Q2 Encoder IC Generate code signal to modulator IC1 Type of antenna: Internal antenna Antenna Gain: 0dBi Type of modulation: Pulse modulation The nominal conducted output power specified: -20dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -22.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC Monster car/Thunder Tumbler operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9.0V 6F22 size battery.For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -20dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -22.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 73.5dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW = -21.7dBm The ERP = EIRP – 2.15 = -23.9 dBm which is within the production variation. The maximum conducted output power specified is -17dBm = 0.02mW The source- based time-averaging conducted output power = 0.02 * Duty Cycle mW= 0.012 mW < 0.1 mW The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 =308.6mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 18.45ms Effective period of the cycle = 4 × 1.5ms +10 × 0.55ms= 11.50ms DC = 11.50ms / 18.45ms = 0.6233 or 62.33% FCC ID: OGYFT0088-49

Y1 49.860MHz 39pF

Ref 96 dBμVAtt 0 dB * A SGL 3DB RBW 3 MHz * VBW 3 MHz Center 49.86 MHz10 ms/ SWT 100 ms VIEW 1 PK 0 10 20 30 40 50 60 70 80 90 Ref 96 dBμVAtt 0 dB * A SGL RBW 3 MHz * VBW 3 MHz Center 49.86 MHz2.5 ms/ SWT 25 ms 3DB *1 PK VIEW 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 75.87 dBμV 4.000000 ms 2 Delta 2 [T1 ] 0.01 dB 18.450000 ms Ref 96 dBμVAtt 0 dB * A SGL RBW 3 MHz * VBW 3 MHz Center 49.86 MHz2.5 ms/ SWT 25 ms 3DB VIEW *1 PK 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 75.87 dBμV 4.000000 ms 2 Delta 2 [T1 ] 0.48 dB 1.500000 ms Ref 96 dBμVAtt 0 dB * A SGL RBW 3 MHz * VBW 3 MHz Center 49.86 MHz2.5 ms/ SWT 25 ms 3DB VIEW *1 PK 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 76.20 dBμV 13.200000 ms 2 Delta 2 [T1 ] 0.05 dB 550.000000 μs
