OHKGLT270427MHz Handheld Gigalink Transmitter, Model GLT270X

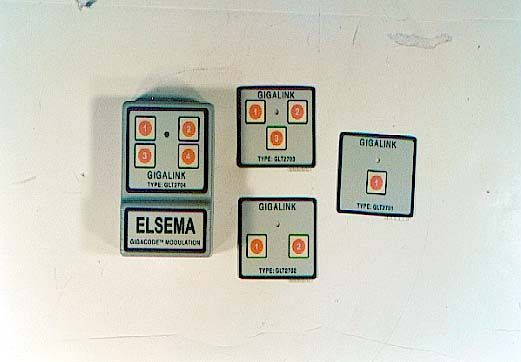

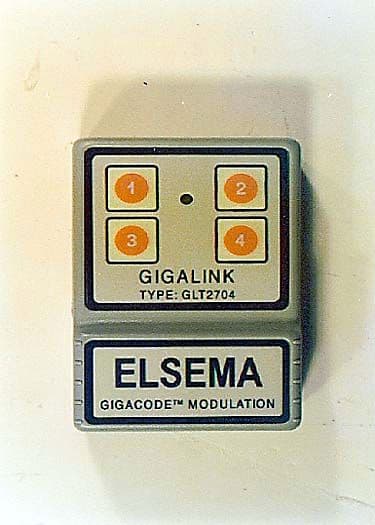

GLT2700/1/2/3/4 27MHz HAND HELD GIGALINK ™ TRANSMITTERS The hand held GIGALINK  transmitters are the most advanced Remote Control technology available in the world today. GIGALINK  is an invention that has revolutionised the entire Remote Control technology including Elsema’s earlier version of FMT- ... and FMR- ... series. The GLT2701/2/3/4 state-of-the-art invention brings a new dimension in the world of Remote Control technology in domestic, commercial and industrial applications. GIGALINK TYPE: GLT2701 GIGACODE MODULATION TM GIGALINK TYPE: GLT2702 GIGACODE MODULATION TM GIGALINK TYPE: GLT2703 GIGACODE MODULATION TM GIGALINK TYPE: GLT2704 GIGACODE MODULATION TM The innovative microcontroller technology replaces the traditional dip switch coding by eliminating any possible code grabbing. Special features such as over four billion code combinations and the ability to program any number of transmitters to a receiver adds to the most advanced and secure Remote Controls available. The hand held GIGALINK transmitters have a microcontroller in-built single and channelised code programming system that provides flexibility in programming each channel to different receivers. Each transmitter can store to its EEPROM, up to four random channels allowing the user to program each channel from different single channel receivers. This is achieved when single code programming the transmitter channels from a GLR2701, which is a single channel GIGALINK receiver. If the transmitter is single code programmed from a multi channel receiver, the selected receiver’s channel is programmed to the selected transmitter channel. The channels can be selected by using the dip switches on the receiver and by pressing the appropriate channel button on the transmitter. Channelised code programming programs all the channels, from a multi channel receiver, to the multi channel transmitter. That is, channel one on the transmitter activates channel one on the receiver and alternatively. Channelised system can be either used as simple on/off functions or for several channels to operate simultaneously such as dual or multi action control for example crane transmission control. The transmitter can be single or channelised code programmed without power connected. Single Code Programming This is used for programming one channel at a time to the transmitter. To single code program a transmitter read receivers setup instructions. Channelised Code Programming This is used to program all channels from a multi channel receiver to the multi channel transmitter. To channelise code program a transmitter read receivers setup instructions. Applications The code programming becomes a powerful feature that allows the hand held transmitters to be used in many diverse applications such as security, gate operation, panic buttons, multiple on/off functions etc. Battery or DC Supply Battery operation is optimised using the built-in battery monitoring system. The battery monitoring system alerts the user when the battery level falls below the low battery voltage. The 1 Hz flash from the LED during a transmission indicates low battery. This is an indication that replacement of a battery is necessary. Normal Operation The LED flickers at 12.5Hz during normal operation. Channels The hand held transmitters are available with 1, 2, 3 and 4 channels. Custom made front Membrane Membrane is the front label with the channel etched/printed to it. Customers can purchase the GLT2700, which is a hand held GIGALINK transmitter without the front membrane. This enables the customers to fit their custom made membrane that can be a 1, 2, 3 or 4 channels. This has the advantage of customers only stocking one model to function as a 1, 2, 3 and 4 channel. Details of membrane dimensions are given on the following page. Customers can even use Elsema’s membrane tools to manufacture their own membranes. Continuous or Burst Transmission The hand held transmitters can be purchased with a choice of continuous or burst transmission. Continuous transmission will transmit as long as the channel is activated. Burst transmission will transmit for a predetermined time when a channel is activated. Burst transmission locks on a transmission, which ensures a fail-safe transmission from a short activation of a channel. Burst transmission is also required in certain countries where limited transmission time is allowed. Unique Code System The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema to offer everyone “your own” radio control. Case The hand held GIGALINK transmitters are supplied with a case. There is also sufficient space on the rear of the case to place additional stickers such as your telephone contact, local authorities approval numbers etc. REGULATORY COMPIANCE STAEMENTS American Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the computer and receiver. • Connect the computer into an outlet on a circuit diff…

Text truncated - open the document above for the full version.

GLT2700/1/2/3/4 27MHz HAND HELD GIGALINK ™ TRANSMITTERS The hand held GIGALINK  transmitters are the most advanced Remote Control technology available in the world today. GIGALINK  is an invention that has revolutionised the entire Remote Control technology including Elsema’s earlier version of FMT- ... and FMR- ... series. The GLT2701/2/3/4 state-of-the-art invention brings a new dimension in the world of Remote Control technology in domestic, commercial and industrial applications. GIGALINK TYPE: GLT2701 GIGACODE MODULATION TM GIGALINK TYPE: GLT2702 GIGACODE MODULATION TM GIGALINK TYPE: GLT2703 GIGACODE MODULATION TM GIGALINK TYPE: GLT2704 GIGACODE MODULATION TM The innovative microcontroller technology replaces the traditional dip switch coding by eliminating any possible code grabbing. Special features such as over four billion code combinations and the ability to program any number of transmitters to a receiver adds to the most advanced and secure Remote Controls available. The hand held GIGALINK transmitters have a microcontroller in-built single and channelised code programming system that provides flexibility in programming each channel to different receivers. Each transmitter can store to its EEPROM, up to four random channels allowing the user to program each channel from different single channel receivers. This is achieved when single code programming the transmitter channels from a GLR2701, which is a single channel GIGALINK receiver. If the transmitter is single code programmed from a multi channel receiver, the selected receiver’s channel is programmed to the selected transmitter channel. The channels can be selected by using the dip switches on the receiver and by pressing the appropriate channel button on the transmitter. Channelised code programming programs all the channels, from a multi channel receiver, to the multi channel transmitter. That is, channel one on the transmitter activates channel one on the receiver and alternatively. Channelised system can be either used as simple on/off functions or for several channels to operate simultaneously such as dual or multi action control for example crane transmission control. The transmitter can be single or channelised code programmed without power connected. Single Code Programming This is used for programming one channel at a time to the transmitter. To single code program a transmitter read receivers setup instructions. Channelised Code Programming This is used to program all channels from a multi channel receiver to the multi channel transmitter. To channelise code program a transmitter read receivers setup instructions. Applications The code programming becomes a powerful feature that allows the hand held transmitters to be used in many diverse applications such as security, gate operation, panic buttons, multiple on/off functions etc. Battery or DC Supply Battery operation is optimised using the built-in battery monitoring system. The battery monitoring system alerts the user when the battery level falls below the low battery voltage. The 1 Hz flash from the LED during a transmission indicates low battery. This is an indication that replacement of a battery is necessary. Normal Operation The LED flickers at 12.5Hz during normal operation. Channels The hand held transmitters are available with 1, 2, 3 and 4 channels. Custom made front Membrane Membrane is the front label with the channel etched/printed to it. Customers can purchase the GLT2700, which is a hand held GIGALINK transmitter without the front membrane. This enables the customers to fit their custom made membrane that can be a 1, 2, 3 or 4 channels. This has the advantage of customers only stocking one model to function as a 1, 2, 3 and 4 channel. Details of membrane dimensions are given on the following page. Customers can even use Elsema’s membrane tools to manufacture their own membranes. Continuous or Burst Transmission The hand held transmitters can be purchased with a choice of continuous or burst transmission. Continuous transmission will transmit as long as the channel is activated. Burst transmission will transmit for a predetermined time when a channel is activated. Burst transmission locks on a transmission, which ensures a fail-safe transmission from a short activation of a channel. Burst transmission is also required in certain countries where limited transmission time is allowed. Unique Code System The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema to offer everyone “your own” radio control. Case The hand held GIGALINK transmitters are supplied with a case. There is also sufficient space on the rear of the case to place additional stickers such as your telephone contact, local authorities approval numbers etc. REGULATORY COMPIANCE STAEMENTS American Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the computer and receiver. • Connect the computer into an outlet on a circuit diff…

Text truncated - open the document above for the full version.

GLT2700/1/2/3/4 27MHz HAND HELD GIGALINK ™ TRANSMITTERS The hand held GIGALINK  transmitters are the most advanced Remote Control technology available in the world today. GIGALINK  is an invention that has revolutionised the entire Remote Control technology including Elsema’s earlier version of FMT- ... and FMR- ... series. The GLT2701/2/3/4 state-of-the-art invention brings a new dimension in the world of Remote Control technology in domestic, commercial and industrial applications. GIGALINK TYPE: GLT2701 GIGACODE MODULATION TM GIGALINK TYPE: GLT2702 GIGACODE MODULATION TM GIGALINK TYPE: GLT2703 GIGACODE MODULATION TM GIGALINK TYPE: GLT2704 GIGACODE MODULATION TM The innovative microcontroller technology replaces the traditional dip switch coding by eliminating any possible code grabbing. Special features such as over four billion code combinations and the ability to program any number of transmitters to a receiver adds to the most advanced and secure Remote Controls available. The hand held GIGALINK transmitters have a microcontroller in-built single and channelised code programming system that provides flexibility in programming each channel to different receivers. Each transmitter can store to its EEPROM, up to four random channels allowing the user to program each channel from different single channel receivers. This is achieved when single code programming the transmitter channels from a GLR2701, which is a single channel GIGALINK receiver. If the transmitter is single code programmed from a multi channel receiver, the selected receiver’s channel is programmed to the selected transmitter channel. The channels can be selected by using the dip switches on the receiver and by pressing the appropriate channel button on the transmitter. Channelised code programming programs all the channels, from a multi channel receiver, to the multi channel transmitter. That is, channel one on the transmitter activates channel one on the receiver and alternatively. Channelised system can be either used as simple on/off functions or for several channels to operate simultaneously such as dual or multi action control for example crane transmission control. The transmitter can be single or channelised code programmed without power connected. Single Code Programming This is used for programming one channel at a time to the transmitter. To single code program a transmitter read receivers setup instructions. Channelised Code Programming This is used to program all channels from a multi channel receiver to the multi channel transmitter. To channelise code program a transmitter read receivers setup instructions. Applications The code programming becomes a powerful feature that allows the hand held transmitters to be used in many diverse applications such as security, gate operation, panic buttons, multiple on/off functions etc. Battery or DC Supply Battery operation is optimised using the built-in battery monitoring system. The battery monitoring system alerts the user when the battery level falls below the low battery voltage. The 1 Hz flash from the LED during a transmission indicates low battery. This is an indication that replacement of a battery is necessary. Normal Operation The LED flickers at 12.5Hz during normal operation. Channels The hand held transmitters are available with 1, 2, 3 and 4 channels. Custom made front Membrane Membrane is the front label with the channel etched/printed to it. Customers can purchase the GLT2700, which is a hand held GIGALINK transmitter without the front membrane. This enables the customers to fit their custom made membrane that can be a 1, 2, 3 or 4 channels. This has the advantage of customers only stocking one model to function as a 1, 2, 3 and 4 channel. Details of membrane dimensions are given on the following page. Customers can even use Elsema’s membrane tools to manufacture their own membranes. Continuous or Burst Transmission The hand held transmitters can be purchased with a choice of continuous or burst transmission. Continuous transmission will transmit as long as the channel is activated. Burst transmission will transmit for a predetermined time when a channel is activated. Burst transmission locks on a transmission, which ensures a fail-safe transmission from a short activation of a channel. Burst transmission is also required in certain countries where limited transmission time is allowed. Unique Code System The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema to offer everyone “your own” radio control. Case The hand held GIGALINK transmitters are supplied with a case. There is also sufficient space on the rear of the case to place additional stickers such as your telephone contact, local authorities approval numbers etc. REGULATORY COMPIANCE STAEMENTS American Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the computer and receiver. • Connect the computer into an outlet on a circuit diff…

Text truncated - open the document above for the full version.

Page 1 of 20 Report No: FC00-006 CERTIFICATION TEST REPORT FOR THE 27.195 MHZ TRANSMITTER, GLT2704 FCC PART 15 SUBPART C COMPLIANCE DATE OF ISSUE: JANUARY 18, 2000 PREPARED FOR: Elsema Pty Ltd Unit 3, 10 Hume Road Smithfield 2164 Australia W.O. No: 71920 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Date of test: August 5 & December 23, 1999 Report No: FC00-006 DOCUMENTATION CONTROL: _____________________________ Tracy Phillips Documentation Control Supervisor CKC Laboratories, Inc. APPROVED BY: _____________________________ Dennis Ward Director of Laboratories CKC Laboratories, Inc. This report contains a total of 20 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 20 Report No: FC00-006 TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary Of Results........................................................................................................ 4 Equipment Under Test (EUT) Description...................................................................... 4 Measurement Uncertainty................................................................................................ 4 Peripheral Devices ........................................................................................................... 4 Report Of Measurements................................................................................................. 5 Table 1: Fundamental Radiated Emission Levels .............................................. 5 Table 2: Six Highest Spurious Emission Levels ................................................ 6 Table A : List Of Test Equipment ................................................................................... 7 EUT Setup .......................................................................................................................8 Test Instrumentation And Analyzer Settings................................................................... 8 Table B : Analyzer Bandwidth Settings Per Frequency Range........................... 8 Spectrum Analyzer Detector Functions............................................................... 9 Peak ......................................................................................................... 9 Quasi-Peak............................................................................................... 9 Average.................................................................................................... 9 Test Methods ................................................................................................................... 10 Radiated Emissions Testing................................................................................. 10 Occupied Bandwidth ........................................................................................... 11 Sample Calculations ........................................................................................................ 12 Appendix A : Information About The Equipment Under Test........................................ 13 I/O Ports............................................................................................................... 14 Crystal Oscillators ............................................................................................... 14 Printed Circuit Boards ......................................................................................... 14 Required EUT Changes To Comply.................................................................... 14 Photograph Showing Radiated Emissions ........................................................... 15 Appendix B : Measurement Data Sheets ......................................................................... 16 Occupied Bandwidth Plot Part 15.215 ................................................................ 17 Page 3 of 20 Report No: FC00-006 CKC Laboratories, Inc. has Certificates of Accreditation from the following agencies: DATech (Germany); A2LA (USA); FCC (USA); VCCI (Japan); BSMI (Taiwan); HOKLAS (Hong Kong). CKC Laboratories, Inc. has Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); TUV Rheinland-Germany; TUV Rheinland- Korea; TUV Rheinland-Russia; Radio Communication Agency (RA); NEMKO (Norway). ADMINISTRATIVE INFORMATION DATE OF TEST: August 5 & December 23, 1999 PURPOSE OF TEST: To demonstrate the compliance of the 27.195 MHz Transmitter, GLT2704, with the requirements for FCC Part 15 Subpart C devices. MANUFACTURER: Elsema Pty LTD Unit 3, 10 Hume Road Smithfield 2164 Australia REPRESENTATIVE: Hermann Roesch TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 TEST PERSONNEL: Skip Doyle & Craig Mullis TEST METHOD: ANSI C63.4 1992 FREQUENCY RANGE TESTED: 27 - 1000 MHz EQUIPMENT UNDER TEST:27.195 MHz Transmitter Manuf: South Pacific Electronics LTD. Models: GLT2704, GLT2701, GLT2702, GLT2703, GLT2704, GLT2716 Serial:N/A FCC ID: OHK(rest of number is pending) Page 4 of 20 Report No: FC00-006 SUMMARY OF RESULTS The Elsema Pty Ltd 27.195 MHz Transmitter, GLT2704, was tested in accordance with ANSI C63.4 1992 for compliance with FCC Part 15 Subpart C. As received, the above equipment was found to be fully compliant with the limits of FCC Part 15 Subpart C. The results in this report apply only to the items tested, as identified herein. EQUIPMENT UNDER TEST (EUT) DESCRIPTION One, two, three and four channel 27 MHz hand held remote control digital transmitter. Model GLT2704 represents the worst case unit in the series of models consisting of GLT2700, GLT2701, GLT2702, GLT2703, GLT2704 and GLT2716. The only differenc between all of the above transmitters is the front membrane label that consists of the buttons. Note:The customer user manual refers to multip…
