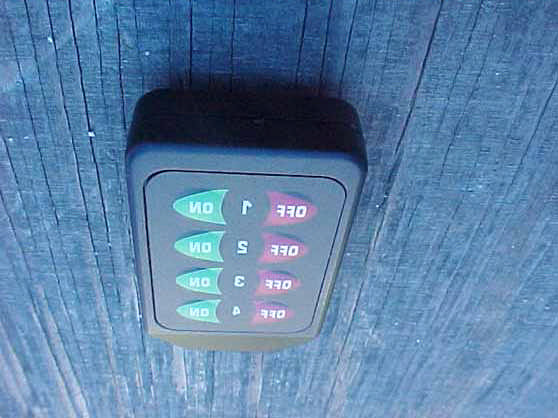

OJM-CMD-HHCP-XXXACompact Handheld Transmitter

DESCRIPTIONThe Linx CMD-HHCP-xxx-*** RemoteCommand Unit is ideal for general-purposeremote control and command applications.This unit has been pre-certified for FCC Part15, Industry Canada, and CE (433MHz only)compliance, reducing development costs andtime to market. Available in 315, 418(standard), or 433.92MHz, this compactremote has a transmission range of up to1,000 feet when combined with the LR Seriesreceiver. The transmitter unit can beconfigured with 1 to 8 buttons and the keypadand labeling can be modified to meet specificOEM customer requirements. Selectableaddressing provides security and allows thecreation of up to 1024 distinct transmitter-receiver relationships. The address can beeasily changed via an externally accessibleDIP switch. The transmission can bedecoded using a matching Linx FunctionModule, KH Series receiver/decoder, or aLinx LC or LR Series receiver paired with adecoder IC or microcontroller. The unit usesa single 3V CR-2032 lithium button cell.FEATURES„ FCC, Canada, and CE pre-certified „ 1 to 8 buttons „ Small package „ Customizable keypad APPLICATIONS INCLUDE„ General Remote Control „ Keyless Entry „ Garage / Gate Openers „ Lighting Control „ Call Systems „ Home / Industrial Automation „ Wire Elimination OEM ConfigurationsWith a one-time NRE and minimumorder, Linx can configure the keypadand label areas to meet your specificrequirements. Contact Linx for details. OEM COMPACT HANDHELD TRANSMITTER DATA GUIDE 2.00" 1.35" R 0.2" 2.81" 1.62" 0.60" 0.20" Revised 4/29/05 PART NUMBER DESCRIPTIONCMD-HHCP-xxx-*** 8-Button Handheld Transmitter EVAL-xxx-HHCP HHCP Evaluation System xxx = 315, 418 (Standard), 433.92 MHz*** = Color Leave blank for standard BlackWHT = White CGY= Gray CBL = Blue CRE = Red CPU = Purple ORDERING INFORMATION Figure 1: Physical Dimensions WIRELESS MADE SIMPLE Page 3 SETTING THE TRANSMITTER ADDRESS The Compact Hand Held transmitterallows the selection of one of 1024unique addresses. All transmitters aresupplied set to the same address. Toavoid contention with other units or tocreate unique relationships, the addresscan be changed. This is accomplishedusing internal DIP switches as shown.The switches are accessed by removingthe DIP switch access cover on the backof the transmitter.If the switch is on, the address line isconnected to ground, otherwise it is floating. The receiver's address must matchexactly in order for the units to communicate. Application Note AN00300describes in detail how to set the address to match any of the receivers offeredby Linx. This note can be found in the Support section of the Linx web site,www.linxtechnologies.com. CMD-HHCP BUTTON ASSIGNMENTS This diagram illustrates the relationship between the button locations andencoder/decoder data lines. D7 D6 D5 D4 D3 D2 D1 D0 Page 2 OFF ON A0 = 1A1 = 2A2 = 3A3 = 4A4 = 5A5 = 6A6 = 7A7 = 8A8 = 9 A 9 = 10 Figure 2: DIP Switch Assignments Figure 3: CMD-HHCP-xxx Button Assignments ELECTRICAL SPECIFICATIONS PP aa rr aa mm ee tt ee rr DD ee ss ii gg nn aa tt ii oo nn MM ii nn .. TT yy pp ii cc aa ll MM aa xx .. UU nn ii tt ss NN oo tt ee ss POWER SUPPLYOperating Voltage V CC 2.1 3.0 3.6 V DC – Supply Current I CC – 3.4 – mA – Power-down Current I PDN – 50 – nA 1 TRANSMITTER SECTIONTransmit Frequency Range F C CMD-HHLR-315 – 315 – MHz – CMD-HHLR-418 – 418 – MHz – CMD-HHLR-433 – 433.92 – MHz – Center Frequency Accuracy – -50 – +50 kHz – ENVIRONMENTALOperating Temperature Range – -40 – +85 ° C1 1. Characterized, but not tested.Notes THEORY OF OPERATION The CMD-HHCP-xxx Remote Command Unit combines the LR Seriestransmitter with an internal Splatch Series antenna with an on-board HoltekHT640 encoder IC to form a simple, yet highly reliable, RF remote-controltransmitter. The LR transmitter is a low-cost, high-performance synthesizedASK/OOK transmitter. The transmitter’s synthesized architecture delivers outstanding stability and frequency accuracy while minimi zing the effects of antenna port loading and mismatching. This reduces or eliminates frequencypulling, bit contraction, and other negative effects that are common to SAW-based transmitter architectures, providing a significantly higher level ofperformance and reliability.When a button is pressed on the remote unit, power is applied to the internalcircuitry and the encoder IC is enabled. The encoder then detects the logic statesof the address lines and button data lines. These states are formatted into athree-word transmission cycle that continues until the button is released. Theencoder data is used to modulate the transmitter, which, through the antenna,conveys the data into free space. On the receiver side, a decoder IC or custommicrocontroller is used to check the transmitter's address bits against theaddress settings of the receiving device. If a match is confirmed, the decoder’soutputs are set to replicate the transmitter’s button states. These outputs canthen be used to activate external circuitry required by the application.The transmitter is compatible with several Linx receiver products, including theLC, LR, KH, and OEM product families. For applications where range is critical,the LR Series receiver is the best choice due to its outstanding sensitivity. Whenthe transmitter is combined with an LR Series receiver and the HT658 decoderchip, ranges up to 1000 feet are possible. Applications operating over shorter distances will also benefit from the increased link reliability and superior noiseimmunity provided by the LR Series receiver. Page 5 Page 4 INSTRUCTION TO THE USERThis device complies with Part 15 of the FCC Rules.Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interferencethat may cause undesired operation.This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reaso…

Text truncated - open the document above for the full version.

CMD-HHCP Block Diagram

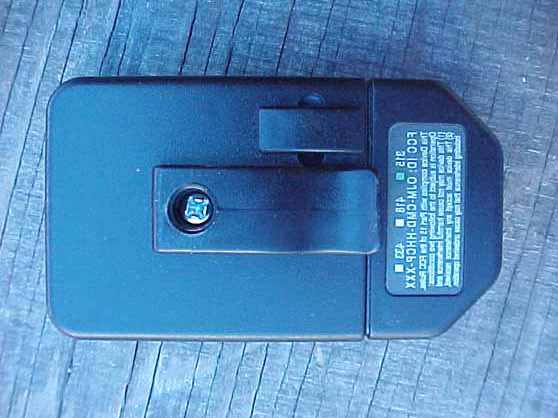

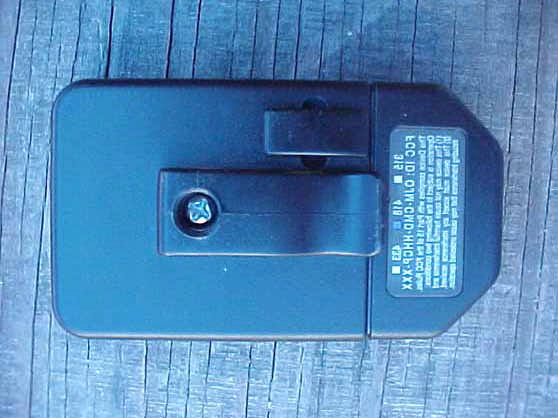

575 SE ASHLEY PLACE ● GRANTS PASS, OR 97526 PHONE: (800) 736-6677 ● FAX: (541) 471-6251 The FCC and Industry Canada ID numbers for the Compact Handheld transmitter are: FCC ID: OJM-CMD-HHCP-XXXA IC: 5840A-HHCPXXXA The label and the location on the unit are shown below. The required disclaimers will be included in the User’s Manual. The label is applied to the back of the unit. This is shown below in actual size.

575 SE ASHLEY PLACE ● GRANTS PASS, OR 97526 PHONE: (800) 736-6677 ● FAX: (541) 471-6251 4/19/2005 Compatible Electronics, This document contains information for the CMD-HHCP-xxx Compact Handheld transmitter that is required for you to complete testing and filing for FCC, Industry Canada, and CE certification. We are requesting certification on three frequencies for FCC and Industry Canada (315MHz, 418MHz, and 433.92MHz) and one frequency for CE (433.92MHz). A brief description of the unit and its operation follows: The CMD-HHCP-xxx Compact Handheld transmitter combines a synthesized archetecture OOK transmitter with an on-board encoder IC to form a simple yet effective RF remote-control transmitter. When a button is pressed on the remote unit, power is applied to the internal circuitry and the encoder IC is enabled. The encoder then detects the logic states of the address lines and button data lines. These states are formatted into a 3-word transmission cycle that continues until the button is released. The encoder data is used to modulate the transmitter that, through the antenna, conveys the data into free space. Once data is received, a decoder IC is used to check the transmitter's address bits against the address settings of the receiving device. If a match is confirmed, the decoder’s outputs are set to replicate the transmitter’s button states. These outputs can then be used to activate whatever external circuitry is required by the application. The transmitters may need a modification of a level adjust resistor (R3) to tune the output power to the maximum legal limit. A map of the board showing the resistor location, schematic, and graph of output power vs. resistor value are included in this document and a kit of various value resistors has been included in the box with the units to be tested. Please inform us of what value will give us the maximum legal output so that we may use that value in production. All of the transmitters are wired for continuous modulated transmission upon inserting the battery by shorting one of the buttons. This has been done to make your testing easier and is not done in production. The worst-case duty cycle is 43%. The battery holder is marked with a “+” on it to indicate polarity. Should you have any questions about the units, please do not hesitate to call Ammon Gomez ( [email protected]) or Justin Hopper ( [email protected]) at 1-800-736-6677 or (541)-471-6256. 575 SE ASHLEY PLACE ● GRANTS PASS, OR 97526 PHONE: (800) 736-6677 ● FAX: (541) 471-6251 Below is the board map for the transmitter showing the part locations. Note that R3 is the level adjust resistor, whose value will determine the output power of the transmitter.

CMD-HHCP-XXX Schematic

Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for COMPACT HANDHELD TRANSMITTER P/N: CMD-HHCP-xxx Prepared for LINX TECHNOLOGIES 575 S.E. ASHLEY PLACE GRANTS PASS, OREGON 97526 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 27, 2005 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 12 24 58 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test (continued) 14 7.3 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Test Site Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Compact Handheld Transmitter P/N: CMD-HHCP-xxx S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was modified during the testing. Please see the list located in Appendix B. Manufacturer: Linx Technologies 575 S.E. Ashley Place Grants Pass, Oregon 97526 Test Dates: April 22 and 25, 2005 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 2003 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on batteries only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. 3 -20 dB Bandwidth of the Fundamental Complies with the limits of Subpart C, sections 15.231 [c]. Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Compact Handheld Transmitter P/N: CMD-HHCP-xxx. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2003. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B50425D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Handheld Transmitter P/N: CMD-HHCP-xxx 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Linx Technologies Paul True President Justin Hopper Engineer Ammon Gomez Senior Product Engineer Compatible Electronics, Inc. Kyle Fuj…

Text truncated - open the document above for the full version.

Ref Lvl 82 dB  V Ref Lvl 82 dB  V RBW 1 MHz VBW 1 MHz RF Att 10 dB A I2D Unit dB  V P0 SWT 5 ms Center 315 MHz500  s/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 23.45 dB -450.901804  s FCC_BF Date: 19.APR.2005 16:44:26 Time of one Small Pulse = 450.901804 uS Ref Lvl 82 dB  V Ref Lvl 82 dB  V RBW 1 MHz VBW 1 MHz RF Att 10 dB A I2D Unit dB  V P0 SWT 5 ms Center 315 MHz500  s/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 2.71 dB 891.783567  s FCC_BF Date: 19.APR.2005 16:46:20 Time of One Large Pulse = 871.783567 uS Ref Lvl 82 dB  V Ref Lvl 82 dB  V RBW 1 MHz VBW 1 MHz RF Att 10 dB A I2D Unit dB  V P0 SWT 200 ms Center 315 MHz20 ms/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 0.78 dB 52.505010 ms FCC_BF Date: 19.APR.2005 16:37:10 Total Pulse Train Time = 52.505010 mS Ref Lvl 82 dB  V Ref Lvl 82 dB  V RBW 1 MHz VBW 1 MHz RF Att 10 dB A I2D Unit dB  V P0 SWT 200 ms Center 315 MHz20 ms/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 2.26 dB 66.933868 ms FCC_BF Date: 19.APR.2005 16:36:37 Time of Pulse Train with Blanking Interval = 66.933868 mS 12 Small Pulses = 12*450.901804 uS = 5.410821648 mS 29 Large Pulses = 29*891.783567 uS = 25.86172344 mS Total Time = 31.27254509 mS Total Duty Cycle = 31.27254509 mS / 66.933868 mS = 46.72% Duty Cycle

RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB SWT 5 ms Center 418 MHz500  s/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -1.13 dB -450.901804  s FCC_BF Date: 19.APR.2005 17:00:29 Time of One Small Pulse = 450.901804 uS RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB SWT 5 ms Center 418 MHz500  s/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -0.94 dB 871.743487  s FCC_BF Date: 19.APR.2005 17:01:11 Time of One Large Pulse = 871.743487 uS RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB SWT 60 ms Center 418 MHz6 ms/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -0.35 dB 51.583166 ms FCC_BF Date: 19.APR.2005 16:59:22 Total Time of Pulse Train = 51.583166 mS RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB P0 SWT 200 ms Center 418 MHz20 ms/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 0.50 dB -66.132265 ms FCC_BF Date: 19.APR.2005 16:58:24 Total Time of Pulse Train with Blanking Interval = 66.132265 mS 12 Small Pulses = 12*450.901804 uS = 5.410821648 mS 29 Large Pulses = 29*891.783567 uS = 25.86172344 mS Total Time = 30.69138277 mS Total Duty Cycle = 30.69138277 mS / 66.1322265 mS = 46.41% Duty Cycle

RBW 1 MHz VBW 1 MHz A I2D Unit dB  VSWT 5 ms Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB Center 433.92 MHz500  s/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -2.66 dB 440.881764  s FCC_BF Date: 19.APR.2005 17:11:46 Total Time of One Small Pulse = 440.881764 uS RBW 1 MHz VBW 1 MHz A I2D Unit dB  VSWT 5 ms Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB Center 433.92 MHz500  s/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -3.26 dB 871.743487  s FCC_BF Date: 19.APR.2005 17:10:46 Total Time of One Large Pulse = 871.743487 uS RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB P0 SWT 60 ms Center 433.92 MHz6 ms/ 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] -0.13 dB 51.382766 ms FCC_BF Date: 19.APR.2005 17:17:44 Total Time of Pulse Train = 51.32766 mS RBW 1 MHz VBW 1 MHz A I2D Unit dB  V Ref Lvl 82 dB  V Ref Lvl 82 dB  V RF Att 10 dB SWT 200 ms Center 433.92 MHz20 ms/ P0 1VIEW1AP -10 0 10 20 30 40 50 60 70 -18 82 1 1 Delta 1 [T1] 1.16 dB 65.531062 ms FCC_BF Date: 19.APR.2005 17:18:55 Total Pulse Train with Blanking Interval = 65.531062 mS Time of all Small Pulses = 12 * 440.881764 uS = 5.290581168 mS Time of All Large Pulses = 29 * 871.743487 uS = 25.280561123 mS Total On Time = 30.571142291 mS Total Duty Cycle = 30.571142291 mS / 65.531062 mS = 46.65%
