OJM-LTRT418CMDRemote Command Unit

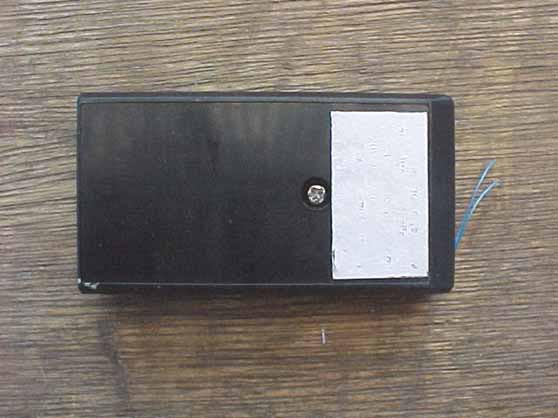

The Linx RT-418-CMD Remote Command Unit is designed for general purpose remote control functions.The transmitter unit provides eight manually operated pushbuttons which send a fixed code upon depression.The transmitter may be paired with various Linx receiver modules to accommodate a variety of common periodic remote control functions. Battery replacement The remote unit utilizes a CR-2032 Button Lithium Cell.In normal use it will provide 1-2 years of operation.Access for replacement is accomplished by removing the screw in the middle of the back cover. Setting the transmitter address In order to allow the formation of unique Transmitter/Receiver relationships the transmitters address may be selected using internal DIP switches.The switches are accessed by removing the rear cover as for battery replacment. INSTRUCTION TOTHE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules.In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception.The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Linx Technologies RT-418-CMD Instruction Sheet

The Linx RT-418-CMD Remote Command Unit uses a Holtek Encoder IC model HT-640.This device generates an 18 bit word based on the state of the data and address pins.The worst case duty cycle for high bits is 48% as illustrated below. 575 SE ASHLEY PLACE • GRANTS PASS, OR 97526 PHONE: (800) 736-6677 • FAX: (541) 471-6251

The Linx RT-418-CMD Remote Command Unit is designed for general purpose remote control functions.The transmitter unit provides eight manually operated pushbuttons which send a fixed code upon depression.The transmitter may be paired with various Linx receiver modules to accommodate a variety of common periodic remote control functions. Battery replacement The remote unit utilizes a CR-2032 Button Lithium Cell.In normal use it will provide 1-2 years of operation.Access for replacement is accomplished by removing the screw in the middle of the back cover. Setting the transmitter address In order to allow the formation of unique Transmitter/Receiver relationships the transmitters address may be selected using internal DIP switches.The switches are accessed by removing the rear cover as for battery replacment. INSTRUCTION TOTHE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules.In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception.The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Linx Technologies RT-418-CMD Instruction Sheet

FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2 EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 Radiated Emissions (Spurious and Harmonics) Test13 7.2 Bandwidth of the Fundamental14 8. CONCLUSIONS15 FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors DData Sheets LIST OF FIGURES FIGURETITLE 1 Plot Map And Layout of Test Site FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:Remote Command Unit 418 MHz P/N: RT-418-CMD S/N: N/A Product Description:See Expository Statement. Modifications:The EUT was not modified during the testing. Manufacturer:Linx Technologies 575 SE Ashley Place Grants Pass, Oregon 97526 Test Date:April 19, 1999 Test Specifications : EMI requirements FCC Title 47, Part 15 Subpart C, Sections 15.205 and 15.231 Test Procedure:ANSI C63.4: 1992 Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHzThis test was not performed because the EUT runs off one 3.0 V battery only and cannot be powered by any device that runs off of the AC public mains. 2Radiated RF Emissions, 10 kHz - 4200 MHzComplies with the of FCC Title 47, Part 15 Subpart C, sections 15.205 and 15.231 FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Remote Command Unit 418 MHz P/N: RT-418-CMD. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart C, sections 15.205, and 15.231. FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3Cognizant Personnel Linx Technologies Paul TruePresident Steve MontgomeryDirector of Engineering Compatible Electronics Inc. Kyle FujimotoTest Engineer Scott McCutchanLab Manager 2.4Date Test Sample was Received The test sample was received on April 19, 1999. 2.5Disposition of the Test Sample The test sample was returned to Linx Technologies on April 26, 1999. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 15 3.APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPECTITLE FCC Title 47, Subpart C. FCC Rules - Radio frequency devices (including digital devices) – Intentional Radiators. ANSI C63.4 1992 Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. FCC ID: OJM-LTRT418CMD Report Number: B90419D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 8 of 15 4.DESCRIPTION OF TEST CONFIGURATION 4.1Description of Test Configuration - EMI Setup and operation of the equipment under test. Specifics of the EUT and Peripherals Tested The Remote Command Unit 418 MHz P/N: RT-418-CMD (EUT) was tested as a stand alone unit and tested in three different orthogonal axis. The EUT was continuously transmitting during the test. The antenna is a …
