OK8FRS-S14

TWO-WAY COMMUNICATOR COLUMBIA LOCK LAMP CALL SCAN PRIV BEEP OWNER’S MANUAL MODEL: FRS-S14 PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. 1 COLUMBIA CARTON CONTENTS COLUMBIA Two-Way Communicator User-Removable Belt Clip Owner’s Manual Warranty Card * Attached to the units at the time of packaging WARNING! DO NOT CHARGE UNIT USING AC/DC ADAPTER WITH REGULAR AAA ALKALINE BATTERIES INSTALLED. ONLY USE THE AC/DC ADAPTER WITH AAA NI-MH RECHARGEABLE BATTERIES. (NOT INCLUDED!) 2 FCC NOTICE Warning: Adjustment to this unit or replacement of any transmitter component (crystal, semiconductor, etc.) to this unit that could result in a violation of the rules. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits for are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation, If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. If shielded cables or special accessories are required for compliance, a statement must be included which instructs the user to employ them, eg. Shielded cables must be with this unit to ensure compliance with the Class B FCC limits. This device complies with Part 15 of the FCC Rule. Operation is subject to the follow two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3 FEATURE LIST A . GENERAL a.14 CHANNEL b.38 CTCSS CODES PER CHANNEL c. BATTERY (“AAA” 1.5V X 4 ) d. LCD DISPLAY (RF CH, CTCSS CODE CH, RX/TX STATUS, LOCK INDICATOR, LOW BATT. INDICATOR) e. FIXED FLEX ABLE RUBBER ANTENNA f. EXTERNAL EAR / MIC JACK g. AUTO POWER SAVING CIRCUITRY h. AUTO SCAN B. BUTTON CONTROL a. MONITOR BUTTON b. PTT (PUSH TO TALK ) BUTTON c. MODE KEY d. LOCK KEY e. LAMP KEY f. CALL KEY g. UP KEY h. DOWN KEY i. POWER AND VOLUME CONTROL ROTARY SWITCH * .* FRS: Family Radio Service * .* CTCSS: Continuous Tone Coded Squelch System C. SPECIFICATION 4 1. FREQUENCY RANGE CHANNELFREQUENCY (MHz)CHANNELFREQUENCY(MHz) 1462.56258467.5625 2462.58759467.5875 3462.612510467.6125 4462.637511467.6375 5462.662512467.6625 6462.687513467.6875 7462.712514467.7125 2. CTCSS CODE FREQUENCY CHART CODEFREQUENCY(Hz)CODEFREQUENCY(Hz) 167.020131.8 271.921136.5 374.422141.3 477.023146.2 579.724151.4 682.525156.7 785.426162.2 888.527167.9 991.528173.8 1094.829179.9 1197.430186.2 12100.031192.8 13103.532203.5 14107.233210.7 15110.934218.1 16114.835225.7 17118.836233.6 18123.037241.8 19127.338250.3 5 Controls and displays Controls and displays 1. Belt clip 2. Microphone jack 3. Speaker jack 4. Antenna 5. Mode 6. Lock 7. Lamp 8. Call 9. Down 10. Up 11. On/Off / Volume knob 12. Microphone 13. Monitor button 14. PTT (Push To Talk ) button 15. Battery door 16. Battery door clip MON TALK 13 14 4 5 6 7 8 9 10 11 12 15 16 1 23 LOCK LAMP CALL SCAN PRIV BEEP 6 Setting Up Your FRS Radio Battery Installation Batteries are not included with your FRS radio, To use the radio, you must install 4 AAA size alkaline batteries. Always use high quality batteries in the unit, to prevent damage from leaking or corrosion. Caution: incorrect positioning or the batteries can damage both the batteries and the unlit. To install batteries: * Remove the belt clip by pulling the tab on the top of the clip back, and adding belt clip up and off the unit. * Pull the battery door. * Insert four AAA batteries. Position the batteries according to the polarity markings on the plastic. * Replace the battery cover. Battery level / Low battery indication. * The LCD panel displays the battery power level according to the number of squares inside the battery symbol. * When the battery level is low, the battery icon will flash to indicate that the batteries need to be changed. Note: When the batteries are low or need charging, the BATT LOW indicator in the LCD display icon will blink. Do not put batteries into fire or expose to high heat. they may explode. 7 Operation LCD Panel Display Channel Number CTCSS Code Transmit Symbol Receive Symbol Battery Level Low Battery IndicatorKaylock Symbol SCAN PRIV BEEP Turning On Your FRS Turn the ON/OFF Volume knob clockwise on the top of the unit. An audible tore will generate and The RF channel indicate on the LCD. Communication You can communicate two ways your new FRS radio. You can either talk directly to the other party and hear their response, or you can call or page them with an audible tone. Note: FRS radios can only communicate when either the TALK button (for conversation) or the CALL button (for paging only) is pressed. The unit can only receive when both buttons are fully released. 8 Operation Receiving communications When your FRS unit is turned on and is not being used to transmit voice communication or pages, it is always in the listening mode. You can not receive any transmissions when the TALK or CALL buttons are pressed, even if you are not saying anything. Pressing these bottoms automatically overrides and turns off the transmit mode. when you are using the unit in conversation, you must release the TALK and or CALL buttons to hear the responses of the other people. Failure to do so will keep your uni…

Text truncated - open the document above for the full version.

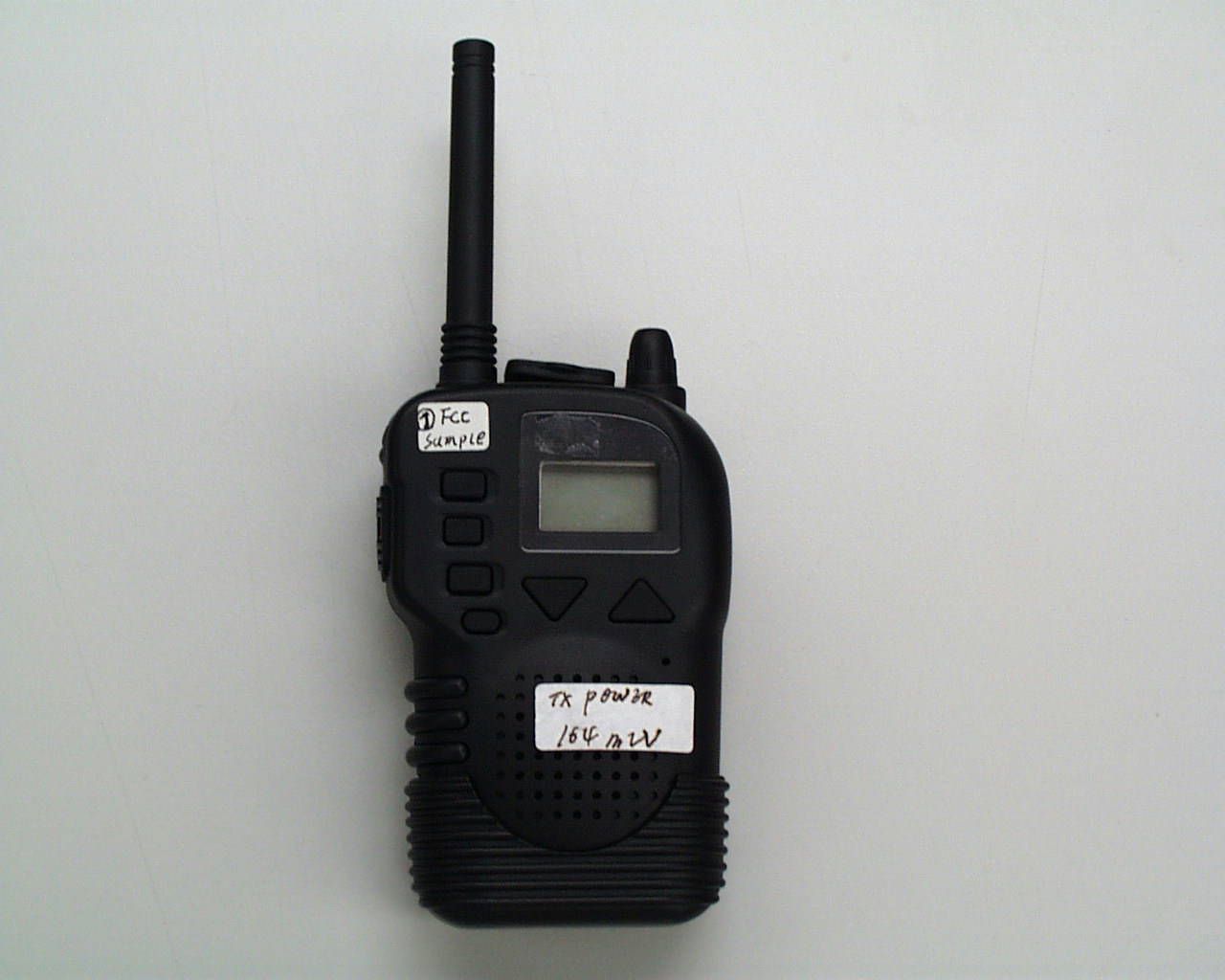

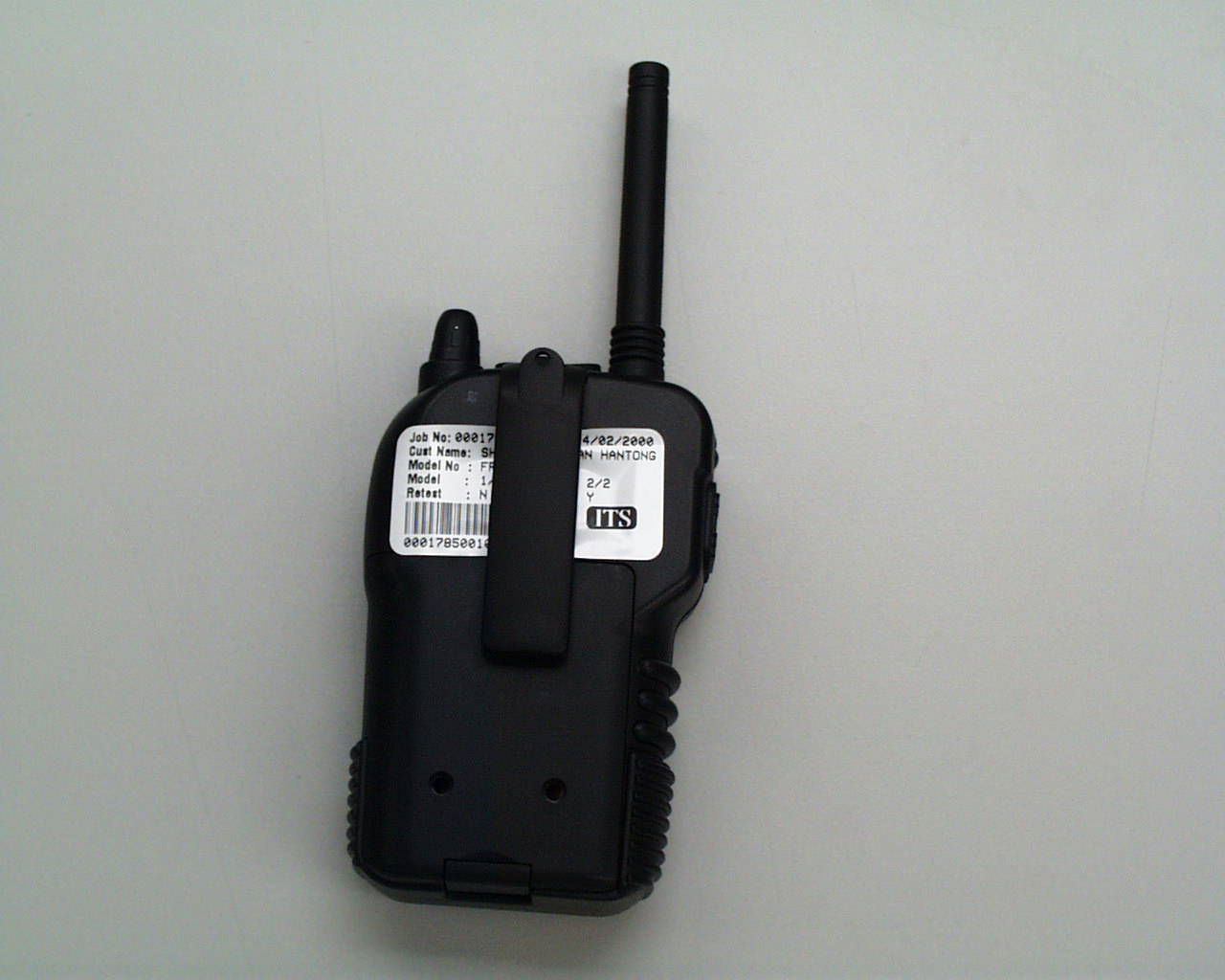

S/N: A0300001 NOTE: YEAR MONTH SERIALNO 2000-A 2001-B MODEL:FRS-S14 S/N: MadeinChina A0300001 36.5mmx17.5mm FCCID:OK8FRS-S14 MODEL:FRS-S14 S/N: MadeinChina A0300001 FCCID:OK8FRS-S14 LABELINGFORFRS-S14

S/N: A0300001 NOTE: YEAR MONTH SERIALNO 2000-A 2001-B MODEL:FRS-S14 S/N: MadeinChina A0300001 36.5mmx17.5mm FCCID:OK8FRS-S14 MODEL:FRS-S14 S/N: MadeinChina A0300001 FCCID:OK8FRS-S14 LABELINGFORFRS-S14

Modulation Frequency Response 0.00 0.50 1.00 1.50 2.00 2.50 200300400500600700800900 10001250150017502000225025002750300031253250350040005000 Modulation Frequency (Hz) Frquency Deviation (kHz) Modulation Frequency Response 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 200300400500600700800900 10001250150017502000225025002750300031253250350040005000 Modulation Frequency (Hz) Modulation index (%)

Modulation Limiting Characteristic 0.00 0.50 1.00 1.50 2.00 2.50 475767778797107117127 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz 1000Hz 2500Hz 3125Hz

Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 22 March, 2000 Shenzhen Baoan Hantong Electronics Factory Qianjin Road, Shanghe Ind. Area, District 35, Blk. 3, 3/Flr. Baoan, Shenzhen, China, 518101 Dear Mr Ronnie P. Delfin: Enclosed you will find your file copy of a Part 95 Certification (FCC ID: OK8FRS- S14). We have forwarded the original, along with your check for $940.00, to FCC. For your reference, FCC will normally take another 90 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Wilson Loke Manager Enclosure • The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed a refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed • For Terms And Conditions of the services, it can be p rovided up on request. Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 Shenzhen Baoan Hantong Electronics Factory Application For Certification (FCC ID: OK8FRS-S14) 22 March, 2000 WO# 0001785 WN/at 22 March, 2000 INTERTEK TESTING SERVICES FCC ID: OK8FRS-S14 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :RF Power Output EXHIBIT 4 :Modulation Characteristics EXHIBIT 5 :Occupied Bandwidth EXHIBIT 6 :Emission Spurious EXHIBIT 7 :Frequency Stability EXHIBIT 8 :Technical Specifications EXHIBIT 9 :Product Labelling EXHIBIT 10 :Photographs EXHIBIT 11: Instruction Manual INTERTEK TESTING SERVICES FCC ID: OK8FRS-S14 ii MEASUREMENT/TECHNICAL REPORT Application:Shenzhen Baoan Hantong Electronics Factory Trade Name/Model No : FRS-14 Channel With Security Code Date:22 March, 2000 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Family Radio Service, FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:Wilson Loke Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8575 Fax:852-2745-8306 INTERTEK TESTING SERVICES FCC ID: OK8FRS-S14 iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description ............................................................................................................2 1.2 Ralated Submittal(s) Grants ................................................................................................ 3 1.3 Test Methodology ...............................................................................................................3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification ......................................................................................................................... 5 2.2 EUT Exercising Software .................................................................................................... 6 2.3 Special Accessories .............................................................................................................6 2.4 Equipment Modification ..................................................................................................... 6 3.0 RF Output Power (Section 95.639(d) ..................................................................................... 8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................................. 12 4.1 Modulation Frequiency Response ..................................................................................... 14 4.2 Modulation Limiting Characteristic................................................................................... 16 5.0 Occupied Bandwidth (Section 95.633(c) .............................................................................. 17 6.0 Spurious Emission (Section 95.635(b)) ................................................................................ 20 6.1 Field Strength of Spurious Radiation ................................................................................ 21 7.0 Frequency Stanility (Section 95.627) ................................................................................... 27 7.1 Frequency Tolerance ......................................................................................................... 28 7.2 Voltage Extreme Condition ............................................................................................... 30 7.3 Temperature Extreme Condition ....................................................................................... 33 8.0 Technical Specifications ........................................................................................................ 36 9.0 Product Labelling .................................................................................................................. 40 10.0 Equipment Photographs ..................................................................................................... 43 11.0 Instruction Mannal .............................................................................................................. 45 INTERTEK TESTING SERVICES FCC ID: OK8FRS-S1…

Text truncated - open the document above for the full version.
