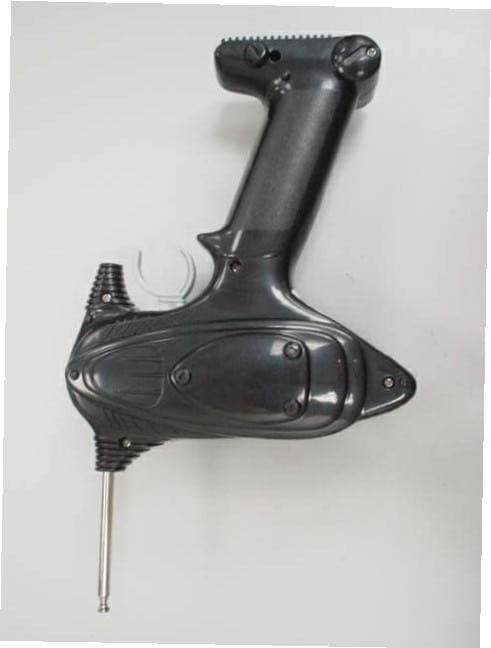

OKP0223A49 MHz Remote Control Transmitter

Pro-Kart Racer Instruction Manual SAFETY AND PLAYING TIPS: Please read instructions carefully before operating Pro-Kart Racer. 1. NEVER drive your vehicle on streets. 2. DO NOT pick up vehicle while in motion. 3. Keep fingers, hair, and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. 4. Keep vehicle and parts out of reach of very young children. Adult supervision is recommended. 5. Do not play outdoors during thunderstorms. 6. Do not drive your vehicle in sand or through water or snow. 7. Always turn your vehicle and transmitter "OFF" when not in use. 8. Do not store near heat or direct sunlight. DRIVING CONTROLS Starting to Drive Helpful tips: • For maximum speed, fully pull the trigger. • Control the speed by releasing slowly. • Be a Pro! Practice at different speeds and stopping by varying the amount you pull the trigger. 1. To go forward, pull the trigger. 3. To stop, release the trigger. Helpful tip: Remember that when Pro-Kart Racer is coming towards you, the steering is opposite to the way you turn. Please note: The illuminated red light on the hand controller indicates that the remote controller is in operation. DRIVING YOUR PRO-KART RACER To start up the engine, turn the Pro-Kart Racer and transmitter to ON. Then fully extend the antenna on the transmitter. Now you are ready to race! 2. To go in reverse, push the trigger forward. 1. For wide turns towards the left, QUICKLY turn the wheel left and release. 2. For wide turns towards the right, QUICKLY turn the wheel right and release. 3. For sharp left turns, turn & hold (briefly) the wheel to the left while the trigger is pulled. 4. For sharp right turns, turn & hold (briefly) the wheel to the right while the trigger is pulled. Transmitter (controller) Pro-Kart Racer Contents Nose Cone Tires Spoiler SPARE PARTS Steering Wheel Trigger On/Off Indicator TURNING When the motor is running (trigger is pulled), Pro-Kart Racer turns with the turning angle of the steering wheel. Transmitter Antenna Decal Sheet ASSEMBLY 1. Before you begin to play, screw-in the transmitter antenna into the transmitter. For further details see Battery and Power ON/OFF Diagram. Item No.0223 Ages 4+ PRO KART RACER 4 x AA BATTERIES NOT INCLUDED REMOTE CONTROL 1 x 9V BATTERIES NOT INCLUDED

NG0223US01 Manufactured and Distributed by: © 2002 WowWee All rights reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Kowloon, H.K. WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 http://www.wowwee.com Printed in China Manufactured and Distributed by: © 2002 WowWee All rights reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Kowloon, H.K. WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 http://www.wowwee.com Printed in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect one equipment into an outlet on a circuit different from that to which the receiver is needed. • Consult the dealer or an experienced radio / TV technician for help. ATTENTION !!! IMPORTANT BATTERY INFORMATION Use only fresh batteries of the required size and recommended type. Do not mix old and new batteries, different types of batteries (standard alkaline, or rechargeable), or rechargeable batteries of different capacities. We suggest the use of alkaline batteries for best results. Please respect the correct polarity + and – Do not try to recharge batteries, nor to open them. Do not throw batteries into the fire. Remove rechargeable batteries from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Use only the battery types as recommended. Replace all batteries of same type/brand at the same time. Do not short-circuit the battery contacts. Remove exhausted batteries from the toy. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Transmitter Bottom of Pro-Kart Racer ON OFF ON OFF See how fast you can change all of the spare parts - the tires, spoiler and bumper! Use a phillips screw driver to change the tires. For the nose cone, gently remove the front bumper then replace the nose cone. Spoiler: gently remove and replace. REPLACE YOUR PARTS Nose Cone spoiler tire bumper Note: • Quality of control function may deteriorate when battery power is low. BATTERY INSTALLATION • Remove the battery compartment cover using a screwdriver as shown. • Insert correct battery - as shown in diagram, making sure to match the polarity direction. • Replace the battery cover. STUNTS bumper Transmitter Antenna Screw-in to the base Spare Nose Cone Spare Spoiler 1. For super fast 360 ̊ spins, turn the wheel all the way to the right or left, while the trigger is fully pulled. 2. Do a reverse 180 ̊! Drive in reverse, then spin the racer around 180 ̊ and drive forward! Drive like a PRO for this stunt! BATTERY AND POWER ON/OFF DIAGRAM APPLYING DECALS - Apply the decals as shown, in orderly sequence from 1

FCC ID: OKP0223A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2.THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA

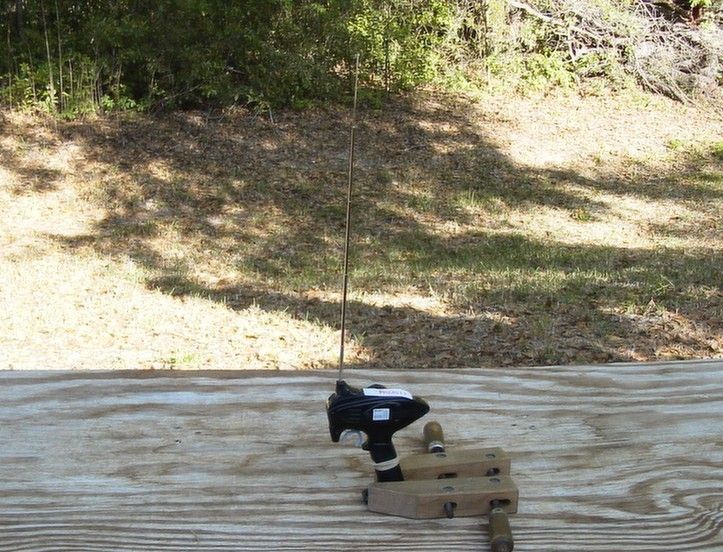

APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A REPORT #: T:\W\WOW_OKP\256ZHT2\256ZHT2TestReport.doc TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A OKP0223A TEST REPORT CONTAINING: PAGE 1-4....TEST EQUIPMENT LIST PAGE 5......TEST PROCEDURE PAGE 6......RADIATION INTERFERENCE TEST DATA PAGE 7......OCCUPIED BANDWIDTH TEST DATA PAGE 8......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTOS EXHIBIT 7............INTERNAL PHOTOS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET UP PHOTO APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A REPORT #: T:\W\WOW_OKP\256ZHT2\256ZHT2TestReport.doc Page 1 of 8 Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 X Receiver, Beige Tower X Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/02 X RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/02 X Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/02 Receiver, Blue Tower Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/02 RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/02 Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/02 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 X Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/02 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/01 BiconiLog Antenna EMCO 3143 9409-1043 Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/02 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/02 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/01 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/02 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/02 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/02 APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A REPORT #: T:\W\WOW_OKP\256ZHT2\256ZHT2TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/02 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/02 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 (5/25/00) Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/02 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/02 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/03 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/02 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/02 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/02 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/03 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/03 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/03 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/02 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/02 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/03 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/03 Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/03 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/02 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/02 Injection Probe Fischer Custom Communications F-120-9A 270 CAL 6/1/01 6/1/02 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/01 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 11/12/99 11/12/00 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/02 APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A REPORT #: T:\W\WOW_OKP\256ZHT2\256ZHT2TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M2- 16A 01048 CAL 8/29/01 8/29/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M3- 16A 01060 CAL 8/29/01 8/29/02 VHF/UHF Current Probe Fischer Custom Communications F-52 130 CAL 8/30/01 8/30/02 Passive Impedance Adapter Fischer Custom Communications FCC-801-150- 50-CDN 01117 & 01118 CAL 8/29/01 8/29/02 Radiating Field Coil Fischer Custom Communications F-1000-4- 8/9/10-L-1M 9859 CAL 10/15/98 10/15/99 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/02 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/02 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/02 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/02 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/02 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/02 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/02 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/02 Egg Timer Unk CHAR 2/28/01 2/28/02 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/28/01 2/28/02 Measuring Tape, 7.5M Kraftixx 7.5M PROFI CHAR 2/28/01 2/28/02 EMC Immunity Test System Keytek CEMASTER 9810210 AC Power Source California Instruments 1251RP L05865 AC Power Source California Instruments PACS-1 X71484 Isotropic Field Probe Amplifier Research FP5000 22839 APPLICANT: WOW WEE LIMITED FCC ID: OKP0223A REPORT #: T:\W\WOW_OKP\256ZHT2\256ZHT2TestReport.doc Page 4 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Isotropic Field Probe Amplifier Research FP5000 300103 Capacitor Clamp Keytek CM-CCL 9811359 No Cal Required …
