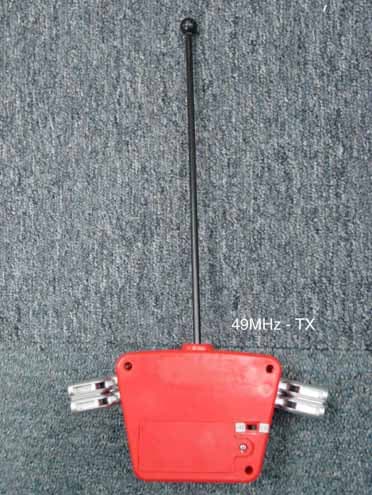

OKP0250A49.82-49.90 MHz WIRELESS R/CTX

TM INSTRUCTIONINSTRUCTION Battery Installation and Power On/Off Flametop Flathead Whiplash 0250 Asst. AGES 4+ Battery Requirements Monster Rod 6 x AA Controller 1 x 9V Batteries Not Included WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please keep these instructions as they contain important information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please keep these instructions as they contain important information Safety Precautions • Never drive your Monster Rod on the streets. • Do not pick up the vehicle while it is in motion. • Keep fingers, hair and loose clothing away from the tires and wheels while the vehicle is in motion. • Do not drive the vehicle through water. • For best results, hold the antenna up, not pointing down towards the vehicle. • Drive safely! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. • Consult the dealer or an experienced radio/TV technician for help. Monster RodsMonster Rods ControllerController Power Indicator Light Steering Wheel Throttle Forward Throttle Reverse Push Throttle Forward to make the Monster Rod roar forwards. Forward Rotate the steering wheel to the right to make the Monster Rod spin to the right. Right Spin While driving forwards or backwards, briefly rotate the steering wheel to the right to make the Monster Rod turn to the right. Right Turn Push Throttle Reverse to make the Monster Rod scream backwards. Reverse Rotate the steering wheel to the left to make the Monster Rod spin to the left. Left Spin While driving forwards or backwards, briefly rotate the steering wheel to the left to make the Monster Rod turn to the left. Left Turn Wheelie & Mouth Open Driving the MONSTER RODS • Turn on the Monster Rod and the controller using the On/Off switches as shown in the Battery Installation and Power On/Off section of this instruction sheet. • The power indicator light on the controller will glow as long as the battery has power. Driving Tips: If you hold the wheel in a turn while driving forward or backwards the Monster Rod will spin out. Practice doing this for quick direction changes. Remember that when the vehicle is coming towards you, it will steer in the opposite direction to the way you turn the wheel. Try to imagine that you are in the driver’s seat to work out the direction it will turn in. To perform a wheelie, drive in reverse and quickly push the throttle forward. The driver will open his mouth and let out a monstrous laugh as the front wheels lift off the ground. When you have finished playing, make sure that you turn the On/Off switch on the controller and Monster Rod to “Off”. oror OFFON 9V 6LR61 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 1 x 9V battery (not included) as shown in the diagram. 3) Replace the battery compartment cover and the screw. 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 1 x 9V battery (not included) as shown in the diagram. 3) Replace the battery compartment cover and the screw. On/Off Switch Battery Compartment Cover Manufactured and distributed by © 2004 WowWee Ltd. All Rights Reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Hong Kong WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 www.wowwee.com We recommend that you retain our address for future reference. Printed in China. NG0250US01 Manufactured and distributed by © 2004 WowWee Ltd. All Rights Reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Hong Kong WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 www.wowwee.com We recommend that you retain our address for future reference. Printed in China. NG0250US01 " AA " / LR 06/ UM3 1.5 V " AA " / LR 06/ UM3 1.5 V " AA " / LR 06/ UM3 1.5 V " AA " / LR 06/ UM3 1.5 V " AA " / LR 06/ UM3 1.5 V " AA " / LR 06/ UM3 1.5 V ONOFFONOFF 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Lift out the battery compartment using the handle. 3) Insert 6 x AA batteries (not included) as shown in the diagram. 4) Replace the battery compartment, making sure that the metal contacts on the compartment are in the correct position to engage with the metal contacts in the car. 5) Replace the battery compartment cover and the screw. 1) Remove the battery compartment cover using a Phillips or crosshead …

Text truncated - open the document above for the full version.

FCC ID: OKP0250A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2.THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #: THRU-403010 COVER SHEET Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - TX FCC ID: OKP0250A Applicant: ~v~G~ŒŒGsptp{lkU Energy Plaza, Suite 301A-C, 92 Granville Road T.S.T East,Hong Kong. Date Receipt:03/10/2004 Date Tested:03/13/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #:THRU-403010 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............OCCUPIED BANDWIDTH PAGE 7.............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 2..........BLOCK DIAGRAM EXHIBIT 3..........SCHEMATIC EXHIBIT 4A-4B......PARTS LIST EXHIBIT 5..........INSTRUCTION MANUAL EXHIBIT 6..........SAMPLE OF FCC ID LABEL EXHIBIT 7..........LOCATION OF FCC ID LABEL EXHIBIT 8..........EXTERNAL PHOTO - FRONT SIDE EXHIBIT 9..........EXTERNAL PHOTO - BACK SIDE EXHIBIT 10.........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11.........INTERNAL PHOTO - COPPER SIDE EXHIBIT 14.........CIRCUIT DESCRIPTION THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #: THRU-403010 Page 1 of 7 TestGEquipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2004.04.25. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2004.03.17 Spectrum Display 85662A Hewlett Packard 2542A12429 2004.03.17 Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2004.03.17 RF Preselector 85685A Hewlett Packard 2648A00504 2004.03.17 Pre- Amplifier 8449B Hewlett Packard 3008A00375 2004.03.17 Pre- Amplifier 8447F Hewlett Packard 3113A05367 2004.03.17 Spectrum Monitor EZM Rohde & Schwarz 862304/007 2004.03.17 Bico- Antenna 94455-1 Eaton 977 2004.03.17 Log- Periodic Antenna 3146 EMCO 2051 2004.03.17 Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2004.03.17 Horn Antenna SAS-571 A.H Systems 414 2004.03.17 Spectrum Analyzer R3261C Advantest 71720189 2004.04.26 LISN KNW-242 Kyoritsu 8-923-2 2004.07.12 LISN 8012-50-R-24 Solar 8379121 2004.07.12 Loop Ant 6507 EMCO 1435 2004.10.06 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #: THRU-403010 Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 19ºC with a humidity of 28%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #: THRU-403010 Page 3 of 7 APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Reading Receiver dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 49.858 37.2 31.4 H 2.5 10.9 1.0 49.1 43.3 100 80 -50.9 -36.7 49.858 57.4 53.1 V 1.80 10.9 1.0 69.3 65 100 80 -30.7 -15 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: K.M CHOI DATE: 03/13/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A REPORT #: THRU-403010 Page 4 of 7 APPLICANT: WOW Wee Ltd. FCC ID: OKP0250A NAME OF TEST: RADI…
