OKP0270A49.82-49.90MHz WIRELESS R/CTX

INSTRUCTION ManualINSTRUCTION Manual Batter y I nstallation and Power On/Off Batter y Requ irem en ts Wacky Whe els 6 x AA Contro ller 1 x 9V Batteries Not l ncluded 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 1 x 9V battery (not included) as shown in the diagram. 3) Replace the battery compartment cover and the screw. 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 1 x 9V battery (not included) as shown in the diagram. 3) Replace the battery compartment cover and the screw. On/Off Switch 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 6 x AA batteries (not included) into the battery compartment(s) as shown in the diagram. 3) Replace the battery compartment cover(s) and the screw(s). 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 6 x AA batteries (not included) into the battery compartment(s) as shown in the diagram. 3) Replace the battery compartment cover(s) and the screw(s). Back of Contro ller Front view Attention: Important Battery Information • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard alkaline, or rechargeable), or rechargeable batteries of different capacities. • Remove rechargeable batteries from the toy before recharging them. • Rechargeable batteries are only to be charged under adult supervision. • Please respect the correct polarity, (+) and (-). • Do not dismantle batteries of any type. Attention: Important Battery Information • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard alkaline, or rechargeable), or rechargeable batteries of different capacities. • Remove rechargeable batteries from the toy before recharging them. • Rechargeable batteries are only to be charged under adult supervision. • Please respect the correct polarity, (+) and (-). • Do not dismantle batteries of any type. • Do not try to charge non-rechargeable batteries. • Do not throw batteries into the fire. • Replace all batteries of the same type/brand at the same time. • Do not short-circuit the battery contacts. • Remove exhausted batteries from the toy. • Batteries should be replaced by adults because of small parts. • Remove batteries if the toy is not going to be played with for some time. • Do not try to charge non-rechargeable batteries. • Do not throw batteries into the fire. • Replace all batteries of the same type/brand at the same time. • Do not short-circuit the battery contacts. • Remove exhausted batteries from the toy. • Batteries should be replaced by adults because of small parts. • Remove batteries if the toy is not going to be played with for some time. ltem No.0271 Ages 4+ Hood Tru nk Roof Of fOn Forw ard /Rever seLeft/Right HornRadi o Button s ONOFF On/Off switch is located on the bottom of Wac ky Wheels On/Off switch is located on the bottom of Wac ky Wheels Speaker "9V" 6LR61 Battery Compartment Cover Bottom of Wacky Whe els WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please keep these instructions as they contain important information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please keep these instructions as they contain important information Saf ety Pre caution s • Never drive your Wac ky Wheels on the streets. • Do not pick up the vehicle while it is in motion. • Keep finger s, hair and loose clothing away from the tires and wheels while the vehicle is in motion. • Do not drive the vehicle through water. • For best results, hold the antenna up, not pointing down towards the vehicle . • Drive safel y! This device complies with Par t 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Par t 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Press the horn and radio buttons to make wacky sounds while you drive! The radio buttons make two sounds each. DriverRoofWacky Sou ndsTru nk Driving the Wacky Whe els • T urn on the Wacky Whe els and the contro ller using the On/Of f switche s as shown in the Batter y I nstallation and Power On/Of f section of this instru ction she et. • T he power indi cator l ight on the contro ller will g low as l ong as the batter y has power . Driving Tips: Remember that when the vehicle is coming towards you, it will steer in the opposite direction to the way you turn the controls. Try to imagine that you are in the driver’s seat to work out the directio…

Text truncated - open the document above for the full version.

FCC ID: OKP0270A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2.THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA

Early Light Industrial Co., Ltd Project No. : #0271,0272 & 0273 Model Name : Crazy Cabby, Whristling Wolfy, Diamond deuce TEL (HK): 852-29448866 EXT 354 Frequency : 27.145, 40.685 & 49.86 MHz (China): 86-755-84651111 EXT 410 Date : 19 May,2004 FAX: (HK) 852-24136147 Prepared By : S. W. Mok (China) 86-755-84651847 REV : 00 Electronics Department CIRCUIT DESCRIPTION: IN TRANSMIT MODE: After TX unit is switched “ON” and press either S1, 2, 3, 4, 5, 6 or 7 the transmit frequency is oscillated by Y1 and mixed with the encoded signal from IOD5 port (pin 14) of U1 by Q201then coupled through T201 to antenna. The low pass filter made up of C201, L201 & C202, which is connected to the antenna. A 9V Alkaline Battery supplies energy. IN RECEIVE MODE: The receiver part is using a Supper regenerator circuit and Q1 is the Supper regenerator & detector, ZD1 is the precision voltage regulator, IC1 is the signal decoder. Q2, 3, 8 & 9 is the tunnels of the motor driver. Q4, 5, 6, 7, 10, 11, 12 &13 are the current driver of the two motors. Energy is supplied by 6x1.5V AA size Alkaline battery. ANTENNA AND GROUND CIRCUITRY. This unit makes use of an external 8-inch antenna, the antenna is inductively coupled, the unit relies on the Ground trace of the printed circuit board. No external ground is provided. A 9V Alkaline battery supplies energy. 1

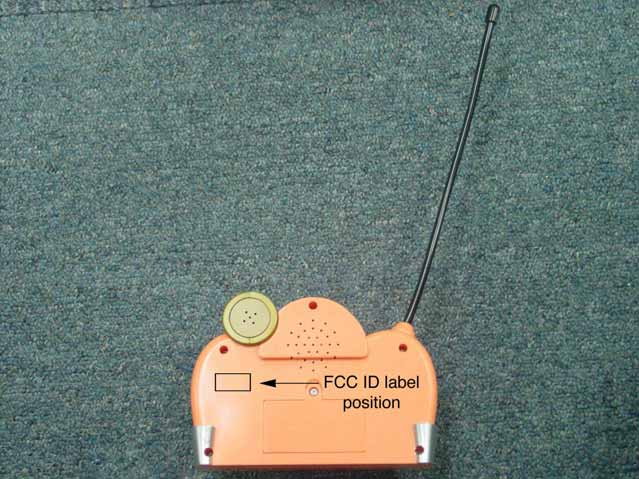

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 COVER SHEET Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - TX FCC ID: OKP0270A Applicant: WOW Wee LIMITED. Energy Plaza, Suite 301A-C, 92 Granville Road T.S.T East,Hong Kong. Date Receipt:05/19/2004 Date Tested:05/20/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #:THRU-405005 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............OCCUPIED BANDWIDTH PAGE 7.............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 2..........BLOCK DIAGRAM EXHIBIT 3..........SCHEMATIC EXHIBIT 4A-4B......PARTS LIST EXHIBIT 5..........INSTRUCTION MANUAL EXHIBIT 6..........SAMPLE OF FCC ID LABEL EXHIBIT 7..........LOCATION OF FCC ID LABEL EXHIBIT 8..........EXTERNAL PHOTO - FRONT SIDE EXHIBIT 9..........EXTERNAL PHOTO - BACK SIDE EXHIBIT 10.........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11.........INTERNAL PHOTO - COPPER SIDE EXHIBIT 14.........CIRCUIT DESCRIPTION THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 Page 1 of 7 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.04.07. Spectrum Analyzer R3261C Advantest 71720189 2005.03.17. LISN KNW-242 Kyoritsu 8-923-2 2004.04.17. LISN 8012-50-R- 24 Solar 8379121 2004.04.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. Digital DC Power Supplier HYP-3010D Han Young Elec,.Co.,Ltd. - N/A THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 20ºC with a humidity of 52%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 Page 3 of 7 APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Reading Receiver dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 49.8572 52.8 46.6 H 1.8 10.9 1.0 64.7 58.5 100 80 -35.3 -21.5 49.8572 65.4 58.5 V 1.2 10.9 1.0 77.3 70.4 100 80 -22.7 -9.6 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: K.M CHOI DATE: 05/20/2004 THRUl…

Text truncated - open the document above for the full version.

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0270A REPORT #: THRU-405005
