OKP0280A49.82-49.90 MHz WIRELESS R/CTX

Item No.0280 Ages 4+ Item No.0280 Ages 4+ Contents Driving the Astro-Flex Safety Precautions Manufactured and Distributed by: © 2004 WowWee All Rights Reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Hong Kong WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 www.wowwee.com MADE IN CHINA Packaging Printed in China. Product and colors may vary. We recommend that you retain our address for future reference. Manufactured and Distributed by: © 2004 WowWee All Rights Reserved. WowWee (Asia Office) Unit 301A-C, 92 Granville Rd., T.S.T. East, Hong Kong WowWee (North America Office) 4480 Cote de Liesse, Suite 320, T.M.R. Quebec, H4N 2R1, Canada Consumer Hotline: (514) 344-1250 www.wowwee.com MADE IN CHINA Packaging Printed in China. Product and colors may vary. We recommend that you retain our address for future reference. DY0280US01 • Vehicle: 6 x "AA" LR06 UM3 (Battery not included) • Controller: 1 x 9V 6LR61 Battery (Battery not included) Power Indicator Light Left Stick Throttle Forward Right Stick Throttle Reverse Cockpit Up Cockpit Down Drive Wheels Stabilizer Arm Cockpit Push Throttle Forward to make the Astro-Flex move forwards. Push Throttle Reverse to make the Astro-Flex move backwards. ForwardReverseRight Spin Push the Right Stick to make the Astro-Flex spin to the right. Push the Left Stick to make the Astro-Flex spin to the left. While pushing Throttle Forward or Throttle Reverse, push the Right Stick to make the Astro- Flex turn to the right. Left SpinRight TurnLeft Turn While pushing the Throttle Forward or Throttle Reverse, push the Left Stick to make the Astro-Flex turn to the left. Battery installation and Power On/Off Attention: Important Battery Information • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard alkaline, or rechargeable), or rechargeable batteries of different capacities. We recommend the use of rechargeable batteries. • Remove rechargeable batteries from the toy before recharging them. • Rechargeable batteries are only to be charged under adult supervision. • Please respect the correct polarity, (+) and (-). • Do not dismantle batteries of any type. • Do not try to charge non-rechargeable batteries. • Do not throw batteries into the fire. • Replace all batteries of the same type/brand at the same time. • Do not short-circuit the battery contacts. • Remove exhausted batteries from the toy. • Batteries should be replaced by adults because of small parts. • Remove batteries if the toy is not going to be played with for some time. "AA"/ LR 6/ UM3/ 1.5V "AA"/ LR 6/ UM3/ 1.5V Bottom view "9V" 6LR61 "9V" 6LR61 Top view To replace battery, unscrew the screw on batteries case (as shown in illustration) and replace batteries. 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 1 x 9V battery (not included) into the controller as shown in the diagram. 3) Replace the battery compartment cover and the screw. 1) Remove the battery compartment cover using a Phillips or crosshead screwdriver (not included). 2) Insert 6 x AA batteries (not included) into the car as shown in the diagram. 3) Replace the battery compartment cover and the screw. To replace batteries, unscrew mutiple the screw on batteries case (as shown in illustration) and replace batteries. To replace batteries, unscrew mutiple the screw on batteries case (as shown in illustration) and replace batteries. Short ModeStretch Mode • Turn on the Jet Car and the controller using the On/Off switches. • The power indicator light on the controller will glow as long as the battery has power. • Turn on the Jet Car and the controller using the On/Off switches. • The power indicator light on the controller will glow as long as the battery has power. Cockpit UpStretch ModeCockpit UpShort Mode While the Astro- Flex is in Short Mode, press and hold the Cockpit Up button to lift up the cockpit. The stabilizer arm is now at the front. While the Astro- Flex is in Short Mode, press and hold the Cockpit Down button to lift up the stabilizer arm and change the car into Stretch Mode. While the Astro- Flex is in Stretch Mode, press and hold the Cockpit Up button to lift up the cockpit. The stabilizer arm is now at the rear. While the Astro- Flex is in Stretch Mode, press and hold the Cockpit Down button to lift up the stabilizer arm to return the Astro-Flex to Short Mode. • Never drive your Astro-Flex on the streets. • Do not pick up the vehicle while it is in motion. • Keep fingers, hair and loose clothing away from the tires and wheels while the vehicle is in motion. • Do not drive the vehicle through water. • For best results, hold the antenna up, not pointing down towards the vehicle. • Drive safely! • When you have finished playing, make sure that you turn the On/Off switch on the controller and the Jet Car to "Off". • Remember that when the vehicle is coming towards you, it will steer in the opposite direction to the way you turn the wheel. Try to imagine that you are in the driver’s seat to work out the direction it will turn in. • Keep fingers, hair and loose clothing away from the tires and wheels while the vehicle is in motion. • Never drive your Jet Car on the streets. • Do not pick up the vehicle while it is in motion. • Do not drive the vehicle through water. • For best results, hold the antenna up, not pointing down towards the vehicle. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pr…

Text truncated - open the document above for the full version.

FCC ID: OKP0280A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2.THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN CHINA

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 COVER SHEET Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - TX FCC ID: OKP0280A Applicant: ~v~G~ŒŒGsptp{lkU Energy Plaza, Suite 301A-C, 92 Granville Road T.S.T East,Hong Kong. Date Receipt:03/10/2004 Date Tested:03/15/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #:THRU-403013 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A TEST REPORT CONTAINING: PAGE 3.............TEST EQUIPMENT LIST PAGE 4.............TEST PROCEDURE PAGE 5-7...........RADIATION INTERFERENCE TEST DATA PAGE 8.............OCCUPIED BANDWIDTH PAGE 9-10..........OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 2..........BLOCK DIAGRAM EXHIBIT 3..........SCHEMATIC EXHIBIT 4A-4B......PARTS LIST EXHIBIT 5..........INSTRUCTION MANUAL EXHIBIT 6..........SAMPLE OF FCC ID LABEL EXHIBIT 7..........LOCATION OF FCC ID LABEL EXHIBIT 8..........EXTERNAL PHOTO - FRONT SIDE EXHIBIT 9..........EXTERNAL PHOTO - BACK SIDE EXHIBIT 10.........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11.........INTERNAL PHOTO - COPPER SIDE EXHIBIT 14.........CIRCUIT DESCRIPTION THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 Page 1 of 7 TestEquipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2004.04.25. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2004.03.17 Spectrum Display 85662A Hewlett Packard 2542A12429 2004.03.17 Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2004.03.17 RF Preselector 85685A Hewlett Packard 2648A00504 2004.03.17 Pre- Amplifier 8449B Hewlett Packard 3008A00375 2004.03.17 Pre- Amplifier 8447F Hewlett Packard 3113A05367 2004.03.17 Spectrum Monitor EZM Rohde & Schwarz 862304/007 2004.03.17 Bico- Antenna 94455-1 Eaton 977 2004.03.17 Log- Periodic Antenna 3146 EMCO 2051 2004.03.17 Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2004.03.17 Horn Antenna SAS-571 A.H Systems 414 2004.03.17 Spectrum Analyzer R3261C Advantest 71720189 2004.04.26 LISN KNW-242 Kyoritsu 8-923-2 2004.07.12 LISN 8012-50-R-24 Solar 8379121 2004.07.12 Loop Ant 6507 EMCO 1435 2004.10.06 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 16ºC with a humidity of 30%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 Page 3 of 7 APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Reading Receiver dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 49.858 40.7 33.6 H 2.8 10.9 1.0 52.6 45.5 100 80 -47.4 -34.5 49.858 57.8 51.3 V 1.70 10.9 1.0 69.7 63.2 100 80 -30.3 -16.8 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: K.M CHOI DATE: 03/15/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 Page 4 of 7 APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A NAME OF TEST: R…

Text truncated - open the document above for the full version.

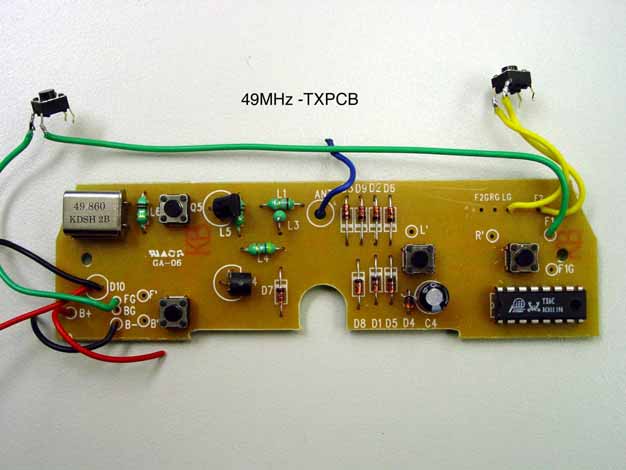

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: WOW Wee Ltd. FCC ID: OKP0280A REPORT #: THRU-403013
