OKP0420R.E.V.

USER MANUAL ROBOTIC ENHANCED VEHICLES ITEM NO.: 0420 1 Thank you for purchasing R.E.V.™ by WowWee™! R.E.V.™’s (Robotic Enhanced Vehicles) are next-gen vehicles that are designed for combat. Leave the track behind, and then let the world be your battleground. Equipped with cutting edge Artificial Intelligence and proprietary BeaconSense™ tracking technology, each R.E.V.™ can drive, think, and fight for itself. The R.E.V.™ smart-device application features exciting multiplayer games that let you showcase your skills against your friends or computer controlled opponents. Do you have what it takes? Take a few minutes to look through this user manual and get R.E.V.™ ready to go. NOTE: When using R.E.V.™, adult supervision is required, especially when changing the batteries. Please note the following when operating R.E.V.™: • Do not immerse R.E.V.™ or any parts in water or any other form of liquid. • Do not drop, throw, or kick the R.E.V.™ vehicles as this may damage mechanical functions. • Do not allow the vehicles to roam freely or leave unattended near edges from which the R.E.V.™ vehicles could fall. • R.E.V.™ is intended for indoor use only. • For best performance, do not use R.E.V.™ on rough or uneven surfaces such as shag carpeting. INTRODUCTION 2 x R.E.V.™ 1 x User Manual 2 BATTERY INFORMATION R.E.V.™ Battery Diagram/Installation Installing or changing batteries in R.E.V.™: 1. To change the batteries, carefully lay the R.E.V.™ vehicle on its top. R.E.V.™ requires 4 x “AA” size alkaline batteries (not included) in each vehicle. 2. Using a Phillips screwdriver (not included) remove the screws on the battery compartment cover located on the bottom of the vehicle. 3. Insert the batteries according to the diagram. Ensure that the positive and negative polarities match the illustrations inside the battery compartment. 4. Replace the battery compartment cover and tighten screws using the screwdriver. Do not over-tighten. 4 x “AA” Alkaline Batteries 3 BATTERY INFORMATION IMPORTANT BATTERY INFORMATION: • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries [standard (Carbon-Zinc), Alkaline or rechargeable] or rechargeable batteries of different capacities. • Remove rechargeable batteries from the toy before recharging them. • Rechargeable batteries are only to be charged under adult supervision. • Please respect the correct polarity, (+) and (-). • Do not try to recharge non-rechargeable batteries. • Do not dispose of batteries into fire. • Replace all batteries of the same type/brand at the same time. • The supply terminals are not to be short-circuited. • Remove exhausted batteries from the toy. • Batteries should be replaced by adults. • Remove batteries if the toy is not going to be played with for some time. LOW BATTERY INDICATORS: When the batteries grow weak, the R.E.V.™ vehicle will begin to move slower than normal. When this occurs, power OFF and replace all batteries. For optimal play, replace the batteries on both vehicles at the same time. NOTE: You will know when R.E.V.™’s batteries are nearly depleted because it will make a low battery indication sound and then power off. You can also see current battery levels via the R.E.V.™ smart device application. 4 POWER SAVE MODE: After 20 minutes of not recieving any commands or receiving any interactions, the R.E.V.™ vehicle will make a power-down sound, deactivate it’s LED Indicator, and power down. To re-activate, simply turn the power switch from the On to Off then back to On again. You will need to reconnect your vehicle with your smart device to activate any gameplay. POWER SAVE MODE 5 LED Indicator BeaconSense™ Array Top Panels R.E.V.™ OVERVIEW TOP VIEW BSA BSA BSA BSA BSA 6 Battery Compartment ON/OFF Switch Wheels Bottom Chassis Speaker BOTTOM VIEW WHITE 7 QUICKSTART & APP 1. With the batteries inserted, locate the power switch underneath the R.E.V.™ vehicle and activate R.E.V.™ by toggling it to ON. Do this for all vehicles that you will be playing with. The vehicle will make a Power On sound on successful activation. 3. The LED Indicator will pulse white, indicating it is ready for a connection. 2. Place the R.E.V.™ vehicles upright on their wheels on a flat and smooth surface, away from edges and obstacles. 4. Once all vehicles are in this state, start the application on your smart device and follow the instructions in the application to get started. Turn On LED Indicator Flat Surface R.E.V.™ App 8 Downloading the App Open a browser and use the following link to find app download links: www.wowwee.com/rev For Apple ® Devices: Go to the App Store SM and search for “WowWee REV”. Alternatively, use the following link: appstore.com/wowweerev For Android™ Devices: Go to the Google Play™ or Amazon Appstore™ and search for “WowWee REV”. APP FUNCTIONALITY APP FUNCTIONALITY R.E.V.™ works with iPhone ® 4s and above, iPod touch ® 5G, iPad ® 3, iPad ® 4, iPad mini™, iPad Air ® , or select Android™ Bluetooth ® Smart-Ready™ devices. Apple ® devices must be running iOS 8 or above. Android™ devices must be running Android™ 4.4.3 or above. NOTE: The R.E.V.™ vehicles will revert to waiting for a player connection if the application is closed or the signal is lost indicated by a white light on the vehicle. To reconnect, make sure the vehicles are on and then follow the in-app instructions. CONNECTING TO R.E.V.™ Connecting to R.E.V.™ with Computer Controlled Opponents. 1. Ensure all R.E.V.™ items are switched off. 2. Turn on all R.E.V.™ items as instructed in Getting Started (pg 4). 3. Once the app is installed, open the “R.E.V.™” app on your device. 4. Follow the in-app instructions on how to connect to the item, making sure to connect to each item you want to control. 5. Once connected, use the in-app menu to control the gameplay mode. Connecting to R.E.V.™ with Human Controlled Opponents. 1. Ensure all R.E.V.™ items are switched off. 2. Turn on a single R.E.V.™ item,…

Text truncated - open the document above for the full version.

WowWee Group Limited Suite 301 A-C, Energy Plaza, 92 Granville Road, T.S.T. East, Kowloon, Hong Kong. Tel: (852)2739 5288 Fax: (852)2724 6931 Email: [email protected] Letter of Agency I, an officer of (WowWee Group Limited) do hereby authorize Intertek Testing Services (Terry Chan / Koo Wai IP / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 14 day May of 2015 By Dennis Tsoi Signature Printed Title Quality Assurance Manager

WowWee Group Limited Suite 301A-C, Energy Plaza, 92 Granville Road, T.S.T. East, Kowloon, Hong Kong. Tel: (852)2739 5288 Fax: (852)2724 6931 Email: [email protected] Re: Request for confidentiality Applicant: WowWee Group Limited FCC ID: [FCC ID: OKP0420] To whom it may concern, Request is hereby submitted by WowWee Group Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: WowWee Group Limited has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, __________________________ Dennis Tsoi Quality Assurance Manager WowWee Group Limited Date: May 14, 2015

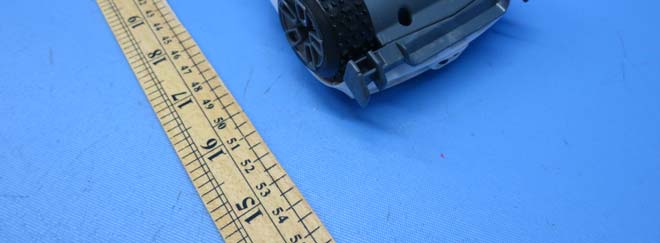

INTERTEK TESTING SERVICE Report No.:15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (External)

FCC ID: OKP0420 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LABEL SIZE: 43mm x 12mm

INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Equipment Photographs (Internal)

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Car). The EUT is powered by DC 6.0V (4X1.5V “AA” size batteries). The operating frequency are2402 to 2480MHz (2MHz channel spacing). After pairing with controller (iTouch with related app called R.E.V.), the EUT can be controlled to run forward, backward, left and right. There are also a light, a speaker and IR sensor on the EUT, which can be controlled by the controller. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 85.8 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 88.8 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.228mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.228mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041170HKG-001 i FCC ID: OKP0420 IC: 7091A-0420 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: WowWee Group Limited Grantee Address: Unit 301A-C, Energy Plaza, 92 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Dennis Tsoi Tel: (852)2739-5288 Fax: (852) 2723-3425 e-mail: [email protected] Manufacturer: WowWee Group Limited Manufacturer Address: Unit 301A-C, Energy Plaza, 92 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: WowWee FCC Model: 0420 FCC Additional Model: 0435, 0438 IC Model: 0420 Type of EUT: Transceiver Description of EUT: R.E.V. (0420), R.E.V. Smart Ramp Accessory (0435) R.E.V. and Smart Ramp Accessory (0438) Serial Number: N/A FCC ID / IC: OKP0420 / 7091A-0420 Date of Sample Submitted: April 20, 2015 Date of Test: April 20, 2015 to April 29, 2015 Report No.: 15041170HKG-001 Report Date: May 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041170HKG-001 ii FCC ID: OKP0420 IC: 7091A-0420 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249/ RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041170HKG-001 iii FCC ID: OKP0420 IC: 7091A-0420 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications ...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desensitization .................................................................. 12 8.3 Calculation of Average Factor............................................................................ 12 8.4 Emissions Test Procedures ............................................................................... 13 8.5 Occupied Bandwidth.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: 15041170HKG-001 FCC ID: OKP0420 IC: 7091A-0420 Configuration Photographs Worst-Case Radiated Emissions (Back View)
