OKP0820MIP Assorted

USER MANUAL ASSORTMENT NO.: 0820 ITEM NO.: 0821 / 0825 1 2 Thank you for purchasing MiP™ by WowWee™!Meet MiP™, your new gesture tracking, self-balancing robotic companion! Out the box, MiP™ is packed with features and personality. MiP™ loves to follow your hand around and balance things on its tray accessory. Take control, interact and play with MiP™ through Gesture Sense™ technology or a Bluetooth ® Low Energy (BLE) enabled mobile device. Take a few minutes to look through this user manual and get MiP™ working.NOTE: When using MiP™, adult supervision is required, especially when changing the batteries. Please note the following when operating MiP™:t
Do not immerse MiP™ or any parts in water or any other form of liquid. t
Do not drop, throw, or kick MiP™ as this may damage mechanical functions. t
Do not allow the robot to roam freely or leave unattended near edges from which MiP™ could fall. 1 x Tray 1 x Display Stand 1 x MiP™ INTRODUCTION BATTERY INFORMATION Installing or changing batteries in MiP™:1. To change the batteries, carefully lay MiP™ on its front. Do not place MiP™ where it could easily fall. MiP™ requires 4 x “AAA” size alkaline batteries (not included). 2. Using a Phillips screwdriver (not included) remove the screws on the battery compartment cover located on the back of the robot. 3. Insert the batteries according to the diagram. Ensure that the positive and negative polarities match the illustrations inside the battery compartment. 4. Replace the battery compartment cover and tighten screws using the screwdriver. Do not over-tighten. IMPORTANT BATTERY INFORMATION:t
Use only fresh batteries of the required size and recommended type. t
Do not mix old and new batteries, different types of batteries [standard (Carbon-Zinc), Alkaline or rechargeable] or rechargeable batteries of different capacities. t
Remove rechargeable batteries from the toy before recharging them. t
Rechargeable batteries are only to be charged under adult supervision. t
Please respect the correct polarity, (+) and (-). t
Do not try to recharge non-rechargeable batteries. t
Do not throw batteries into fire. t
Replace all batteries of the same type/brand at the same time. t
The supply terminals are not to be short-circuited. t
Remove exhausted batteries from the toy. t
Batteries should be replaced by adults. t
Remove batteries if the toy is not going to be played with for some time. LOW BATTERY INDICATORS:When the batteries grow weak, MiP™ will move very slowly and easily fall down while moving or turning. When this occurs, power OFF and replace all batteries.NOTE: You will know when MiP™’s batteries are nearly depleted because it will make a low battery indication sound and then power off. You can also see current battery levels via the MiP™ App. MiP™ Battery Diagram/Installation t
1 x User Manual t
1 x Tray Sticker Sheet 3 4 LED EyesIR Sensor MicrophoneLED Mode Indicator Poseable Arms Wheels Tray Slot (For inserting tray) MiP ™ OVERVIEW F RONT IR Transmitters Stand SlotBattery Compartment Power Switch Stand Speaker MiP ™ OVERVIEW B ACK 1 2 5 6 (1) With the batteries inserted, locate the power switch on its back and activate MiP™ by toggling it to ON. (2) Carefully place MiP™ upright on its wheels on a flat and smooth surface, away from edges and obstacles. On successful balancing, you should feel traction in its wheels. At this point, let go and MiP™ will stand on its own with slight movements to correct its balance.MiP™ has several different modes that can be activated. Along with its own unique vocabulary, MiP™ will make a wide range of sounds to express itself regarding its current action, mode, or input received. To access the different modes, pick MiP™ up and turn its right or left wheel. The LED Mode Indicator will change color to indicate its current mode. Note that these modes are in a fixed order, therefore, you can turn the wheel clockwise or counter-clockwise to go up and down the list of modes. GETTING STARTED Mode LED Mode Indicator Color MiP™ BLUE (Default) Stack PINK Cage WHITE Tricks RED Roam YELLOW Dance TURQUOISE Tracking ORANGE B ASIC C OMMANDS – A LL M ODES Sound DetectionVarious MiP™ actions can be performed by clapping, which will activate its sound detection. For instance, to have MiP™ repeat a Trick Mode routine, you can clap twice.Stop/CancelYou can cancel any action MiP™ is currently performing by picking it up and tilting, then placing MiP™ back down vertically. To reactivate the mode/action MiP™ was performing prior to the Stop/Cancel command, clap twice.FallingShould MiP™ fall, it will make a sad sound. To get moving again, place it upright and it will start balancing then wait for new commands, whilst in its previous mode. M ODES MiP™ Mode (Default) The default mode MiP™ is in, upon start up. In this mode, MiP™ will detect hand gestures, responds to claps and shakes. Hand Gesture Control - ForwardGuide MiP™ forward by holding your hand in front of MiP™, then dip and pull your hand away from MiP™ to steer it forward.Hand Gesture Control – BackwardGuide MiP™ backwards by holding your hand in front of MiP™, then dip and push your hand towards MiP™ to steer it backwards.Hand Gesture Control – Left/RightTurn MiP™ by swiping your hand in front of MiP™ in the direction that you want it to turn.Hand Gesture Control - StopStop MiP™ from moving forward by placing your hand in front of it. Stack Mode (Pink)For this mode, first attach the tray accessory to MiP™ as shown in the diagram. Carefully place MiP™ on a large, flat surface and let it balance. MiP™ will now start a countdown! You will have only a few seconds to stack a heavy object or many light objects on top of the tray. If it can balance correctly, MiP™ will add additional time for you to stack. If you fail to reset the timer and the clock runs out, MiP™ spins around, tossing all the stacked items off the tray. See how much you can stack before the time runs out!If you want to stack without the timer, use the …

Text truncated - open the document above for the full version.

WowWee Group Limited Suite 301 A-C, Energy Plaza, 92 Granville Road, T.S.T. East, Kowloon, Hong Kong. Tel: (852)2739 5288 Fax: (852)2724 6931 Email: [email protected] Letter of Agency I, an officer of (WowWee Group Limited) do hereby authorize Intertek Testing Services (Terry Chan / Koo Wai IP / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 20 day February of 2014 By Dennis Tsoi Signature Printed Title Quality Assurance Manager

WowWee Group Limited Suite 301A-C, Energy Plaza, 92 Granville Road, T.S.T. East, Kowloon, Hong Kong. Tel: (852)2739 5288 Fax: (852)2724 6931 Email: [email protected] Re: Request for confidentiality Applicant: WowWee Group Limited FCC ID: [FCC ID: OKP0820] To whom it may concern, Request is hereby submitted by WowWee Group Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Detailed Block diagrams Detailed Operational/Functional Description Part List Rationale for request for confidentiality: WowWee Group Limited has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, __________________________ Dennis Tsoi Quality Assurance Manager WowWee Group Limited Date: Feb 20, 2014

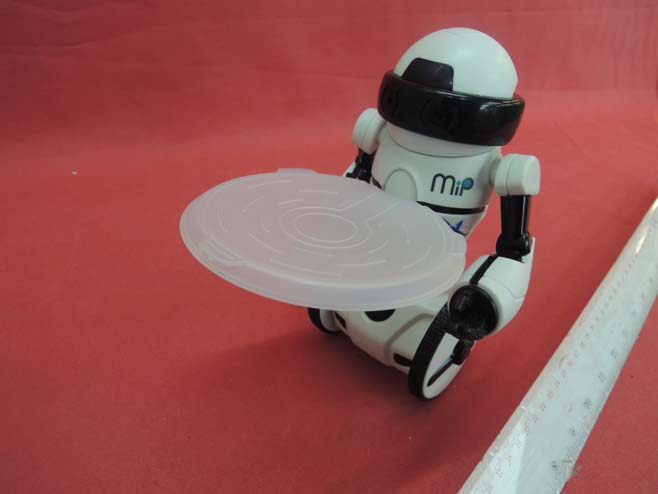

INTERTEK TESTING SERVICE Report No.: 14011152HKG-001 FCC ID: OKP0820 IC: 7091A-0820 Equipment Photographs Model: 0820 (External)
