OKP0820NMip Assorted (0820N)

USER MANUAL ASSORTMENT NO.: 0820 ITEM NO.: 0821 / 0825 12 Thank you for purchasing MiP™ by WowWee™! Meet MiP™, your new gesture tracking, self-balancing robotic companion! Out the box, MiP™ is packed with features and personality. MiP™ loves to follow your hand around and balance things on its tray accessory. Take control, interact and play with MiP™ through Gesture Sense™ technology or a Bluetooth ® Low Energy (BLE) enabled mobile device. Take a few minutes to look through this user manual and get MiP™ working. NOTE: When using MiP™, adult supervision is required, especially when changing the batteries. Please note the following when operating MiP™: • Do not immerse MiP™ or any parts in water or any other form of liquid. • Do not drop, throw, or kick MiP™ as this may damage mechanical functions. • Do not allow the robot to roam freely or leave unattended near edges from which MiP™ could fall. 1 x Tray 1 x Display Stand 1 x MiP™ INTRODUCTIONBaTTeRy INfORmaTION Installing or changing batteries in MiP™: 1. To change the batteries, carefully lay MiP™ on its front. Do not place MiP™ where it could easily fall. MiP™ requires 4 x “AAA” size alkaline batteries (not included). 2. Using a Phillips screwdriver (not included) remove the screws on the battery compartment cover located on the back of the robot. 3. Insert the batteries according to the diagram. Ensure that the positive and negative polarities match the illustrations inside the battery compartment. 4. Replace the battery compartment cover and tighten screws using the screwdriver. Do not over-tighten. IMPORTANT BATTERY INFORMATION: • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries [standard (Carbon-Zinc), Alkaline or rechargeable] or rechargeable batteries of different capacities. • Remove rechargeable batteries from the toy before recharging them. • Rechargeable batteries are only to be charged under adult supervision. • Please respect the correct polarity, (+) and (-). • Do not try to recharge non-rechargeable batteries. • Do not throw batteries into fire. • Replace all batteries of the same type/brand at the same time. • The supply terminals are not to be short-circuited. • Remove exhausted batteries from the toy. • Batteries should be replaced by adults. • Remove batteries if the toy is not going to be played with for some time. LOW BATTERY INDICATORS: When the batteries grow weak, MiP™ will move very slowly and easily fall down while moving or turning. When this occurs, power OFF and replace all batteries. NOTE: You will know when MiP™’s batteries are nearly depleted because it will make a low battery indication sound and then power off. You can also see current battery levels via the MiP™ App. MiP™ Battery Diagram/Installation • 1 x User Manual • 1 x Tray Sticker Sheet 34 LED Eyes IR Sensor Microphone LED Mode Indicator Poseable Arms Wheels Tray Slot (For inserting tray) miP ™ OveRvIew FRONT IR Transmitters Stand Slot Battery Compartment Power Switch Stand Speaker miP ™ OveRvIew BACk 12 56 (1) With the batteries inserted, locate the power switch on its back and activate MiP™ by toggling it to ON. (2) Carefully place MiP™ upright on its wheels on a flat and smooth surface, away from edges and obstacles. On successful balancing, you should feel traction in its wheels. At this point, let go and MiP™ will stand on its own with slight movements to correct its balance. MiP™ has several different modes that can be activated. Along with its own unique vocabulary, MiP™ will make a wide range of sounds to express itself regarding its current action, mode, or input received. To access the different modes, pick MiP™ up and turn its right or left wheel. The LED Mode Indicator will change color to indicate its current mode. Note that these modes are in a fixed order, therefore, you can turn the wheel clockwise or counter-clockwise to go up and down the list of modes. GeTTING STaRTeD ModeLED Mode Indicator Color MiP™BLUE (Default) StackPINK CageWHITE TricksRED RoamYELLOW DanceTURQUOISE TrackingORANGE BASIC COMMANDS – ALL MODES Sound Detection Various MiP™ actions can be performed by clapping, which will activate its sound detection. For instance, to have MiP™ repeat a Trick Mode routine, you can clap twice. Stop/Cancel You can cancel any action MiP™ is currently performing by picking it up and tilting, then placing MiP™ back down vertically. To reactivate the mode/action MiP™ was performing prior to the Stop/Cancel command, clap twice. Falling Should MiP™ fall, it will make a sad sound. To get moving again, place it upright and it will start balancing then wait for new commands, whilst in its previous mode. MODES MiP™ Mode (Default) The default mode MiP™ is in, upon start up. In this mode, MiP™ will detect hand gestures, responds to claps and shakes. Hand Gesture Control - Forward Guide MiP™ forward by holding your hand in front of MiP™, then dip and pull your hand away from MiP™ to steer it forward. Hand Gesture Control – Backward Guide MiP™ backwards by holding your hand in front of MiP™, then dip and push your hand towards MiP™ to steer it backwards. Hand Gesture Control – Left/Right Turn MiP™ by swiping your hand in front of MiP™ in the direction that you want it to turn. Hand Gesture Control - Stop Stop MiP™ from moving forward by placing your hand in front of it. Stack Mode (Pink) For this mode, first attach the tray accessory to MiP™ as shown in the diagram. Carefully place MiP™ on a large, flat surface and let it balance. MiP™ will now start a countdown! You will have only a few seconds to stack a heavy object or many light objects on top of the tray. If it can balance correctly, MiP™ will add additional time for you to stack. If you fail to reset the timer and the clock runs out, MiP™ spins around, tossing all the stacked items off the tray. See how much you can stack before the time runs out! If you want to stack without the timer, use the Stop/Cancel …

Text truncated - open the document above for the full version.

A24模块电路方框图如下: POWER Supply nRF51822 BLE&2.4G Transceiver I O I N T E R F A C E Antenna Network matching Crystal 16MHZ

WowWee Group Limited Suite 301 A-C, Energy Plaza, 92 Granville Road, T.S.T. East, Kowloon, Hong Kong. Tel: (852)2739 5288 Fax: (852)2724 6931 Email: [email protected] Letter of Agency I, an officer of (WowWee Group Limited) do hereby authorize Intertek Testing Services (Terry Chan / Koo Wai IP / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 02 day July of 2015 By Dennis Tsoi Signature Printed Title Quality Assurance Manager

Date: Aug 26, 2015 Different between the product(0820) of Everwin Toys(Dongguan)Co,. Ltd and Shao Guan Early Light Internaltional Co-Ltd. Please note that all changes do not intend for maximum power and change on field strength ratings, software,external appearance, operating frequencies and no any changes for RF p ortions of IC . Only PCB layout for DC power circuit and related ICs (Baseband) are changed. Ther e is no functional change to the product and other mechanical designs are identical to each other. Item Name: Mip Assorted Item No.: 0820 Sincerely, _ Print name: Dennis Tsoi Title: Quality Assurance Manager Company: WowWee Group Limited

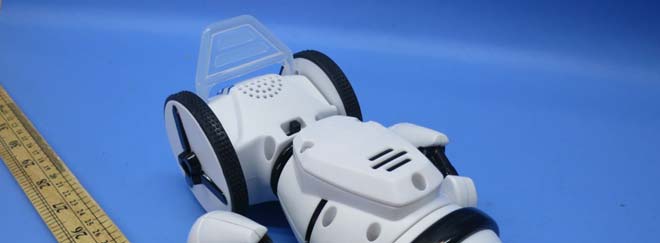

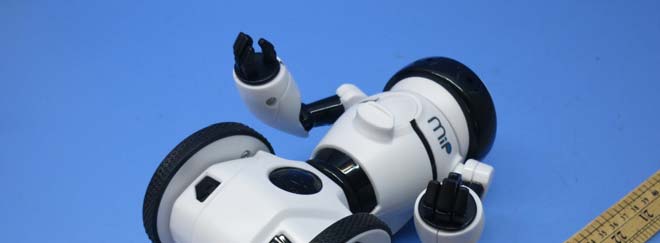

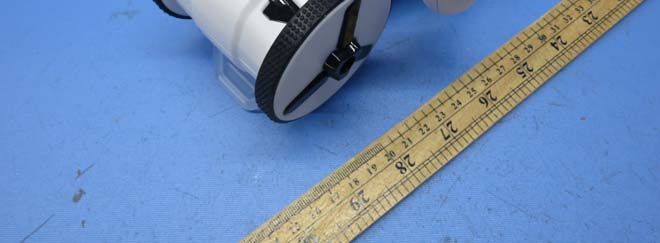

INTERTEK TESTING SERVICE Report No.:15051574HKG-001 Equipment Photographs (External)

INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 15051574HKG-001 Equipment Photographs (Internal)

Technical Description The brief circuit description is listed as below: 1) U5 acts as 2.4GHz RF Module (KNRF51822-A24-AAH) with 0+] oscillator. 2) U1_7A acts as Voice player (GPC11512C). a. Q4 acts as audio amplifiers(8050C) 3) U1 and U9 acts as a DC to DC regulator(LC3030-50). 4) U3 acts as MCU (NM05716DN(64K) with 12MHz crystal(Y1) Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 88.3 dBȝV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB Copyright © 2014 Nordic Semiconductor ASA. All rights reserved. Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder. nRF51822 Multiprotocol Bluetooth® low energy/2.4 GHz RF System on Chip Product Specification v3.1 Key Features • 2.4 GHz transceiver • -93 dBm sensitivity in Bluetooth® low energy mode • 250 kbps, 1 Mbps, 2 Mbps supported data rates • TX Power -20 to +4 dBm in 4 dB steps • TX Power -30 dBm Whisper mode • 13 mA peak RX, 10.5 mA peak TX (0 dBm) • 9.7 mA peak RX, 8 mA peak TX (0 dBm) with DC/DC • RSSI (1 dB resolution) • ARM® Cortex™-M0 32 bit processor • 275 μA/MHz running from flash memory • 150 μA/MHz running from RAM • Serial Wire Debug (SWD) • S100 series SoftDevice ready • Memory • 256 kB or 128 kB embedded flash program memory • 16 kB or 32 kB RAM • On-air compatibility with nRF24L series • Flexible Power Management • Supply voltage range 1.8 V to 3.6 V • 4.2 μs wake-up using 16 MHz RCOSC • 0.6 μA at 3 V OFF mode • 1.2 μA at 3 V in OFF mode + 1 region RAM retention • 2.6 μA at 3 V ON mode, all blocks IDLE • 8/9/10 bit ADC - 8 configurable channels • 31 General Purpose I/O Pins • One 32 bit and two 16 bit timers with counter mode • SPI Master/Slave • Low power comparator • Temperature sensor • Two-wire Master (I2C compatible) • UART (CTS/RTS) • CPU independent Programmable Peripheral Interconnect (PPI) • Quadrature Decoder (QDEC) • AES HW encryption • Real Timer Counter (RTC) • Package variants • QFN48 package, 6 x 6 mm • WLCSP package, 3.50 x 3.83 mm • WLCSP package, 3.83 x 3.83 mm • WLCSP package, 3.50 x 3.33 mm Applications • Computer peripherals and I/O devices • Mouse • Keyboard • Multi-touch trackpad • Interactive entertainment devices • Remote control • Gaming controller • Beacons • Personal Area Networks • Health/fitness sensor and monitor devices • Medical devices • Key-fobs + wrist watches • Remote control toys Page 2 nRF51822 Product Specification v3.1 Liability disclaimer Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out of the application or use of any product or circuits described herein. Life support applications Nordic Semiconductor’s products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Nordic Semiconductor ASA customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nordic Semiconductor ASA for any damages resulting from such improper use or sale. Contact details For your nearest distributor, please visit www.nordicsemi.com. Information regarding product updates, downloads, and technical support can be accessed through your My Page account on our home page. RoHS and REACH statement Nordic Semiconductor's products meet the requirements of Directive 2002/95/EC of the European Parliament and of the Council on the Restriction of Hazardous Substances (RoHS) and the requirements of the REACH regulation (EC 1907/2006) on Registration, Evaluation, Authorization and Restriction of Chemicals. The SVHC (Substances of Very High Concern) candidate list is continually being updated. Complete hazardous substance reports, material composition reports and latest version of Nordic's REACH statement can be found on our website www.nordicsemi.com. Main office: Phone: +47 72 89 89 00 Fax: +47 72 89 89 89 Otto Nielsens veg 12 7052 Trondheim Norway Mailing address: Nordic Semiconductor P.O. Box 2336 7004 Trondheim Norway Page 3 nRF51822 Product Specification v3.1 Datasheet Status Revision History StatusDescription Objective Product Specification (OPS) This product specification contains target specifications for product development. Preliminary Product Specification (PPS) This product specification contains preliminary data; supplementary data may be published from Nordic Semiconductor ASA later. Product Specification (PS) This product specification contains final product specifications. Nordic Semiconductor ASA reserves the right to make changes at any time without notice in order to improve design and supply the best possible product. DateVersionDescription October 20143.1Added documentation for the following versions of the chip: • nRF51822-QFAC AA0 • nRF51822-QFAC Ax0 • nRF51822-CDAB AA0 • nRF51822-CDAB Ax0 • nRF51822-CFAC AA0 • nRF51822-CFAC Ax0 (The x in the build codes can be any number between 0 and 9.) Added content: •Section 2.2.2 “CDAB WLCSP ball assignment and functions” on page 13 •Section 9.2 “CDAB WLCSP package” on page 67 •Section 9.4 “CFAC WLCSP package” on page 69 Updated content: • Feature list on the front page. •Section 2.2.3 “CEAA and CFAC WLCSP ball assignment and functions” on page 16 •Section 3.2.1 “Code organization” on page 21 •Section 3.2.2 “RAM organization” on page 21 •Section 3.3 “Memory Protection Unit (MPU)” on page 22 •Section 8.2 “Power management” on page 44 •Section 8.3 “Block resource requirements” on page 48 •Section 8.12 “Analog to Digital Converter (ADC) specifications” on page 60 •Section 10.6 “Code ranges and values” on page 73 •Section 10.7 “Product options” on page 75 Page 4 nRF51822 Product Specification v3.1 August 20143.0Update to reflect the changes in build code: • nRF51822-QFAA Hx0 • nRF51822-CEAA Ex0 • nRF51822-QFAB Cx0 (The x in the buil…

Text truncated - open the document above for the full version.

Technical Description The brief circuit description is listed as below: 1) U5 acts as 2.4GHz RF Module (KNRF51822-A24) with 0+] oscillator. 2) U1 acts as Voice player (GPC11512C). a. Q4 acts as audio amplifiers(8050C) 3) U1(LC3030) and U9(6250) acts as a DC to DC regulator. 4) U3 acts as MCU (NM05716DN) with 12MHz crystal(Y1) Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 88.3 dBȝV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB Copyright © 2014 Nordic Semiconductor ASA. All rights reserved. Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder. nRF51822 Multiprotocol Bluetooth® low energy/2.4 GHz RF System on Chip Product Specification v3.1 Key Features • 2.4 GHz transceiver • -93 dBm sensitivity in Bluetooth® low energy mode • 250 kbps, 1 Mbps, 2 Mbps supported data rates • TX Power -20 to +4 dBm in 4 dB steps • TX Power -30 dBm Whisper mode • 13 mA peak RX, 10.5 mA peak TX (0 dBm) • 9.7 mA peak RX, 8 mA peak TX (0 dBm) with DC/DC • RSSI (1 dB resolution) • ARM® Cortex™-M0 32 bit processor • 275 μA/MHz running from flash memory • 150 μA/MHz running from RAM • Serial Wire Debug (SWD) • S100 series SoftDevice ready • Memory • 256 kB or 128 kB embedded flash program memory • 16 kB or 32 kB RAM • On-air compatibility with nRF24L series • Flexible Power Management • Supply voltage range 1.8 V to 3.6 V • 4.2 μs wake-up using 16 MHz RCOSC • 0.6 μA at 3 V OFF mode • 1.2 μA at 3 V in OFF mode + 1 region RAM retention • 2.6 μA at 3 V ON mode, all blocks IDLE • 8/9/10 bit ADC - 8 configurable channels • 31 General Purpose I/O Pins • One 32 bit and two 16 bit timers with counter mode • SPI Master/Slave • Low power comparator • Temperature sensor • Two-wire Master (I2C compatible) • UART (CTS/RTS) • CPU independent Programmable Peripheral Interconnect (PPI) • Quadrature Decoder (QDEC) • AES HW encryption • Real Timer Counter (RTC) • Package variants • QFN48 package, 6 x 6 mm • WLCSP package, 3.50 x 3.83 mm • WLCSP package, 3.83 x 3.83 mm • WLCSP package, 3.50 x 3.33 mm Applications • Computer peripherals and I/O devices • Mouse • Keyboard • Multi-touch trackpad • Interactive entertainment devices • Remote control • Gaming controller • Beacons • Personal Area Networks • Health/fitness sensor and monitor devices • Medical devices • Key-fobs + wrist watches • Remote control toys Page 2 nRF51822 Product Specification v3.1 Liability disclaimer Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out of the application or use of any product or circuits described herein. Life support applications Nordic Semiconductor’s products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Nordic Semiconductor ASA customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nordic Semiconductor ASA for any damages resulting from such improper use or sale. Contact details For your nearest distributor, please visit www.nordicsemi.com. Information regarding product updates, downloads, and technical support can be accessed through your My Page account on our home page. RoHS and REACH statement Nordic Semiconductor's products meet the requirements of Directive 2002/95/EC of the European Parliament and of the Council on the Restriction of Hazardous Substances (RoHS) and the requirements of the REACH regulation (EC 1907/2006) on Registration, Evaluation, Authorization and Restriction of Chemicals. The SVHC (Substances of Very High Concern) candidate list is continually being updated. Complete hazardous substance reports, material composition reports and latest version of Nordic's REACH statement can be found on our website www.nordicsemi.com. Main office: Phone: +47 72 89 89 00 Fax: +47 72 89 89 89 Otto Nielsens veg 12 7052 Trondheim Norway Mailing address: Nordic Semiconductor P.O. Box 2336 7004 Trondheim Norway Page 3 nRF51822 Product Specification v3.1 Datasheet Status Revision History StatusDescription Objective Product Specification (OPS) This product specification contains target specifications for product development. Preliminary Product Specification (PPS) This product specification contains preliminary data; supplementary data may be published from Nordic Semiconductor ASA later. Product Specification (PS) This product specification contains final product specifications. Nordic Semiconductor ASA reserves the right to make changes at any time without notice in order to improve design and supply the best possible product. DateVersionDescription October 20143.1Added documentation for the following versions of the chip: • nRF51822-QFAC AA0 • nRF51822-QFAC Ax0 • nRF51822-CDAB AA0 • nRF51822-CDAB Ax0 • nRF51822-CFAC AA0 • nRF51822-CFAC Ax0 (The x in the build codes can be any number between 0 and 9.) Added content: •Section 2.2.2 “CDAB WLCSP ball assignment and functions” on page 13 •Section 9.2 “CDAB WLCSP package” on page 67 •Section 9.4 “CFAC WLCSP package” on page 69 Updated content: • Feature list on the front page. •Section 2.2.3 “CEAA and CFAC WLCSP ball assignment and functions” on page 16 •Section 3.2.1 “Code organization” on page 21 •Section 3.2.2 “RAM organization” on page 21 •Section 3.3 “Memory Protection Unit (MPU)” on page 22 •Section 8.2 “Power management” on page 44 •Section 8.3 “Block resource requirements” on page 48 •Section 8.12 “Analog to Digital Converter (ADC) specifications” on page 60 •Section 10.6 “Code ranges and values” on page 73 •Section 10.7 “Product options” on page 75 Page 4 nRF51822 Product Specification v3.1 August 20143.0Update to reflect the changes in build code: • nRF51822-QFAA Hx0 • nRF51822-CEAA Ex0 • nRF51822-QFAB Cx0 (The x in the build codes …

Text truncated - open the document above for the full version.

Analysis Report The Equipment Under Test(EUT) is a 2.4GHz Bluetooth 4.0 transceiver (Robot), which is operating at 2402MHz to 2480MHz (40 Channels with 2MHz channel spacing). The EUT is powered by 6VDC (4 x 1.5V “AAA” size batteries). The EUT has a power ON/OFF switch, a pairing button and a LED. When the EUT is switched ON, the LED will flash and waiting corresponding controller(for example: Android mobile or Iphone). After pairing , the LED will stay lit, and the EUT can be controlled to move forward, backward, left and right by the corresponding Bluetooth device. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 88.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 93.3 dBμV/ m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.405mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.405mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.68 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

0820-2A PCB REV00 (Accelerometer+Gyro) 0820-7A PCB REVA00 (Voice Player) Power Control 0820-3A PCB REV00 0820-4A PCB REV00 0820-6A PCB REV00 0820-6A PCB REV00 Motor Driver circuit MIC Function Circuit ICE Interface Hacker Port VCC Control Circuit ON OFF Gesture Sensor 0820-5A PCB REV00 0820-4A PCB REV00 SIZE: A4 DRAWING NO: DRAWN BY: DATE: DATE: CHECKED BY: TITLE: Early Light Industrial Co. Ltd. SHEET: 1 OF 1 0820 Main 原原原 01 REV: 01 Mar-07-2015 bluetooth module Right Left Mar-07-2015 NORDIC PROGRAMMING HEADER MPU_6881 KNRF51822-A24-AAH REV.3 C1410uF C16 104 C17104 C18104 C19 104 C2 104 C20 20pF C21 20pF C26 104 C27 104 C3104 C30 104 C32104 C33 104 C5104 C7 104 C810uF C9104 C0NC C1100uF C15 47uF C2210uF C28220uF C31100uF C34 100uF UART1-1 4pin PH=1.5mm UART1-2UART1-3UART1-4 L3 56uH M1 MOTOR M2 MOTOR P4.0 P2.4/AD12/PWM4 P2.3/AD11/PWM3 P2.2/AD10/PWM2 P2.1/AD9/PWM1 P2.0/AD8/PWM0 I.DO...CAP VSS XTAL1 XTAL2 P3.7/RD P3.6/WR/CKO P0.0/AD0/CTS1 P0.1/AD1/RTS1 P0.2/AD2/CTS0 P0.3/AD3/RTS0 VDD AVDD AIN0/T2/P1.0 AIN1/T3/P1.1 AIN2/RXD1/P1.2 AIN3/TXD1/P1.3 AIN4/SS0/P1.4 P4.2 P2.5/AD13/PWM5 P2.6/AD14/PWM6P2.7/AD15/PWM7 P4.4/CS P4.5/ALE P4.6/ICE...CLK P4.7/ICE...DAT P0.7/AD7/SCLK1 P0.6/AD6/MISO...1P0.5/AD5/MOSI...1 P0.4/AD4/SS1 P4.1 P4.3 SCL/T1/P3.5 SDA/TO/P3.4MCLK/INT1/P3.3INT0/P3.2TXD/P3.1 AVSS RXD/P3.0RSTSCI...K0/AIN7/P1.7MISO...0/AIN6/P1.6MOSI...0/AIN5/1.5 123456789 101112 13 14 15 16 17 18 19 20 21 22 23 24 252627282930313233343536 37 38 39 40 41 42 43 44 45 46 47 48 U3 NM05716LDN(64K) Q1 3904 Q10 8050D Q12 8050D Q14 8050D Q188050D Q2 3904 Q20 3904 Q24 3904 Q263904 Q29 3904 Q3 3904 Q48050C Q6 8050D Q78050D Q8 3904 R1 100R R14 1K R15 150R R16 47R R17 120R R18 510R R19 100R R20 NC R21 RSI R2610K R28 NC R29 4.7K R30 10K R31 3.3K R32 10K R33 470R R34 1K R35 1K R36 10K R37 10K R38 3.3K R39100RR40 47K R41 2.2K R42 1M R43 47K R44 56K 1% R45 470K R46 47K R47 30K 1% R48 10K 1% R49 47K R5 3K R50 1M R51 10K R52 3.3K R53 10K R54 470R R55 10K R56 10K R573.3K R58 100R R59 1K R60 100R R61 100R R62 10K R63 47K R65 330R R66 39R 1% R71 330R R7239R 1% R73 100R R74 47K R75 1K R76 22K R77 47R R78 200R R79 200R R8 NC R80 200R R81 200R R82 10K R83 100R R84 1K R85 100R R86 1K R87 100R R88 10K R89 10K R90 100R R91 1K 1 /CS 2 DO 3 /WP 4 GND 5 DI 6 SCLK 7 /HOLD 8 VCC U2 FT24C02 Y1 12MHz Q9 3906 J3-1J3-2J3-3J3-4J3-5 Q118550D 4 213 56 SW1 POWER SW SS-22D13 BT1 4X AAA IRLED2_6A ILW945-T 3 2 1 U4_6A PT4828B-H2 IRLED1_6A ILW945-T 3 2 1 U6_6A PT4828B-H2 RGBLED LED1_4A Blue LED LED2_4A Blue LED LED3_4A Blue LED LED4_4A Blue LED 1 OUT 2 GND 3 VCC RX_4A M576-H9 D5_4A IR LED D6_4A IR LED C1_2A104 C2_2A104 C3_2A10uF C4_2A 104 DRDY/TP0 VPP ES_DA CS/TP3 SCL/SCLK SDA/SDI IN/TP2 FSYNC/TP1 REGOUT SDO/AD0 VDDIO ES_CL RESNCNC NCNC NC NC NCNCNC GND 123456 181716151413 7 8 9 10 11 12 24 23 22 21 20 19 U1_2A R2_2A NC R5_2A NC R6_2A10K R7_2A 100K LS1 16 ohm 0.5W L1 4.7uH L2 4.7uH IN GND OUT U1 DC/DC LC3030-50 IN GND OUT U9 LDO CE6250-33 C1_7A 100pF C6_7A104 C2_7A10uF C3_7A104 C5_7A 104 C4_7A 104 17 RESET 29 IOC0 30 IOC1 31 IOC2 32 IOC3 33 IOC4 34 IOC5 35 IOC6 36 IOC7 14 AUDP 11 AUDN 12 PVDD 13 PVSS 2 IOD0 3 IOD1 4 IOD2 5 IOD3 6 IOD4 7 IOD5 8 IOD6 9 IOD7 1 VDD1 10 VSS1 19 VDD2 15 VSS2 18 ROSC 16 TEST 21 IOB0 22 IOB1 23 IOB2 24 IOB3 25 IOB4 26 IOB5 27 IOB6 28 IOB7 20 VDD3 37 VSS3 U1_7A GPC11512C R3_7A 51K 1% T1 C1_4A 104 D5 1N5817 PTC R16-135 MK2 MIC 6x5mm G DS Q22 CE2301 G DS Q28CE2302 G DS Q25CE2301 G DS Q27 CE2302 G DS Q17CE2301 G DS Q23 CE2302 G DS Q19CE2301 G DS Q21 CE2302 1 P0.21 2 P0.22 3 P0.23 4 P0.24 5 P0.25 6 P0.26/AIN0/XL2 7 P0.27/AIN1/XL1 8 VCC_NRF 9 GND 10 P0.30 11 P0.00/AREF 12 P0.01/AIN2 13 P0.02/AIN3 14 P0.03/AIN4 15 P0.04/AIN5 16 P0.05/AIN6 17 P0.06/AIN7/AREF1 18 P0.07 19 P0.08 20 P0.09 21 P0.10 22 P0.11 23 P0.12 24 P0.13 25 P0.14 26 P0.15 27 P0.16 28 SWDCLK 29 P0.18/SHUTTER# 30 P0.19 31 P0.20 32 SWDIO U5 VCCSWDCLK SWDIO VCC3 R1` 75R GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND VCC DAVDD VCC DAVDD AVSS AVSS AVSS VCC_CTRL_OUT AT24C04_WP AT24C04_WP AT24C04_SCL AT24C04_SCL AT24C04_SDA AT24C04_SDA BAT VCC RGB_LED_B RGB_LED_B RGB_LED_G RGB_LED_G RGB_LED_R RGB_LED_R VCC VCC_CTRL_OUT VCC_CTRL_OUT LEFT_TX_LED RIGHT_TX_LED LEFT_TX_LED RIGHT_TX_LED EYELED1_FROM_LEFT EYELED1_FROM_LEFT EYELED2_FROM_LEFT EYELED2_FROM_LEFT EYELED3_FROM_LEFT EYELED3_FROM_LEFT EYELED4_FROM_LEFT EYELED4_FROM_LEFT RX_FOR_DEBUG RX_FOR_DEBUG UART_TX UART_TX BAT UART_RX UART_RX VCC_CTRL_OUT R_ENCODER_B R_ENCODER_B R_ENCODER_A R_ENCODER_A VCC_CTRL_OUT L_ENCODER_B L_ENCODER_B L_ENCODER_A L_ENCODER_A VCC RADIO_STATUS RX TX EN VCC BAT MOTORLEFT_INPUT_FORWARD MOTORLEFT_INPUT_FORWARD MOTORLEFT_INPUT_REVERSE MOTORLEFT_INPUT_REVERSE MOTORRIGHT_INPUT_REVERSE MOTORRIGHT_INPUT_REVERSE MOTORRIGHT_INPUT_FORWARD MOTORRIGHT_INPUT_FORWARD BAT VCC_CTRL_OUT MIC_OUTPUT MIC_OUTPUT RESET RESET VCC ICE_CLK ICE_CLK ICE_DAT ICE_DAT VCC POWRE_CHECK POWRE_CHECK BAT VCC_CTRL_IN VCC_CTRL_IN VCC VCC_CTRL_OUT BAT BAT BATBAT BAT VCC_CTRL_OUT VCC_CTRL_OUT VCC VCC VCC GND GND GND GND GND GND GND VCC VCC VCCVCC MPU_CSMPU_SDAMPU_SDOMPU_SCL MPU_CSMPU_SDA MPU_SDO MPU_SCL RESET ORDER_SNC_SLEEP ORDER_SNC_SLEEP M052_SENDTO_SNCSNC_SENDTO_M052 GND GND GND GND VCC VCC VCC M052_SENDTO_SNCSNC_SENDTO_M052 VCC GND RX TX RADIO_STATUS EN SWDIO SWDCLK VCC SWDIO SWDCLK VCC 1010 99 88 77 66 55 44 33 22 11 J J I I H H G G F F E E D D C C B B A A P0.30P0.01P0.02P0.03P0.04P0.05P0.06P0.07P0.00 P0.08 P0.09 P0.10 P0.11 P0.12 P0.13 P0.14 P0.15 P0.16 SWDIO P0.18P0.19DEC2VDD_PAANT1 P0.23 P0.24 P0.25 ANT2 SWCLK P0.22 P0.21 ANT SWDIOSWCLKVCC_nRFGND P0.20 P0.26 P0.27 VCC_nRFVCC_nRF AVDD AVDD TitleSize Document Number R e v Date: Sheet of nrf51822_A24.sch A24 KARIN BTLE&2.4G Module Karin Electronic Supplies Co.,Ltd. Custom 11 Thursday, March 26, 2015 C17NC C9 1.0nF C3 2.2nF R2012K C5 2.2pF TP3 C1047nF TP2 U1 nRF51822 VDD 1 DCC 2 P0.30 3 P0.00 4 P0.01 5 P0.02 6 P0.03 7 P0.04 8 P0.05 9 P0.06 10 P…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A2 Date: 15-Apr-2015 Sheet of File: E:\zlw\6236 MINIMIP\PCB\MINIMIP.Ddb Drawn By: R19100R R412.2K C17104P R421M R4347K R4647K Q93906 MK2MIC C16104 C18104 R45470K Q83904 R4456K 1% + C15 47UF R294.7K C7104P R8DNIR28DNI A0 1 A1 2 A2 3 VSS 4 SDA 5 SCLK 6 WP 7 VCC 8 U2AT24C02 CTR-VCC SCLK CTR-VCC SDA R15150R R1647R R17120R R141KR341KR351K Q13904 Q23904 Q33904 VCC-3.3V LED-RLED-GLED-B R79200R R80200R LED4BLUE LED5BLUE LED3BLUE R78200R R81200R LED6BLUE R751K CTR-VCC GND 1 IN 2 OUT 3 U96250-3.3V C30104P C32104P + C31 100UF BT16V VCC-3.3V R73100R VCC-3.3V Q118550D Y1 12MHz R50 1M C20 20pF C2120pF C22 10uF R2610K C14106 VCC-3.3V L14.7uHL24.7uH VCC-3.3V AVDD R4730K 1%R4810K 1% MOSI_0/AIN5/P1.5 1 MISO_0/AIN6/P1.6 2 SPICLK/AIN7/P1.7 3 RESET 4 RDX/P3.0 5 AVSS 6 TXD/P3.1 7 STADC/INT0/P3.2 8 MCLK/INT1/P3.3 9 SDA/T0/P3.4 10 SCL/T1/P3.5 11 PWM3/P4.3 12 WR/CKO/P3.6 13 RD/P3.7 14 XTAL2 15 XTAL1 16 VSS 17 LDO/CAP 18 AD8/PWM0/P2.0 19 AD9/PWM1/P2.1 20 AD10/PWM2/P2.2 21 AD11/PWM3/P2.3 22 AD12/PWM4/P2.4 23 PWM0/P4.0 24 AD13/PWM5/P2.5 25 AD14/PWM6/P2.6 26 AD15/PWM7/P2.7 27 CS/P4.4 28 ALE/P4.5 29 ICE_CL…

Text truncated - open the document above for the full version.
