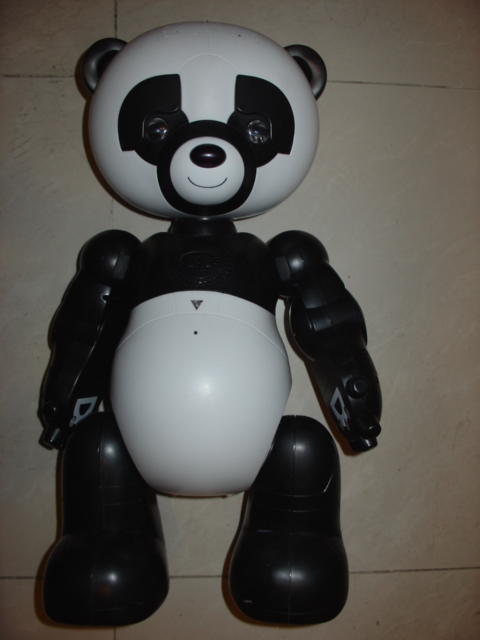

OKP8068RFID Wireless Toy

May 29, 2007. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OKP8068. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name Block DiagramOKP8068_BlockDiagram.pdf Schematic DiagramOKP8068_SchematicDiagram.pdf Circuit DescriptionOKP8068_CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wow Wee Limited ------------------------------- Dennis TSOI Quality Assurance Manager

FCCID: OKP8068 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. WOWWEE 8068 IC: 7091A-8068 Made in China

WO WEE LIMITED FCC ID: OKP8068 INTERNAL PHOTOS

1 FCC PART 15.225 AND IC RSS-210 RFID TEST REPORT Applicant Wow Wee Limited Address Energy Plaza, Suite 301A-C 92 Granville Road T.S.T. East, Hong Kong FCC ID OKP8068 IC Label 7091A-8068 Model Number 8068 Product Description RFID Wireless Toy Date Sample Received May 1, 2007 Date Tested May 16, 2007 Tested By Joe Scoglio Approved By Mario de Aranzeta Timco Report No. W:\W\WOW_OKP\1019AUT7\TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 2 of 2 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT AND SYSTEM .......................................................................... 4 DUT SPECIFICATION................................................................................................. 5 EMC EQUIPMENT LIST ............................................................................................. 6 TEST PROCEDURE ................................................................................................... 7 RADIATION INTERFERENCE ..................................................................................... 9 CALCULATION OF DUTY CYCLE ............................................................................. 10 FREQUENCY TOLERANCE ...................................................................................... 11 POWER LINE CONDUCTED INTERFERENCE........................................................... 12 OCCUPIED BANDWIDTH/BAND-EDGES COMPLIANCE........................................... 13 APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 3 of 3 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Certificate #0955-01 Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: June 6, 2007 Tested by: Joe Scoglio Signature: on file Date: May 16, 2007 APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 4 of 4 REPORT SUMMARY Disclaimer The test result only relates to the item tested. Applicable Rule(s) FCC Pt 15.225, IC RSS-210, ANSI C63.4 2003 TEST ENVIRONMENT AND SYSTEM Test Facility All tests were performed by Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The DUT was tested in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Supporting Peripheral Equipment Not applicable. The device is a stand-alone transmitter Deviation to the standard(s) None Modification to the DUT: None APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 5 of 5 DUT SPECIFICATION Manufacturer Wow Wee Limited Description RFID TOY FCC ID OKP8068 IC Label IC: 7091A-8068 Model Name 8068 Tx Frequency 13.56 MHz 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Integrated APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 6 of 6 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/30/06 10/30/08 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Open-Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Active Loop ETS- Lindgren 6502 00062529 CAL 3/30/06 3/30/08 APPLICANT: WOW WEE LIMITED FCC ID: OKP8068 IC #: 7091A-8068 REPORT: W:\W\WOW_OKP\1019AUT7\1019AUT7TestReport.doc Page 7 of 7 TEST PROCEDURE Power Line Conducted Interference: The procedure used was ANSI STANDARD C63.4- 2003 using a 50uH LISN. Both lines were observed with the DUT transmitting. The resolution bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Radiation Interference: The test procedure used was ANSI C63.4-2003 using an Agilent spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz …
