Size: 148.5(W) x 210(H)mm (A5) STEREO EARPHONES WITH BLUETOOTH ® WIRELESS TECHNOLOGY STEREO EARPHONES WITH BLUETOOTH ® WIRELESS TECHNOLOGY Model: CBH515-OD PLEASE READ BEFORE OPERATING THIS EQUIPMENT. Owner's Manual (2)This device must accept any interference received, (1)This device may not cause harmful interference, and FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on the circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC NOTICE: To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifications not authorized by the manufacturer may void user’s authority to operate this device. 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Location of Controls 3 1 2 5 6 1. + Button 5. - Button 6. Micro USB Port (For Charging Only) 7. Built-in Microphone 7 3. Button 8 8. Ear Hook 4 3 2. Blue Indicator 4. Red Indicator Hooks installation: Battery Recharge: 4 when the battery is consumed as follow: The unit has a built-in DC 3.7V Li-ion rechargeable battery, recharges it before use or 1. Connect the Micro USB plug from the USB connection cable to the Micro USB Port on the unit. 2. Connect the full size USB plug from the USB connection cable to the USB Port on a computer or any USB charger having DC 5V output. 3. During charging, the Red Indicator will illuminate. When finished, Red Indicator will turn off and Blue Indicator will illuminate. NOTES: Your battery will last longer if you follow these simple guidelines for charging and storing. D. The rechargeable battery incorporated in this product is not replaceable. C. Battery life naturally shortens slowly over time. B. Do not overcharge ( longer than 24 hours ). Excessive charging or discharging may shorten the battery's life. A. Recharge and store the device within the temperature range of 5 ~35 (40 ~95 ). Insert the Ear Hook into the part which arrowhead pointed on the above figure. LEFT EARPHONE RIGHT EARPHONE R L °C °F°F °C z z Normal operation after pairing: z z z z When the external BT device searched the unit, our model number "CBH515" will appear appear on the display of external BT device. 2. Press and hold the Button approx. 5 seconds until the Blue Indicator is illuminate and blink then release the button. Wait a few seconds until the unit automatically paired to the external BT device. (The Blue Indicator will stop blinking.) Press the Button to pause, press again to resume normal playback. Press and hold the Button approx. 1 second to reject incoming call. z Press the Button twice to redial the last dialed phone number. z When you receive an incoming call while listening to music, press the Button to pause the music then speak into the built-in Microphone to answer the call. When your call is complete, press the Button to end the call and resume to the music playback. Indicator is illuminate then release the button to shut off the unit. 6. To shut off the unit, press and hold the Button approx. 4 seconds until the Red 5 will not light and the Blue Indicator will stop blinking. (For details pairing procedures, please refer to the user's manual of your BT device.) Operation: 1. Press and hold the Button approx. 6 seconds until the Blue and Red Indicators illuminate and blink. The first time you use the unit or pair it to a new Bluetooth device, follow these instructions: 2. Power on the external BT device and enter to BT searching mode. Start pairing following (Make sure the sound level of the BT paired Device is set to high. Otherwise, sound from this unit is weak.) 5. If the unit i spaired to cell phone: 4. During playback: Press and hold the "-" or "+" Buttons to adjust volume level. Press and release the "-" or "+" Buttons repeatedly to skip tracks. 3. Plays the music in the paired BT device as usual. 1. Power on the external BT device and enter BT mode. Pairing code "0000" or "1234" may need to enter. Notes: the on screen instructions from the external BT device. After pairing, the Red Indicator Specifications: Accessories: Bluetooth version:............................................................................................Bluetooth 4.1+EDR Power Source:...............................Built-in DC 3.7V; 70 mAH (0.259WH) rechargeable Li-ion Audio power:......................................................................................................4mW per channel Impedance of Earphone:....................................................................................16 ohm, 5mW x 2 Play time after fully charge:.......................................................................Approximate 3.5 Hours battery, recharge by DC 5V through Micro USB Port BT effective range:.....................................…

Text truncated - open the document above for the full version.

Shenzhen Junlan Electronic Ltd Date: August 11, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: OKUBRC17602 To Whom It May Concern: This letter is to ascertain that Shenzhen Junlan Electronic Ltd Product：BLUETOOTH ® STEREO HEADSET MODEL No.: BRC-17602, CBH515-0D-BK, CBH515-0D-WH, CBH515-0D-RD, CBH515, CBH515-0D The USB port is used for supplying voltage for battery charging and operational use only If you have any question or concerns, pls. contact us. Sincerely, Shenzhen Junlan Electronic Ltd Client’s name / title: Peng Xiao/ safety engineer Date: 2015-08-11

Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-08-11 SUBJECT: FCC Application for OKUBRC17602 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at SHENZHEN EMTEK CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Shenzhen Junlan Electronic Ltd Peng Xiao/ safety engineer 2015-08-11

Declaration on model difference 产品差异声明 Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance, trade name and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为外观，商标和型号不同，其它设计完全相同。 „ FCC ID: OKUBRC17602 Production name 产品名称 Trade name 商标 Model no. 型号 BLUETOOTH ® STEREO HEADSET CRAIG BRC-17602, CBH515-0D-BK, CBH515-0D-WH, CBH515-0D-RD, CBH515, CBH515-0D Confirmed by . SHENZHEN JUNLAN ELECTRONIC LTD. Authorized Signature: 授权人签字 Date: 2015-08-11 日期

Rev 11/20/07 Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OKUBRC17602 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Circuit Description BlcokDiagram.pdf SchematicDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Shenzhen Junlan Electronic Ltd (signature) Peng Xiao/ safety engineer 2015-08-11

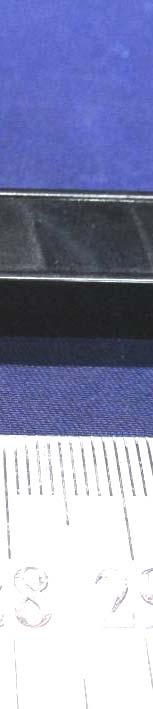

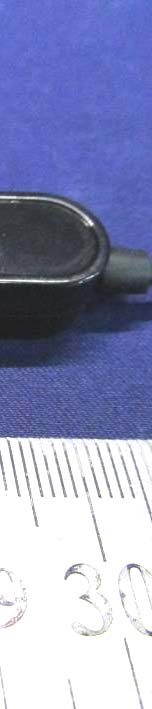

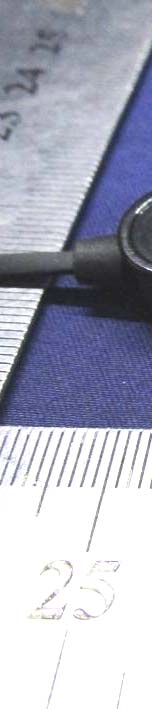

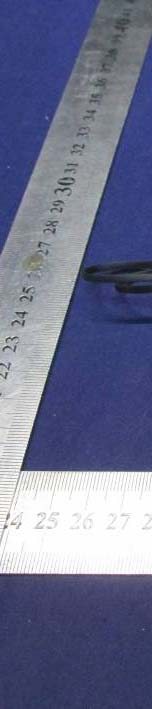

Exterrnal Ph hotos

lab L FCC ID bel locat Label Locatio D: OKUBRC tion on C17602

Internal Photos Antenna

FCC ID: OKUBRC17602 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DSS: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) tune up maximum power Result calculation 1-g SAR 2.402 GFSK 3.999 3dBm-5dBm 0.98 3.0 2.441 GFSK 2.863 2dBm-4dBm 0.78 3.0 2.480 GFSK 2.157 2dBm-4dBm 0.79 3.0 2.402 π/4 -DQPSK 4.564 3dBm-5dBm 0.98 3.0 2.441 π/4-DQPSK 3.439 2dBm-4dBm 0.78 3.0 2.480 π/4-DQPSK 2.742 2dBm-4dBm 0.79 3.0 2.402 8DPSK 4.806 3dBm-5dBm 0.98 3.0 2.441 8DPSK 3.528 2dBm-4dBm 0.78 3.0 2.480 8DPSK 2.838 2dBm-4dBm 0.79 3.0 Conclusion: For the max result : 0.98≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2015-08-11 NAME AND TITLE (Please print or type): David Lee/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China

TRF No.:FCC 15.247/A Page 1 of 56 Report No.: ES150722291E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For BLUETOOTH ® STEREO HEADSET MODEL No.: BRC-17602, CBH515-0D-BK, CBH515-0D-WH, CBH515-0D-RD, CBH515, CBH515-0D FCC ID: OKUBRC17602 Trademark: CRAIG REPORT NO.: ES150722291E ISSUE DATE: August 11, 2015 Prepared for Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 56 Report No.: ES150722291E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 13 8.1 STANDARD APPLICABLE ........................................................................................................... 13 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................... 13 8.3 EQUAL HOPPING FREQUENCY USE ....................................................................................... 14 8.4 FREQUENCY HOPPING SYSTEM ............................................................................................. 14 9 TEST REQUIREMENTS ........................................................................................................................ 15 9.1 20DB BANDWIDTH ..................................................................................................................... 15 9.2 CARRIER FREQUENCY SEPARATION ..................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................... 29 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 32 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................... 33 9.7 RADIATED SPURIOUS EMISSION ............................................................................................ 40 9.8 CONDUCTED EMISSION TEST ................................................................................................. 53 9.9 ANTENNA APPLICATION ............................................................................................................ 56 TRF No.:FCC 15.247/A Page 3 of 56 Report No.: ES150722291E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Manufacturer: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product Description: BLUETOOTH ® STEREO HEADSET Model Number: BRC-17602, CBH515-0D-BK, CBH515-0D-WH, CBH515-0D-RD, CBH515, CBH515-0D (Note: These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance, trade name and model no. for trading purpose. We prepare BRC-17602 for test, and the worst result recorded in the report.) File Number: ES150722291E Date of Test: July 22, 2015 to August 11, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10(2009) and the energy emitted by the sample EUT tested as d…

Text truncated - open the document above for the full version.

Setup photos LINE CONDUCTED EMISSION TEST RADIATED EMISSION TEST
