OKUCAB2437Bluetooth Receiver

PAIR Pair /Power Indicator Power/Pair Button Dock Connector 1. Once connected for the first time, the unit should turn on automatically. If the unit does not power on, press and hold the Pair button for 3+ seconds to power the unit on. The Pair /Power Indicator will flash slowly. A beep will sound when the unit has been recognized. 2. Repeat step one to power the unit off. The Pair /Power Indicator will turn off. 1. Set your iPod audio device to iPod mode. Refer to the user’s manual for your specific device for instructions. 2. Connect the IAB53 using the Dock Connector. Power PairingConnecting 1. Once the unit has been recognized, the Pair /Power Indicator will flash slowly when searching, then quickly to enter pairing mode. If the unit does not enter pair mode automatically, press the power/Pair button once. 2. Using the native controls on your Bluetooth device, select the “IAB53” to pair. If your device requests a password, enter the default password “ 0 0 0 0 ”. Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices. 3. Press and Hold the Power/Pair button to turn off and disconnect the IAB53. Status Indicator Power OffNo light SearchingSlow flashing light PairingQuickly flashing light ConnectedSolid light IAB53-771-01-IB.indd 1-411/7/2012 10:42:45 AM USER’S GUIDE V:771-01 For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com IAB53 Wireless Bluetooth Receiver and Adapter Copyright © 2013 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at www.iLiveElectronics.com. Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respu- estas a preguntas frecuentes, visite la sección de apoyo en www.iLiveElectronics.com. Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur www.iLiveElectronics.com. International Support Email Support: [email protected] Email Parts: [email protected] Phone Support: 1-888-999-4215 Website: www.iLiveElectronics.com Company Information Contact Information For Warranty Information and the most up-to- date version of this User’s Guide, go to www.iLiveElectronics.com. Warranty Warnings Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. nOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IAB53-771-01-IB.indd 5-811/7/2012 10:42:47 AM

Shenzhen Junlan Electronic Ltd District 2 type A plant in the second layer 1-4, NO.2 Industria Fuyuan Baoan Shenzhen China DATE :2012-11-19 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hans.Hu of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Junlan Electronic Ltd and District 2 type A plant in the second layer 1-4, NO.2 Industria Fuyuan Baoan Shenzhen China Dated this / Day of 11/19/2012 / Agency agreement expiration date: 11/19/2013 By: Peng Xiao Signature Printed Title: safety engineer On behalf of : Shenzhen Junlan Electronic Ltd Telephone: 0755-27309169

Differences Declaration To whom concern, We Shenzhen Junlan Electronic Ltd hereby declares: The product model(s) IAB13B, IAB13W, BRC-2332, CAB2437, IAB53B, IAB53S, BRC-2431, BRC-0131, BRC-2531, BRC-0231, BRC-2631, BRC-2332, BRC-0332, BRC-2632, BRC-2633, IAB53W, CC417 are identical in the same PCB layout, interior structure and electrical circuits with the model IAB53 which tested in Global United Technology Services Co., Ltd., the only differences are the model name for commercial purpose. Authorized signature: Date: 2012-11-19

Shenzhen Junlan Electronic Ltd District 2 type A plant in the second layer 1-4, NO.2 Industria Fuyuan Baoan Shenzhen China 2012-11-19 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OKUCAB2437 Product Name: Bluetooth Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11/19/2012 By: Peng Xiao Signature Printed Title: safety engineer On behalf of : Shenzhen Junlan Electronic Ltd Telephone: 0755-27309169

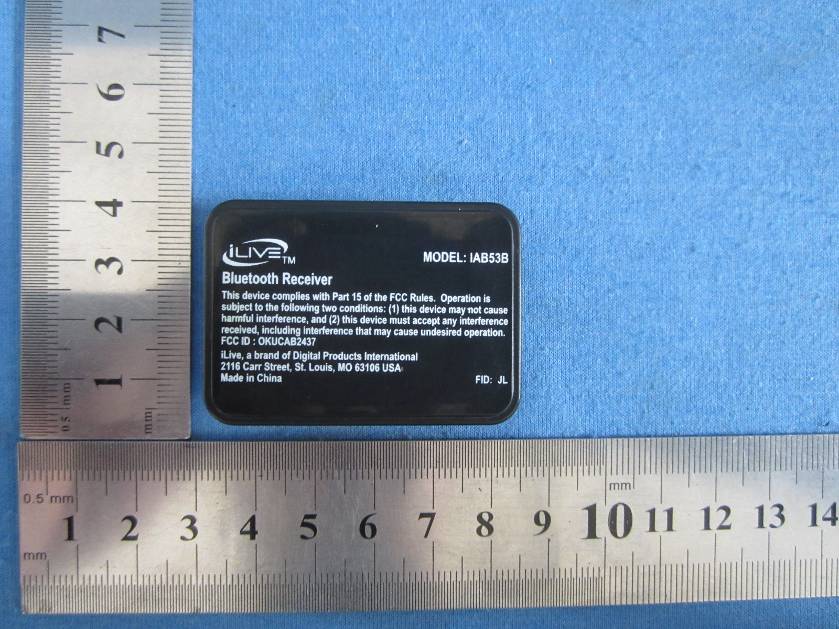

Label location
