OKUCAB90671Wireless Stereo Pairing Speaker

MODEL:SP096-BLACK Please Read This Instruction Manual Carefully and Keep It for Future Reference Bluetooth Waterproof Wireless Dual Speakers 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN C A UTION: • THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A LASER SYSTEM. • TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER`S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. • SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE PROVIDER. • MISUSE OF CONTROLS, ADJUSTMENTS TO THE UNIT OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. • TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. • DO NOT STARE INTO BEAM. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The FCC Wants You to Know T his equipmen t has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipmen t generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for additional suggestions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation. This C lass B digital apparatus complies with Canadian ICES-003. The ligh tning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. DANGER: Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. WARNING: USE UNDER SUPER VISION OF AN ADULT DUE TO LONG CORD This unit has a long AC cord or other long cord that can easily be tripped on or pulled on, causing injury, Please make sure it is arranged so it will not drape over a tabletop, etc. where it can be pulled on by children or tripped over accidentally. Important Safety Instructions This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 3 4 Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna. 1)Read these instructions. All the safety and operating instructions should be read before the product is operated. 2)Keep these instructions. The safety and operating instructions should be retained for future reference. 3)Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. 4)Follow all instructions. All operating and use instructions should be followed. 5)Do not use this apparatus near water. Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool. 6) Clean only with dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. Slots and openings in the cabinet and in the back or bottom are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shoul…

Text truncated - open the document above for the full version.

Rev 11/20/07 Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OKUCAB90671 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Circuit Description BlcokDiagram.pdf SchematicDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Shenzhen Junlan Electronic Ltd (signature) Peng Xiao/ safety engineer 2015-06-30

Declaration on model difference 产品差异声明 Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance, trade name and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为外观，商标和型号不同，其它设计完全相同。 „ FCC ID: OKUCAB90671 Production name 产品名称 Trade name 商标 Model no. 型号 Wireless Stereo Pairing Speaker N/A CAB-90671,STBT-SPK Confirmed by . Authorized Signature: 授权人签字 Date: 2015-06-30 日期

Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-06-30 SUBJECT: FCC Application for OKUCAB90671 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at SHENZHEN EMTEK CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Shenzhen Junlan Electronic Ltd Peng Xiao/ safety engineer 2015-06-30

Shenzhen Junlan Electronic Ltd Date: June 30, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: OKUCAB90671 To Whom It May Concern: This letter is to ascertain that Shenzhen Junlan Electronic Ltd Product：Wireless Stereo Pairing Speaker MODEL No.: CAB-90671, STBT-SPK The USB port is used for supplying voltage for battery charging and operational use only If you have any question or concerns, pls. contact us. Sincerely, Shenzhen Junlan Electronic Ltd (signature) Peng Xiao/ safety engineer 2015-06-30

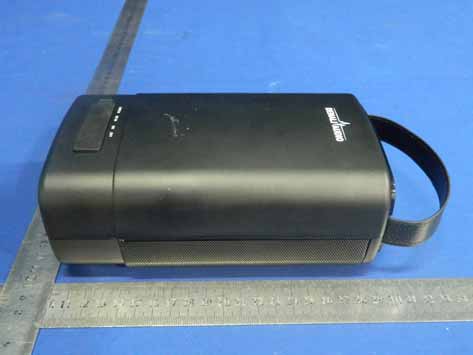

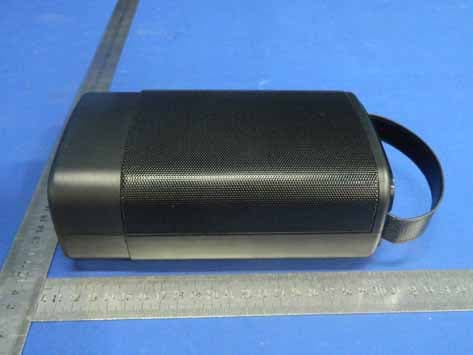

PHOTOGRAPHS OF EUT (EXTERNAL PHOTO)

Label Location

Bluetooth Modual Antanna

FCC ID : OKUCAB90671 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the followi ng table shall be used to evaluat e the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission form ula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance wher e the MPE limit is reached. 11.2 Measurement Result BT DSS Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 0.85 -0.687 -2dBm to 0dBm 0 1 0.00020 1 2441 GFSK 0.86 -0.666 -2dBm to 0dBm 0 1 0.00020 1 2480 GFSK 0.89 -0.489 -2dBm to 0dBm 0 1 0.00020 1 2402 π /4 - DQPSK 0.85 -0.706 -2dBm to 0dBm 0 1 0.00020 1 2441 π /4- DQPSK 0.85 -0.684 -2dBm to 0dBm 0 1 0.00020 1 2480 π /4- DQPSK 0.89 -0.523 -2dBm to 0dBm 0 1 0.00020 1 2402 8DPSK 0.85 -0.722 -2dBm to 0dBm 0 1 0.00020 1 2441 8DPSK 0.84 -0.777 -2dBm to 0dBm 0 1 0.00020 1 2480 8DPSK 0.87 -0.585 -2dBm to 0dBm 0 1 0.00020 1

TRF No.:FCC 15.247/A Page 1 of 57 Report No.: ES150626379E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Wireless Stereo Pairing Speaker MODEL No.: CAB-90671,STBT-SPK FCC ID: OKUCAB90671 Trademark: N/A REPORT NO.: ES150626379E ISSUE DATE: June 30, 2015 Prepared for Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 57 Report No.: ES150626379E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 13 8.1 STANDARD APPLICABLE ........................................................................................................... 13 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................... 13 8.3 EQUAL HOPPING FREQUENCY USE ....................................................................................... 14 8.4 FREQUENCY HOPPING SYSTEM ............................................................................................. 14 9 TEST REQUIREMENTS ........................................................................................................................ 15 9.1 20DB BANDWIDTH ..................................................................................................................... 15 9.2 CARRIER FREQUENCY SEPARATION ..................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................... 29 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 32 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................... 33 9.7 RADIATED SPURIOUS EMISSION ............................................................................................ 40 9.8 CONDUCTED EMISSION TEST ................................................................................................. 54 9.9 ANTENNA APPLICATION ............................................................................................................ 57 TRF No.:FCC 15.247/A Page 3 of 57 Report No.: ES150626379E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Manufacturer: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product Description: Wireless Stereo Pairing Speaker Model Number: CAB-90671,STBT-SPK (Note: The only differences of these models are the appearance, trade name and model no. for trading purpose. We prepare CAB-90671 for test, and the worst result recorded in the report.) File Number: ES150626379E Date of Test: June 26, 2015 to June 30, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10(2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in …
