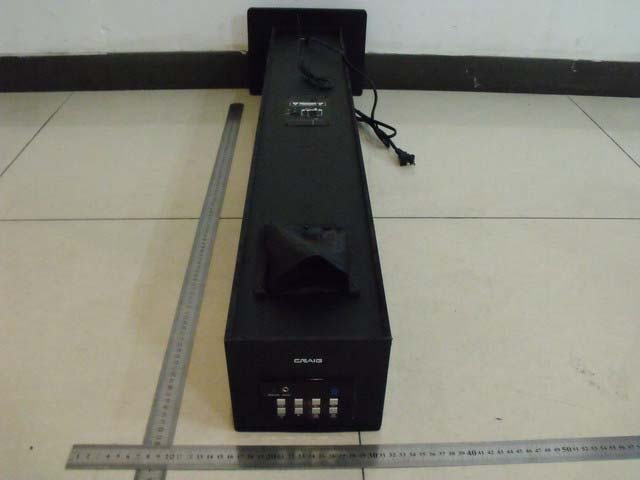

TOWER STEREO SYSTEM TOWER STEREO SYSTEM Model: CHT 909BT Owner's Manual PLEASE READ BEFORE OPERATINGTHIS EQUIPMENT. - 4 5 6 1 2 3 Figure1 Figure 2 1. Remote Sensor 2. Speakers 3. Speaker Net 4. Wooden Base 5. Screws 6. Washers Insert the AC plug into a conveniently located AC outlet having AC 120V~60Hz. NOTE: The AC plug supplied with the unit is polarized to help minimize the obsolete outlet. possibility of electric shock. If the AC plug dose not fit into a non polarized AC outlet, do not file or cut the wide blade. It is the user's responsibility to have an electrician replacing the Note: 2.Assemble the wooden base to the main body with the supplied screws and washers as Fig.2 above. 1.The speaker net can be taken out and reassembled as Fig.1 above. POWER SOURCE INSTALLATION MAIN UNIT AUX IN 1 ANT OFF ON POWER LR AC 120V~ 60Hz 11 12 13 1 INDICATOR AUX IN 2 ST/MOSOURCE VOL-VOL+ POWER TUNE- TUNE+ 10 87 9 234 5 6 1.ST/MO (Stereo/ Mono) button 2.SOURCE button 3.VOL- (Volume Down) button 4.VOL+ (Volume Up) button 5.AUX IN 2 jack 6. / TUNE+ button 7. / TUNE- button 8. (Play/Pause) button 9. POWER button 10.Indicator 11. FM Antenna 12.AUX IN 1 jacks 13.POWER ON/OFF switch LOCATION OF CONTROLS REMOTE CONTROL 1 2 3 9 SOURCE EQ TUNE- TUNE+ VOL ST/MO POWER 8 7 6 5 4 1 2 3 1. POWER button 2. / TUNE - button 3. VOL (Volume)+/- buttons 4. SOURCE button 5. (Mute) button 6. / TUNE+ button 7 (Play/Pause) button 8 ST/MO (Stereo/ Mono) button 9 EQ (Equalizer) button 5 LOCATION OF CONTROLS BATTERY PRECAUTIONS Approx.15 feet Fig.1Fig.2Fig.3 -First Time Use Remove and discard the insulation tab as figure on the right -Replacing Batteries For Remote Control 1. Push and slide out the battery holder as figure 1 below. 2. Replace the battery with a new CR2025 button cell as the polarity markings on the rear of the Remote Control. 3. Close the battery holder. Remote Sensor, on the front of main unit BATTERY INSTALLATION--- REMOTE CONTROL EFFECTIVE DISTANCE OF REMOTE TRANSMITTER 7 1. Insert the AC plug into a conveniently located AC outlet having AC 120V~60Hz. 2. Move POWER ON/OFF switch on the rear of the unit to ON position to switch the unit to corresponding color as below: 4.Press the SOURCE button repeatedly to switch to desired mode.The Source Indicator will turn to ~ Green: Radio ~ Blue: Bluetooth ~ Purple: AUX IN 1 ~ Orange: AUX IN 2 5.During Playback: ~ Press the VOL (Volume) buttons to adjust volume level as desired. ~ Press EQ button repeatedly to select and set equalizer mode as desired. ~ Press (Mute) button on the Remote Control to turn off the sound. Press again to resume. 6.When finished listening, press Power button to power off the unit. The indicator will turn Red. to shut off the unit if long period of time will not NOTE: Press the POWER ON/OFF switch to OFF position use the unit. Standby mode and the indicator will turn Red. indicator will light. 3. Press Power button on the unit or remote control to power on the unit. The Red Standby indicator will turn off. The Source GENERAL OPERATIONS FM Antenna 1.Power on the unit as previous procedures. 2.Press the SOURCE button repeatedly until the color of the indicator turns Green. 4.Repeat the same procedures until the desired radio station are received. 3.Press and hold the /TUNE - or /TUNE + buttons until the indicator start blinking. The unit will start to search next (or previous) available FM radio station then plays. The Antenna wire on the rear of the unit is for radio reception. If reception is weak, unwind and extend the wire or relocate the wire to improve the radio reception. 5.If the received FM stations are in stereo mode, the unit will play in stereo mode automatically.. 8 If reception is weak, press ST/MO (Stereo/Mono) button to turn the unit to mono mode. Press again to shift to stereo mode. White Red AUX IN 1 LR AC 120V~ 60Hz AUX IN 1 DVD 3. Power on the unit as previous procedures. 1. Connect one end of RCA audio connection cable (not supplied) to the AUX IN 1 jacks on the rear of the unit as the figure above. 2. Connect the other end to the AUX out jacks on the external player (such as Television, VCR, DVD Player, DVR ... etc.). 5. Play the music in the external player as usual. (Make sure the volume output level of the player is in high level. Otherwise, sound from this unit is weak). 4. Press SOURCE button repeatedly until the indicator turns Purple. LISTEN TO FM RADIO LISTEN TO TV/DVD/VCR/DVR Audio out jacks on TV/DVD/ VCR/DVR 9 INDICATOR AUX IN 2 ST/MOSOURCE VOL-VOL+ POWER TUNE- TUNE+ INDICATOR AUX IN 2 4. Press SOURCE button repeatedly until the indicator turns Orange. 3. Power on the unit as previous procedures. 1. Connect one end of supplied audio connection cable to the AUX IN 2 jack on the top of the unit. 2. Connect the other end to the AUX out/Line out/Phone jack on the external player (such like iPod, iPhone, iPad, MP3 player, Discman... etc.). 5. Play the music in the external player as usual. (Make sure the volume output level of the player is in high level. Otherwise, sound from this unit is weak). LISTEN TO EXTERNAL AUDIO DEVICES AUX IN 2 jack 10 1. Power on the unit as previous procedures. 2. Press the SOURCE button on the unit or remote control until the indicator turns blue. 3. Turn on the BT function on the external BT device and play the music as usual. (Make sure the volume level of the external BT device is set to high level). 4. During palyback: Press the VOL (Volume) +/- buttons to adjust volume level. Press the / TUNE- or / TUNE + button to skip track. Press the (Play/Pause) button to pause. Press again to to resume normal playback. NOTES: During the first time use, pair the external BT device as below: 1. Power on the unit as previous procedures and press the SOURCE button repeatedly until the indicator turns blue and blinking. 2. Power on the external BT device and enter searching mode. Start paring as the on screen instructions on the external BT player(For detailed paring procedures, please refer to t…
