OKUDP03060010.1 INCH PORTABLE DVD/CD PLAYER

MODEL: HJ10PRB01 PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE 10.1" BLUETOOTH PORTABLE DVD PLAYER 2 CONTENTS Important Safety Information..........................................................................................3-8 General Operations.......................................................................................................9 Remote Control Operation.......................................................................................10-11 Bluetooth Operation........................................................................................................11 About Discs.................................................................................................................... 12 Location of Controls...................................................................................................13-14 Remote Control...............................................................................................................15 Battery Installation..........................................................................................................16 Remote Control Working Range.....................................................................................16 Power Source.................................................................................................................17 Swivel Panel...................................................................................................................18 USB or Card Playback....................................................................................................19 Other Way to Play...........................................................................................................20 System Setup..................................................................................................................21 Care and Maintenance....................................................................................................22 Specifi cation...................................................................................................................23 Accessories....................................................................................................................23 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: THIS DIGITAL VIDEO DISC PLYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT. PLEASE READ THIS OWNER`S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE . SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION SEE SERVICE PROCEDURE. USE CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. The lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product`s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. DANGER: Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Caution Invisible laser beam. Please do not look into or touch the lens. 4 IMPORTANT SAFETY INSTRUCTIONS FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifi cations not authorized by the manufacturer may void user`s authority to operate this device. WARNING USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD This unit has a long AC cord or other long cord that can easily be tripped on or pulled on, causing injury. Please make sure it is arranged so it will not drape over a tabletop etc. where it can be pulled on by children or tripped over accidentally. EXERCISE CAUTION AS UNIT HAS SHARP POINTS. Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to y…

Text truncated - open the document above for the full version.

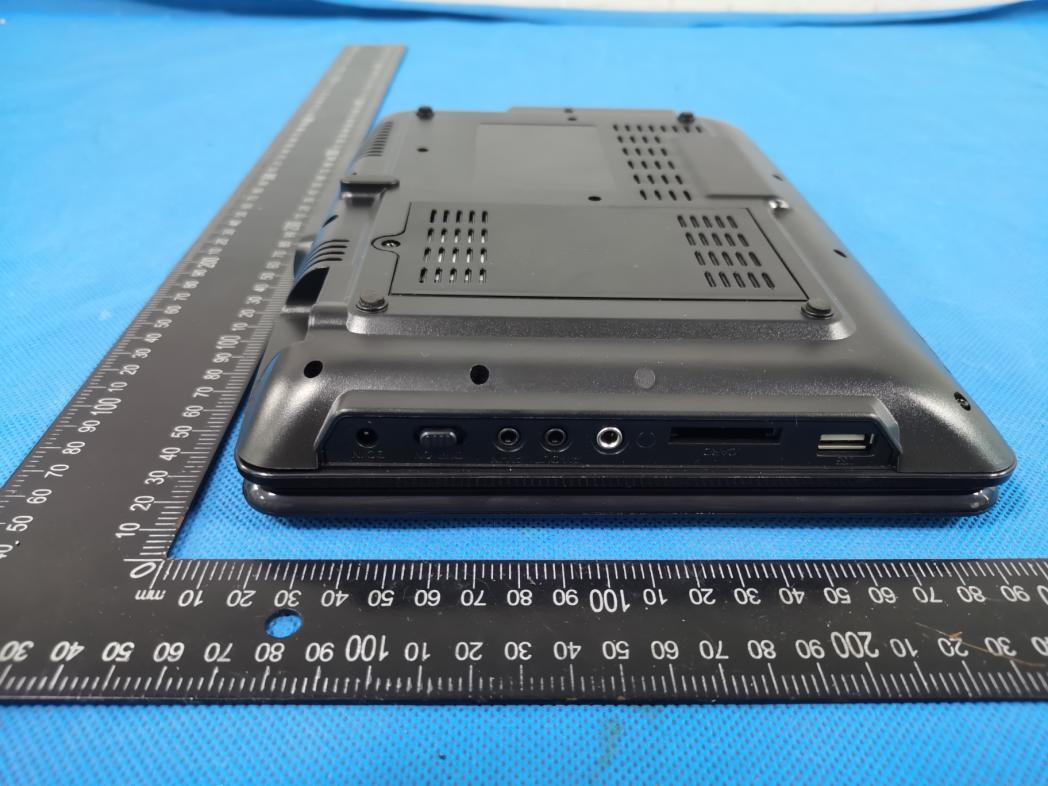

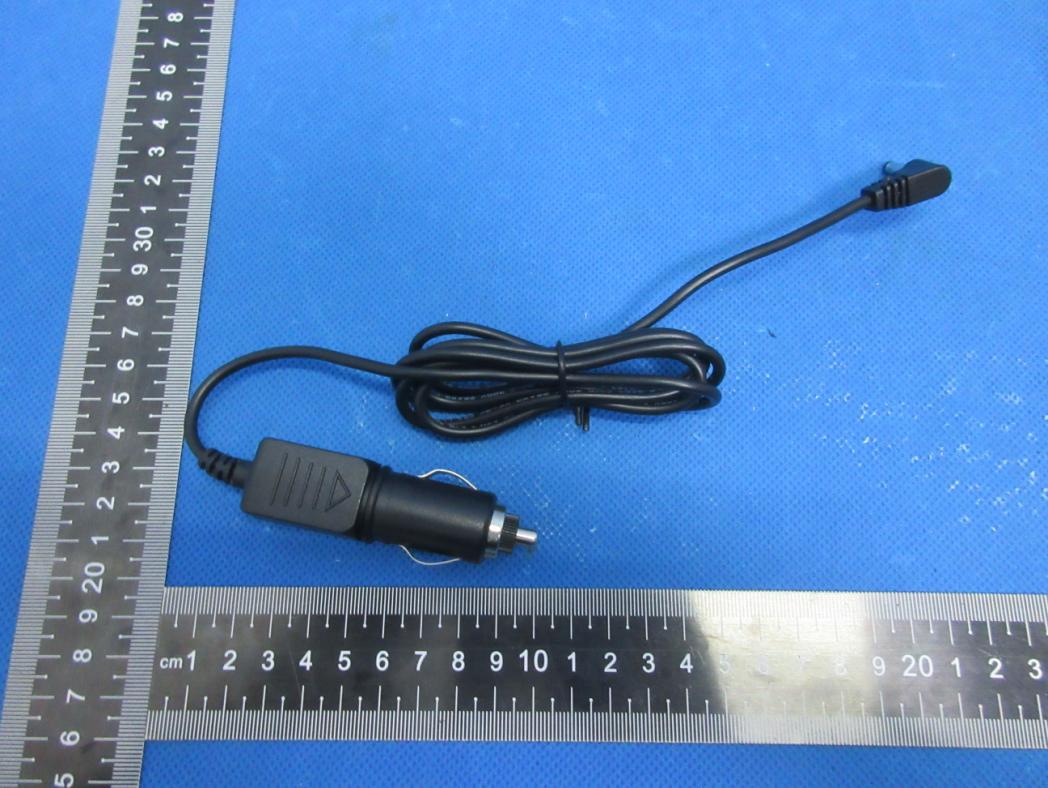

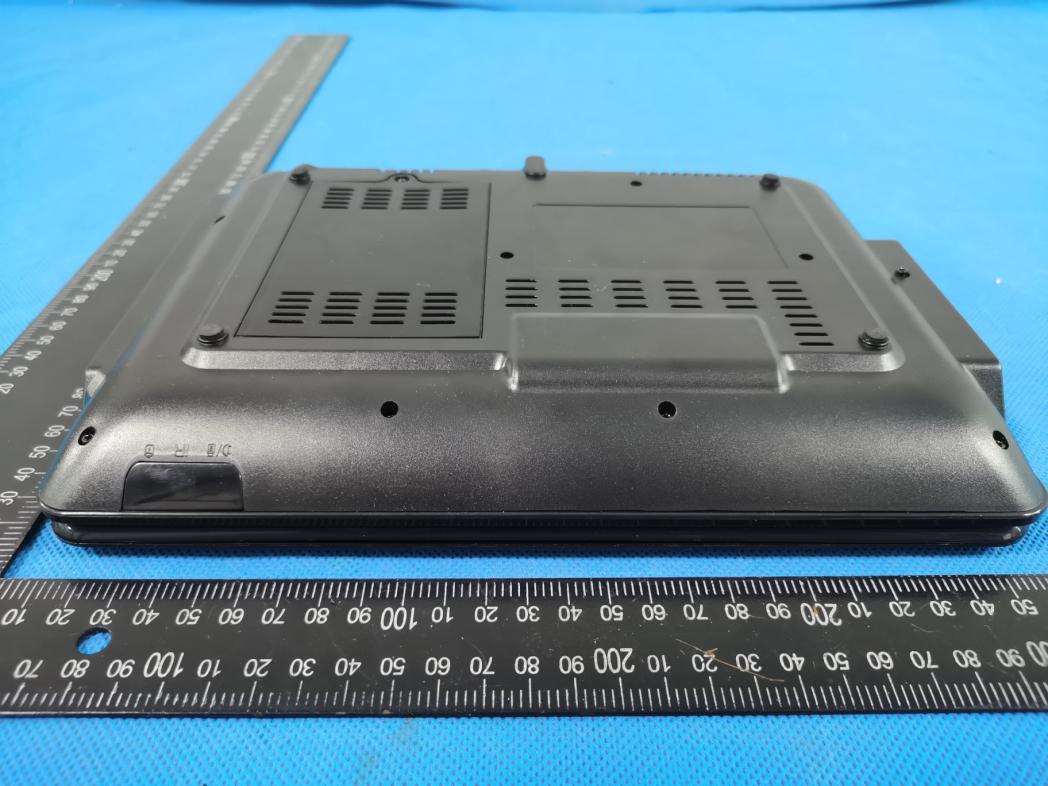

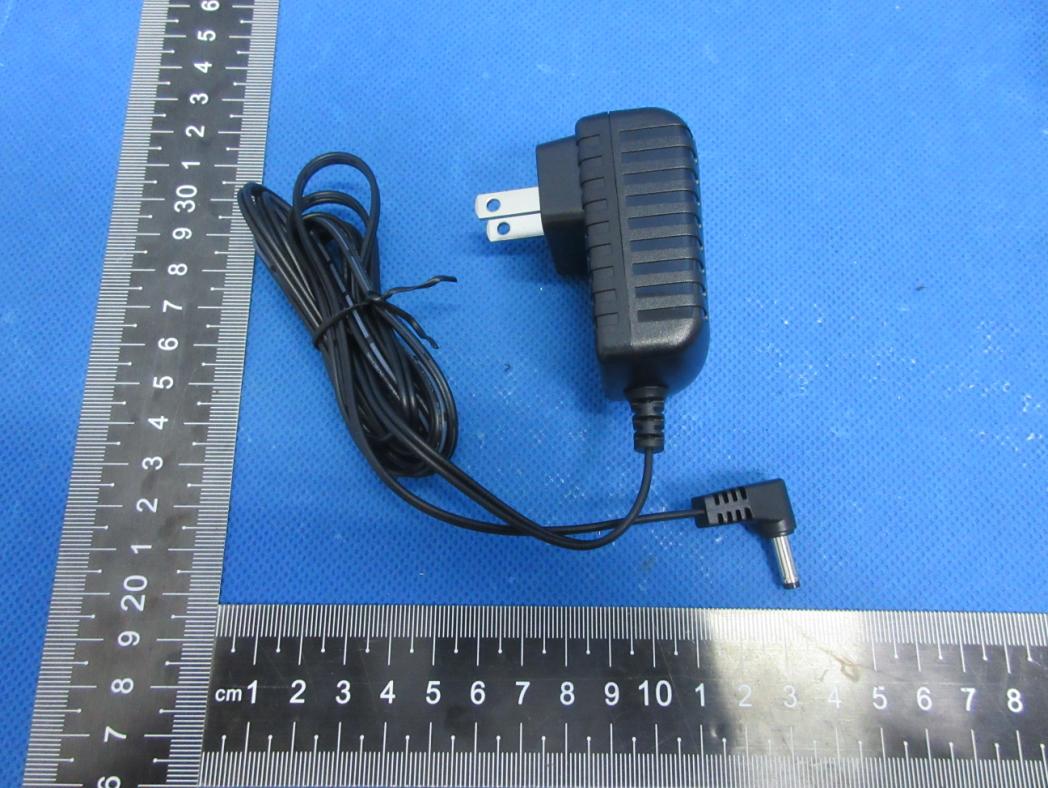

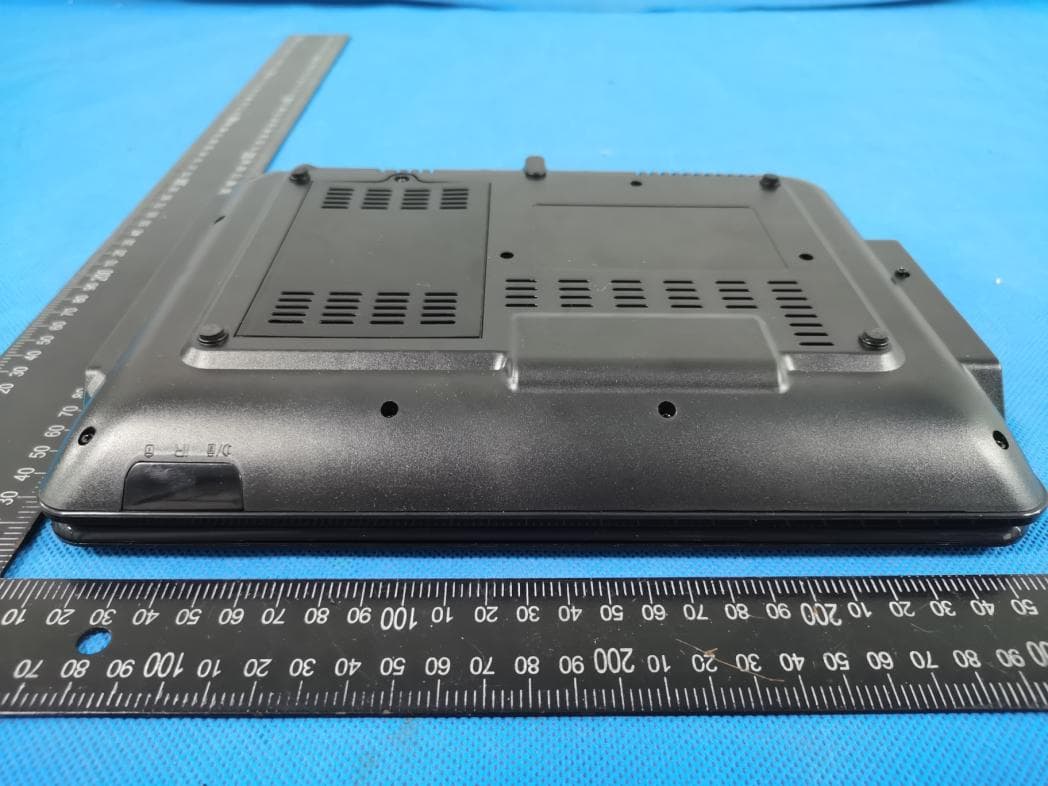

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

10.1 INCH PORTABLE DVD/CD PLAYER POWER SOURCE: 12V 1A Built-in rechargeable battery: 7.4V 2000mAh FCC ID:OKUDP030600 MODEL NO.: HJ10PRB01 JIN BALANCE LIMITED 11/F CAPITAL CENTRE 151 GLOUCESTER ROAD WANCHAI HK This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA 10.1 INCH PORTABLE DVD/CD PLAYER POWER SOURCE: 12V 1A Built-in rechargeable battery: 7.4V 2000mAh FCC ID:OKUDP030600 MODEL NO.: HJ10PRB01 JIN BALANCE LIMITED 11/F CAPITAL CENTRE 151 GLOUCESTER ROAD WANCHAI HK This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA Nameplate stickers Capital: 79 * 49 mm Sticker, black on white, over-gloss Usage: 1 PC Nameplate stickers Capital: 58 * 42 mm Sticker, two - color printing, surface gloss adhesive Usage: 1 PC

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 BT ANT Photo 9

version01 SHENZHENJUNLANELECTRONICLTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:HJ10PRB01,DP-030600 FCCID: OKUDP030600 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBantenna Gainoftheantenna:0dBi Frequencyrange:2400-2500MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:SHENZHENJUNLANELECTRONICLTD Address:No.277PingKuiRoad,ShijingCommunity,PingshanStreet,PingshanNew District,Shenzhen,China City:Shenzhen ZIP/Postalcode:N/A Country: China Place:pengxiaoDate:2020/07/28 Signature:

FCC ID: OKUDP030600 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: EDR: 2402MHz~2480MHz; Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 0dBi, R=20cm EDR: conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 -4.79 -5±1-40.3980.001.000.00011 2441 -4.823 -5±1-40.3980.001.000.00011 2480 -5.384 -5±1-40.3980.001.000.00011 2402 -2.941 -3±1-20.6310.001.000.00011 2441 -2.743 -3±1-20.6310.001.000.00011 2480 -3.391 -3±1-20.6310.001.000.00011 2402 -2.524 -2±1-10.7940.001.000.00021 2441 -2.384 -2±1-10.7940.001.000.00021 2480 -2.997 -2±1-10.7940.001.000.00021 (mW/cm2 )(mW/cm2) Antenna Gain GFSK π/4-DQPSK 8DPSK Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) Conclusion: For the max result : 0.0002≤ 1.0, compliance with FCC's RF Exposure. Signature: Date: 2020-07-28 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20062302602001 Version.1.3 Page 1 of 83 RADIO TEST REPORT FCC ID: OKUDP030600 Product: 10.1 INCH PORTABLE DVD/CD PLAYER Trade Mark: Model No.: HJ10PRB01 Family Model: DP-030600 Report No.: S20062302602001 Issue Date: 16 Jul. 2020 Prepared for SHENZHEN JUNLAN ELECTRONIC LTD No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20062302602001 Version.1.3 Page 2 of 83 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 33 7.10 ANTENNA APPLICATION .......................................................................................................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 40 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 45 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 55 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 60 8.6 BAND EDGE .................................................................................................................................................... 61 8.7 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 74 Report No.: S20062302602001 Version.1.3 Page 3 of 83 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : SHENZHEN JUNLAN ELECTRONIC LTD Address ....................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Manufacturer's Name .................. : SHENZHEN JUNLAN ELECTRONIC LTD Address ....................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product description Product name .............................. : 10.1 INCH PORTABLE DVD/CD PLAYER Model and/or type reference ..... : HJ10PRB01 Family Model ............................... : DP-030600 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TES…
