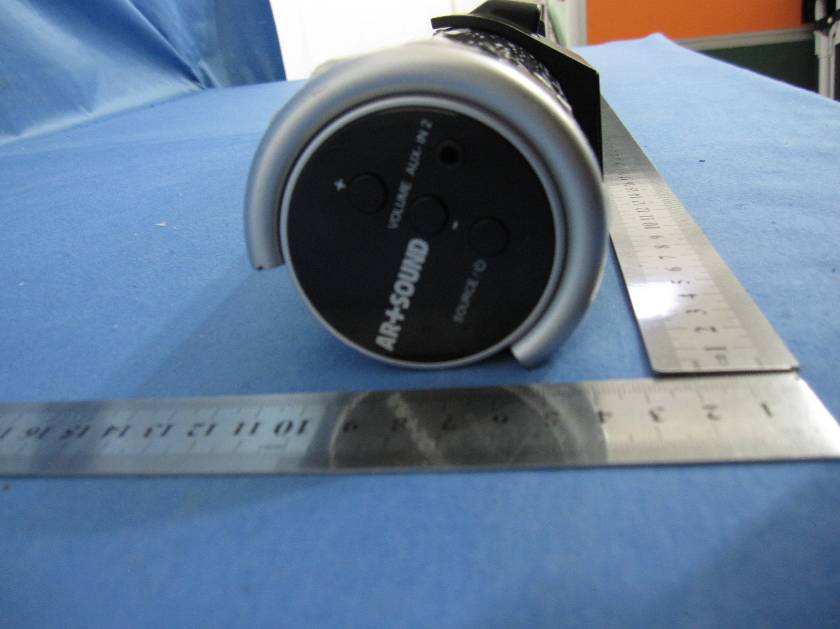

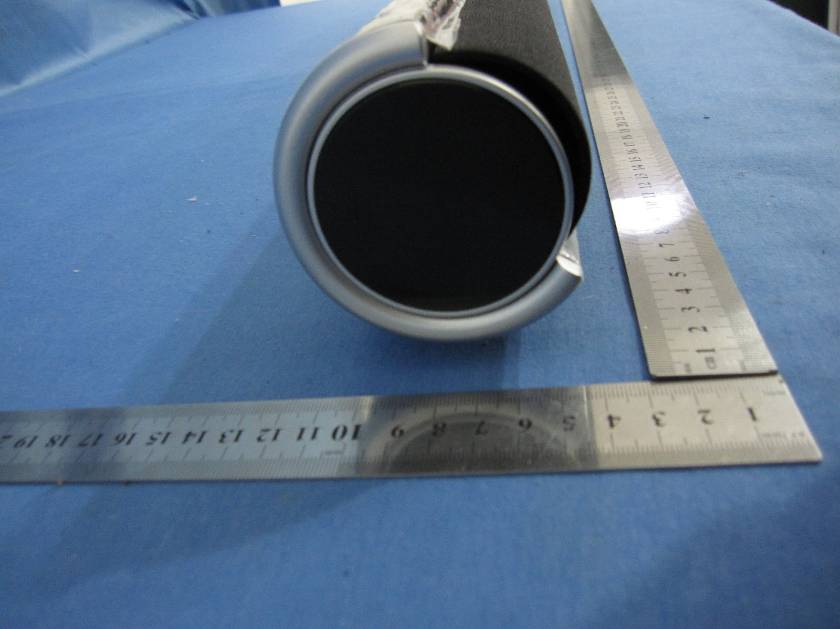

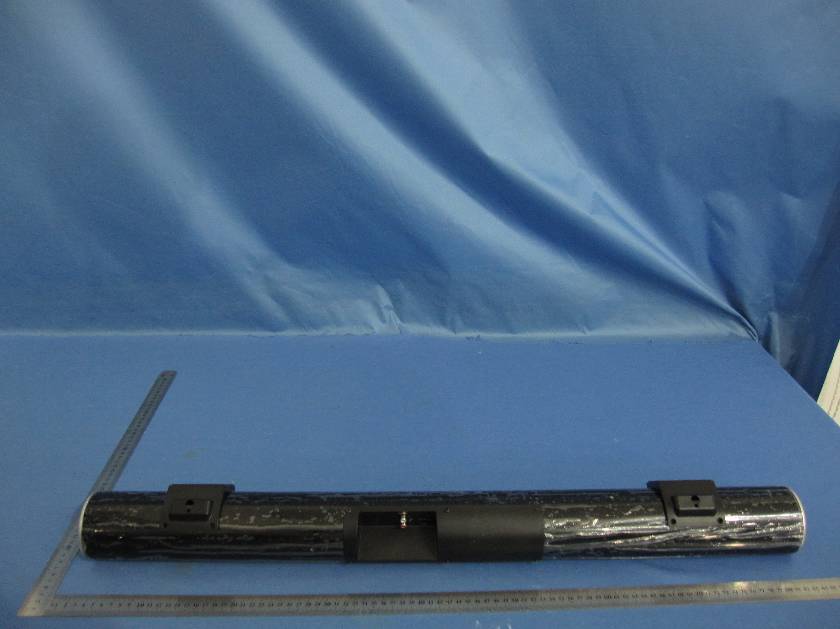

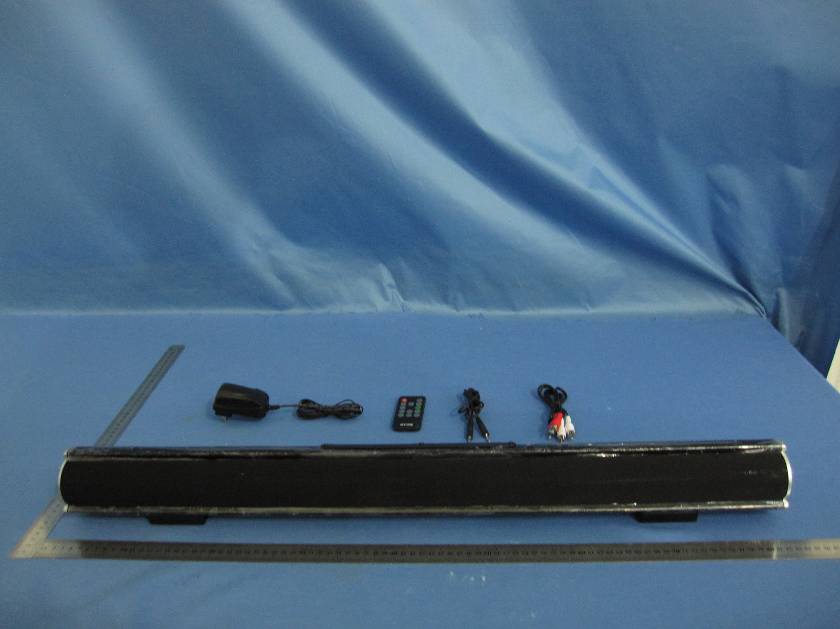

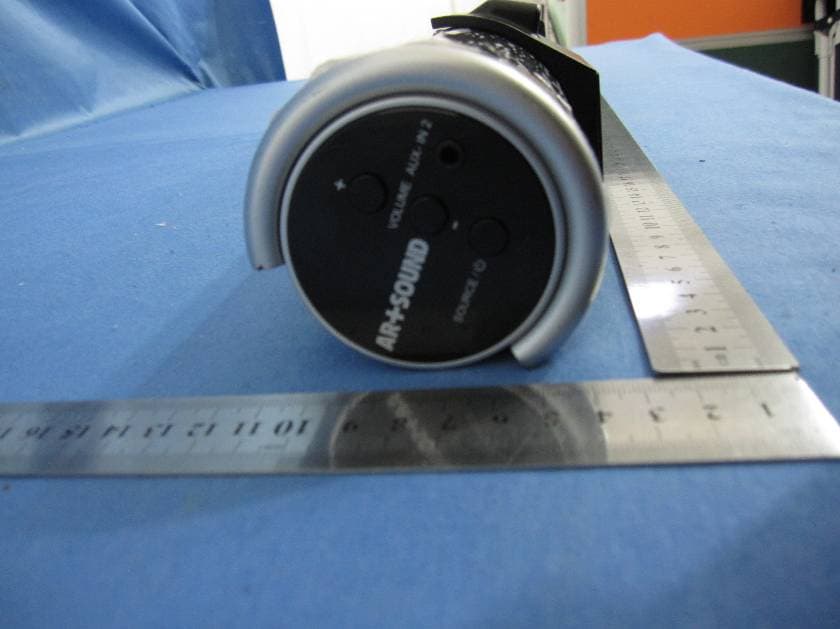

AR2000 User Manual Bk-BGL AR2000BK-BGLSLIM BLUETOOTH SOUNDBAR 1.Speaker2.Remote Sensor3.Indicator4.Volume +/- Button5.AUX-IN 2 Jack 7.RCA Jacks8.DC IN Jack 6.SOURCE/ (Standby) Button 2. / ( Skip Forward/Backward ) button 1. Power ON/OFF button 7. SOURCE button 4. BASS +/- buttons 5. ( Mute ) button3. EQ ( Equalizer ) button 6. ( Play/Pause ) button 8. VOL ( Volume ) +/- buttons9. TREBLE +/- buttons Soundbar User Manual Power adapter RCA cable Remote control 2 screws 2 plastic wall plugs 3.5mm auxiliary cord Fig.1 Fig.2 Fig.3 - First Time Use 1. Push and slide out the battery holder as figure 1 below.3. Close the battery holder.2. Replace the battery with a new CR2025 button cell as the polarity markings on the rear of the Remote Control. - If the battery is consume, replace it as below: Remove and discard the insulation tab as figure on the right. FRONT VIEW SIDE VIEW TOP VIEW To Turn the Unit ON To Turn the Unit OFF Connect the supplied power adapter to the DC IN jack. Then press the SOURCE/ button on the unit or the button on the remote control. Press and hold the SOURCE/ button on the unit or press the button on the remote control. AR2000BK-BGLSLIM BLUETOOTH SOUNDBAR AUX IN Connection AUX IN Playback: RCA AUX IN Connection: RCA AUX IN Playback: Examples of AUX IN sources are personal audio players and computers. 1. Connect a 3.5 mm auxiliary cord (included) between your audio player and the AUX-IN 2 Jack on the right side of the Soundbar. 2. Press the SOURCE/ button on the unit or the button on the remote control to turn on the Soundbar. 3. Press the SOURCE/ button on the unit or the SOURCE button on the remote control repeatedly until the indicator turns Orange. 4. Set your personal audio player to play. Press the button on the remote control to turn the sound OFF. Press again to resume sound. remote control to adjust the volume level. Press the Bass+/- button on the remote control to adjust the bass level.Press the Treble+/- button on the remote control to adjust thetreble level.Press the EQ button on the remote control to switch theequilibrium between POP/JAZZ/CLASSIC/ROCK/NORMAL.Press the Volume+/- button on the unit or the VOL+/- button on the Examples of RCA AUX IN sources are television sets, DVD players. and VCR players. 1. Connect RCA cord (included) between your audio player and the AUX-IN 1 Jacks on the top of the Soundbar. 2. Press the SOURCE/ button on the unit or the button on the remote control to turn on the Soundbar. 3. Press the SOURCE/ button on the unit or the SOURCE button on the remote control repeatedly until the indicator turns Green. 4. Set your personal external player to play. Press the button on the remote control to turn the sound OFF. Press again to resume sound. remote control to adjust the volume level. Press the Bass+/- button on the remote control to adjust the bass level.Press the Treble+/- button on the remote control to adjust thetreble level.Press the EQ button on the remote control to switch theequilibrium between POP/JAZZ/CLASSIC/ROCK/NORMAL.Press the Volume+/- button on the unit or the VOL+/- button on the 1. Press the SOURCE/ button on the unit or the button on the remote control to turn on the Soundbar. 2. Press the SOURCE/ button on the unit or the SOURCE button on the remote control repeatedly until the indicator turns Blue. 3. Keep the unit and the Bluetooth enabled device within 3 feet of each other during the pairing process. 4.Set your mobile phone or other Bluetooth enabled device to search for Bluetooth devices. BLUETOOTH Playback: Press the button on the remote control to turn the sound OFF. Press again to resume sound. the remote control to adjust the volume level. Press the Bass+/- button on the remote control to adjust the bass level.Press the Treble+/- button on the remote control to adjust thetreble level.Press the EQ button on the remote control to switch theequilibrium between POP/JAZZ/CLASSIC/ROCK/NORMAL.Press the Volume+/- button on the unit or the VOL+/- button on Press the or button on the remote control to skip to next or previous track. Press the button to pause playing track. Press again to resume playing. 22.4 inches 22.4 inches within 3 feet Go to SETTINGS>GENERAL>BLUETOOTH(Make sure Bluetooth is turned ON) Go to SETTINGS>OPTIONS>BLUETOOTHEnable BLUETOOTH On a Blackberry On an Android Phone On an iPhone Go to SETTINGS>BLUETOOTH>MENU>Search for devices(Make sure Bluetooth is turned ON) On other Cell Phone/Devices Review the instruction manual that came with yourphone/device. Mounting on wooden wall Mounting on brick wall Fixing Plug Screw Fixing Plug Screw Screw Screw 2. Drill the supplied screws directly into the 1. Mark the position of the mounting screws on the wall using a pencil. marks that you have made on the wall and leave approx. 0.3 inch length to hook the sound bar. 3. Put the sound bar onto the mounting screws. Make sure they are firm and stable. 3. Insert the supplied fixing plug and hammer into the holes. length to hook the sound bar. 2. Drill 2 holes by a powerful electric drill ( Not Supplied ). 1. Mark the position of the mounting screws on the wall using a pencil. 4. Secure the supplied screws into the fixing plugs and leave approx. 0.3 inch 5. Put the sound bar onto the mounting screws. Make sure they are firm and stable. The volume may be too low. Try increasing the volume bypressing Volume+ button on the speaker or VOL+ buttonon the remote control.The connected device might not be in playback mode.Play music the connected Bluetooth device.The sound output of the connected device is weak. Increase the volume of the connected Bluetooth device. The sound output of the connected device may be too high. Try reducing the volume of the connected Bluetooth device. The volume may be too high. Try reducing the volume bypressing Volume- button on the speaker or VOL- buttonon the remote control. Make sure no other devices are connected to the Soundbarand try the connection again. If a device was connected toth…

Text truncated - open the document above for the full version.

About Models ˖SBB-06682, AR2000 All above models are identical in the same PCB layout, interio r structure and electrical circuits. The only differences is model name for commercial purpose.

透明圆形贴纸 SIZE ： 直径35mm 单机数量：2PCS 铭牌贴纸黑底白字,过光胶SIZE：105*28MM 单机数量：1PC Model No.:AR2000 POWER SUPPLY: DC 12 1.2A POWER CONSUMPTION:20W FCC ID:OKUSBB06682 105 mm 28 mm 50 mm 100 mm 红色贴纸尺寸: 100 * 50MM 红底，编通：185C 用量：2PCS 备注：先查下有不有库存，可以用库存的 贴纸 SB B 胡本林 AR2000BK-BGL Southern Telecom 单号：JLE144 9 品号： 322710LE137101 2014.08.15 18:11:31+08'00'

Label Location Label location

FCC ID: OKUSBB06682 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances  50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[f(GHz)]  3.0 for 1-g SAR and  7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 93.48 dBuV/m @3m Ant gain =2dBi, so Ant numeric gain= 1.58 So pt={ [10 (93.48/20) /10 6 x 3] 2 /30x1.58 }x1000 mW = 0.42mW So (0.42 mW /5mm)x 2.48 = 0.132<3 Then SAR evaluation is not required 96.54 96.54/20 0.86mW So (0.86 mW /5mm)x 2.48 = 0.27<3

Global United Technology Services Co., Ltd. Report No.: GTSE14080149101 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Shenzhen Junlan Electronic Ltd Address of Applicant: District 2 type A plant in the second layer 1-4, NO.2 Industrial Fuyuan Tangwei Fuyong Baoan Shenzhen China Equipment Under Test (EUT) Product Name: BLUETOOTH TOWER SPEAKER Model No.: SBB-06682, AR2000 Trade Mark: AR±SOUND FCC ID: OKUSBB06682 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: August 21, 2014 Date of Test: August 21-29, 2014 Date of report issued: August 29, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14080149101 Global United Technology Services Co., Ltd. Project No.: GTSE140801491RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 31 2 Version Version No. Date Description 00August 29, 2014 Original Prepared By: Date: August 29, 2014 Project Engineer Check By: Date: August 29, 2014 Reviewer Report No.: GTSE14080149101 Global United Technology Services Co., Ltd. Project No.: GTSE140801491RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 31 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 7 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5TEST FACILITY .................................................................................................................................... 7 5.6TEST LOCATION ................................................................................................................................. 7 5.7OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6TEST INSTRUMENTS LIST ..................................................................................................................... 8 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2CONDUCTED EMISSIONS ................................................................................................................... 10 7.3RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2Spurious emissions .................................................................................................................... 16 7.3.3Bandedge emissions.................................................................................................................. 20 7.420DB OCCUPY BANDWIDTH .............................................................................................................. 21 8TEST SETUP PHOTO ............................................................................................................................ 23 9EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 25 Report No.: GTSE140…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
