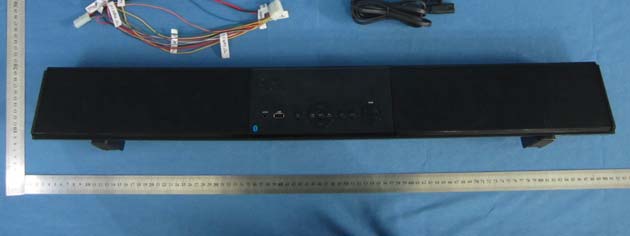

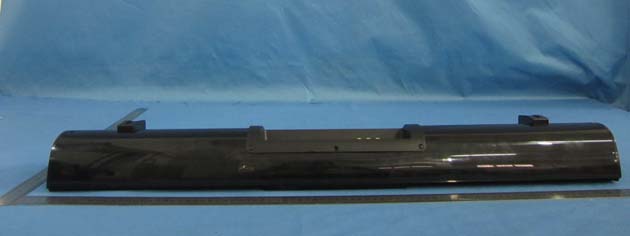

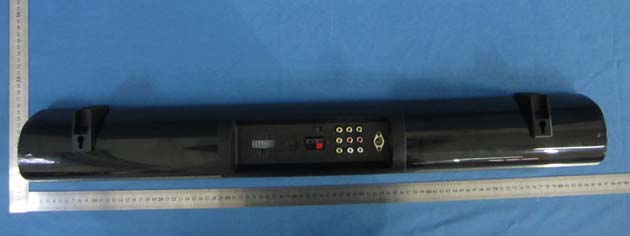

OKUSBB23011Soundbar Speaker

OPT FM BT TV DVD AUX DB C PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE MODEL:SBS32Z4 USB --INSTALLATION AND OPERATION MANUAL-- TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS.........................................................2-3 GENERAL VIEW.................................................................................................5 SPECIFICATIONS............................................................................................16 TROUBLESHOOTING GUIDE.........................................................................15 USB...................................................................................................................14 AUX IN...............................................................................................................14 CONNECT TO TV/DVD.....................................................................................13 CONNECT USING OPTICAL............................................................................12 LISTEN TO FM RADIO.....................................................................................10 BLUETOOTH PAIRING AND PLAYBACK........................................................10 SPEAKER/POWER WIRE SOCKET DIAGRAM................................................6 PLACING AND MOUNTING...............................................................................4 PACKING LIST....................................................................................................1 INTRODUCTION.................................................................................................1 FEATURES..........................................................................................................1 REMOTE CONTROL..........................................................................................7 GENERAL OPERATIONS..................................................................................9 ADDING OPTIONAL EXTERNAL SUBWOOFER.............................................11 BATTERY INSTALLATION--REMOTE CONTROL............................................8 Features of the Connexx SBS-32Z4 soundbar stereo include: Digital FM tuner w/10 presets Bluetooth wireless technology Built-in subwoofer (w/optional external subwoofer as an add-on accessory) 4 zone audio distribution 4 zone video distribution 3.5 mm aux input jack on front panel USB input on front panel w/device charging capabilities Digital Optical input on rear panel 2 analog stereo inputs on rear panel LED backlit controls Wireless remote control included Thank you for choosing a Connexx product. We hope you will find the Instructions in this owner's manual clear and easy to follow. If you take a few minutes to review, you will learn how to use all of the features of your new soundbar stereo for maximum enjoyment. User Manual AV Connection Cable Wall Mounting Brackets FM Antenna Remote Control with Two Batteries Wire Harness for Speakers OPT FM BT TV DVD AUX DB C USB OPTICAL BT USB FM TV DVD VOL- VOL+ AUX IN PAIR MUTE / / / ZONE A POWER TUN- TUN+ ZONE B ZONE C ZONE D OPT FM BT TV DVD AUX DB C PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE MODEL:SBS-32Z4 USB --INSTALLATION AND OPERATION MANUAL-- Main Unit 1 DC Power Extension (Red and Black) Wire AAA AAA INTRODUCTION FEATURES PACKING LIST This unit has a long cord that can easily be tripped on or pulled on, causing injury, Please make sure USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORDUSE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. it is arranged so it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped over accidentally. CAUTION: TO R E D U C E T H E R I S K O F E L E C T R I C S H O C K , D O N O T R E M O V E COVER (OR BACK). NO USER- S E RV I C E A B L E PA RT S I N S I D E . R E F E R S E R V I C I N G T O Q U A L I F I E D S E R V I C E PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital d e v i c e , p u r s u a n t t o p a r t 1 5 o f t h e F C C Rules. These limits are designed to provide r e a s o n a b l e p r o t e c t i o n a g a i n s t h a r m f u l interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications. ● Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet with a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. 1 ) Read these instructions All the safety and operating instructions should be read before the product is operated. 2 ) Keep these instructions The safety and operating instructions should be retained for future reference. 3 ) Heed all warnings A l l w a r n i n g s o n t h e p r o d u c t a n d i n t h e operating instructions should be adhered to. 4 ) Follow all instructions All operating and use instructions should be followed. 5 ) Do not use this apparatus near water Do not use this product near water and m o i s t u r e , f o r e x a m p l e : n e a r a b a t h t u b , washbowl, kitchen sink or laundry …

Text truncated - open the document above for the full version.

FCC 贴纸 (黑底白字) SIZE:50*15MM 单机数量：1PC FCC ID:OKUSBB23011 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1404000000001 10A FUSE MODEL#:SBS32Z4 Made in China 贴纸 贴纸 FCC ID:OKUSBB23011 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 贴纸 订单号:JLE14053D ENCORE 贴纸 张富兴 SBS32Z4 品号： SBB-23011

Label location

FCC ID: OKUSBB23011 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 98.56 dBuV/m @3m Ant gain =2dBi, so Ant numeric gain= 1.58 So pt={ [10 (98.56/20) /10 6 x 3] 2 /30x1 }x1000 mW = 1.359mW So (1.359 mW /5mm)x √2.48 = 0.428<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE14040059201 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Shenzhen Junlan Electronic Ltd Address of Applicant: District 2 type A plant in the second layer 1-4, NO.2 Industrial Fuyuan Tangwei Fuyong Baoan Shenzhen China Equipment Under Test (EUT) Product Name: Soundbar Speaker Model No.: SBB-23011, SBS32Z4 Trade Mark: CONNEXX FCC ID: OKUSBB23011 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: May 09, 2014 Date of Test: May 09-16, 2014 Date of report issued: May 16, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14040059201 Global United Technology Services Co., Ltd. Project No.: GTSE140400592RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 31 2 Version Version No. Date Description 00 May 16, 2014 Original Prepared By: Date: May 16, 2014 Project Engineer Check By: Date: May 16, 2014 Reviewer Report No.: GTSE14040059201 Global United Technology Services Co., Ltd. Project No.: GTSE140400592RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 31 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions .................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 25 Report No.: GTSE14040059201 Global United Technology Services Co.,…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
