Model: SBB-A5521 30" Bluetooth soundbar speaker with wireless subwoofer and Dolby Please read this instruction manual carefully and keep it for future reference W ARN ING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORDThis unit has a long cord that can be easily tripped on or pulled on, causing injury. Please make sure it is arranged so that it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped over accidentally. C AUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DANGEROUSVOLTAGE:Thelightingflashwitharrowheadsymbolwithin anequilateraltriangleisintendedtoalerttheusertothepresenceof uninsulated“dangerousvoltage”withintheproduct’senclosurethatmay ATTENTION:Theexclamationpointwithinanequilateraltriangleisintendedto alerttheusertothepresenceofimportantoperatingandmaintenance (servicing)instructionsintheliteratureaccompanyingtheappliance. 2 1.Readtheseinstructions A ll the safety and operating instructions should be read before the appliance is operated. 2.Keeptheseinstructions T he safety and operating instructions should be kept for future reference. 3.Heedallwarnings A ll warnings on the appliance and in the operating instructions should be adhered to. 4.Followallinstructions A ll operation and use instructions should be followed. 5.Donotusethisapparatusnearwater T he appliance should not be used near water; for example, near a bath tub, be of sufficient magnitude to constitute a risk of electric shock to persons. Before using the unit, be sure to read all operating instructions carefully, please note that these are general precautions. w ashbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 6.Cleanonlywithdrycloth T he appliance should be cleaned only as recommended by the manufacturer. 7.Donotblockanyventilationopenings.Installinaccordancewiththe manufacturer’s instructions. Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation, such as a 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments / accessories specified by the manufacturer. 12.Useonlywithacart,stand,tripod,bracket,ortable specifiedbythemanufacturer,orsoldwiththeapparatus. Whenacartisused,usecautionwhenmovingthe cart/apparatuscombinationtoavoidinjury fromtip-over. A n appliance and cart combination should be moved with care. Quick stop, combination to overturn. 13.Unplugthisapparatusduringlightningstormsorwhenunusedfor l ong periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or 3 bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. excessive force and uneven surfaces may cause the appliance and cart 9. Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has two prongs and a third grounding prong. The third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. Portable Cart Warning m oisture, does not operate normally, or has been dropped. 15. Power source This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other source, refer to the operation instructions. 16. Power lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 17. Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 18. Object and liquid entry Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product. 4 19. 2 0. Service Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire or electric shock or other hazards. 21. Replacement parts Upon completion of any service or repairs to this…

Text truncated - open the document above for the full version.

SHENZHEN JUNLAN ELECTRONIC LTD No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product Similarity Declaration Date: January 13, 2020 FCC ID: OKUSBBA5521 Model Number: SBB-A5521; Atune analog 07, SBB-XXXXX, (where X can be 0-9 or A-Z) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, SHENZHEN JUNLAN ELECTRONIC LTD hereby declare that our product (Bluetooth Tower Stereo) Model Number: SBB-A5521; Atune analog 07, SBB-XXXXX, (where X can be 0-9 or A-Z) board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: / safety engineer Company: SHENZHEN JUNLAN ELECTRONIC LTD Address: No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Tel: 0755-27309169 Fax: 0755-27309497 E-Mail: [email protected] Peng Xiao

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: SHENZHEN JUNLAN ELECTRONIC LTD Address: No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product Name: 30inch Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Model Number: SBB-A5521; Atune analog 07, SBB-XXXXX, (where X can be 0-9 or A-Z) FCC Identifier: OKUSBBA5521 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Date: January 13, 2020 Title: safety engineer Signature of applicant: Shenzhen Junlan Electronic Ltd Peng Xiao

C5266091_X10_Ed.1 1/1 Office of Engineering Technology Federal Communications Commission 7075 Flying Cloud Dr. Eden Prairie, MN 55344 USA Date: January 13, 2020 Subject: Request for Confidentiality FCC ID: OKUSBBA5521 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: safety engineer Shenzhen Junlan Electronic Ltd Peng Xiao

50.0mm 35.0mm Model No.:SBB-A5521 FCC ID.:OKUSBBA5521 M/D.:03-01-2020 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation. 铭牌贴纸 尺寸：50.0*35.0mm 材质：不干胶，黑底白字，过光胶 用量：1PC inch Power Source: Model No.:SBB-A5521 FCC ID.:OKUSBBA5521 M/D.:03-01-2020 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation. inch Power Source: 50.0mm 20.0mm 低音炮铭牌贴纸 尺寸：50.0*20.0mm 材质：不干胶，黑底白字，过光胶 用量：1PC Model No.:SBB-A5521 M/D.:03-01-2020 Made in China inch Power Source: Model No.:SBB-A5521 M/D.:03-01-2020 Made in China inch Power Source:

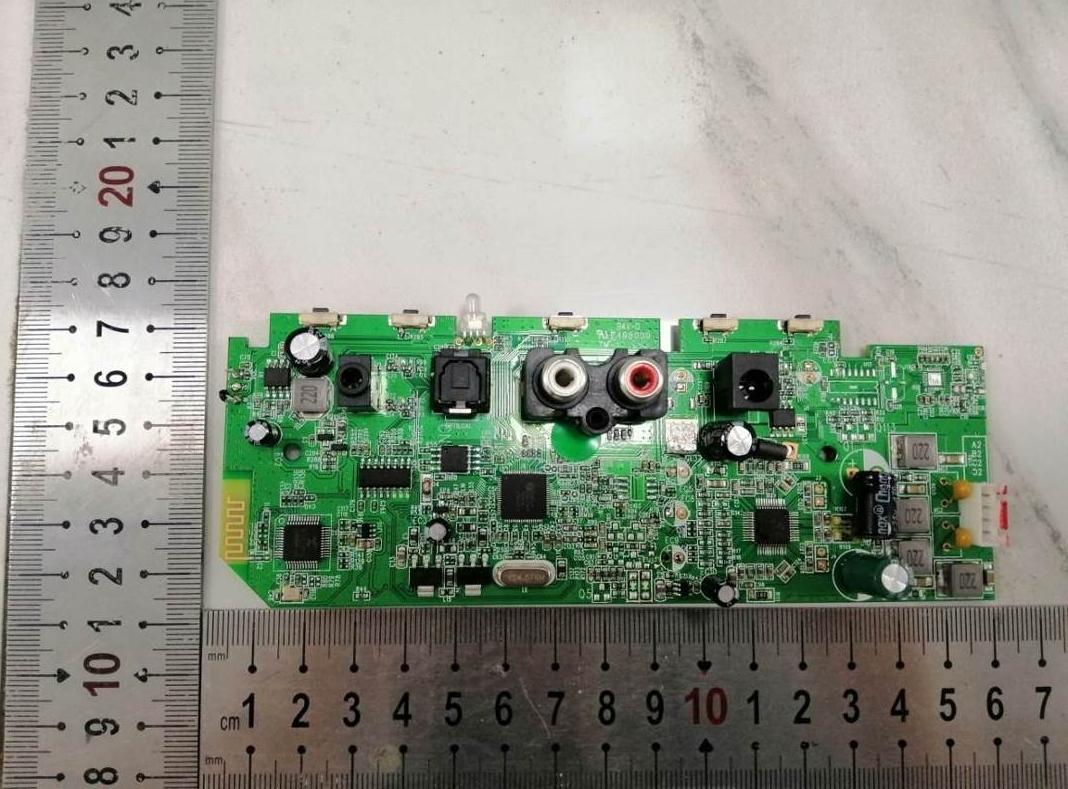

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Fig. 3 Fig. 4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID : OKUSBBA5521 Product Name : 30INCH Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Model Number : Atune analog 07， SBB-XXXXX, (where X can be 0-9 or A-Z) Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Test Model : SBB-A5521 Power Supply : INPUT: 100-240V~, 50/60Hz, 0.8A MAX OUTPUT: 16V1800mA Hardware Version : V1.0 Software Version : V1.0 Bluetooth : 2402-2480MHz Channel Number : 79 Channels for Bluetooth V5.0 (DSS) Channel Spacing : 1MHz for Bluetooth V5.0 (DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) Bluetooth Version : V5.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device 2. Evaluation method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Refer Evaluation Method 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 R=distance to the center of radiation of the antenna 5. Antenna Information ZJ-MWIR-RGB can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2402-2480MHz 0dBi BT Antenna 6.Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 0 2402 2.885 39 2441 0.967 78 2480 2.181 π/4DQPSK 0 2402 2.172 39 2441 0.392 78 2480 1.423 8DPSK 0 2402 2.312 39 2441 0.560 78 2480 1.639 7. Manufacturing Tolerance GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2 1 2 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2 0 1 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2 0 1 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 ___________________________________________________________________________ This report shall not be reproduced except in full, without the writte…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR SHENZHEN JUNLAN ELECTRONIC LTD 30inch Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Test Model: SBB-A5521 Additional Model No.: Please Refer To Page 6 Prepared for : SHENZHEN JUNLAN ELECTRONIC LTD Address : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 27, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : December 27, 2019 ~ December 29, 2019 Date of Report : January 03, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191225072AEA Date of Issue ................................... : January 03, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : SHENZHEN JUNLAN ELECTRONIC LTD Address ........................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : 30inch Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Trade Mark ...................................... : Test Model ...................................... : SBB-A5521 Ratings ............................................ : INPUT: 100-240V~, 50/60Hz, 0.8A MAX OUTPUT: 16V1800mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191225072AEA January 03, 2020 Date of issue Test Model........................... : SBB-A5521 EUT......................................... : 30inch Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Applicant............................... : SHENZHEN JUNLAN ELECTRONIC LTD Address.................................. : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN JUNLAN ELECTRONIC LTD Address................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHENZHEN JUNLAN ELECTRONIC LTD Address................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 January 03, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List ............................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: 30inch Bluetooth Soundbar Speaker with Wireless Subwoofer and Dolby Trade Mark: Test Model: SBB-A5521 Environmental Conditions Temperature: 23.2C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Zhuo Zhuo Supervised by: Tom.Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.885 21 PASS MCH 0.967 21 PASS HCH 2.181 21 PASS π/4DQPSK LCH 2.172 21 PASS MCH 0.392 21 PASS HCH 1.423 21 PASS 8DPSK LCH 2.312 21 PASS MCH 0.560 21 PASS HCH 1.639 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.027 Not Specified PASS MCH 1.022 Not Specified PASS HCH 1.032 Not Specified PASS π/4DQPSK LCH 1.289 Not Specified PASS MCH 1.315 Not Specified PASS HCH 1.290 Not Specified PASS 8DPSK LCH 1.292 Not Specified PASS MCH 1.298 Not Specified PASS HCH 1.294 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.010 0.685 PASS MCH 0.966 0.681 PASS HCH 0.718 0.688 PASS π/4DQPSK LCH 1.060 0.859 PASS MCH 1.124 0.877 PASS HCH 1.120 0.860 PASS 8DPSK LCH 1.298 0.861 PASS MCH 1.018 0.865 PASS HCH 0.882 0.863 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.516 -36.861 -17.484 PASS MCH 0.757 -37.396 -19.243 PASS HCH 1.84 -36.961 -18.160 PASS π/4DQPSK LCH 0.68 -37.652 -19.320 PASS MCH -0.344 -35.829 -20.344 PASS HCH 0.61 -38.061 -19.390 PASS 8DPSK LCH 1.29 -37.507 -18.710 PASS MCH -0.402 -36.927 -20.402 PASS HCH 0.531 -37.425 -19.469 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 Report No.: LCS191225072AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE T…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OKUSBBA5521 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
