A URA WALL MOUNT STEREO OWNE R’S MANUAL MODEL：JBL-AURA FCC ID: OKUSBF19E80 2 This unit has a long cord that can easily be tripped on or pulled on, causing injury, Please make sure USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORDUSE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. it is arranged so it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped over accidentally. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Ɣ 5HRULHQW RU UHORFDWH WKH UHFHLYLQJ antenna. Increase the separation between the equipment and receiver. Ɣ &RQQHFW WKH HTXLSPHQW LQWR DQ RXWOHW with a circuit different from that to which the receiver is connected. Ɣ &RQVXOW WKH GHDOHU RU DQ H[SHULHQFHG radio/TV technician for help. Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. 1 ) Read these instructions All the safety and operating instructions should be read before the product is operated. 2 ) Keep these instructions The safety and operating instructions should be retained for future reference. 3 ) Heed all warnings All warnings on the product and in the operating instructions should be adhered to. 4 ) Follow all instructions All operating and use instructions should be followed. 5 ) Do not use this apparatus near water Do not use this product near water and moisture, for example: near a bathtub, ZDVKERZONLWFKHQVLQNRUODXQGU\WXELQDZHW EDVHPHQWRUQHDUDVZLPPLQJSRRO WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY. FCC WARNING: To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifications not authorized by the manufacturer may void user`s authority to operate this device. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: IMPORTANT SAFETY INSTRUCTIONS 8 ) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat. 9 ) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 ) Protect the power cord from being ZDONHG RQ RU SLQFKHG SDUWLFXODUO\ DW SOXJV convenience the apparatus. 13 ) Refer all servicing to qualified service personnel. Servicing is required when the apparatus apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped. 14 ) Power source This product should be operated only from the W\SHRISRZHUVRXUFHLQGLFDWHGRQWKHPDUNLQJ label. refer to the operation instructions. 15 ) Service Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 6 ) Clean only with dry cloth Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. 7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions Slots and openings in the cabinet and in the EDFN RU ERWWRP DUH SURYLGHG IRU YHQWLODWLRQ WR ensure reliable operation of the product and to protect it from overheating. These openings PXVWQRWEHEORFNHGRUFRYHUHG7KHRSHQLQJV VKRXOGQHYHUEHEORFNHGE\SODFLQJWKHSURGXFW on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation VXFK DV D ERRNFDVH RU UDFN XQOHVV SURSHU ventilation is provided or the manufacturer's instructions have been adhered to. receptacles, and the point where they exit from has been damaged in any way, such as power- supply cord or plug is damaged, liquid has the beenobjects have fallen into or spilled WARNING: To reduce the risk of fire or electric shock, do or splashing and that objects vases shall not be placed on apparatus. 11 ) Only use attachments/accessories VSHFL¿HGE\WKHPDQXIDFWXUHU 12 ) Unplug this apparatus during lightning storms or when unused for long period…

Text truncated - open the document above for the full version.

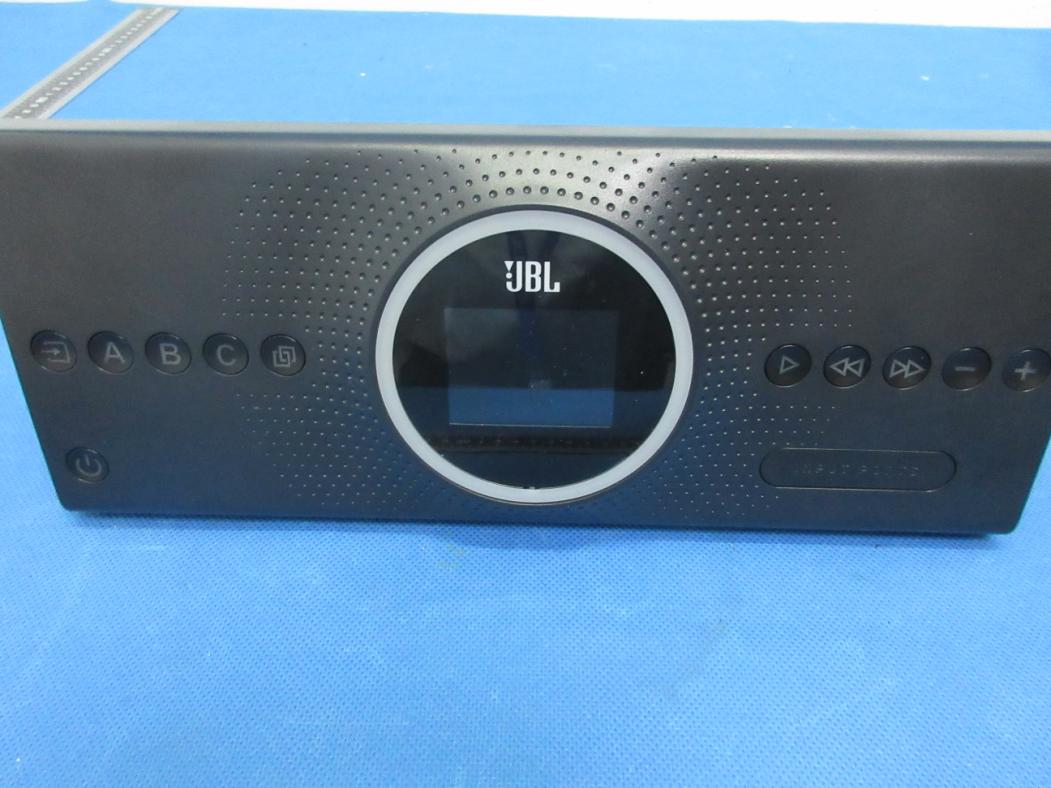

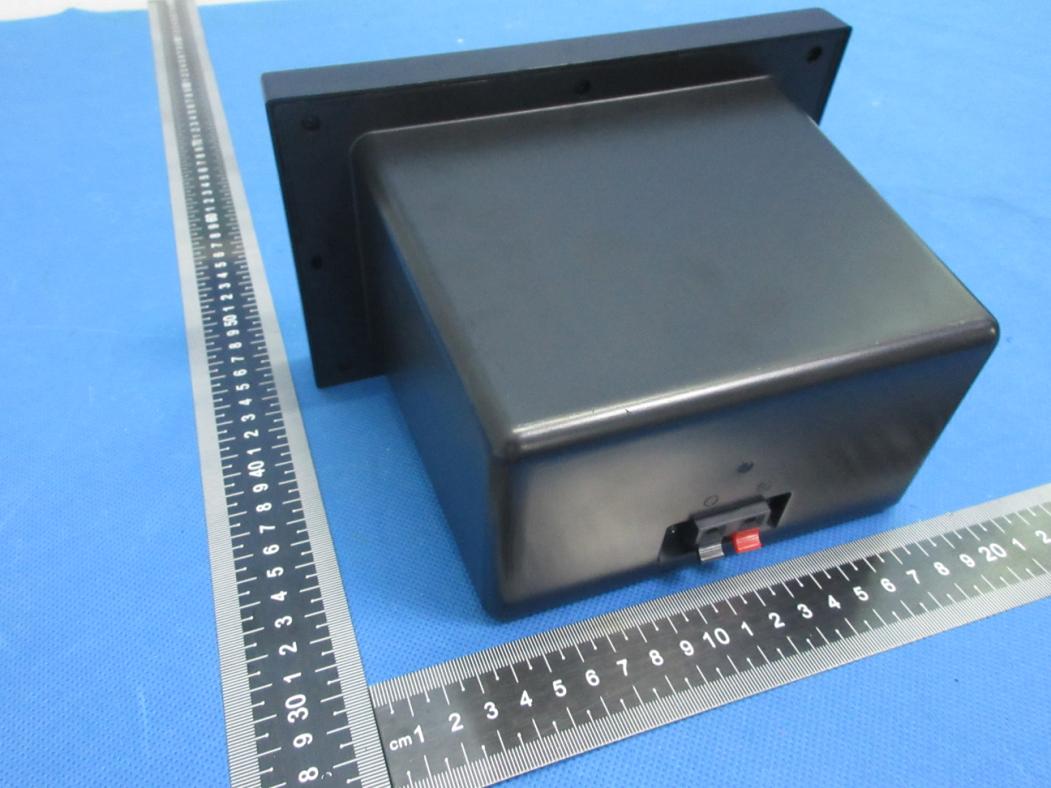

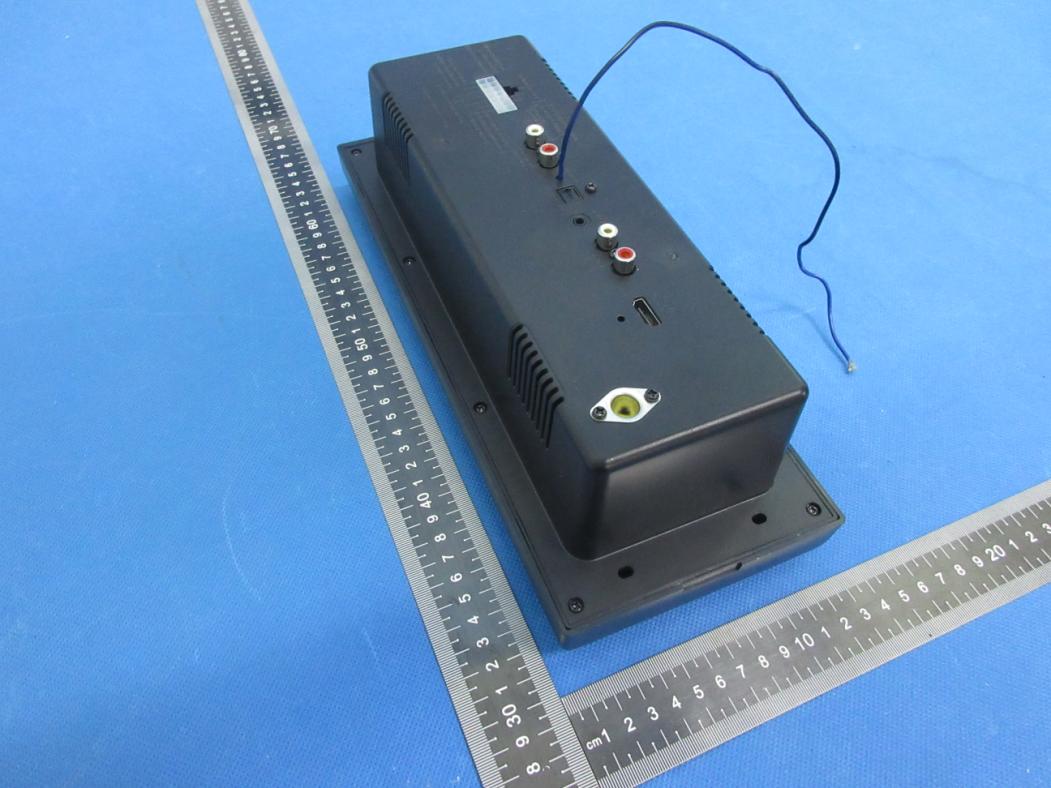

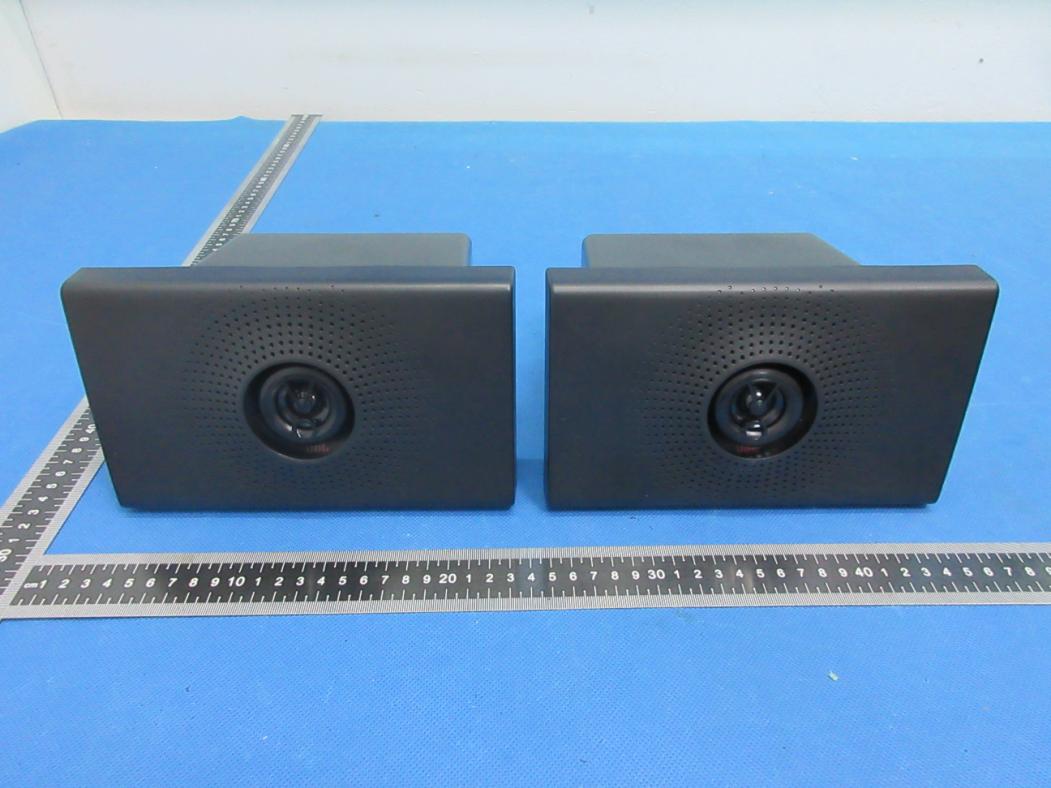

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

FCC ID: OKUSBF19E80 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC label 50x20mm MODEL#: JBL-AURA Made in China FCC ID: OKUSBF19E80 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. AURA WALL MOUNT STEREO

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 BT ANT Photo 9 Photo 10

version01 SHENZHENJUNLANELECTRONICLTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:JBL-AURA,SB-F19E80,AA-111110,BL-AURA-SPK FCCID: OKUSBF19E80 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBantenna Gainoftheantenna:0.7dBi Frequencyrange:2400-2500MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:SHENZHENJUNLANELECTRONICLTD Address:No.277PingKuiRoad,ShijingCommunity,PingshanStreet,PingshanNew District,Shenzhen,China City:Shenzhen ZIP/Postalcode:N/A Country: China Place:pengxiaoDate:2020/05/13 Signature:

FCC ID: OKUSBF19E80 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: EDR: 2402MHz~2480MHz; Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 0.7dBi, R=20cm EDR: conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 2.957 2±131.9950.701.170.00051 2441 2.874 2±131.9950.701.170.00051 2480 2.96 2±131.9950.701.170.00051 2402 2.635 2±131.9950.701.170.00051 2441 2.603 2±131.9950.701.170.00051 2480 2.711 2±131.9950.701.170.00051 2402 2.766 2±131.9950.701.170.00051 2441 2.823 2±131.9950.701.170.00051 2480 2.85 2±131.9950.701.170.00051 8DPSK Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm)(mW/cm2 )(mW/cm2) Antenna Gain GFSK π/4-DQPSK Conclusion: For the max result : 0.0005≤ 1.0, compliance with FCC's RF Exposure. Signature: Date: 2020-05-13 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20032802102001 Version.1.3 Page 1 of 82 RADIO TEST REPORT FCC ID: OKUSBF19E80 Product: AURA WALL MOUNT STEREO Trade Mark: JBL Model No.: JBL-AURA Family Model: SB-F19E80,AA-111110,BL-AURA-SPK Report No.: S20032802102001 Issue Date: 30 Apr. 2020 Prepared for SHENZHEN JUNLAN ELECTRONIC LTD No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20032802102001 Version.1.3 Page 2 of 82 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 DWELL TIME ............................................................................................................................................... 34 8.2 MAXIMUM CONDUCTED OUTPUT POWER........................................................................................... 39 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 44 8.4 CARRIER FREQUENCIES SEPARATION .................................................................................................. 54 8.5 NUMBER OF HOPPING CHANNEL ........................................................................................................... 59 8.6 BAND EDGE ................................................................................................................................................. 60 8.7 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 73 Report No.: S20032802102001 Version.1.3 Page 3 of 82 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : SHENZHEN JUNLAN ELECTRONIC LTD Address ....................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Manufacturer's Name .................. : SHENZHEN JUNLAN ELECTRONIC LTD Address ....................................... : No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product description Product name .............................. : AURA WALL MOUNT STEREO Model and/or type reference ..... : JBL-AURA Family Model ............................... : SB-F19E80, AA-111110, JBL-AURA-SPK Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR P…

Text truncated - open the document above for the full version.

Report No.: S20032802102001 Version.1.3 Page 71 of 82 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Report No.: S20032802102001 Version.1.3 Page 72 of 82 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S20032802102001 Version.1.3 Page 73 of 82 8.7 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 -57.44 -20 Pass NVNT 1-DH5 2441 Ant 1 -48.53 -20 Pass NVNT 1-DH5 2480 Ant 1 -50.89 -20 Pass NVNT 2-DH5 2402 Ant 1 -55.82 -20 Pass NVNT 2-DH5 2441 Ant 1 -56.6 -20 Pass NVNT 2-DH5 2480 Ant 1 -54.46 -20 Pass NVNT 3-DH5 2402 Ant 1 -56.41 -20 Pass NVNT 3-DH5 2441 Ant 1 -55.7 -20 Pass NVNT 3-DH5 2480 Ant 1 -56.45 -20 Pass Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 74 of 82 Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 75 of 82 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 76 of 82 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 77 of 82 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 78 of 82 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 79 of 82 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 80 of 82 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 81 of 82 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Report No.: S20032802102001 Version.1.3 Page 82 of 82 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT
