OKUSP262BLUETOOTH SPEAKER

Bluetooth Speaker Model: SP262-ASST Please read these instructions thoroughly before use and retain for future reference. Safety Instructions The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric. The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance. FCC NOTICE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. Which can be determined by encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, follow the attached installation instructions and use only shield cables when connecting to other devices. Modifications not authorized by the manufacturer may void user’s authority to operate this device. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DON’T REMOVE COVER ( OR BACK ). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Before using the unit, be sure to read all operating instruction carefully, please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna. 1. Read these instructions All safety and operating instructions should be read before the product is operated. 2. Keep these instructions The safety and operating instructions should be retained for future reference. 3. Heed all warnings All warnings on the product and in the operating instruction manual should be adhered to. 4. Follow these instructions All operating and use instructions should be followed. 5. Do not use this apparatus near water Do not use the product near water and moisture, for example:near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool. 6. Clean only with dry cloth Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered.The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand , tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped. Instructions for use Please read all instructions carefully Getting started Remove the speaker from the box Remove any packaging from the product Place the packaging inside the box and store for safekeeping In the box Bluetooth speaker USB charging cable Instruction manual Features - Can be used with any Bluetooth device. - Can also be used with all MP3 players or devices with a headphone socket. - Built in microphone for hands free use with Bluetooth devices. - 2x2W stereo speakers. - Built in Lithium rechargeable battery. - Up to 8 hours continuous music. Product Overview 1. Bluetooth( Blue LED)/AUX IN ( Red LED 1)Indicator 2. Built-in Microphone 3. Charging Indicator(Red LED 2) 4. PLAY/PAUSE (Pair/Hand-free) Button 5. Volume Increase ( Next)Button 6. Volume Decrease (Previous)Button 7. POWER ON/OFF Switch 8. AUX IN jack 9. Charging Port If required, enter the password ‘0000’ to confirm to pairing. Once paired successfully, the blue LED will flash slow…

Text truncated - open the document above for the full version.

Shenzhen Junlan Electronic Ltd Date: August 11, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: OKUSP262 To Whom It May Concern: This letter is to ascertain that Shenzhen Junlan Electronic Ltd Product：BLUETOOTH SPEAKER MODEL No.: CAB-77653, SP262-ASST, SP262-black, SP262-STEALTH, SP262-XXXXXX ("XXXXXX" descript different color) The USB port is used for supplying voltage for battery charging and operational use only If you have any question or concerns, pls. contact us. Sincerely, Shenzhen Junlan Electronic Ltd Client’s name / title: Peng Xiao/ safety engineer Date: 2015-08-11

Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-08-11 SUBJECT: FCC Application for OKUSP262 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at SHENZHEN EMTEK CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Shenzhen Junlan Electronic Ltd Peng Xiao/ safety engineer 2015-08-11

Declaration on model difference 产品差异声明 Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance, trade name and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为外观，商标和型号不同，其它设计完全相同。 „ FCC ID: OKUSP262 Production name 产品名称 Trade name 商标 Model no. 型号 BLUETOOTH SPEAKER SYLVANIA CAB-77653, SP262-ASST, SP262-black, SP262-STEALTH, SP262-XXXXXX ("XXXXXX" descript different color) Confirmed by . Shenzhen Junlan Electronic Ltd Authorized Signature: 授权人签字 Date: 2015-08-11 日期

Rev 11/20/07 Shenzhen Junlan Electronic Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OKUSP262 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Circuit Description BlcokDiagram.pdf SchematicDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Shenzhen Junlan Electronic Ltd (signature) Peng Xiao/ safety engineer 2015-08-11

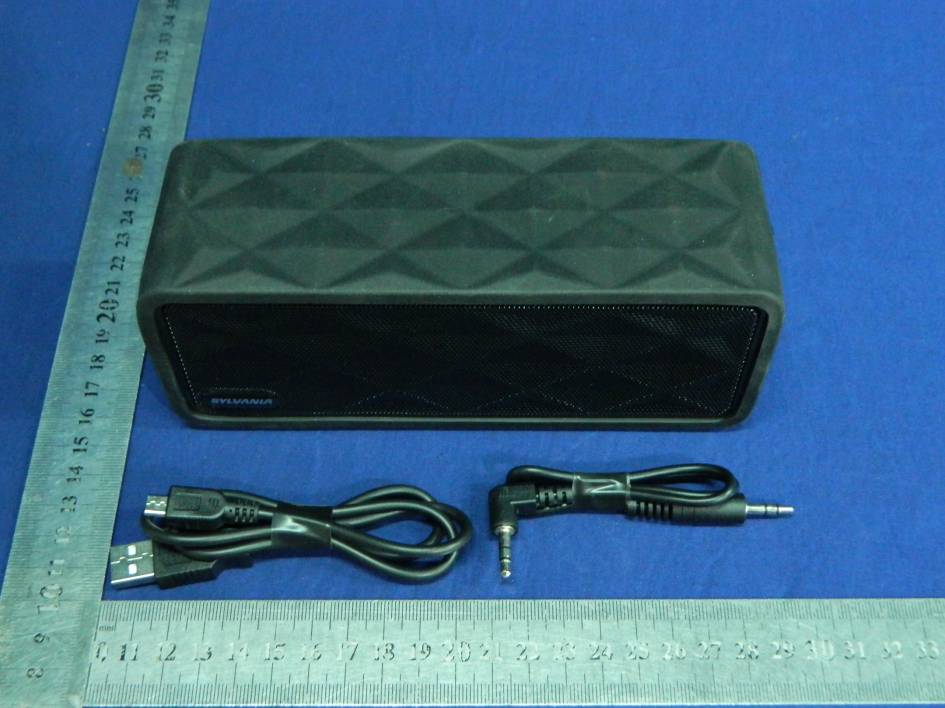

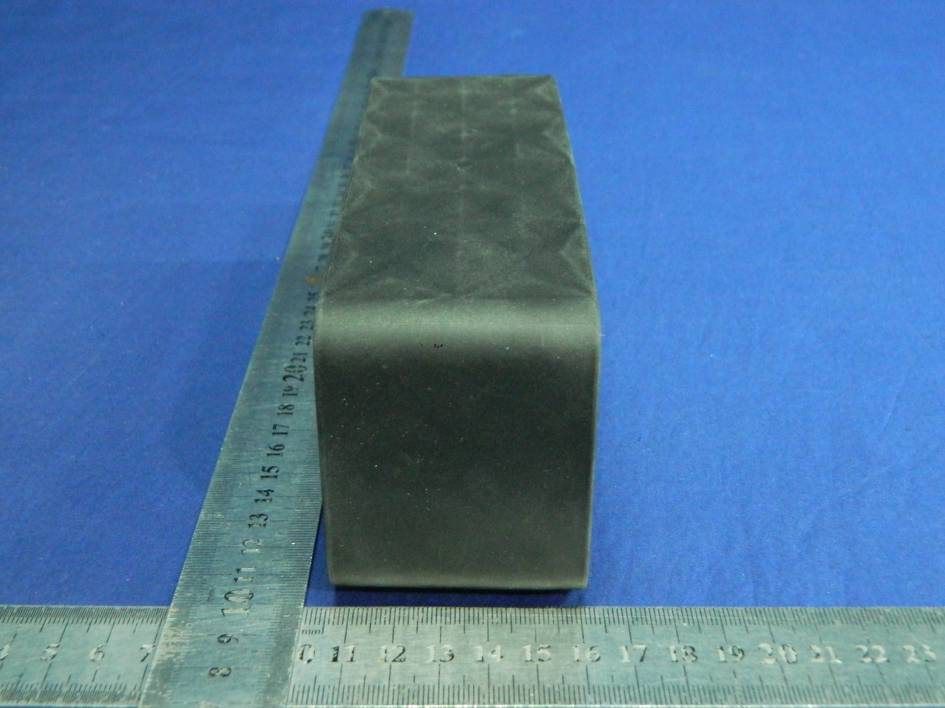

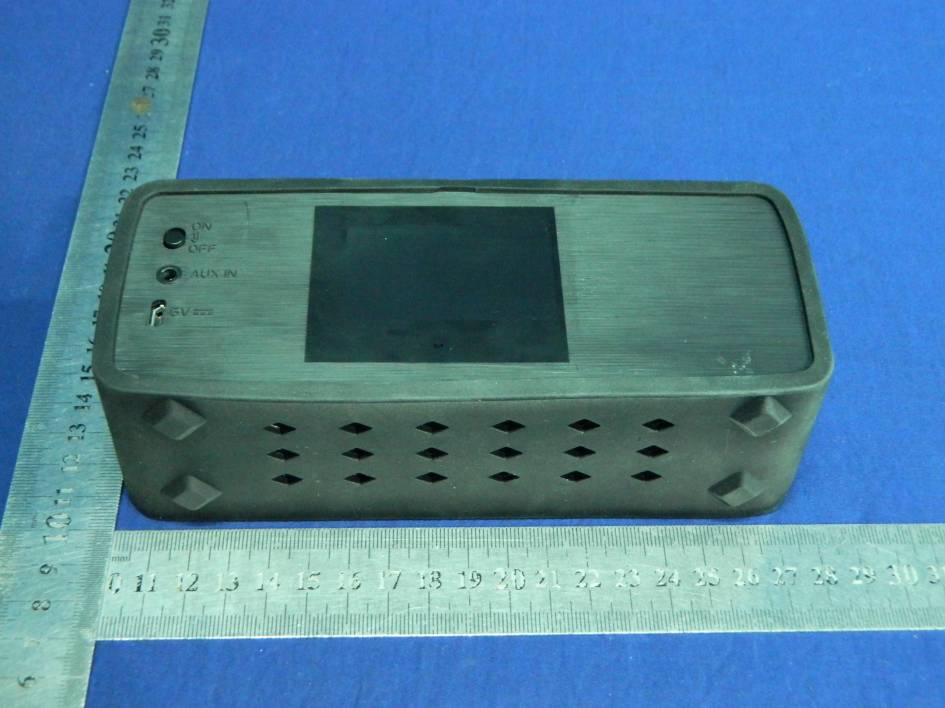

External Photos

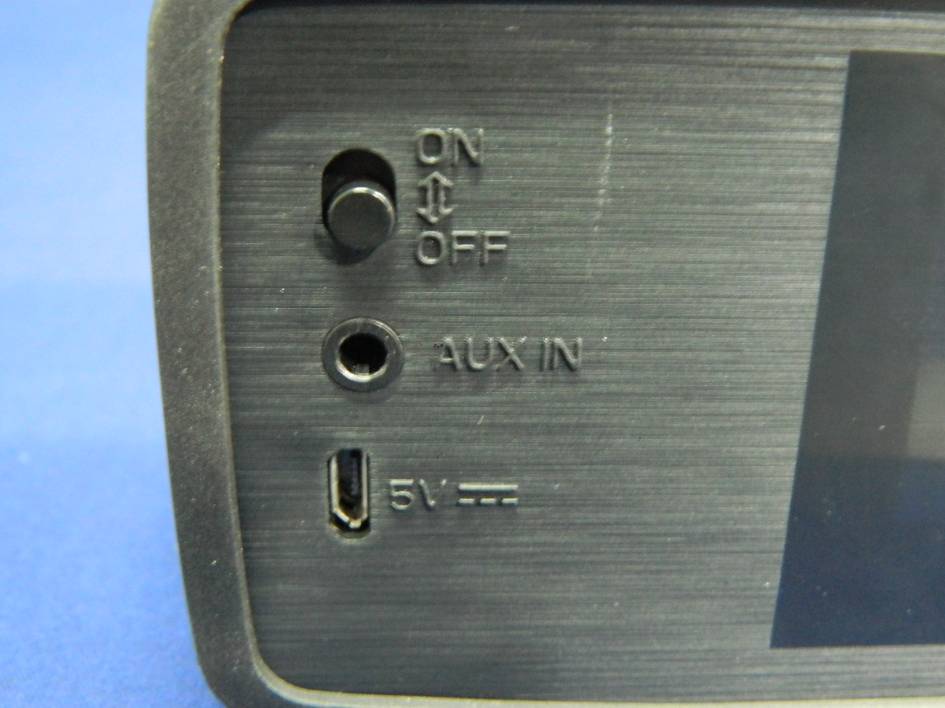

AUX IN 5V 铭牌 SIZE:60*30MM 不干胶贴纸,表面过光胶 单机数量：1PC 贴纸 (黑底白字) MODEL NO.: SP262-ASST BLUETOOTH SPEAKER POWER SOURCE: DC 5V FCC ID:OKUSP262 Imported by Curtis International Ltd Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.00 mm 4.00 mm 流水号贴纸 (白底黑字) SIZE:40*13MM 格式:Code 39 单机数量：2PCS 贴于机器底壳和彩盒上 (扫瞄出来的条码不包含S/N:) 表面过光胶 A: 客户特定 1505: 年月 13610: 客户PO# 0000001: 序列号 MODEL NO.: SP262-ASST BLUETOOTH SPEAKER POWER SOURCE: DC 5V FCC ID:OKUSP262 Imported by Curtis International Ltd Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N:Axxxxxxxxxxxxxxxx MANUFACTURED DATE: Jul. 2015 JLE15539D CAB-77653 CURTIS SP262-ASST 凌霄华 贴纸 0 贴纸位置图 条码 SIZE:40*30MM 不干胶贴纸,表面过光胶 单机数量：4/6 pcs 贴外箱表面 贴纸 (白底黑字) 贴在彩盒封口处. 1 pc 品号：3227C330000101 TO 40 mm 13 m m po#0014465 S/N:A1507144650126669 用于大货63334PCS S/N:A1507144650190002 用于备品318PCS TO S/N:A1507144650190639S/N:A1507144650190956 Jul. 2015 品号：32274JUL201531 品号：3227E603001301 品号：322710LE155381 品号：322740LE155391 品号：322741LE155391

Internal Photos ANTENNA Bluetooth Module

FCC ID : OKUSP262 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the followi ng table shall be used to evaluat e the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission form ula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result BT DSS Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 2402 GFSK 1.56 1.941 0dBm to 2dBm 2 1 0.00032 1 2441 GFSK 1.52 1.812 0dBm to 2dBm 2 1 0.00032 1 2480 GFSK 1.37 1.376 0dBm to 2dBm 2 1 0.00032 1 2402 π /4 - DQPSK 1.56 1.934 0dBm to 2dBm 2 1 0.00032 1 2441 π /4- DQPSK 1.51 1.800 0dBm to 2dBm 2 1 0.00032 1 2480 π /4- DQPSK 1.37 1.374 0dBm to 2dBm 2 1 0.00032 1 2402 8DPSK 1.56 1.922 0dBm to 2dBm 2 1 0.00032 1 2441 8DPSK 1.52 1.812 0dBm to 2dBm 210.00032 1 2480 8DPSK 1.37 1.380 0dBm to 2dBm 2 1 0.00032 1

TRF No.:FCC 15.247/A Page 1 of 56 Report No.: ES150717233E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For BLUETOOTH SPEAKER MODEL No.: CAB-77653, SP262-ASST, SP262-black, SP262-STEALTH, SP262-XXXXXX ("XXXXXX" descript different color) FCC ID: OKUSP262 Trademark: SYLVANIA REPORT NO.: ES150717233E ISSUE DATE: August 11, 2015 Prepared for Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 56 Report No.: ES150717233E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 13 8.1 STANDARD APPLICABLE ........................................................................................................... 13 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................... 13 8.3 EQUAL HOPPING FREQUENCY USE ....................................................................................... 14 8.4 FREQUENCY HOPPING SYSTEM ............................................................................................. 14 9 TEST REQUIREMENTS ........................................................................................................................ 15 9.1 20DB BANDWIDTH ..................................................................................................................... 15 9.2 CARRIER FREQUENCY SEPARATION ..................................................................................... 21 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................... 29 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 32 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................... 33 9.7 RADIATED SPURIOUS EMISSION ............................................................................................ 40 9.8 CONDUCTED EMISSION TEST ................................................................................................. 53 9.9 ANTENNA APPLICATION ............................................................................................................ 56 TRF No.:FCC 15.247/A Page 3 of 56 Report No.: ES150717233E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Manufacturer: Shenzhen Junlan Electronic Ltd No.277 PingKui Road, Shijing Community, Pingshan Street, Pingshan New District, Shenzhen, China Product Description: BLUETOOTH SPEAKER Model Number: CAB-77653, SP262-ASST, SP262-black, SP262-STEALTH, SP262-XXXXXX ("XXXXXX" descript different color) (Note: These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance, trade name and model no. for trading purpose. We prepare CAB-77653 for test, and the worst result recorded in the report.) File Number: ES150717233E Date of Test: July 17, 2015 to August 11, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10(2009) and the ener…
