OKUTSB65528TOWER SPEAKER

FCC Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Consult the dealer or an experienced radio/TV technician for help. RF Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SHENZHEN JUNLAN ELECTRONIC LTD 2015-2-7 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SHENZHEN JUNLAN ELECTRONIC LTD hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): TOWER SPEAKER, TSB-65528, ITSB-345, ITSB-340, TSB-65528X FCC ID: OKUTSB65528 Sincerely, signature peng xiao /safety engineer E-mail: [email protected] Phone: 0755-27309169 Fax: 0755-27309497 Address: District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHENZHEN JUNLAN ELECTRONIC LTD 2015-2-7 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OKUTSB65528 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature peng xiao /safety engineer E-mail: [email protected] Phone: 0755-27309169 Fax: 0755-27309497 Address: District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China

Family models declaration letter. 2015-2-7 We SHENZHEN JUNLAN ELECTRONIC LTD Of District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China （address） Declare under our sole responsibility that the product Product: TOWER SPEAKER Model Number: TSB-65528, ITSB-345, ITSB-340, TSB-65528X FCC ID: OKUTSB65528 all the model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the color of appearance and model number, X can Be A to Z or blank and means unit color or patten. Unless otherwise stated Thanks Sincerely, peng xiao /safety engineer E-mail: [email protected] Phone: 0755-27309169 Fax: 0755-27309497 Address: District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China

Label Location Proposed Label Location on EUT

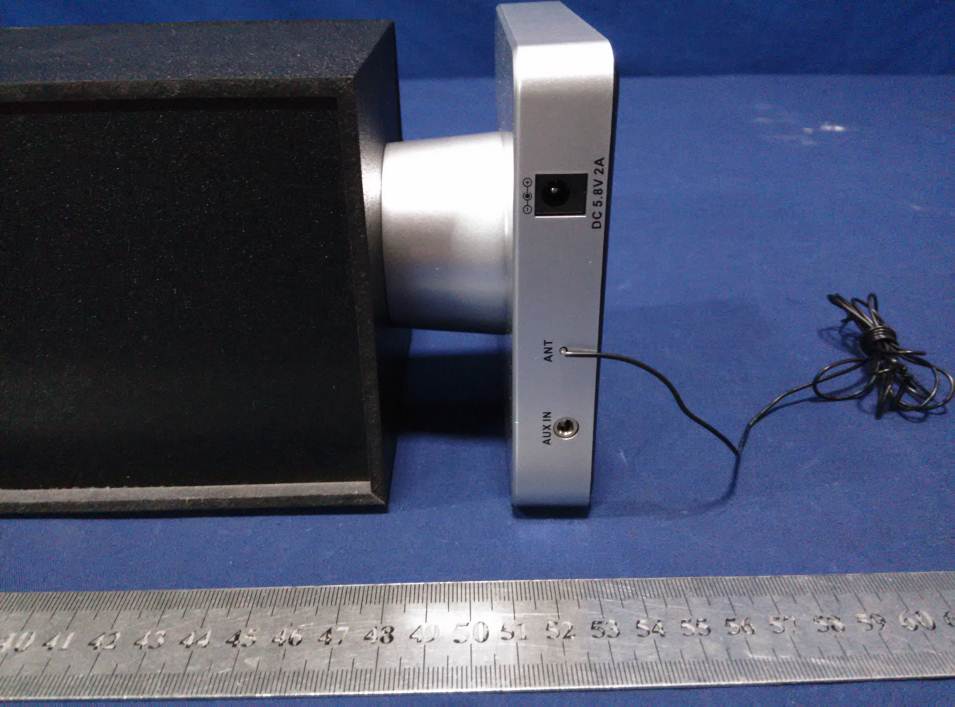

Module Antenna

FCC ID: OKUTSB65528 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Bluetooth: Transmit Frequency (GHz) Mode Measured Power (dBm) Tune-up power (dBm) Max tune-up power(dBm) Result calculation 1-g SAR 2.402 GFSK 3.35 4±1 5 0.9802 3.0 2.441 GFSK 4.11 4±1 5 0.9881 3.0 2.480 GFSK 4.27 4±1 5 0.9960 3.0 2.402 π/4-DQPSK 2.20 2±1 3 0.6185 3.0 2.441 π/4-DQPSK 2.68 2±1 3 0.6235 3.0 2.480 π/4-DQPSK 2.53 2±1 3 0.6284 3.0 2.402 8DPSK 2.43 2±1 3 0.6185 3.0 2.441 8DPSK 2.98 2±1 3 0.6235 3.0 2.480 8DPSK 2.84 2±1 3 0.6284 3.0 Conclusion: For the max result : 0.9960≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Sincerely, _____________________________ Signature Company Name: SHENZHEN EMTEK CO., LTD. Address: Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, China David Lee/Manager

TRF No.:FCC 15.247/A Page 1 of 65 Report No.: ES150205046E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For TOWER SPEAKER MODEL No.: TSB-65528, ITSB-345, ITSB-340, TSB-65528X FCC ID: OKUTSB65528 Trademark: Innovative Technology REPORT NO.: ES150205046E ISSUE DATE: February 7, 2015 Prepared for SHENZHEN JUNLAN ELECTRONIC LTD District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 65 Report No.: ES150205046E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION .......................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................................ 4 3 SUMMARY OF TEST RESULT ............................................................................................................................. 5 4 TEST METHODOLOGY ........................................................................................................................................ 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 6 5 FACILITIES AND ACCREDITATIONS ................................................................................................................. 8 5.1 FACILITIES ................................................................................................................................................. 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 8 6 TEST SYSTEM UNCERTAINTY ........................................................................................................................... 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................................. 10 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................. 13 7.5 SUPPORT EQUIPMENT ........................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ..................................................................................... 14 8.1 STA N D A R D APPLICABLE .............................................................................................................................. 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE .............................................................................................................. 15 8.4 FREQUENCY HOPPING SYSTEM .................................................................................................................... 15 9 TEST REQUIREMENTS ...................................................................................................................................... 16 9.1 20DB BANDWIDTH ................................................................................................................................. 16 9.2 CARRIER FREQUENCY SEPARATION .................................................................................................. 22 9.3 NUMBER OF HOPPING FREQUENCIES ............................................................................................... 28 9.4 AV E R A G E TIME OF OCCUPANCY (DWELL TIME) ............................................................................. 30 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................ 33 9.6 CONDUCTED SUPRIOUS EMISSION .................................................................................................... 39 9.7 RADIATED SPURIOUS EMISSION ......................................................................................................... 46 9.8 CONDUCTED EMISSION TEST .............................................................................................................. 62 9.9 ANTENNA APPLICATION ....................................................................................................................... 65 TRF No.:FCC 15.247/A Page 3 of 65 Report No.: ES150205046E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: SHENZHEN JUNLAN ELECTRONIC LTD District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China Manufacturer: SHENZHEN JUNLAN ELECTRONIC LTD District 2 type A plant in the second layer 1-4,NO.2 Industrial Fuyuan,Tangwei, Fuyong, Baoan, Shenzhen518103,China Product Description: TOWER SPEAKER Model Number: TSB-65528, ITSB-345, ITSB-340, TSB-65528 (Note: all the model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the color of appearance and model number, X can Be A to Z or blank and mea…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Emission Test
