Operation Manual RFID Reader “IDE-XG-125-USB” REVISION 2.0, 2013-12-04 Confidential information, all rights reserved. BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Phone: +49 (811) 99 88 1- 0 FAX: +49 (811) 99 88 1- 11 e-mail: [email protected] http://www.baltech.de/ - 1 - Covered Variants: 10089-200 10089-2x 1 -y 1 IDE-XG-125-USB 1 “x“ and “y” shall represent any numerical number. - 2 - Introduction The “10089-2XY” is a contactless desktop smart card USB reader and writer which supports all major 125 kHz family cards. Mounting and Connection The reader generates a magnetic field at 125 kHz frequency which could be influenced by any electrically conductive material close to the device. To ensure good performances and functionalities in terms of read range and reliability a minimum distance of 10cm from such materials is required. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 m in order to avoid degradation of performance due to interference. To connect the device to a host system (a printer or a PC), please make sure that the system provides an USB socket intended for connection of the reader. Operation Whenever the device is connected to the USB-Host, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the USB Interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centred above the reader. - 3 - Technical Features Parameters Descriptions RF-Characteristics Operated Frequencies 125KHz Data transmission modulation reader to card: ASK Data transmission modulation card to reader: AM/Load modulation Interfaces Host USB: Full speed 2.0 Human LEDs, Buzzer Power Supply [V DC ] USB bus powered: 5 (±5%) Consumption [W] 0.5 typ Temperature Operating [°C] -20 to +65 Storage [°C] -25 to +85 Humidity Operating[%] 20 to 80 relative humidity; non condensing Non Operating [%] 10 to 90 relative humidity; non condensing Pinout 4-Pin USB-A plug and Signal Descriptions Pin Name Type Description 1 PWR Power 5V Power Supply 2 D- Output USB-Data inverted 3 D+ Input USB-data 4 GND Power Signal and Power Ground - 4 - General regulatory requirements FCC ID OKY10089200A03B IC: 7657A- 10089200 NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications made to this equipment not expressly approved by BALTECH AG may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

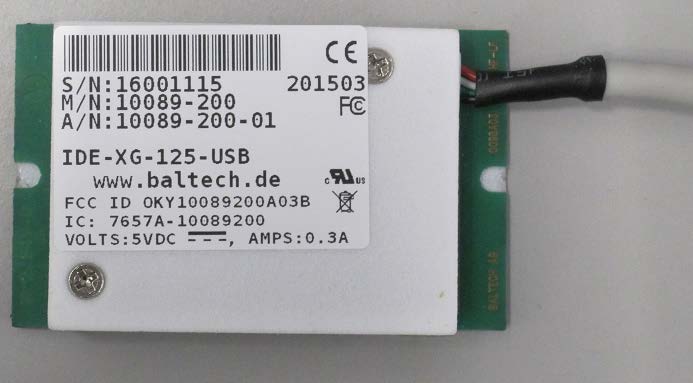

Pictures for “10089-200” FCC ID : OKY10089200A03B IC ID: 7657A-10089200 Covered Variants: 10089-200, 10089-2x 1 -y 1 Picture -1 1 “x“ and “y” shall represent any numerical number Picture -2 Picture -3 Picture -4 Picture -5

Pictures for “10089-200” FCC ID : OKY10089200A03B IC ID: 7657A-10089200 Covered Variants: 10089-200, 10089-2x 1 -y 1 Picture -1 1 “x“ and “y” shall represent any numerical number Picture -2 Picture -3 Picture -4 Picture -5

Pictures for “10089-200” FCC ID : OKY10089200A03B IC ID: 7657A-10089200 Covered Variants: 10089-200, 10089-2x 1 -y 1 Internal Pictue : 1 1 “x“ and “y” shall represent any numerical number Internal Picture : 2 Internal Picture : 3 Note : Front cover may change in color or texture.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 69583-55945-2 (Edition 1) Applicant: Baltech AG Type of equipment: RFID Reader Type designation: IDE‑XG 10089-1X-Y / 10089-2X-Y / 10089-3X-Y Where "X" and "Y" may be replaced by any alphanumerical numbers Order No.: N/A Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 4, Sections 8.8, 8.9 and 8.10 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) February 26, 2015 Page 1 of 54 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-55945-2 (Edition 1) Page 2 of 54 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 12 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 14 6.5 Radiated Emission at Alternative Test Site ............................................................ 16 6.6 Carrier Frequency Stability ..................................................................................... 18 7 Photographs Taken During Testing .............................................................................. 20 8 Test Results ................................................................................................................. 25 8.1 Occupied Bandwidth .............................................................................................. 27 8.2 Bandwidth of the Emission ..................................................................................... 33 8.3 Designation of Emissions ....................................................................................... 36 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 37 8.5 Spectrum Mask ...................................................................................................... 40 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 42 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 44 8.8 Carrier Frequency Stability ..................................................................................... 46 8.9 Exposure of Humans to RF Fields ......................................................................... 49 9 Referenced Regulations ............................................................................................... 51 10 Test Equipment List with Calibration Data .................................................................... 53 11 Revision History ........................................................................................................... 54 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-55945-2 (Edition 1) Page 3 of 54 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : IDE‑XG 10089-1X-Y / 10089-2X-Y / 10089-3X-Y Where "X" and "Y" may be replaced by any alphanumerical numbers HW Revisions: Functionality 13.56 MHz and 125 kHz: 10089-3X-Y, 10089-300, 10089-301, 10089-302, 10089-330, 10089-340 Functionality 13.56 MHz only: 10089-100, 10089-101, 10089-130, 10089-140, 10089-141, 10089-142 Functionality 125 kHz only: 10089-200, 10089-201 Parts 2 : -- Serial number(s): 16004511 201501 Manufacturer: Baltech AG Type of equipment: RFID Reader Version: As received Additional parts/accessories: -- 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-55945-2 (Edition 1) Page 4 of 54 Pages Technical data of EUT Application frequency range: 125 kHz and 13.110 - 14.010 MHz Frequency range: 125 kHz and 13.553 – 13.567 MHZ Operating frequency: 125 kHz, 13.56 MHz Type of modulation: A1D Pulse train: N/A Pulse width: N/A Number of RF-channels: 1 Channel spacing: Wideband Designation of emissions 3 : A1D Type of antenna: Integrated loop antenna Size/length of antenna: 3 cm x 4 cm Connection of antenna: detachable not detachable Type of power supply: DC supply over USB in…
